Product Details | FLUID PRESSURE REGULATING VALVE
4820-00-230-3739 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 3320, 4820-00-230-3739, 00-230-3739, 4820002303739, 002303739
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 12 OCT 1970 | 00-230-3739 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
Drawings & Photos | NSN 4820-00-230-3739
Cross Reference | NSN 4820-00-230-3739
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3320 | 96355 | MATHESON CO DIV OF G D SEARLE MEDICAL PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-230-3739
Related Products | NSN 4820-00-230-3739
Technical Data | NSN 4820-00-230-3739
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRASS |
| STEM MATERIAL | BRASS |
| FLOW CONTROL DEVICE | DIAPHRAGM |
| OUTSIDE SURFACE TREATMENT | CHROMIUM |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL TUBE |

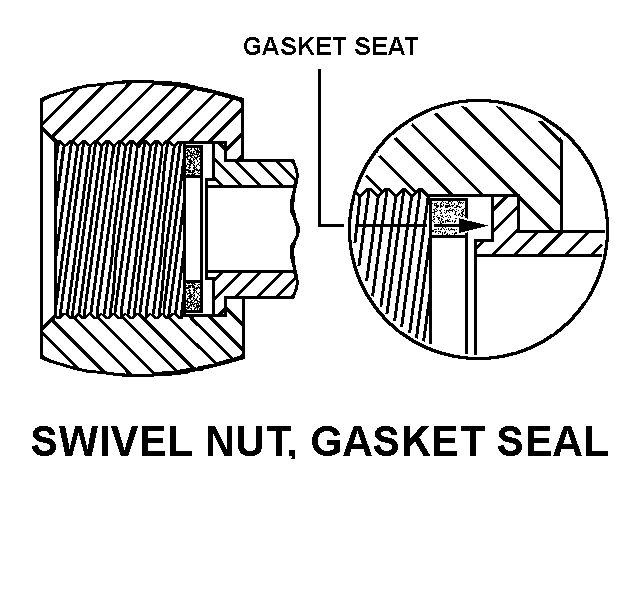

| FIRST END STYLE DESIGNATOR | B4 SWIVEL NUT, GASKET SEAL |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES NOMINAL |
| FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.562-18 UNF |
| FIRST END THREAD CLASS | 2A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END SEAT RADIUS | ANY ACCEPTABLE |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL PIPE |
| SECOND END STYLE DESIGNATOR | D6 PLAIN |
| SECOND END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.125-27 NPT |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| BODY STYLE | A7 ANGLE |
| MEDIA FOR WHICH DESIGNED | GAS |
| REGULATION TYPE | MANUAL SINGLE STAGE |
| MANUAL CONTROL METHOD | WHEEL |
| VALVE STEM DESIGN | SINGLE SEAT |
| VALVE LOADING METHOD | SPRING |
| REMOTE ACTUATION METHOD | DIAPHRAGM |
| TEMP RATING | -20.0 DEG FAHRENHEIT MINIMUM AND 140.0 DEG FAHRENHEIT MAXIMUM |
| MAXIMUM INLET PRESSURE RATING | 3000.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE ACCURACY RATING | NOT RATED |
| FILTER | NOT INCLUDED |
| FURNISHED ITEMS | INLET PRESSURE GAGE AND OUTLET PRESSURE GAGE AND NUT AND SLEEVE |
| (NON-CORE DATA) DIAL OUTSIDE DIAMETER | 1.688 INCHES |
| (NON-CORE DATA) SCALE UNIT OF MEASURE INSCRIPTION | KILOGRAMS PER SQUARE CENTIMETER AND POUNDS PER SQUARE INCH |
| (NON-CORE DATA) DIAL RANGE | 7.0 TO 100.0 AND 220.0 TO 3000.0 |
