NSN 4820-00-402-9635 1A3001V0KDSC10S16ST1, 1A33R16T60S, 1A33R16T60SV
Product Details | SAFETY RELIEF VALVE

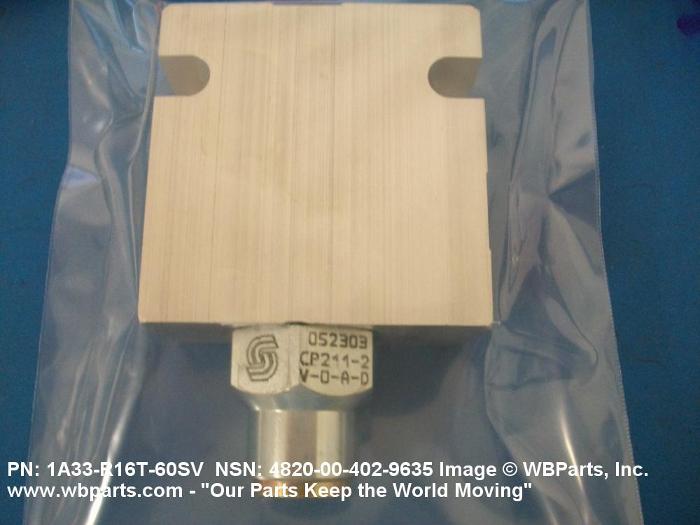

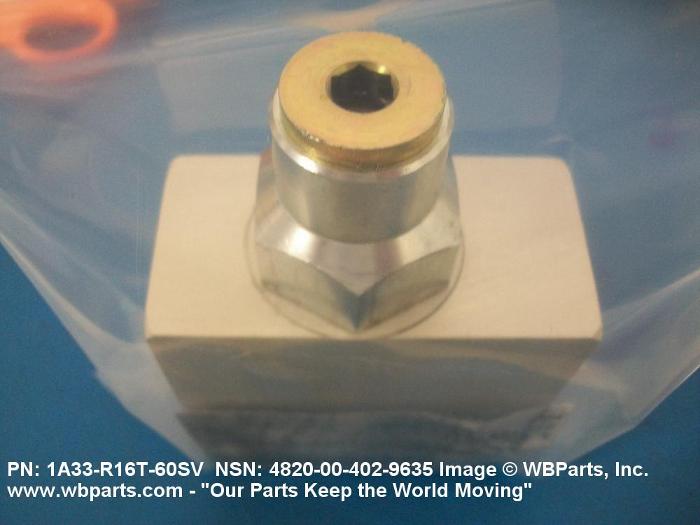

4820-00-402-9635 A valve designed to automatically release excessive pressures. It is actuated by static pressure upstream of the valve and is used as a safety valve or relief valve, and may be set to close at a predetermined pressure. It is not designed for regulation of continuously fluctuating loads. It may be inline or cartridge (manifold) design. Excludes VALVE (1), RELIEF, PRESSURE AND TEMPERATURE.
Part Alternates: 1A3001V0KDSC10S16ST1, 1A33R16T60S, 1A33R16T60SV, 1A33-R16T-60SV, 4820-00-402-9635, 00-402-9635, 4820004029635, 004029635
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 18 JAN 1972 | 00-402-9635 | 05488 ( VALVE, SAFETY RELIEF ) |
Drawings & Photos | NSN 4820-00-402-9635
Demand History | NSN 4820-00-402-9635
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-402-9635 | 2011-07-203 | 2 | Taiwan |
| 4820-00-402-9635 | 2010-10-301 | 36 | DIBBS |
| 4820-00-402-9635 | 2010-04-120 | 37 | DIBBS |
| 4820-00-402-9635 | 2009-12-344 | 28 | DIBBS |
| 4820-00-402-9635 | 2009-06-177 | 39 | DIBBS |
| 4820-00-402-9635 | 2009-01-09 | 29 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-402-9635
Related Products | NSN 4820-00-402-9635
Technical Data | NSN 4820-00-402-9635
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY BODY |
| STYLE DESIGNATOR | A29 CROSS W/OFFSET |
| OFFSET DISTANCE | 1.750 INCHES |
| FLOW CONTROL DEVICE | PISTON |
| MEDIA FOR WHICH DESIGNED | OIL, HYDRAULIC SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 6000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| VALVE DISCHARGE FLOW RATE | 40.0 GALLONS PER MINUTE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED INTERNAL PIPE 1ST END |
| CONNECTION STYLE | G9 PLAIN 1ST END |
| THREAD SERIES DESIGNATOR | UNF 1ST END |
| NOMINAL THREAD SIZE | 1.000 INCHES 1ST END |
| THREAD CLASS | 3B 1ST END |
| THREAD DIRECTION | RIGHT-HAND 1ST END |
| DISK LOADING METHOD | SPRING |
| ADJUSTABLE PRESSURE RANGE | 500.0 TO 6000.0 POUNDS PER SQUARE INCH |
| MANUFACTURERS CODE | 8Z296 |
| DESIGN CONTROL REFERENCE | 1A30-01-V-0-K-D, SC-10-S16S-T1 |
