NSN 4820-00-404-5866 5561F4A, 65735, 920A10
Product Details | FLUID PRESSURE REGULATING VALVE
4820-00-404-5866 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 5561F4A, 65735, 920A10, 4820-00-404-5866, 00-404-5866, 4820004045866, 004045866
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 27 AUG 1969 | 00-404-5866 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |

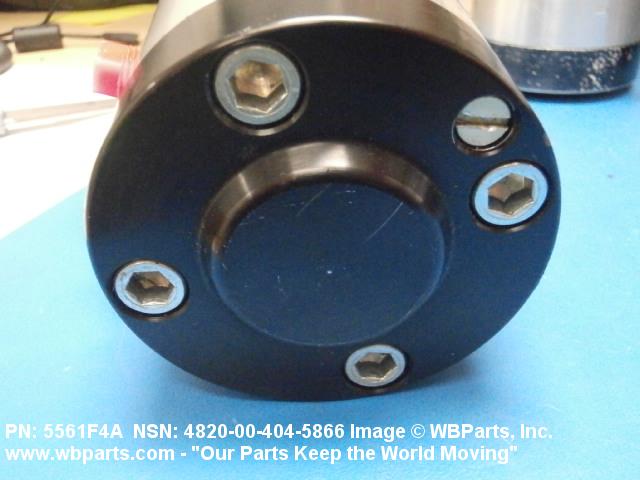

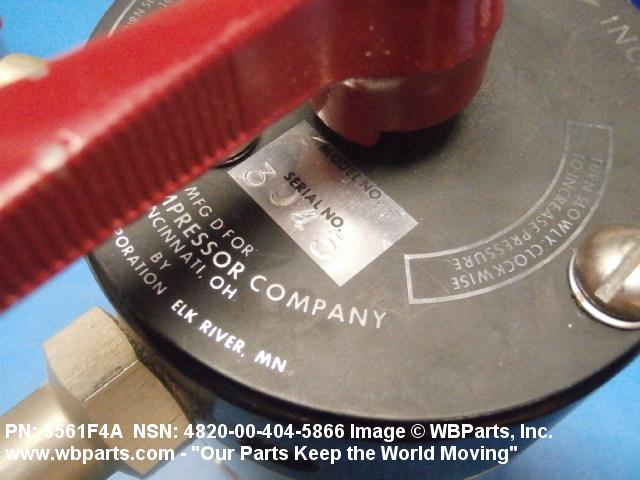

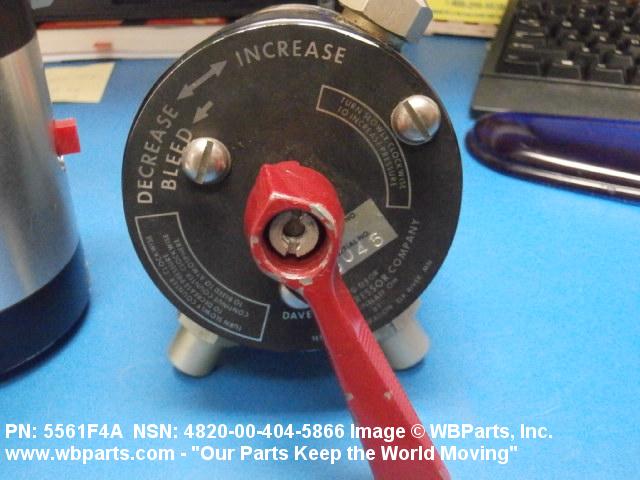

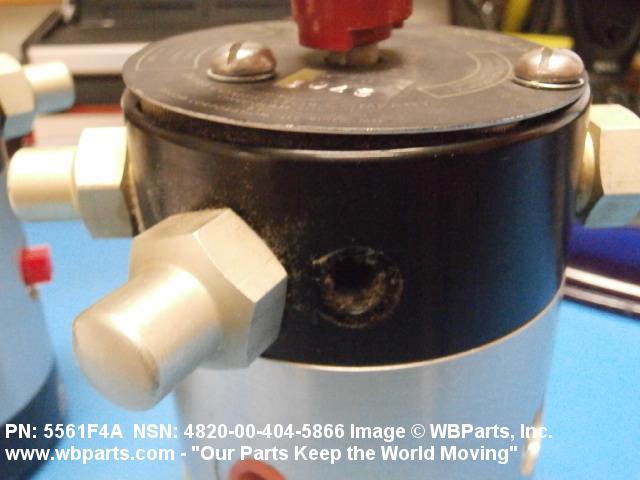

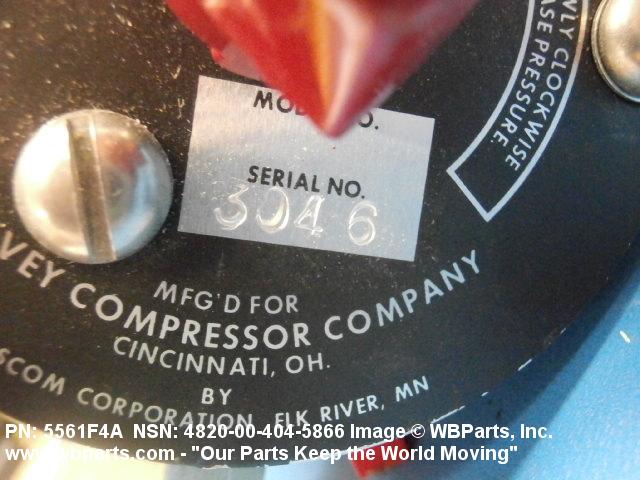

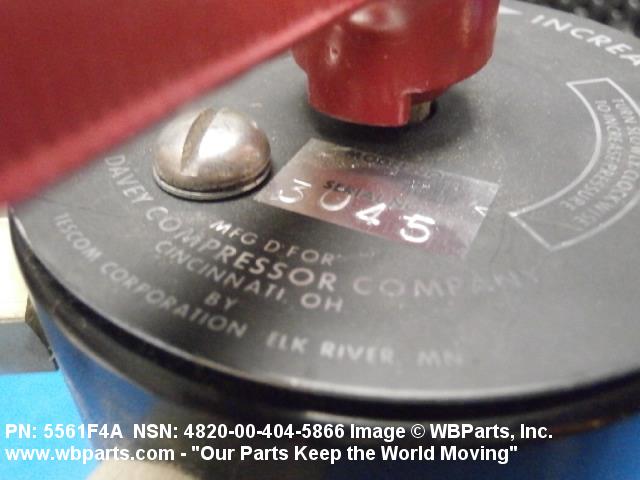

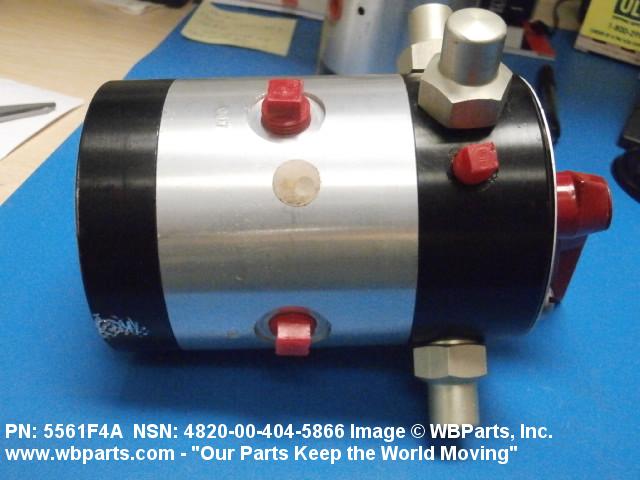

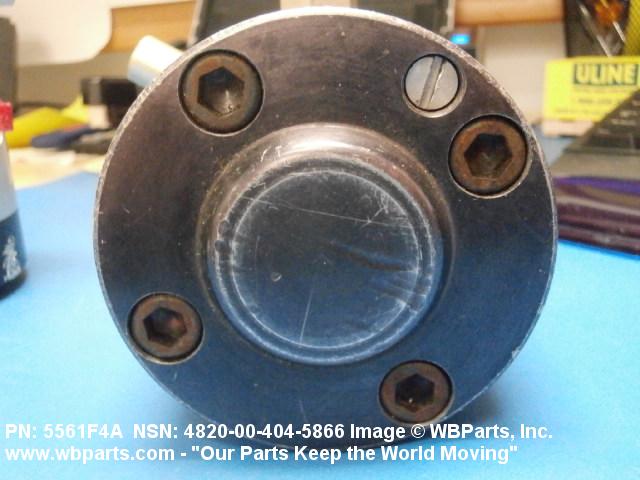

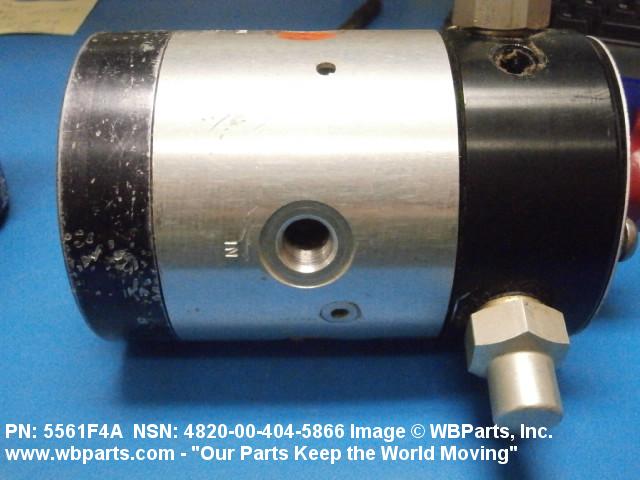

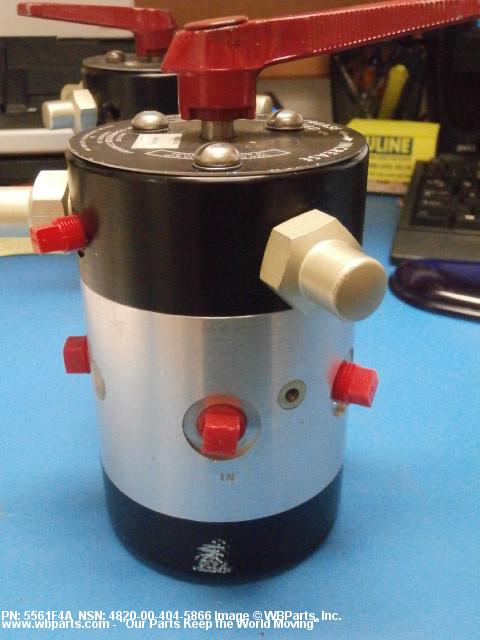

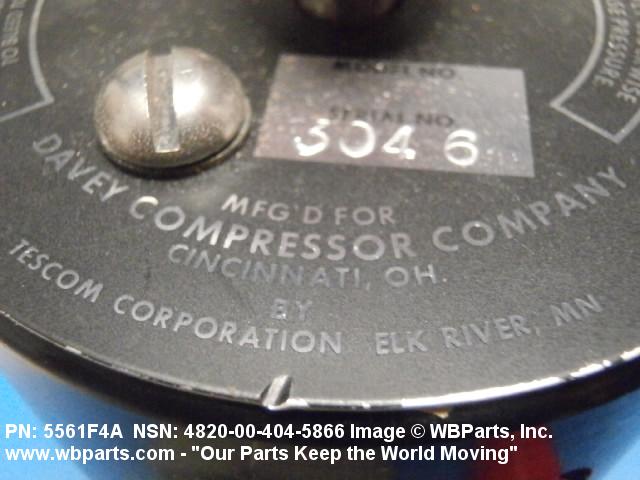

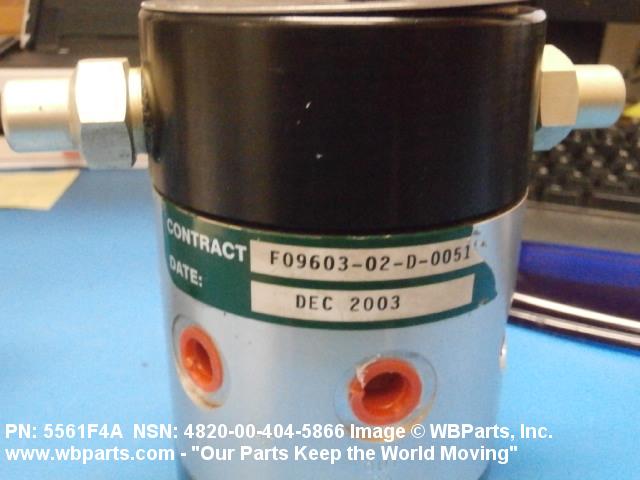

Drawings & Photos | NSN 4820-00-404-5866
Demand History | NSN 4820-00-404-5866
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-404-5866 | 2024-10-290 | 1 | Taiwan |
| 4820-00-404-5866 | 2024-10-278 | 1 | Taiwan |
| 920A10 | 2024-09-267 | 1 | Taiwan |
| 4820-00-404-5866 | 2024-09-260 | 1 | Taiwan |
| 4820-00-404-5866 | 2024-09-247 | 1 | Taiwan |
| 4820-00-404-5866 | 2024-08-242 | 1 | Taiwan |
| 4820-00-404-5866 | 2020-12-358 | 1 | US |
| 5561F4A | 2020-05-132 | 1 | ES |
| 4820-00-404-5866 | 2020-03-64 | 1 | TW |
| 4820-00-404-5866 | 2018-12-352 | 1 | Taiwan |
| 4820-00-404-5866 | 2015-04-104 | 1 | Taiwan |
| 4820-00-404-5866 | 2015-03-76 | 5 | Hong Kong |
| 4820-00-404-5866 | 2015-03-75 | 5 | Hong Kong |
| 4820-00-404-5866 | 2015-02-35 | 5 | Hong Kong |
| 4820-00-404-5866 | 2015-01-21 | 5 | Iran |
Cross Reference | NSN 4820-00-404-5866
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-404-5866
Related Products | NSN 4820-00-404-5866
Technical Data | NSN 4820-00-404-5866
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | ALUMINUM ALLOY, QQ-A-225/6, ALLOY 2024, T4 |
| SEAT MATERIAL | STEEL, CORROSION RESISTING |
| FLOW CONTROL DEVICE | POPPET |
| FLOW CONTROL DEVICE MATERIAL | STEEL, CORROSION RESISTING AND PLASTIC |
| END CONNECTION QUANTITY | 3 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | B11 PLAIN |
| FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1/4-18 NPT |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| THIRD END RELATIONSHIP WITH PRECEDING ENDS | IDENTICAL WITH FIRST END |
| BODY STYLE | A11 TEE |
| MEDIA FOR WHICH DESIGNED | AIR |
| RENEWABLE SEAT RING TYPE | THREADED |
| REGULATION TYPE | 1ST STAGE AUTOMATIC, 2ND STAGE MANUAL |
| MANUAL CONTROL METHOD | LEVER |
| VALVE STEM DESIGN | SINGLE SEAT |
| VALVE LOADING METHOD | SPRING |
| TEMP RATING | -40.0 DEG FAHRENHEIT MINIMUM AND 125.0 DEG FAHRENHEIT MAXIMUM |
| MAXIMUM INLET PRESSURE RATING | 5000.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE RANGE | 10.0 TO 3200.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE ACCURACY RATING | NOT RATED |
| FILTER | NOT INCLUDED |
| FURNISHED ITEMS | AUTOMATIC RELIEF VALVE AND PRESSURE BREAKER |
| SPECIAL FEATURES | 150 CFM,FLOW CAPACITY AT MAX RATED INLET AND OUTLET PRESSURE |
Restrictions/Controls & Freight Information | NSN 4820-00-404-5866
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-404-5866
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | YK | TG:PUMPS & COMPRESSORS |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
