NSN 4820-00-407-0490 44111524, 44-1115-24, 00-407-0490
Product Details | FLUID PRESSURE REGULATING VALVE
4820-00-407-0490 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 44111524, 44-1115-24, 4820-00-407-0490, 00-407-0490, 4820004070490, 004070490
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 29 APR 1970 | 00-407-0490 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |

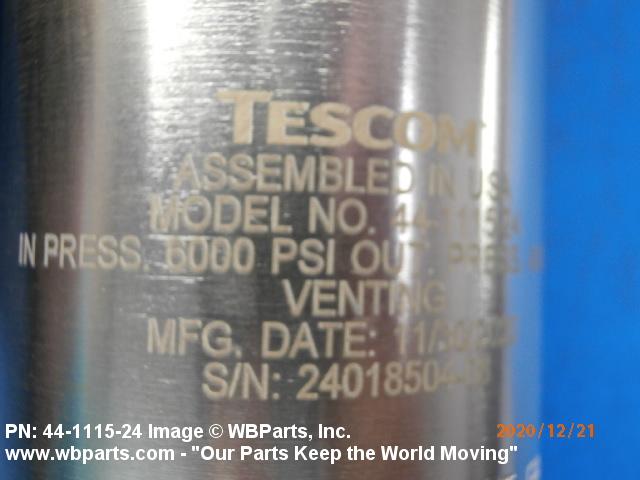

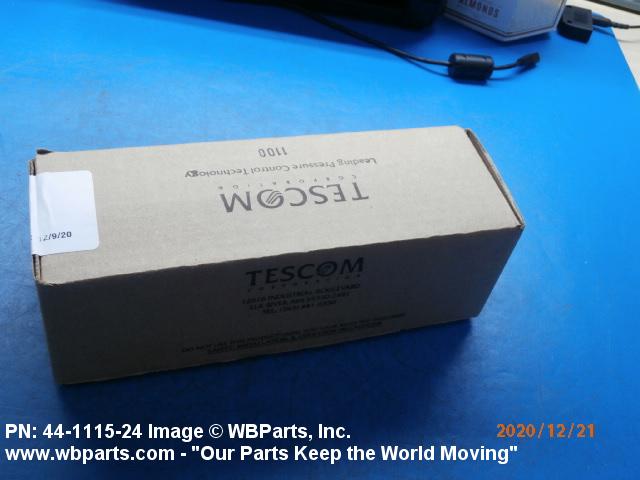

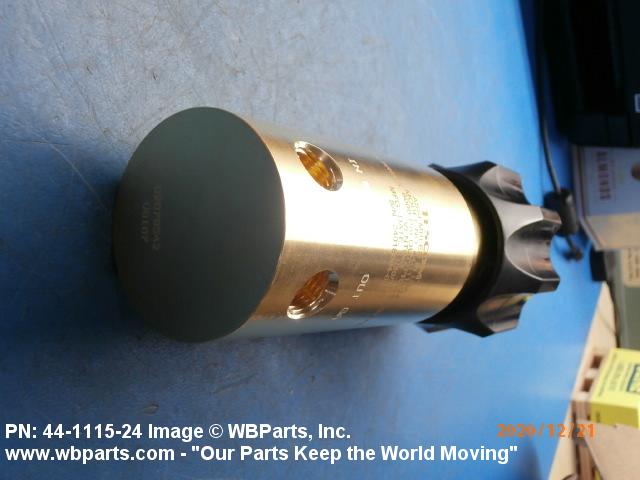

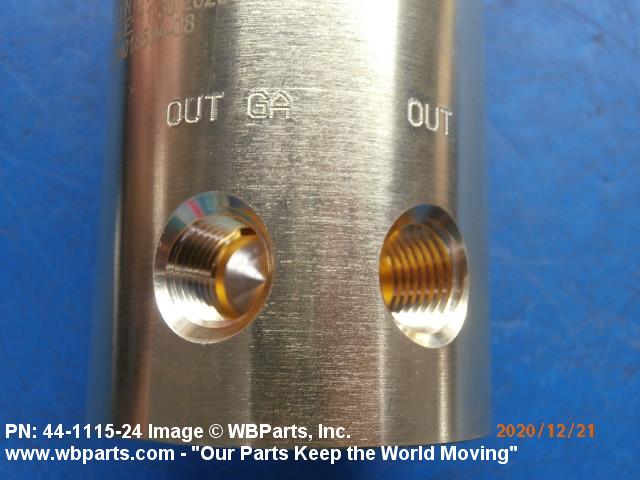

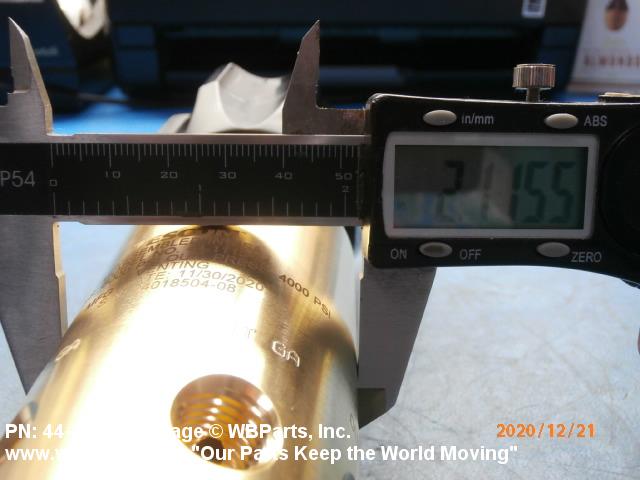

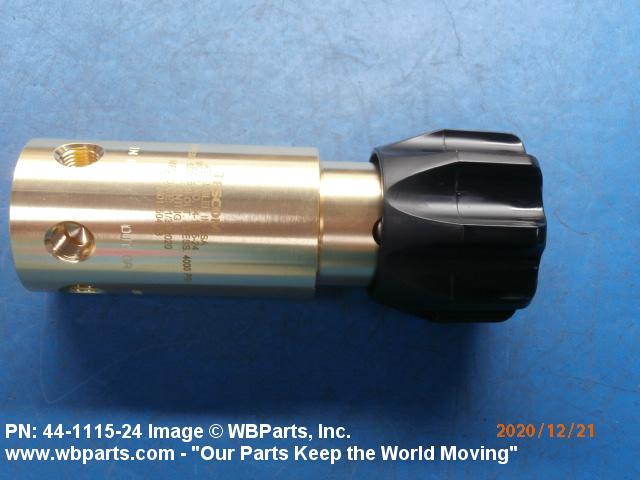

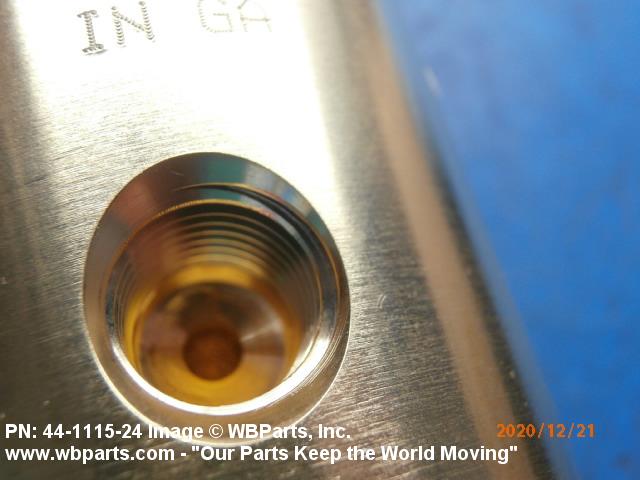

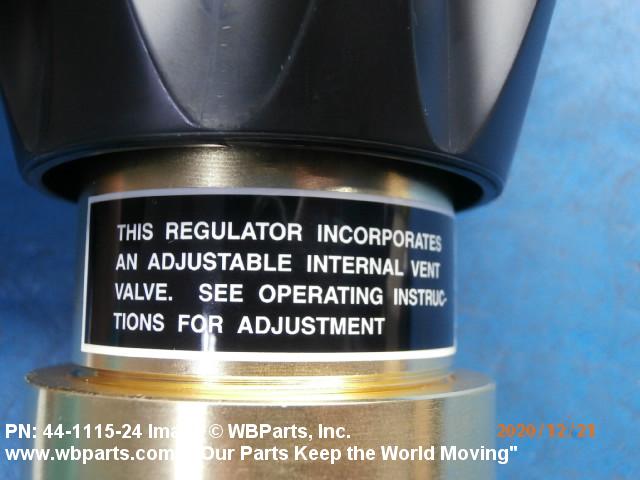

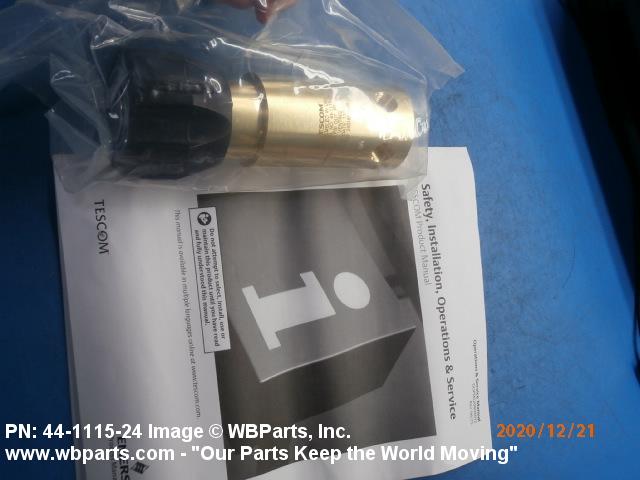

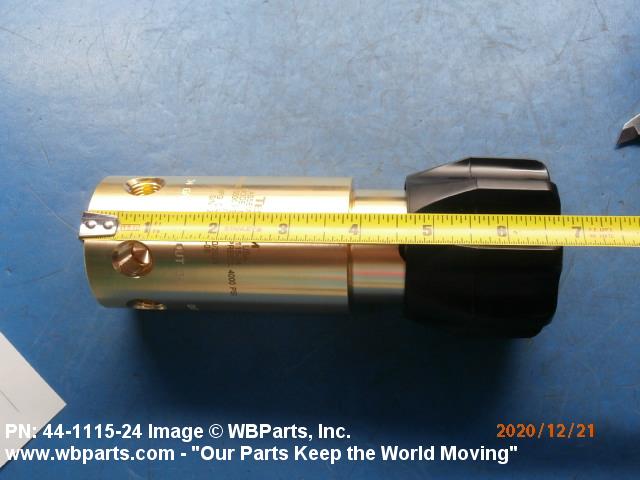

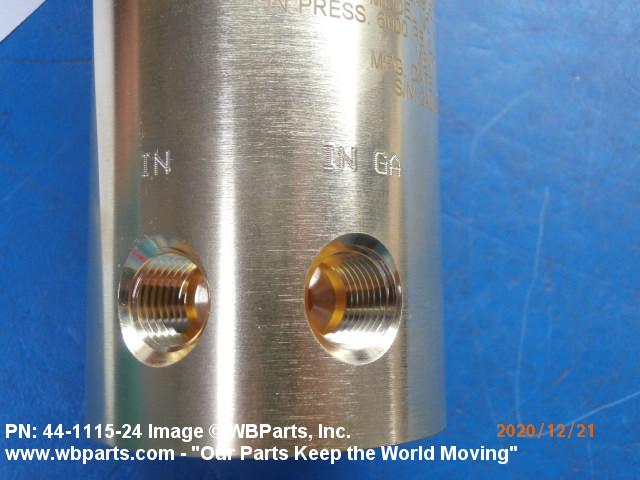

Drawings & Photos | NSN 4820-00-407-0490
Demand History | NSN 4820-00-407-0490
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 44111524 | 2023-03-61 | 2 | Mexico |
| 44111524 | 2021-01-26 | 2 | Denmark |
| 44111524 | 2020-11-316 | 2 | Denmark |
| 44-1115-24 | 2020-08-240 | 4 | DIBBS |
| 44111524 | 2020-07-205 | 1 | Hong Kong |
| 4820-00-407-0490 | 2018-10-281 | 1 | US |
| 44111524 | 2018-06-156 | 1 | US |
| 4820-00-407-0490 | 2018-05-131 | 1 | US |
| 44111524 | 2015-05-139 | 1 | US |
| 4820-00-407-0490 | 2014-08-231 | 1 | DIBBS |
| 4820-00-407-0490 | 2014-08-215 | 1 | DIBBS |
| 44111524 | 2014-05-141 | 5 | Singapore |
Cross Reference | NSN 4820-00-407-0490
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 44-1115-24 | 13669 | TESCOM CORPORATION DBA EMERSON PROCESS MANAGEMENT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-407-0490
Technical Data | NSN 4820-00-407-0490
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRASS |
| SEAT MATERIAL | PLASTIC, KEL-F-81, MINNESOTA MINING AND MFG CO |
| STEM MATERIAL | BRASS |
| FLOW CONTROL DEVICE | CONE, BOTTOM GUIDED |
| FLOW CONTROL DEVICE MATERIAL | BRASS |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | B11 PLAIN |

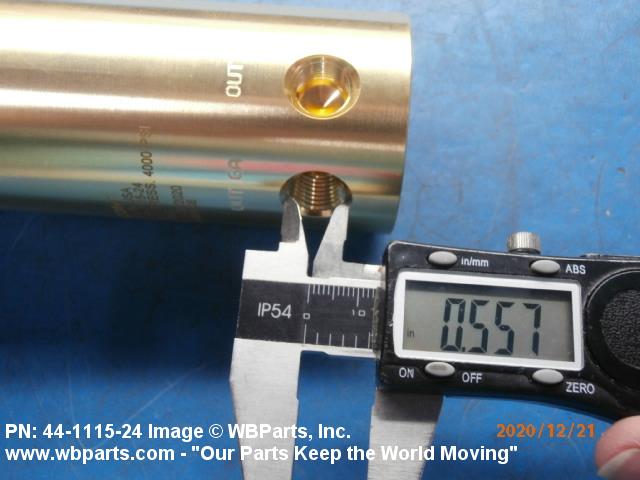

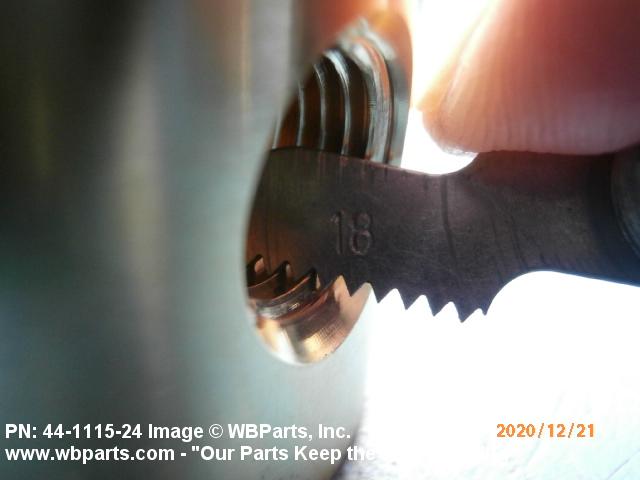

| FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1/4-18 NPT |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| BODY STYLE | A1 STRAIGHT THRU |
| MEDIA FOR WHICH DESIGNED | NOT SPECIFIED |
| RENEWABLE SEAT RING TYPE | PRESSED-IN |
| REGULATION TYPE | MANUAL SINGLE STAGE |

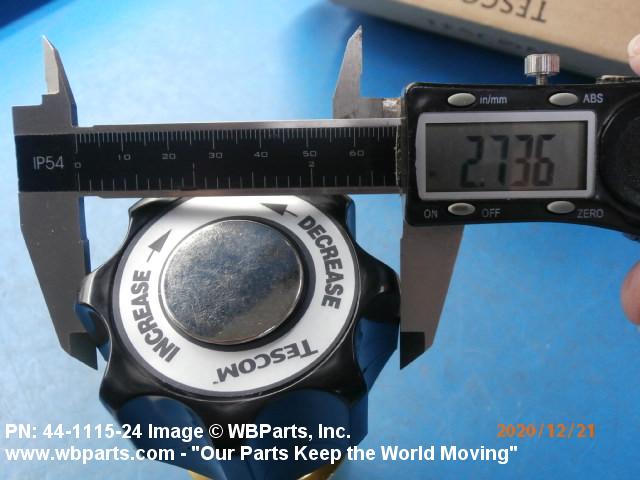

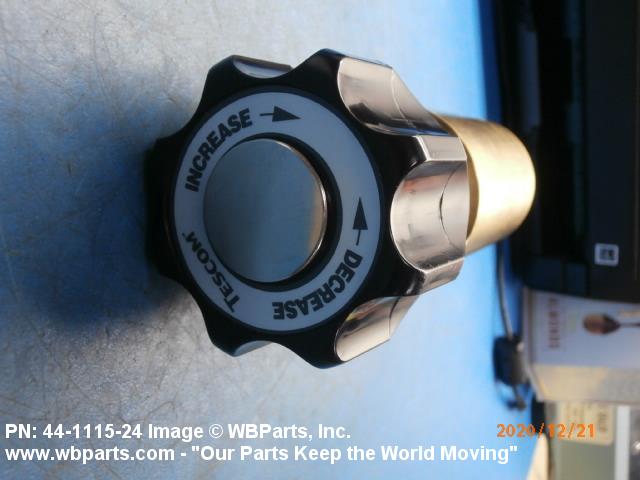

| MANUAL CONTROL METHOD | WHEEL |
| VALVE LOADING METHOD | SPRING |
| TEMP RATING | -65.0 DEG FAHRENHEIT MINIMUM AND 165.0 DEG FAHRENHEIT MAXIMUM |

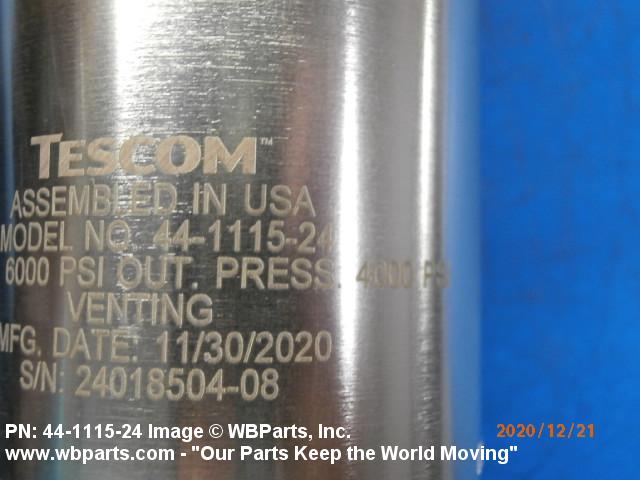

| MAXIMUM INLET PRESSURE RATING | 6000.0 POUNDS PER SQUARE INCH |

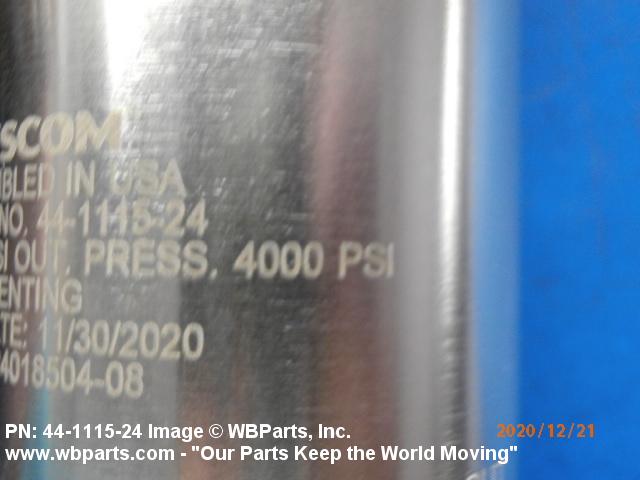

| OUTLET PRESSURE RANGE | 25.0 TO 4000.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE ACCURACY RATING | NOT RATED |
| FILTER | NOT INCLUDED |
| MANUFACTURERS CODE | 13669 |
| DESIGN CONTROL REFERENCE | 44-1115-24 |
Restrictions/Controls & Freight Information | NSN 4820-00-407-0490
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127200 | PRESSURE REDCNG WATER RELIEF VALVE |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-407-0490
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
