Product Details | FLUID PRESSURE REGULATING VALVE
4820-00-525-7851 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: GV500SM16P601, V1000009716P601, V100000-97-16P6-01, 4820-00-525-7851, 00-525-7851, 4820005257851, 005257851
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 28 AUG 1974 | 00-525-7851 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
Drawings & Photos | NSN 4820-00-525-7851
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-525-7851
Technical Data | NSN 4820-00-525-7851
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | ALUMINUM |
| FLOW CONTROL DEVICE | PISTON, TOP GUIDED |
| OUTSIDE SURFACE TREATMENT | PAINTED |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | RECESSED FLANGE |
| FIRST END STYLE DESIGNATOR | B1 SWIVEL NUT, FLARE |
| FIRST END FLANGE SHAPE STYLE | 3 ROUND |
| FIRST END BOLT HOLE QUANTITY | 2 |
| FIRST END FLANGE OUTSIDE DIAMETER | 2.781 INCHES NOMINAL |
| FIRST END FLANGE THICKNESS | 0.219 INCHES NOMINAL |
| FIRST END BOLT HOLE DIAMETER | 0.281 INCHES NOMINAL |
| FIRST END BOLT CIRCLE DIAMETER | 1.750 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | UNTHREADED EXTERNAL HOSE |

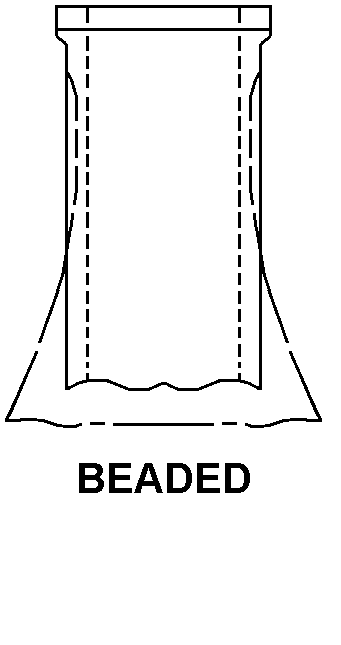

| SECOND END STYLE DESIGNATOR | E3 BEADED |
| SECOND END OUTSIDE DIAMETER HOSE ACCOMMODATED | ANY ACCEPTABLE |
| BODY STYLE | A1 STRAIGHT THRU |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC OIL |
| REGULATION TYPE | AUTOMATIC SINGLE STAGE |
| VALVE STEM DESIGN | SINGLE SEAT |
| VALVE LOADING METHOD | SPRING |
| TEMP RATING | -65.0 DEG FAHRENHEIT MINIMUM AND 165.0 DEG FAHRENHEIT MAXIMUM |
| MAXIMUM INLET PRESSURE RATING | 100.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE RANGE | 7.0 TO 100.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE ACCURACY RATING | NOT RATED |
| FILTER | NOT INCLUDED |
| SPECIAL FEATURES | TWO PILOT PORTS,1/2 IN.-20 UNF,LOCATED AT TOP AND BOTTOM OF VALVE |
