NSN 4820-00-603-3683 16004002, 16-004-002, 54B6845H05
Product Details | SAFETY RELIEF VALVE
4820-00-603-3683 A valve designed to automatically release excessive pressures. It is actuated by static pressure upstream of the valve and is used as a safety valve or relief valve, and may be set to close at a predetermined pressure. It is not designed for regulation of continuously fluctuating loads. It may be inline or cartridge (manifold) design. Excludes VALVE (1), RELIEF, PRESSURE AND TEMPERATURE.
Part Alternates: 16004002, 16-004-002, 54B6845H05, 4820-00-603-3683, 00-603-3683, 4820006033683, 006033683
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 22 JAN 1975 | 00-603-3683 | 05488 ( VALVE, SAFETY RELIEF ) |

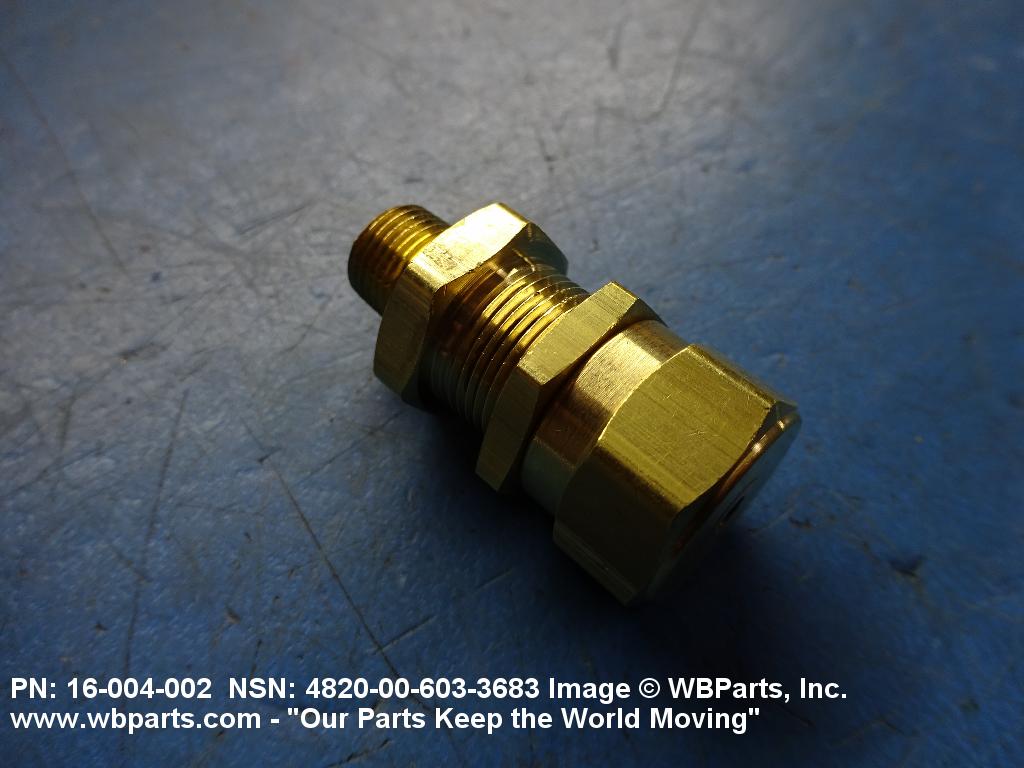

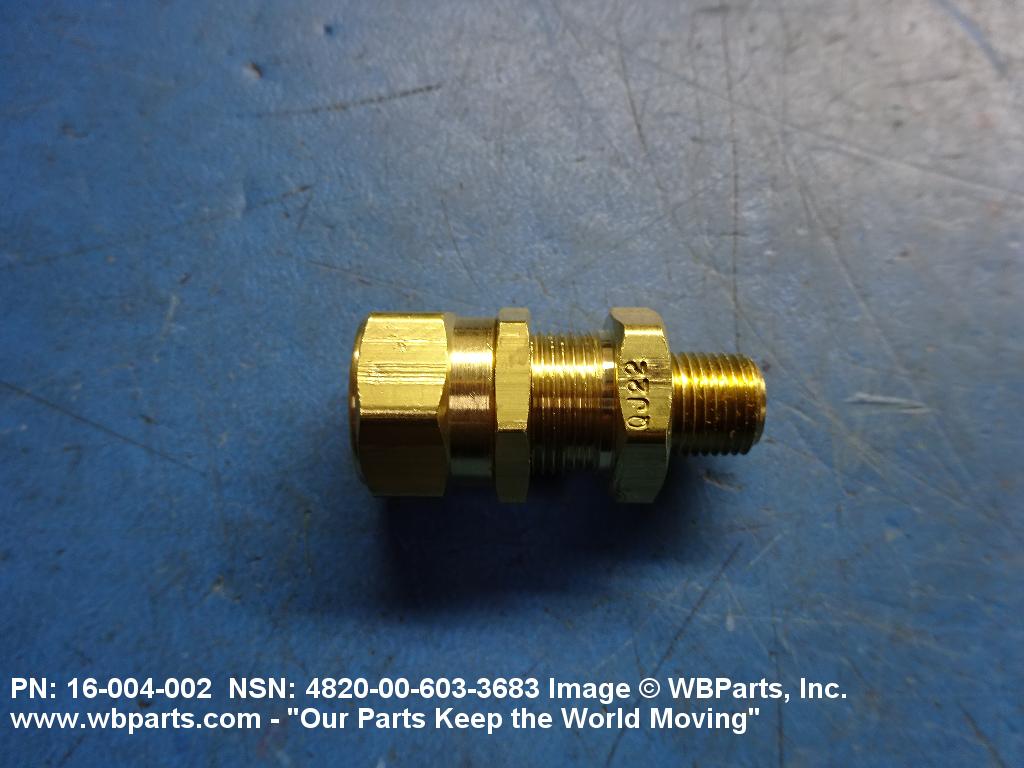

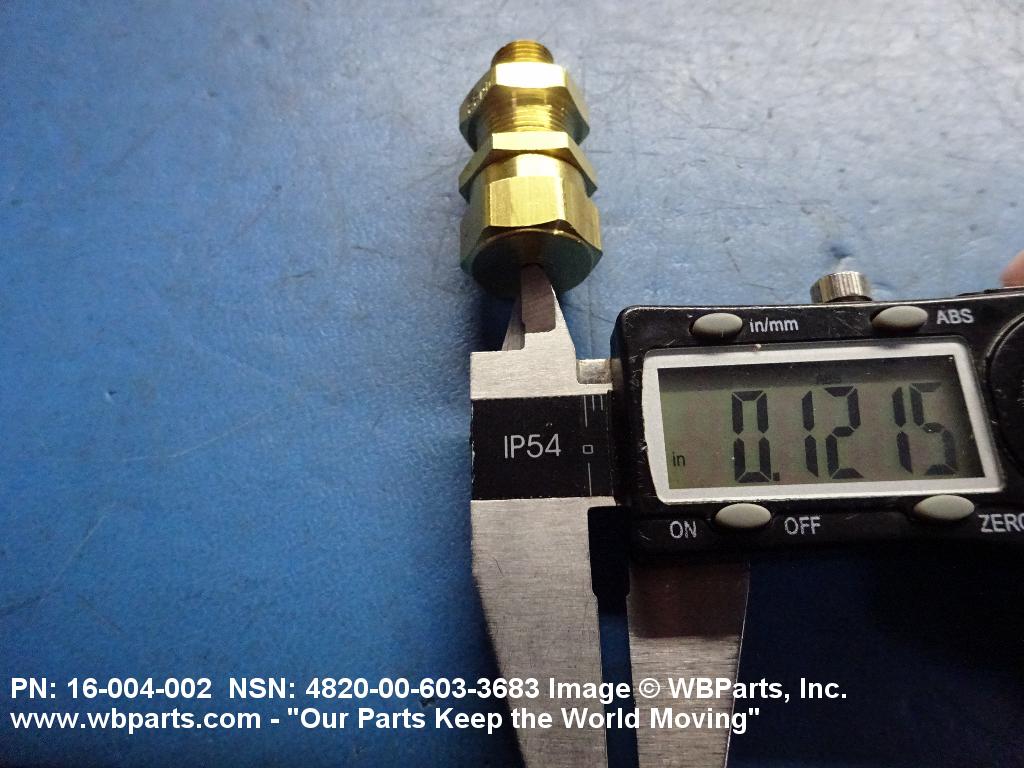

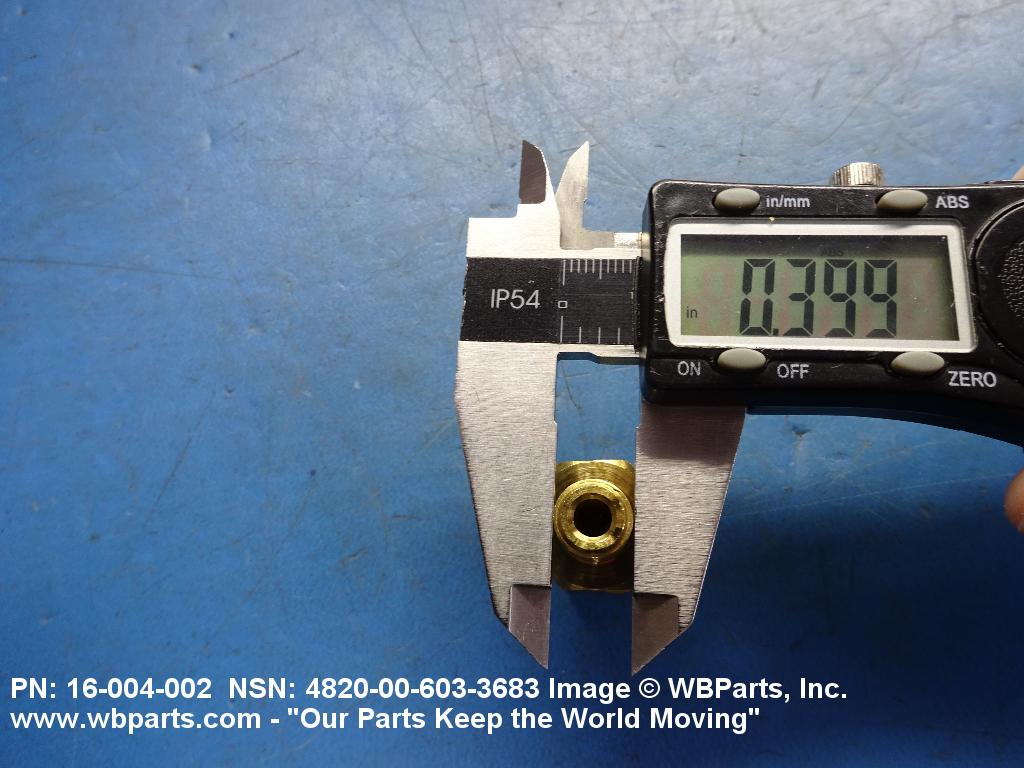

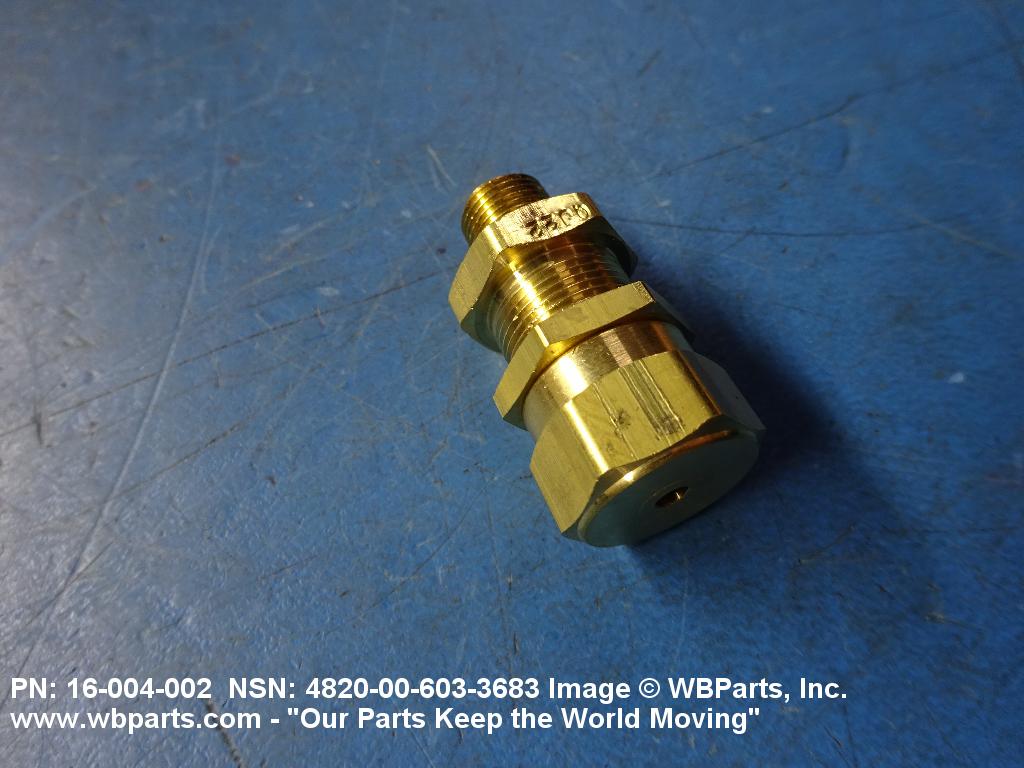

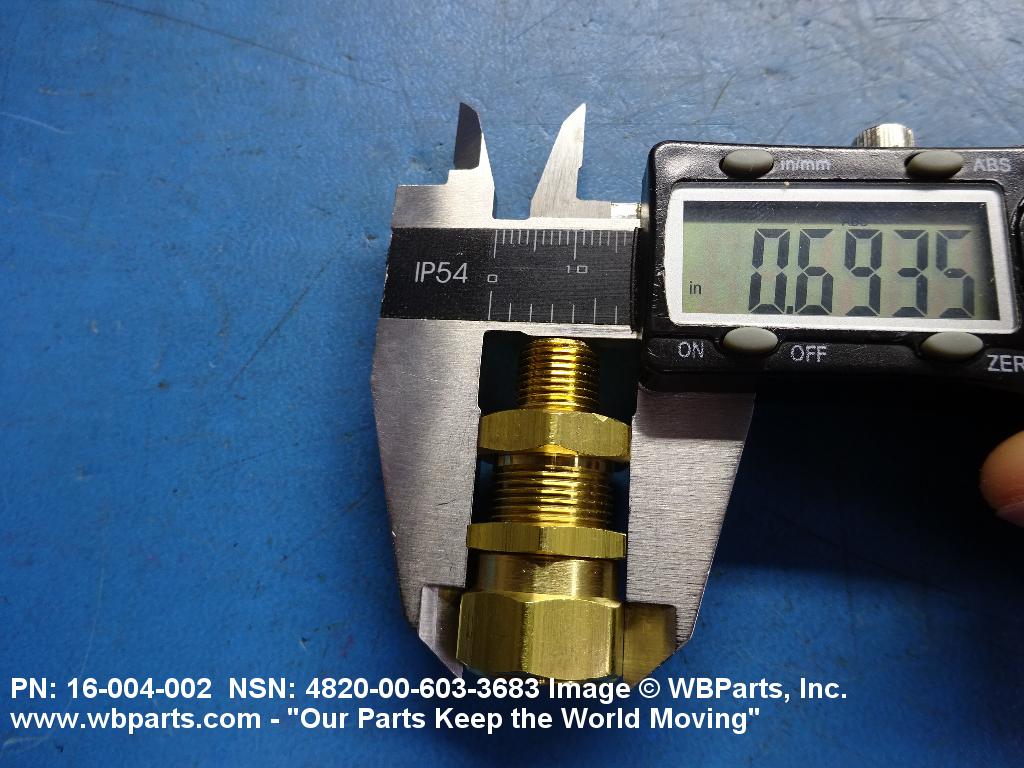

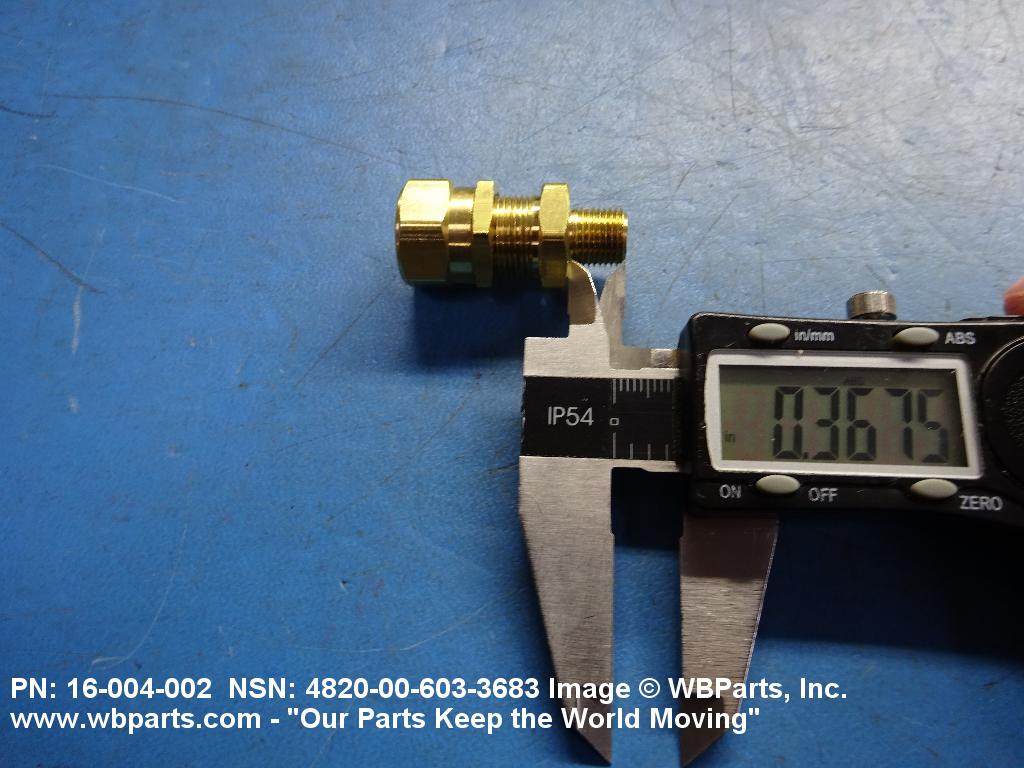

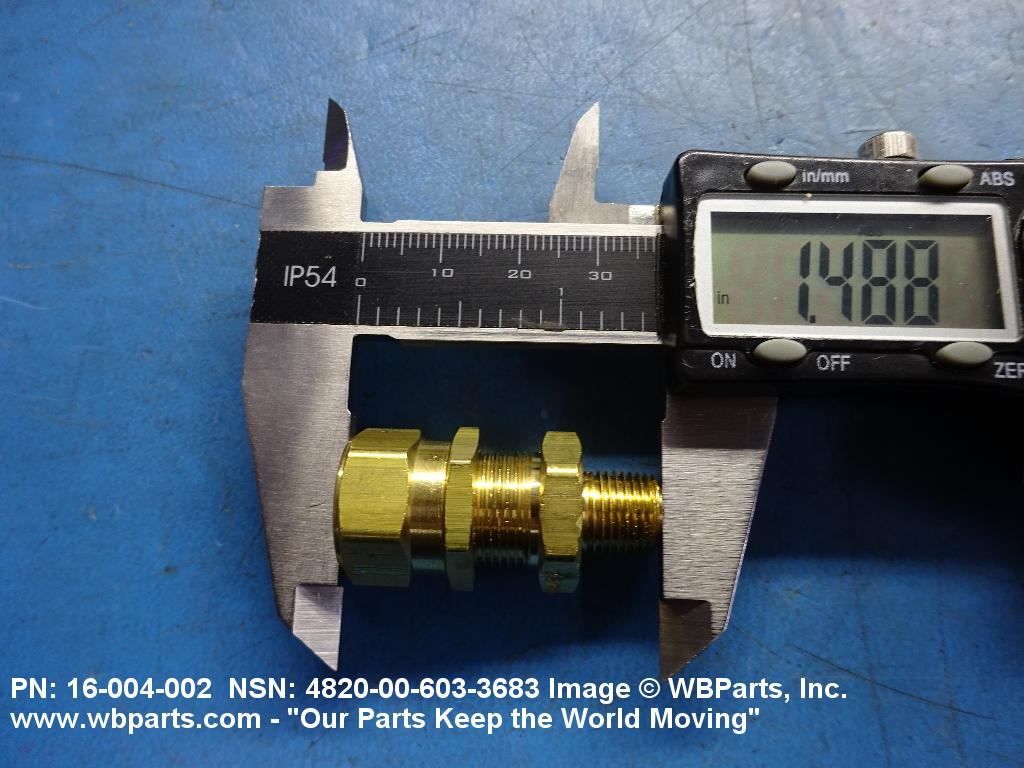

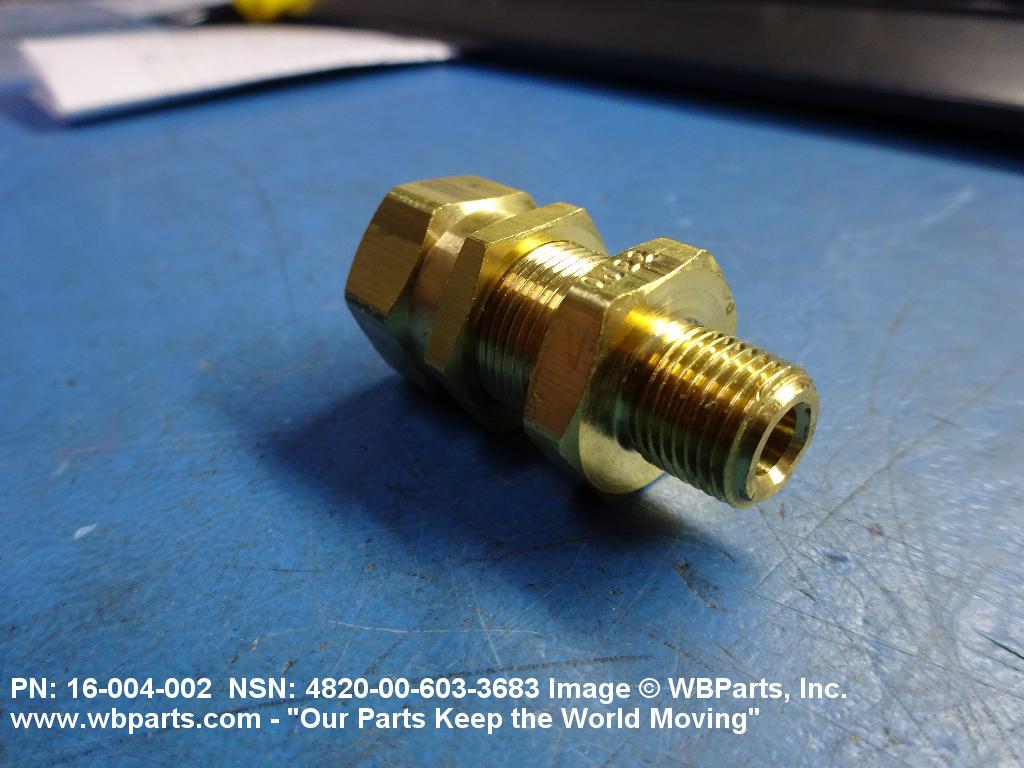

Drawings & Photos | NSN 4820-00-603-3683
Demand History | NSN 4820-00-603-3683
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-603-3683 | 2022-11-319 | 1 | US |
| 4820-00-603-3683 | 2022-11-313 | 1 | United States |
| 4820-00-603-3683 | 2022-09-269 | 1 | US |
| 4820-00-603-3683 | 2020-04-118 | 1 | United States |
| 54B6845H05 | 2017-09-252 | 2 | Pakistan |
| 16-004-002 | 2014-06-161 | 6 | US |
| 4820-00-603-3683 | 2014-06-161 | 6 | MANUAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-603-3683
Technical Data | NSN 4820-00-603-3683
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | C3 ANGLE |
| FLOW CONTROL DEVICE | BALL |
| CONNECTION TYPE | THREADED EXTERNAL PIPE 1ST END |
| CONNECTION STYLE | G46B PLAIN 1ST END |
| NOMINAL PIPE SIZE ACCOMMODATED | 0.125 INCHES 1ST END |
| THREAD DIRECTION | RIGHT-HAND 1ST END |
| BONNET TYPE | INSIDE SPRING |
| BONNET ATTACHMENT METHOD | INTEGRAL |
| DISK LOADING METHOD | SPRING |
| ADJUSTABLE PRESSURE RANGE | 25.0 TO 75.0 POUNDS PER SQUARE INCH |
Restrictions/Controls & Freight Information | NSN 4820-00-603-3683
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | S | 60 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
