NSN 4820-00-673-2211 CAT 186, CAT186, E2020
Product Details | FLUID PRESSURE REGULATING VALVE
4820-00-673-2211 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: CAT 186, CAT186, E2020, 10867008, 4820-00-673-2211, 00-673-2211, 2590006732211, 4820006732211, 006732211
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-673-2211 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |

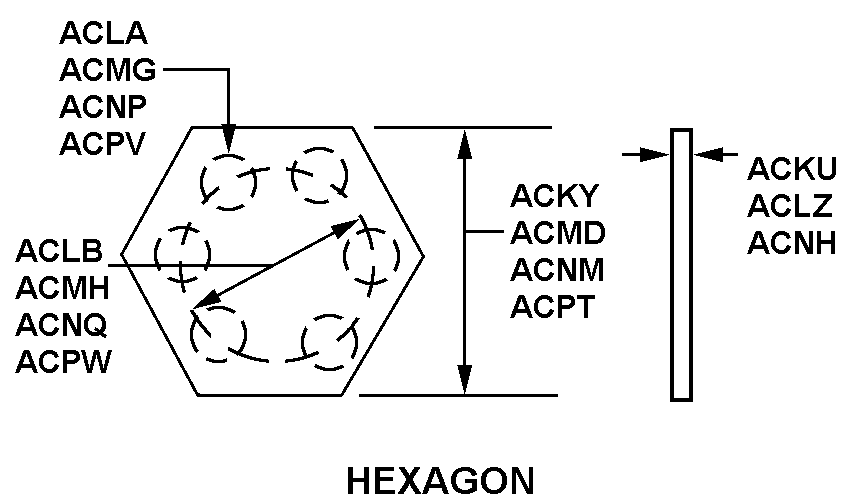

Drawings & Photos | NSN 4820-00-673-2211
Demand History | NSN 4820-00-673-2211
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| E2020 | 2020-06-161 | 1 | US |
| E2020 | 2015-10-300 | 1 | FR |
Cross Reference | NSN 4820-00-673-2211
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10867008 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 2590006732211 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| CAT 186 | 0E9N0 | DAVID BROWN HYDRAULICS INC DBA HYDRECO |
| CAT 186 | 24976 | DANFOSS INC |
| CAT 186 | 64294 | DANFOSS FLUID POWER INC RACINE OPN |
| E2020 | 0E9N0 | DAVID BROWN HYDRAULICS INC DBA HYDRECO |
| E2020 | 43491 | GENERAL SIGNAL CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-673-2211
Related Products | NSN 4820-00-673-2211
Technical Data | NSN 4820-00-673-2211
| Characteristic | Specifications |
|---|---|
| END CONNECTION QUANTITY | 4 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | B11 PLAIN |
| FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1/4-18 NPT |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | PLAIN FACE FLANGE |
| SECOND END STYLE DESIGNATOR | G1 PLAIN |
| SECOND END FLANGE SHAPE STYLE | 4 RECTANGULAR |
| SECOND END BOLT HOLE QUANTITY | 4 |
| SECOND END FLANGE THICKNESS | 3.370 INCHES NOMINAL |
| SECOND END FLANGE LENGTH | 2.880 INCHES NOMINAL |
| SECOND END FLANGE WIDTH | 3.312 INCHES NOMINAL |
| SECOND END BOLT HOLE DIAMETER | 0.469 INCHES NOMINAL |
| SECOND END CENTER TO CENTER DISTANCE BETWEEN HOLES ALONG LENGTH | 1.188 INCHES NOMINAL |
| SECOND END CENTER TO CENTER DISTANCE BETWEEN HOLES ALONG WIDTH | 2.312 INCHES NOMINAL |
| THIRD END RELATIONSHIP WITH PRECEDING ENDS | IDENTICAL WITH SECOND END |
| FOURTH END RELATIONSHIP WITH PRECEDING ENDS | NOT IDENTICAL WITH FIRST, SECOND OR THIRD END |
| FOURTH END CONNECTION TYPE | PLAIN FACE FLANGE |
| FOURTH END STYLE DESIGNATOR | G1 PLAIN |
| FOURTH END FLANGE SHAPE STYLE | 4 RECTANGULAR |
| FOURTH END BOLT HOLE QUANTITY | 4 |
| FOURTH END BOLT HOLE DIAMETER | 0.483 INCHES NOMINAL |
| FOURTH END CENTER TO CENTER DISTANCE BETWEEN HOLES ALONG LENGTH | 2.312 INCHES NOMINAL |
| FOURTH END CENTER TO CENTER DISTANCE BETWEEN HOLES ALONG WIDTH | 1.188 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC OIL |
| REGULATION TYPE | AUTOMATIC SINGLE STAGE |
| TEMP RATING | -65.0 DEG FAHRENHEIT MINIMUM AND 125.0 DEG FAHRENHEIT MAXIMUM |
| MAXIMUM INLET PRESSURE RATING | 2050.0 POUNDS PER SQUARE INCH |
| FILTER | NOT INCLUDED |
| SPECIAL FEATURES | END ITEM 2350-00-678-5772;UNLOADING VALVE MOUNTED ON PUMP |
| MANUFACTURERS CODE | 24976 |
| DESIGN CONTROL REFERENCE | CAT 186 |
Restrictions/Controls & Freight Information | NSN 4820-00-673-2211
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-673-2211
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | K | Tactical and Support Vehicles, Combat and Automotive Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | J | Tanks |
| Weapons Systems/End Item or Homogeneous Group | JT | Recovery Vehicle, M51/M74/M88 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | D | When repair is beyond lower level maintenance capability, evacuate the item to depot. Disposal is not authorized below wholesale level. |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
