NSN 4820-00-794-0244 A361101, A361-101, A3612101
Product Details | SAFETY RELIEF VALVE
4820-00-794-0244 A valve designed to automatically release excessive pressures. It is actuated by static pressure upstream of the valve and is used as a safety valve or relief valve, and may be set to close at a predetermined pressure. It is not designed for regulation of continuously fluctuating loads. It may be inline or cartridge (manifold) design. Excludes VALVE (1), RELIEF, PRESSURE AND TEMPERATURE.
Part Alternates: A361101, A361-101, A3612101, A361-2-101, 4820-00-794-0244, 00-794-0244, 4820007940244, 007940244
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1962 | 00-794-0244 | 05488 ( VALVE, SAFETY RELIEF ) |

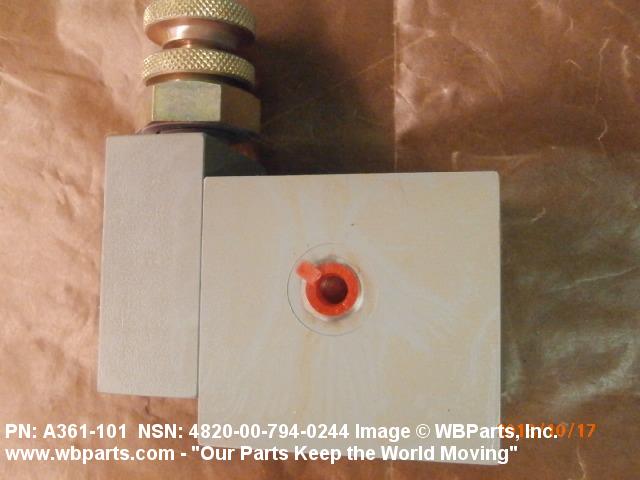

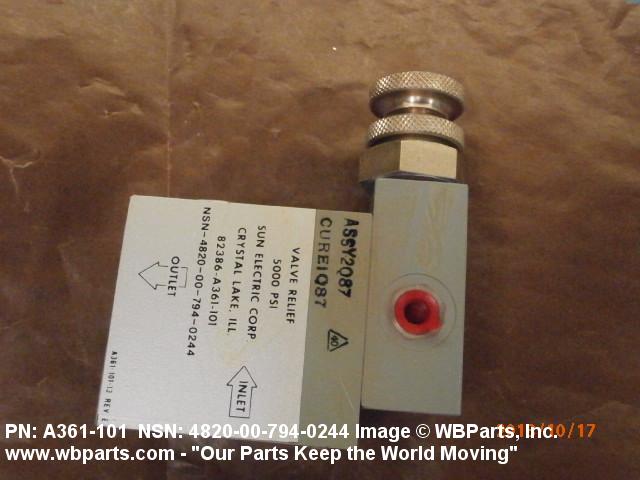

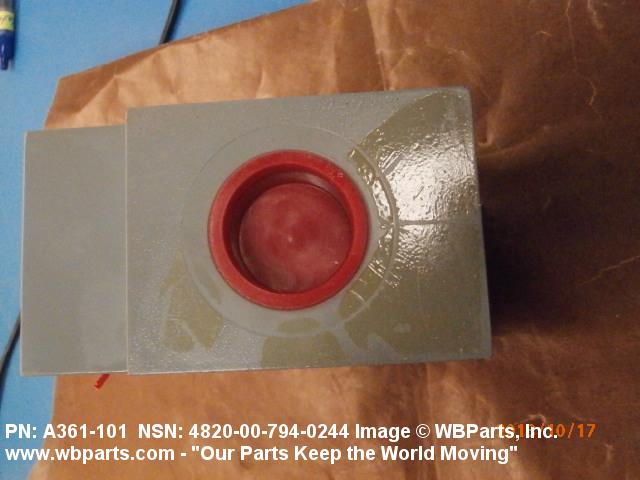

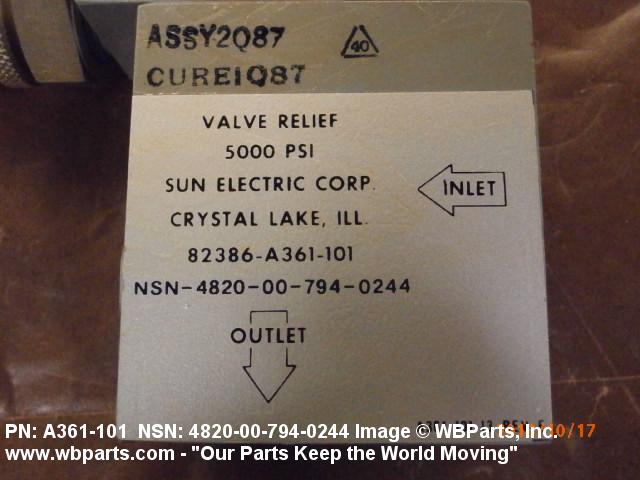

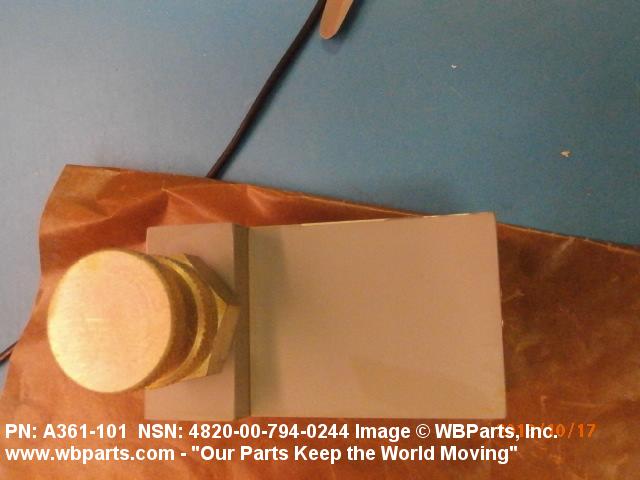

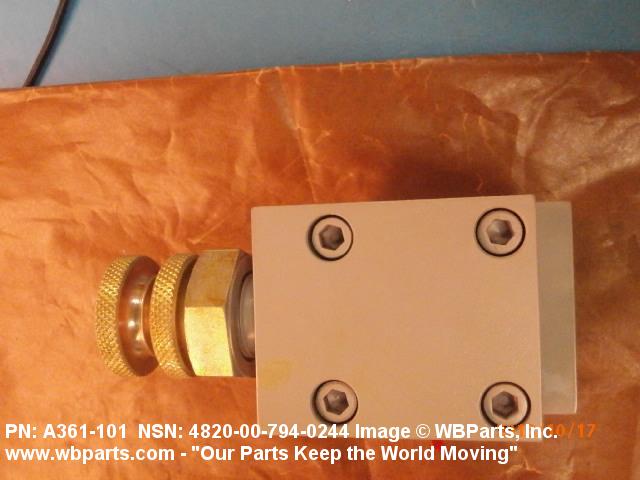

Drawings & Photos | NSN 4820-00-794-0244
Demand History | NSN 4820-00-794-0244
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| A361101 | 2013-10-287 | 6 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-794-0244
Technical Data | NSN 4820-00-794-0244
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY BODY STEEL FLOW CONTROL DEVICE STEEL SEAT STEEL STEM |
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | A7 ANGLE |
| FLOW CONTROL DEVICE | DISK |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID, MINERAL BASE SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 5000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED INTERNAL BOSS ALL ENDS |
| CONNECTION STYLE | G4 GASKET SEAL ALL ENDS |
| THREAD SERIES DESIGNATOR | UN ALL ENDS |
| NOMINAL THREAD SIZE | 1.312 INCHES ALL ENDS |
| THREAD QUANTITY PER INCH | 12 ALL ENDS |
| THREAD CLASS | 3B ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| BONNET TYPE | INSIDE SCREW |
| BONNET ATTACHMENT METHOD | INTEGRAL |
| ADJUSTABLE PRESSURE RANGE | 500.0 TO 5000.0 POUNDS PER SQUARE INCH |
| MOUNTING FACILITY | BULKHEAD |
| SPECIAL FEATURES | HAS 2 THD INT. BOSS PILOT PORTS NNF 0.437-20 |
| III END ITEM IDENTIFICATION | GRUMMAN,A10 AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 4820-00-794-0244
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-794-0244
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
