NSN 4820-00-850-5439 117030, 1170-30, 230
Product Details | SAFETY RELIEF VALVE
4820-00-850-5439 A valve designed to automatically release excessive pressures. It is actuated by static pressure upstream of the valve and is used as a safety valve or relief valve, and may be set to close at a predetermined pressure. It is not designed for regulation of continuously fluctuating loads. It may be inline or cartridge (manifold) design. Excludes VALVE (1), RELIEF, PRESSURE AND TEMPERATURE.
Part Alternates: 117030, 1170-30, 230, 2301IN30, 230-1IN-30, 2501IN30, 250-1IN-30, 4820-00-850-5439, 00-850-5439, 4820008505439, 008505439
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1960 | 00-850-5439 | 05488 ( VALVE, SAFETY RELIEF ) |

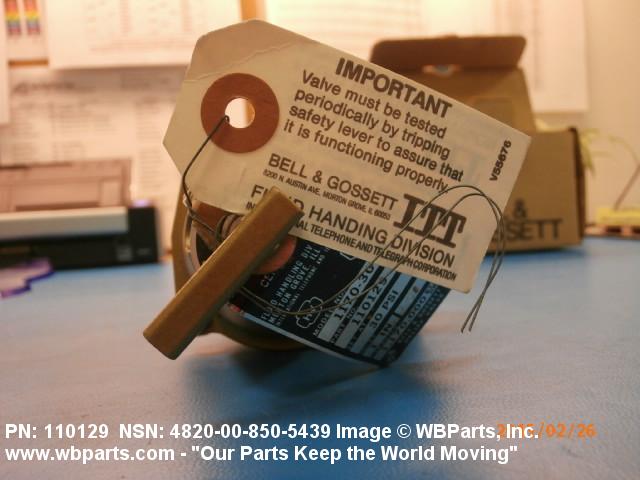

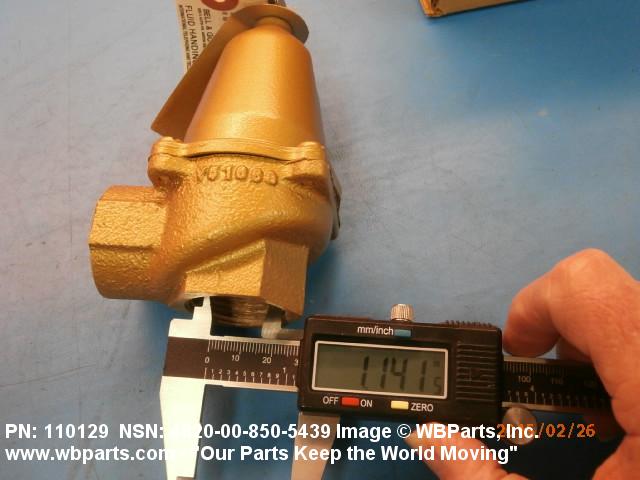

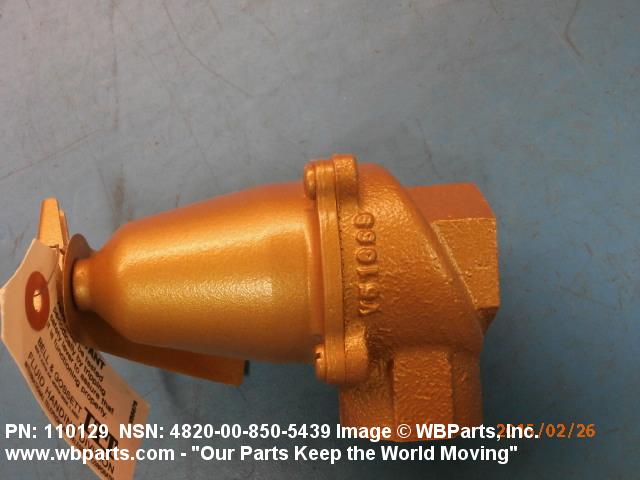

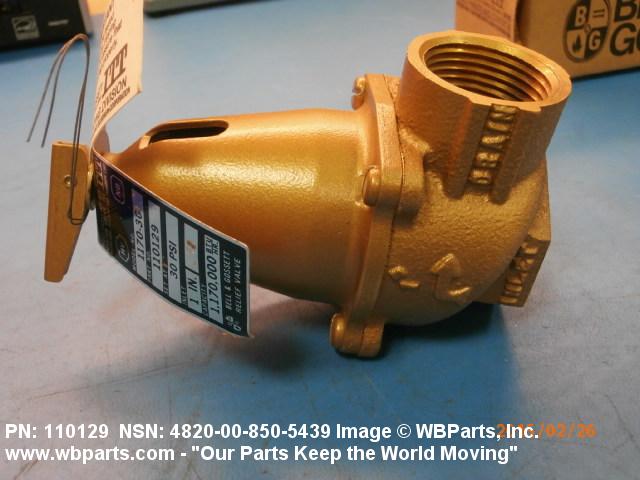

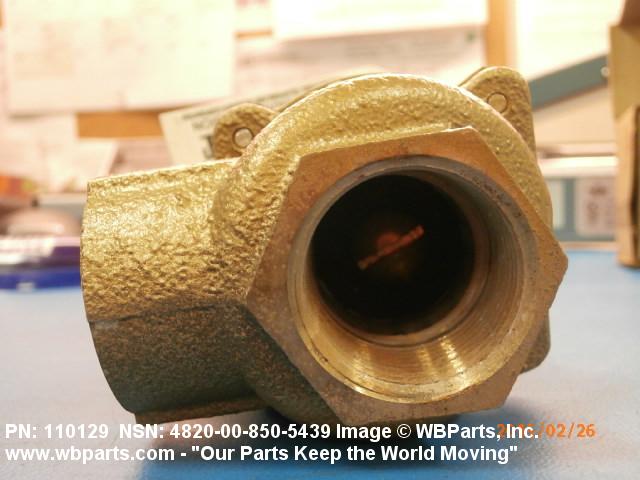

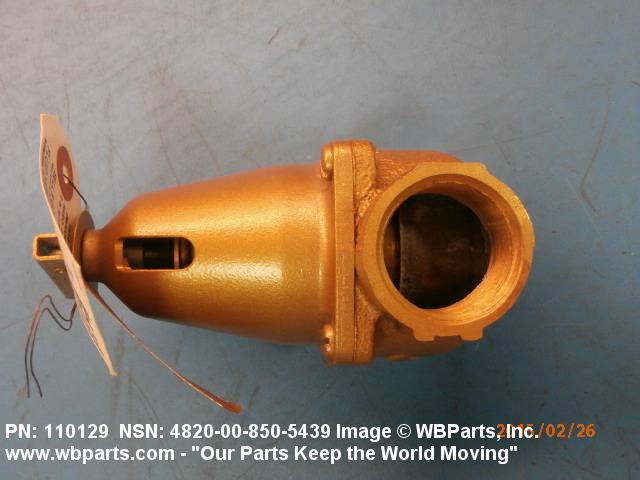

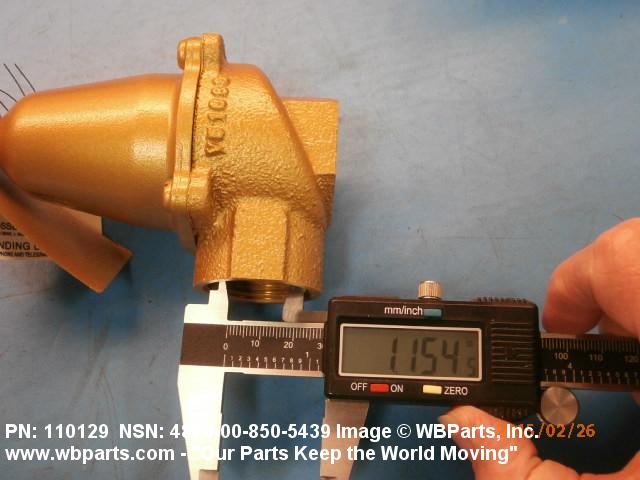

Drawings & Photos | NSN 4820-00-850-5439
Demand History | NSN 4820-00-850-5439
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-850-5439 | 2018-10-298 | 67 | DIBBS |
| 230 | 2017-10-292 | 1 | |
| 4820-00-850-5439 | 2015-02-42 | 5 | Japan |
| 4820-00-850-5439 | 2013-06-167 | 53 | DIBBS |
| 4820-00-850-5439 | 2013-02-51 | 53 | DIBBS |
| 4820-00-850-5439 | 2012-12-340 | 8 | DIBBS |
| 4820-00-850-5439 | 2012-04-95 | 8 | DIBBS |
| 4820-00-850-5439 | 2011-11-312 | 4 | DIBBS |
| 4820-00-850-5439 | 2011-08-238 | 4 | DIBBS |
| 4820-00-850-5439 | 2011-03-69 | 1 | DIBBS |
| 4820-00-850-5439 | 2011-03-65 | 1 | DIBBS |
Cross Reference | NSN 4820-00-850-5439
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1170-30 | 06621 | AMERICAN INDUSTRIAL DOORS INC BYRNE DOORS DIV |
| 230 | 39305 | ITT MCDONNELL-MILLER A UNIT OF ITT FLUID HANDLING DIV |
| 230-1IN-30 | 39305 | ITT MCDONNELL-MILLER A UNIT OF ITT FLUID HANDLING DIV |
| 250-1IN-30 | 39305 | ITT MCDONNELL-MILLER A UNIT OF ITT FLUID HANDLING DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-850-5439
Related Products | NSN 4820-00-850-5439
Technical Data | NSN 4820-00-850-5439
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY COPPER ALLOY AND RUBBER SILICONE CLASS Q FLOW CONTROL DEVICE COPPER ALLOY SEAT COPPER ALLOY STEM |
| STYLE DESIGNATOR | C1 ANGLE |
| FLOW CONTROL DEVICE | DISK |
| VALVE OPERATION METHOD | AUTOMATIC OR MANUAL |
| CONNECTION TYPE | THREADED INTERNAL PIPE ALL ENDS |
| CONNECTION STYLE | G9 PLAIN ALL ENDS |
| NOMINAL PIPE SIZE ACCOMMODATED | 1.000 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | NPT ALL ENDS |
| NOMINAL THREAD SIZE | 1.000 INCHES ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| RENEWABLE SEAT RING TYPE | PRESSED-IN |
| BONNET TYPE | INSIDE SPRING |
| BONNET ATTACHMENT METHOD | BOLTED |
| DISK LOADING METHOD | SPRING |
| OPENING PRESSURE SETTING | 30.0 POUNDS PER SQUARE INCH |
| FEATURES PROVIDED | PRESSURE TIGHT OUTLET SIDE |
| MANUFACTURERS CODE | 39305 |
| DESIGN CONTROL REFERENCE | 250-1IN-30 |
Restrictions/Controls & Freight Information | NSN 4820-00-850-5439
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
