NSN 4820-00-893-5261 EPR13, EPRV13, EPRV-13
Product Details | FLUID PRESSURE REGULATING VALVE
4820-00-893-5261 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: EPR13, EPRV13, EPRV-13, 4820-00-893-5261, 00-893-5261, 4820008935261, 008935261
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 00-893-5261 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
Drawings & Photos | NSN 4820-00-893-5261
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-893-5261
Technical Data | NSN 4820-00-893-5261
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | IRON |
| SEAT MATERIAL | COPPER ALLOY |
| STEM MATERIAL | STEEL, CORROSION RESISTING |
| PACKING MATERIAL | RUBBER |
| FLOW CONTROL DEVICE | DISK |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | RECESSED FLANGE |

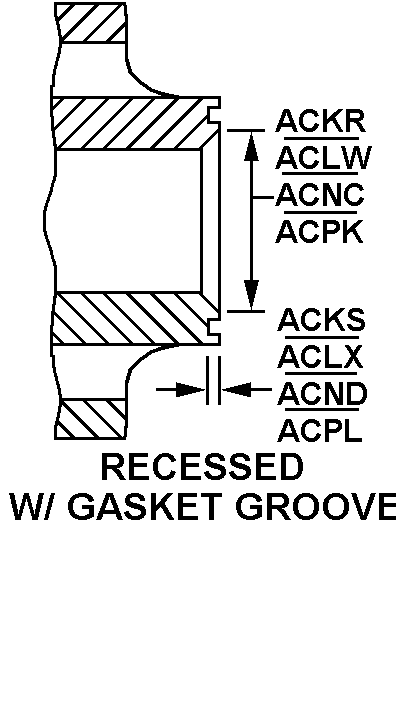

| FIRST END STYLE DESIGNATOR | G7 RECESSED W/GASKET GROOVE |
| FIRST END RECESS DIAMETER | 1.742 INCHES NOMINAL |
| FIRST END RECESS DEPTH | 0.125 INCHES NOMINAL |
| FIRST END FLANGE SHAPE STYLE | 6 OVAL |
| FIRST END BOLT HOLE QUANTITY | 2 |
| FIRST END FLANGE THICKNESS | ANY ACCEPTABLE |
| FIRST END FLANGE LENGTH | 3.870 INCHES NOMINAL |
| FIRST END FLANGE WIDTH | 2.035 INCHES NOMINAL |
| FIRST END FLANGE END RADIUS | 0.500 INCHES NOMINAL |
| FIRST END BOLT HOLE DIAMETER | 0.438 INCHES NOMINAL |
| FIRST END BOLT CIRCLE DIAMETER | 2.700 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| BODY STYLE | A1 STRAIGHT THRU |
| MEDIA FOR WHICH DESIGNED | REFRIGERANT 12 |
| REGULATION TYPE | AUTOMATIC SINGLE STAGE |
| VALVE STEM DESIGN | SINGLE SEAT |
| VALVE LOADING METHOD | SPRING |
| TEMP RATING | 125.0 DEG FAHRENHEIT MAXIMUM |
| MAXIMUM INLET PRESSURE RATING | NOT RATED |
| OUTLET PRESSURE ACCURACY RATING | NOT RATED |
| FILTER | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 4820-00-893-5261
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
