NSN 4820-01-135-5064 MODEL EST4-40-580 , MODELEST440580, VTS 450A
Product Details | FLUID PRESSURE REGULATING VALVE
4820-01-135-5064 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: MODEL EST4-40-580 , MODELEST440580, VTS 450A, VTS450A, 07815221, 0781-5221 , 11729749, 257280A, 257-280A, 4820-01-135-5064, 01-135-5064, 4820011355064, 011355064
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 24 JUL 1982 | 01-135-5064 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |

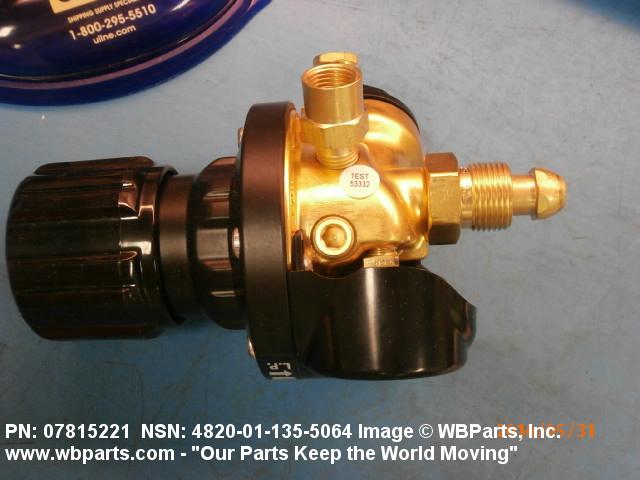

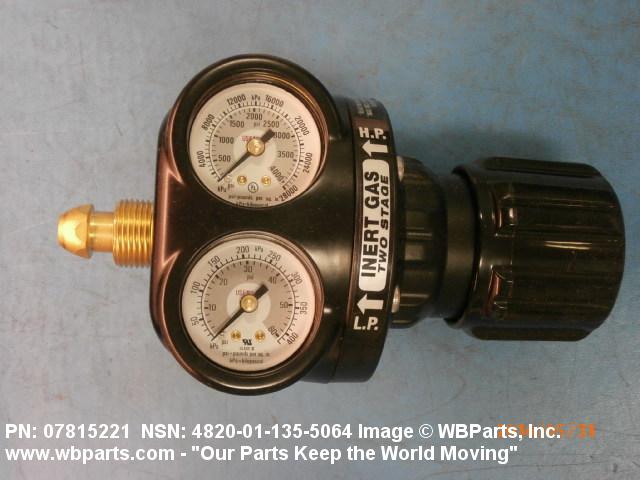

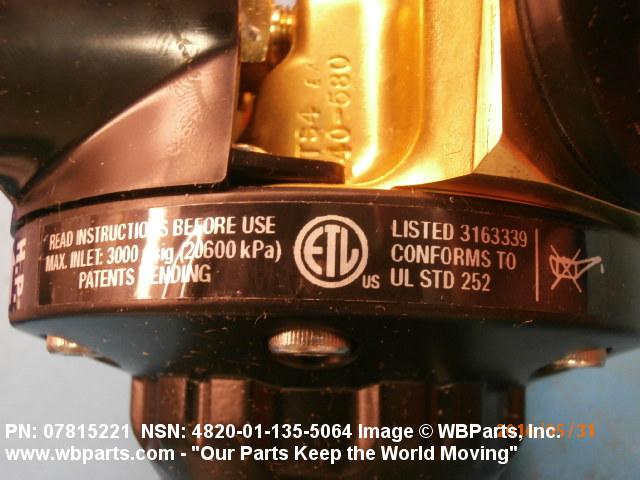

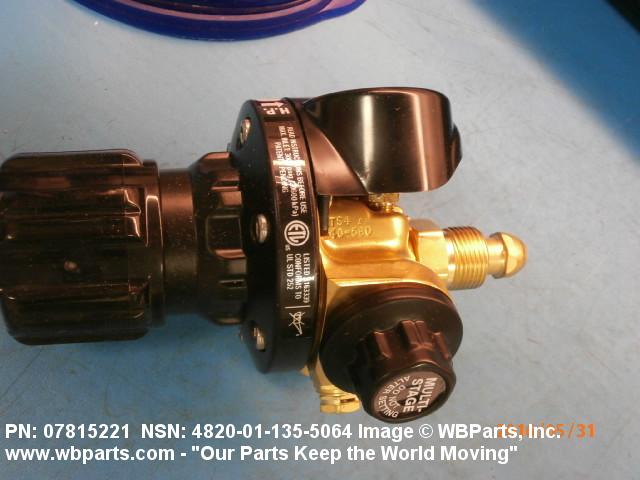

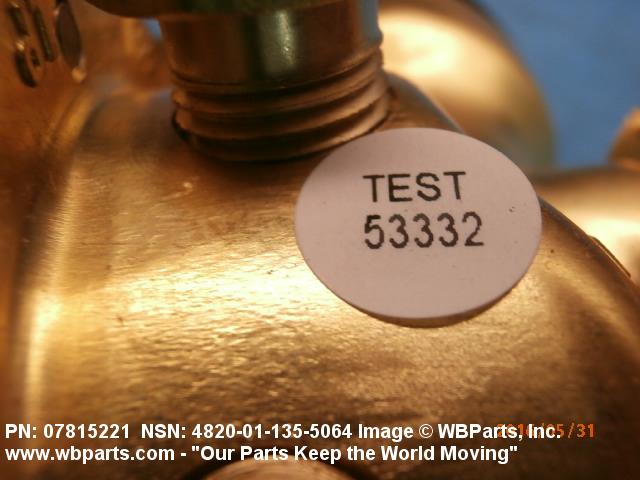

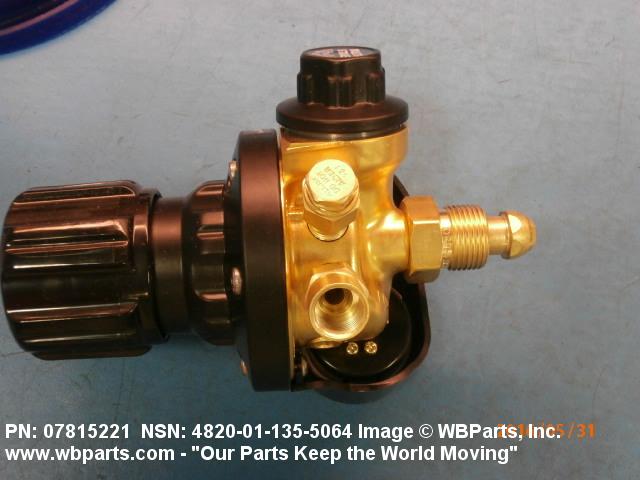

Drawings & Photos | NSN 4820-01-135-5064
Demand History | NSN 4820-01-135-5064
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-01-135-5064 | 2025-06-156 | 4 | United States |
| 257280A | 2016-03-78 | 3 | us |
| 4820-01-135-5064 | 2014-04-93 | 78 | DIBBS |
| 4820-01-135-5064 | 2014-03-80 | 41 | DIBBS |
| 4820-01-135-5064 | 2014-03-65 | 41 | DIBBS |
| VTS450A | 2013-02-37 | 1 | ID |
| VTS450A | 2012-11-321 | 2 | KR |
| 4820-01-135-5064 | 2011-06-171 | 200 | United States |
| 4820-01-135-5064 | 2009-07-205 | 50 | US |
| 4820-01-135-5064 | 2009-07-205 | 10 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-135-5064
Related Products | NSN 4820-01-135-5064
Technical Data | NSN 4820-01-135-5064
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | COPPER ALLOY |
| FLOW CONTROL DEVICE | DIAPHRAGM |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL TUBE |
| SECOND END CONNECTION TYPE | THREADED INTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | B11 PLAIN |
| SECOND END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 9/16-18 UNF |
| SECOND END THREAD CLASS | 30 |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| BODY STYLE | A1 STRAIGHT THRU |
| MEDIA FOR WHICH DESIGNED | NITROGEN, GASEOUS |
| REGULATION TYPE | 1ST STAGE AUTOMATIC, 2ND STAGE MANUAL |
| MANUAL CONTROL METHOD | TEE HANDLE |
| VALVE STEM DESIGN | DOUBLE SEAT |
| VALVE LOADING METHOD | SPRING |
| REMOTE ACTUATION METHOD | DIAPHRAGM |
| MAXIMUM INLET PRESSURE RATING | 4000.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE RANGE | 0.0 TO 15.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE ACCURACY RATING | NOT RATED |
| FILTER | INCLUDED |
| FURNISHED ITEMS | AUTOMATIC RELIEF VALVE AND INLET PRESSURE GAGE AND OUTLET PRESSURE GAGE |

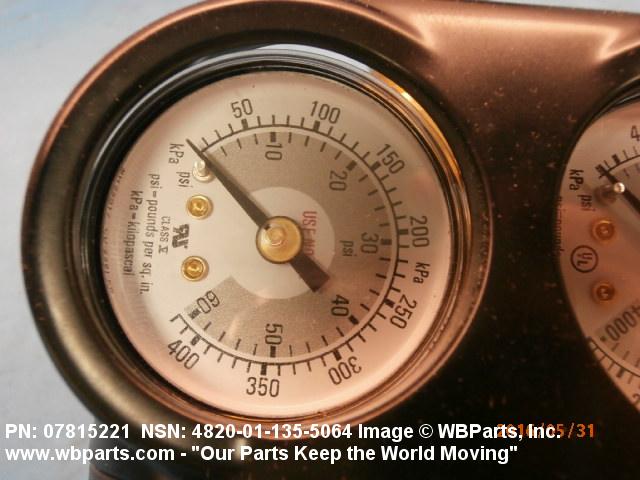

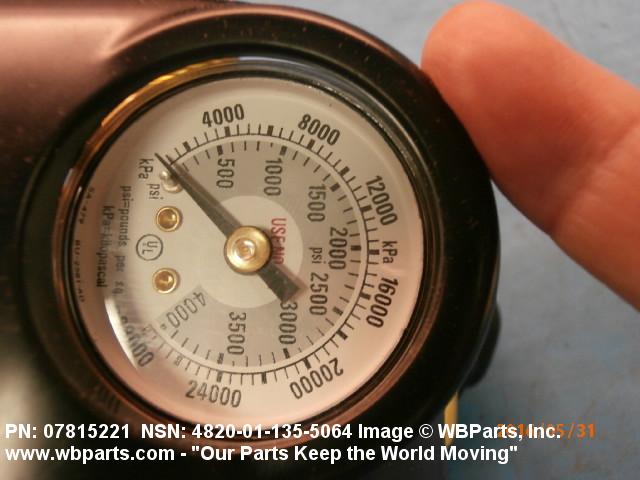

| (NON-CORE DATA) DIAL OUTSIDE DIAMETER | 2.500 INCHES |
| (NON-CORE DATA) SCALE UNIT OF MEASURE INSCRIPTION | POUNDS PER SQUARE INCH |
| (NON-CORE DATA) DIAL RANGE | 0.0 TO 15.0 AND 0.0 TO 4000.0 |
| III END ITEM IDENTIFICATION | M1 TANK FAMILY |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 11729749 |
Restrictions/Controls & Freight Information | NSN 4820-01-135-5064
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061480 | CONTROLLERS/PARTS NOI O/T PLASTIC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-135-5064
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 0 | Non-combat Essential End Item. End items that do not fit the definition of Code 1 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Operational Test Code | 3 | All items requiring calibration. Items may be technical or non-technical in nature, (i.e., electronic test equipment, meters, gauges, torque wrenches, etc.) All OTC 3 items require established calibration procedures.BLANK |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
