NSN 4820-01-233-4964 PWA57130, PWA57130 ITEM 6, PWA57130ITEM6
Product Details | SAFETY RELIEF VALVE
4820-01-233-4964 A valve designed to automatically release excessive pressures. It is actuated by static pressure upstream of the valve and is used as a safety valve or relief valve, and may be set to close at a predetermined pressure. It is not designed for regulation of continuously fluctuating loads. It may be inline or cartridge (manifold) design. Excludes VALVE (1), RELIEF, PRESSURE AND TEMPERATURE.
Part Alternates: PWA57130, PWA57130 ITEM 6, PWA57130ITEM6, 628XB262, 628XB-2-6-2, 4820-01-233-4964, 01-233-4964, 4820012334964, 012334964
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 31 MAY 1986 | 01-233-4964 | 05488 ( VALVE, SAFETY RELIEF ) |

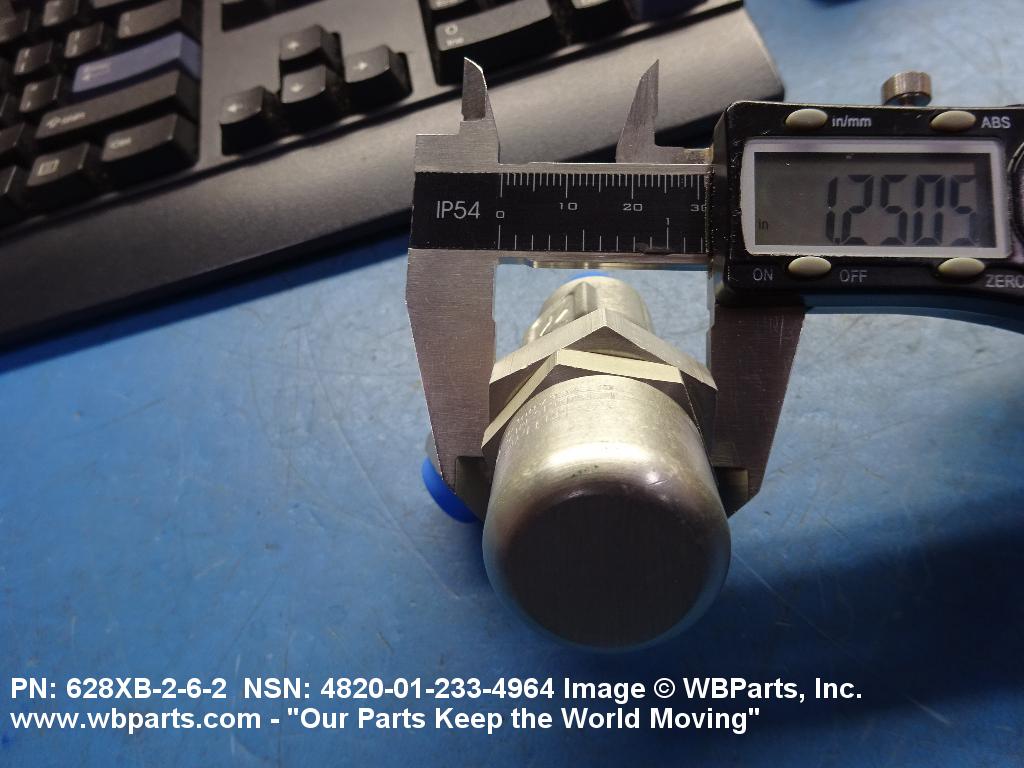

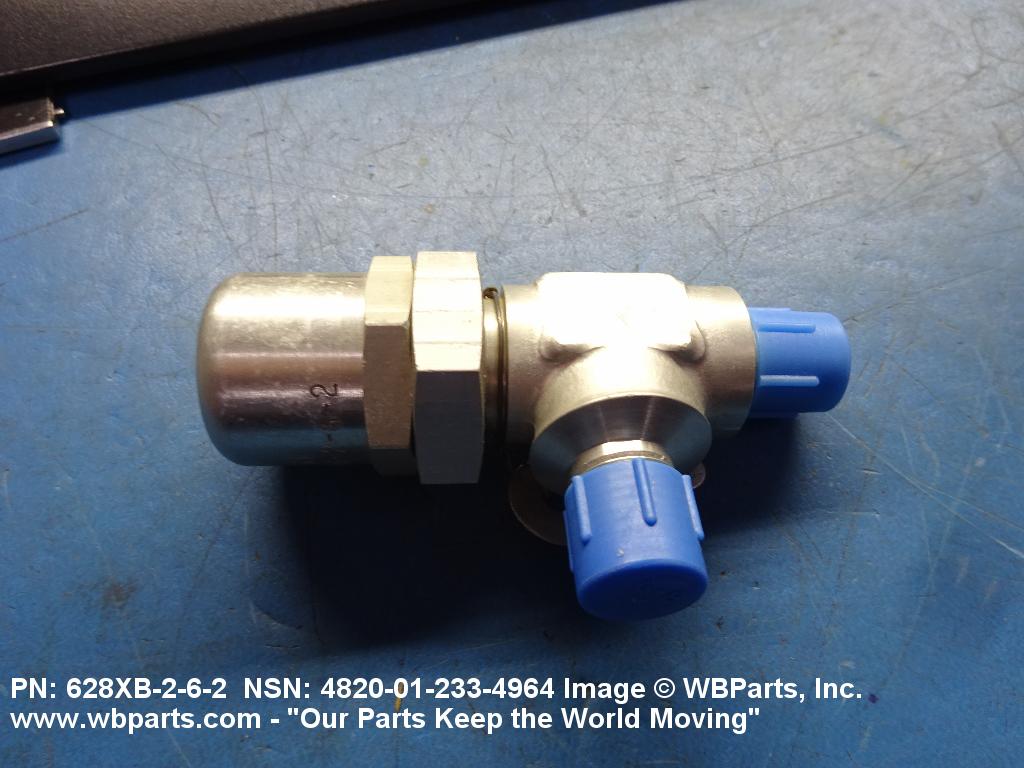

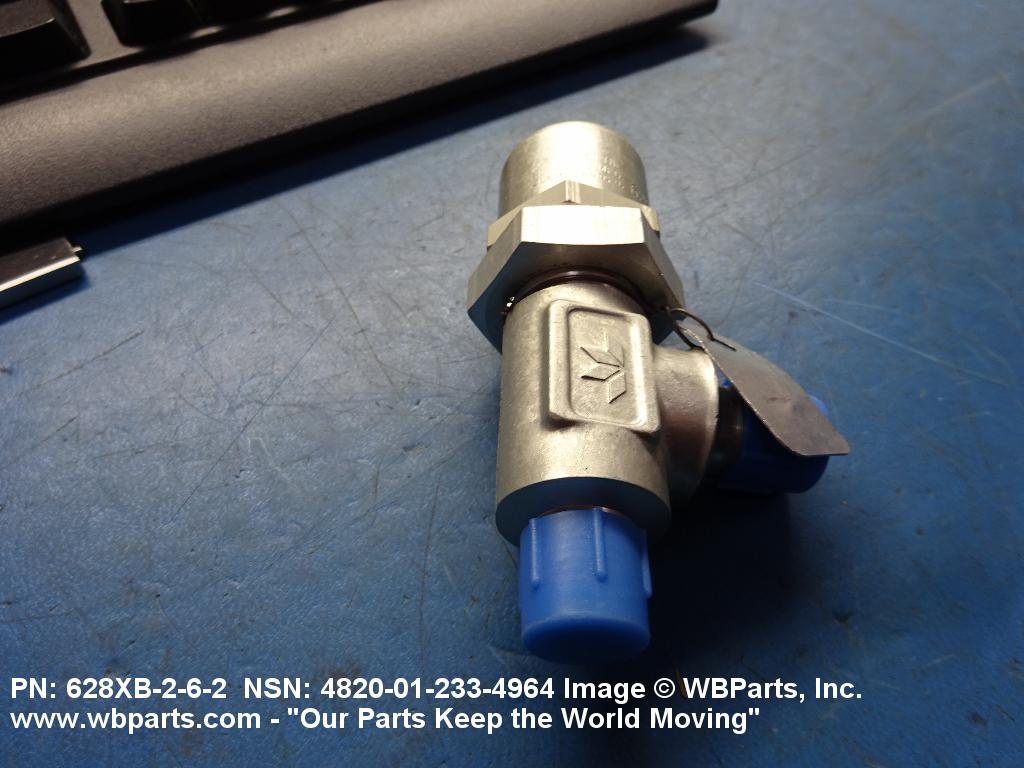

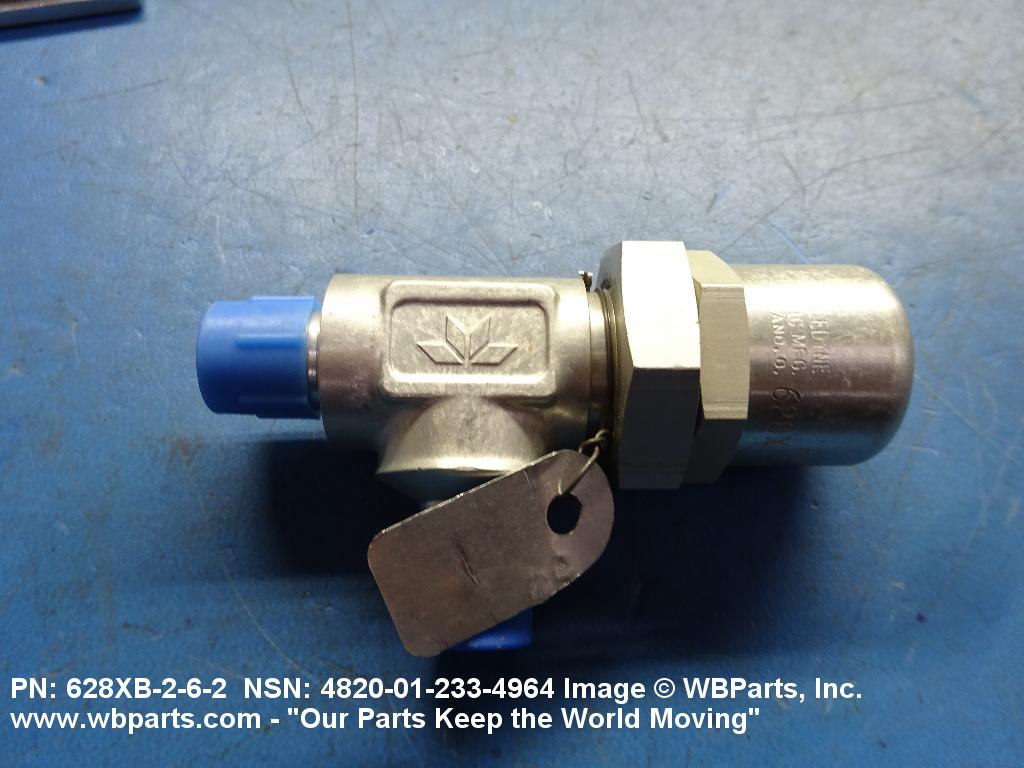

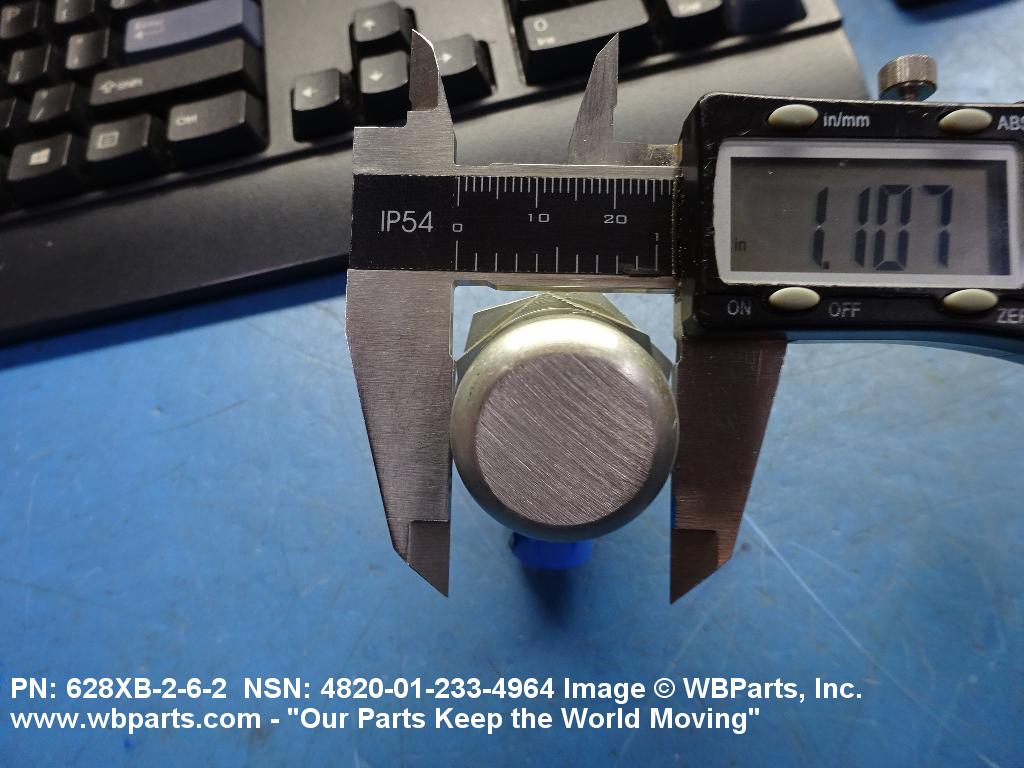

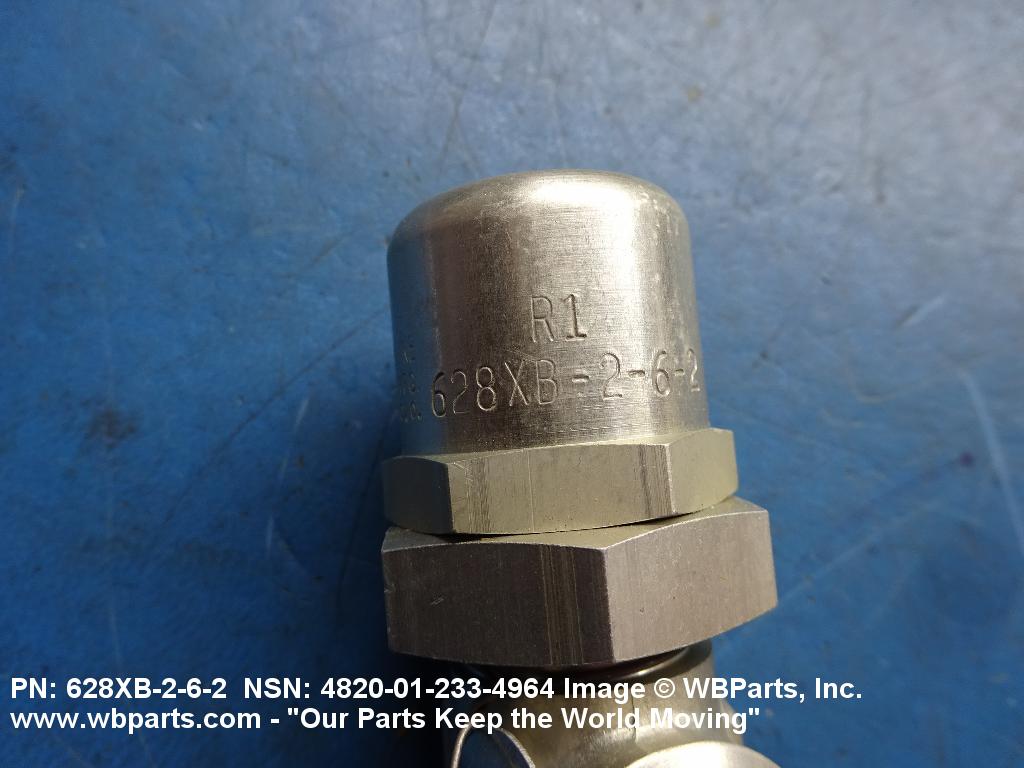

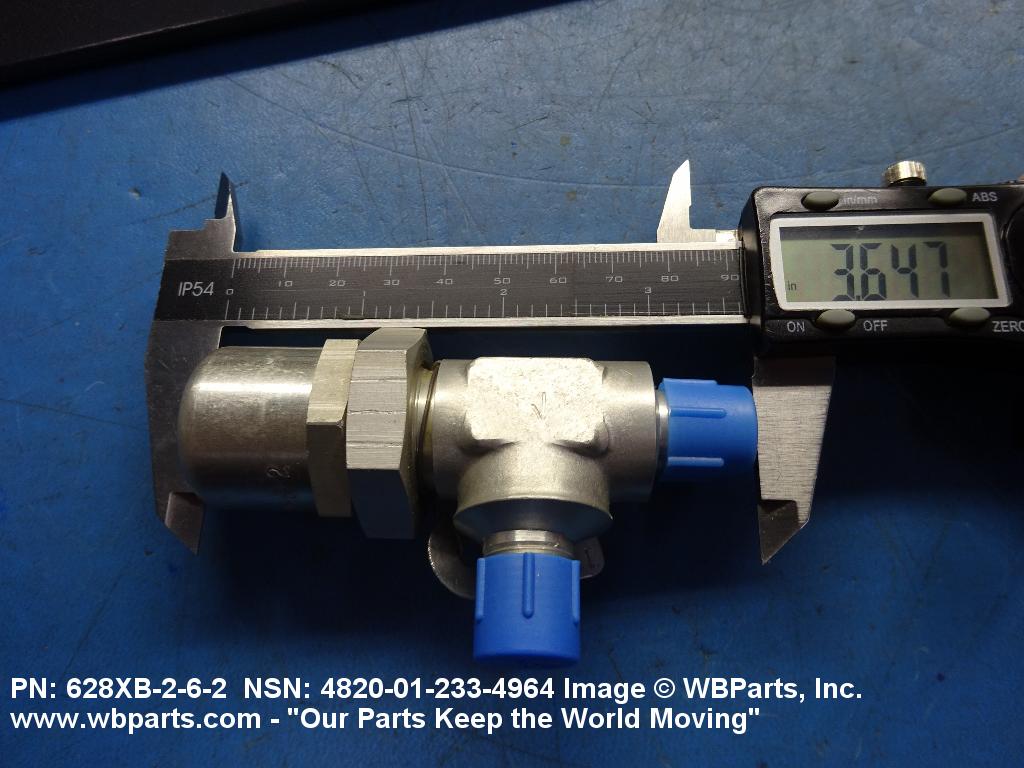

Drawings & Photos | NSN 4820-01-233-4964
Demand History | NSN 4820-01-233-4964
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-01-233-4964 | 2022-05-136 | 1 | Greece |
| 4820-01-233-4964 | 2022-03-76 | 1 | Greece |
| 4820-01-233-4964 | 2020-05-132 | 1 | US |
| 628XB262 | 2014-07-205 | 1 | US |
Cross Reference | NSN 4820-01-233-4964
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 628XB-2-6-2 | 09990 | PARKER-HANNIFIN CORPORATION DBA HYDRAULIC VALVE DIV |
| 628XB-2-6-2 | 86768 | TELEDYNE INDUSTRIES INC TELEDYNE FLUID SYSTEMS REPUBLIC |
| PWA57130 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| PWA57130 ITEM 6 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-233-4964
Technical Data | NSN 4820-01-233-4964
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY BODY STEEL COMP 303 FLOW CONTROL DEVICE RUBBER SYNTHETIC SEAT |
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | C1 ANGLE |
| FLOW CONTROL DEVICE | POPPET |
| MAXIMUM OPERATING PRESSURE | 3600.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 225.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED EXTERNAL PIPE 1ST END THREADED EXTERNAL TUBE 2ND END |
| CONNECTION STYLE | G46B PLAIN 1ST END G42 FLARED 2ND END |
| SEAT ANGLE | 37.0 DEGREES 2ND END |
| THREAD SERIES DESIGNATOR | NPT 1ST END |
| OPENING PRESSURE SETTING | 33.0 POUNDS PER SQUARE INCH |
| ADJUSTABLE PRESSURE RANGE | 10.0 TO 50.0 POUNDS PER SQUARE INCH |
Restrictions/Controls & Freight Information | NSN 4820-01-233-4964
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
