NSN 4820-01-275-6303 3500580, 3500-580, 877064
Product Details | FLUID PRESSURE REGULATING VALVE
4820-01-275-6303 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 3500580, 3500-580, 877064, 87706400, 877064-00, 4820-01-275-6303, 01-275-6303, 4820012756303, 012756303
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 24 MAR 1988 | 01-275-6303 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
Drawings & Photos | NSN 4820-01-275-6303
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-275-6303
Technical Data | NSN 4820-01-275-6303
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | STEEL, CORROSION RESISTING, QQ-S-763, CLASS 302, 303, 304, 305, 310, OR 316 |
| FLOW CONTROL DEVICE | DIAPHRAGM |
| FLOW CONTROL DEVICE MATERIAL | STEEL, CORROSION RESISTING, QQ-S-763, CLASS 302, 303, 304, 305, 310, OR 316 |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | B11 PLAIN |
| FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1/4-18 NPT |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL PIPE |

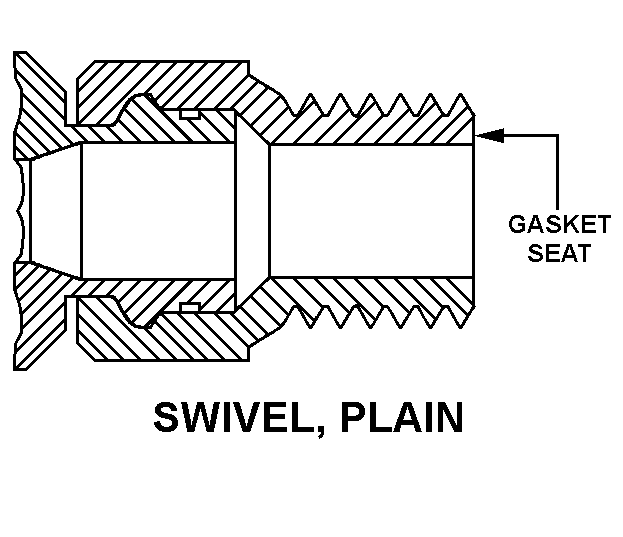

| SECOND END STYLE DESIGNATOR | D8 SWIVEL, PLAIN |
| SECOND END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1/4-18 NPT |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| BODY STYLE | A1 STRAIGHT THRU |
| MEDIA FOR WHICH DESIGNED | GAS |
| REGULATION TYPE | MANUAL SINGLE STAGE |
| VALVE LOADING METHOD | SPRING |
| TEMP RATING | -40.0 DEG FAHRENHEIT MINIMUM AND 200.0 DEG FAHRENHEIT MAXIMUM |
| MAXIMUM INLET PRESSURE RATING | 3000.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE RANGE | 5.0 TO 75.0 POUNDS PER SQUARE INCH |
| FURNISHED ITEMS | INLET PRESSURE GAGE AND OUTLET PRESSURE GAGE |
| (NON-CORE DATA) DIAL OUTSIDE DIAMETER | 2.000 INCHES AND 2.000 INCHES |
| (NON-CORE DATA) SCALE UNIT OF MEASURE INSCRIPTION | POUNDS PER SQUARE INCH AND POUNDS PER SQUARE INCH |
| (NON-CORE DATA) DIAL RANGE | 0.1 TO 3000.0 AND 0.1 TO 100.0 |
Restrictions/Controls & Freight Information | NSN 4820-01-275-6303
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
