Product Details | SOCKET WRENCH
5120-00-316-9222 A wrench consisting of one or more sockets, integral with shank(s) or body. It may not be furnished with a handle when the handle is removable or when it is the "double end socket" and "single socket bar" types, each designed for use with the other or similar items. Excludes SOCKET, SOCKET WRENCH.
Part Alternates: 1211N06, 12-1-1N06, 5120-00-316-9222, 00-316-9222, 5120003169222, 003169222
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-316-9222 | 03520 ( WRENCH, SOCKET ) |

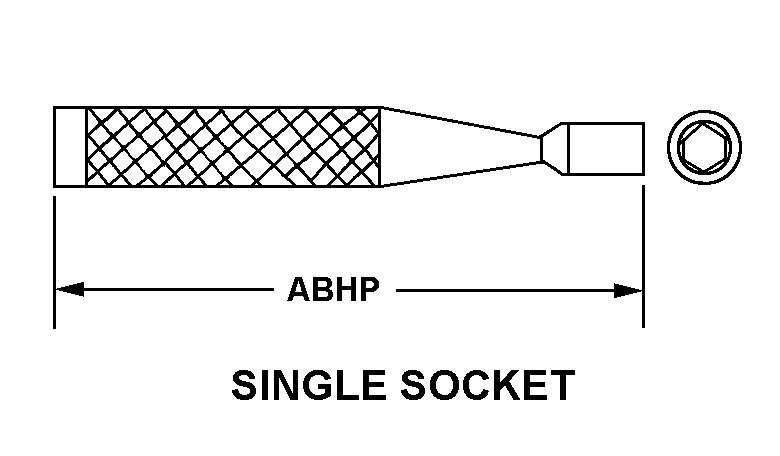

Drawings & Photos | NSN 5120-00-316-9222
Cross Reference | NSN 5120-00-316-9222
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12-1-1N06 | 81337 | ARMY, UNITED STATES DEPARTMENT OF THE |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5120-00-316-9222
5120-00-316-9223, 5120-00-316-9225, 5120-00-316-9228, 5120-00-316-9545, 5120-00-316-9546
Technical Data | NSN 5120-00-316-9222
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |
| STYLE DESIGNATOR | 160 SINGLE SOCKET |
| OVERALL LENGTH | 2.969 INCHES MINIMUM AND 3.031 INCHES MAXIMUM |
| WRENCHING SURFACE SIZE | 0.052 INCHES MINIMUM AND 0.054 INCHES MAXIMUM SINGLE END |
| WRENCHING SURFACE SHAPE | HEXAGON SINGLE END INTERNAL |
Restrictions/Controls & Freight Information | NSN 5120-00-316-9222
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
