NSN 5120-00-950-4330 6798131, 00-950-4330, 009504330
Product Details | FACE SPANNER WRENCH SOCKET
5120-00-950-4330 An item designed to be driven by an external or internal drive. It has a face type spanner end.
Part Alternates: 6798131, 5120-00-950-4330, 00-950-4330, 5120009504330, 009504330
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 22 APR 1966 | 00-950-4330 | 03543 ( SOCKET, WRENCH, FACE SPANNER ) |
Drawings & Photos | NSN 5120-00-950-4330
Demand History | NSN 5120-00-950-4330
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6798131 | 2021-12-362 | 1 | United States |
| 6798131 | 2021-08-224 | 1 | United States |
| 6798131 | 2020-02-57 | 1 | United States |
| 5120-00-950-4330 | 2016-08-236 | 1 | United States |
| 6798131 | 2013-01-31 | 1 | Italy |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-00-950-4330
Related Products | NSN 5120-00-950-4330
Technical Data | NSN 5120-00-950-4330
| Characteristic | Specifications |
|---|---|

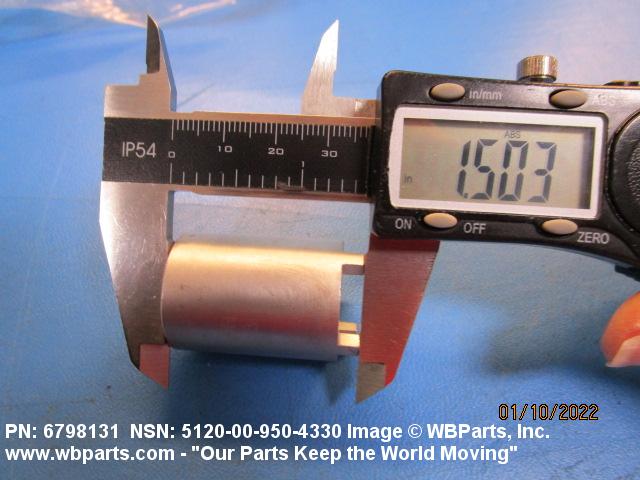

| OVERALL LENGTH | 1.500 INCHES NOMINAL |

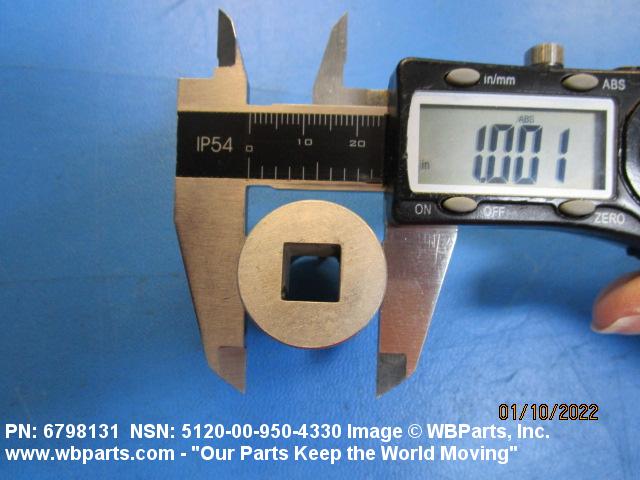

| OUTSIDE DIAMETER | 1.000 INCHES NOMINAL |

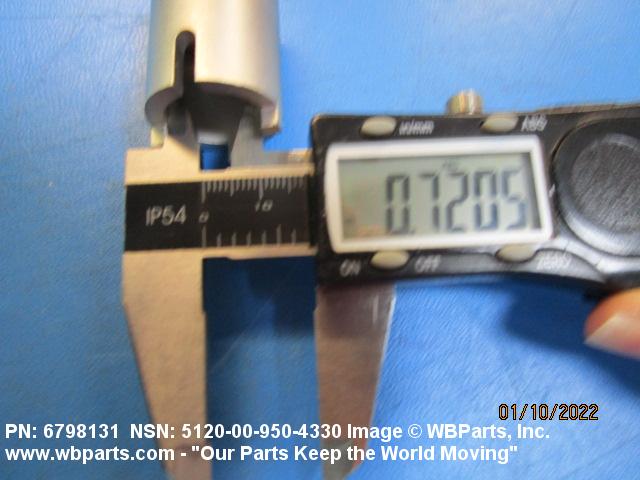

| OPENING DIAMETER | 0.720 INCHES NOMINAL |

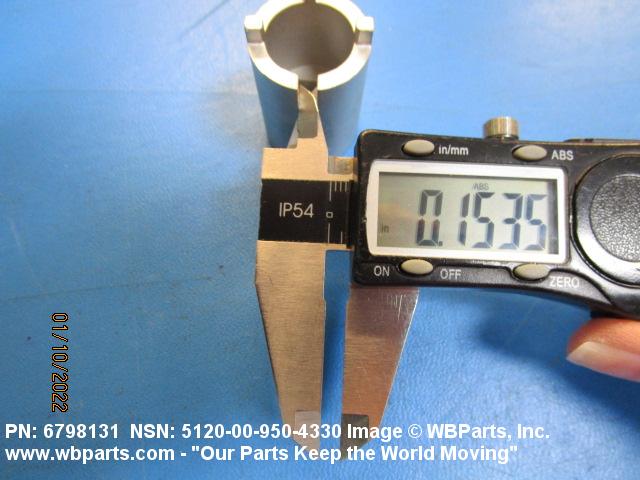

| LUG WIDTH | 0.125 INCHES MINIMUM |
| LUG LENGTH | 0.172 INCHES NOMINAL |

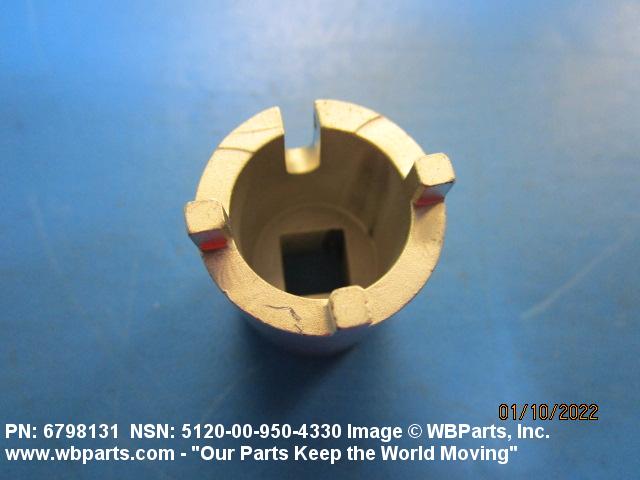

| ANGLE BETWEEN LUGS | 90.0 DEGREES NOMINAL |
| DRIVE SURFACE SIZE | 0.375 INCHES NOMINAL SINGLE END |

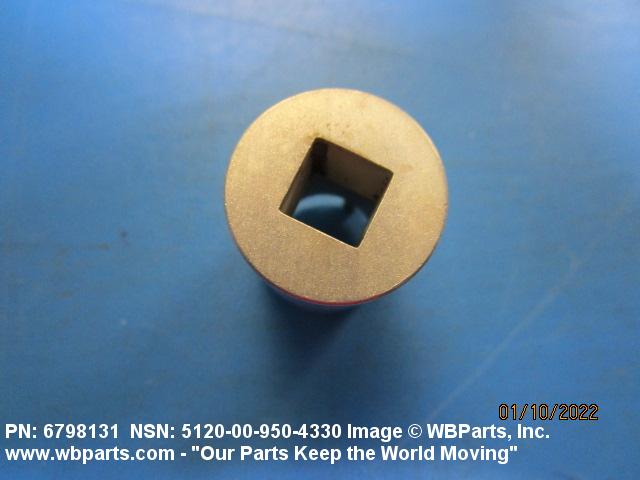

| DRIVE END SHAPE | SQUARE SINGLE END INTERNAL |

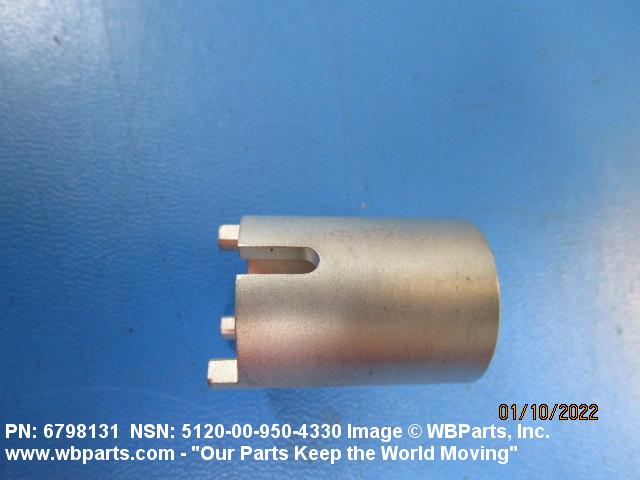

| SPECIAL FEATURES | IN LIEU OF 1 LUG,SPANNER IS SLOTTED 0.156 IN. W BY 0.500 IN. DEEP FROM TOP OF LUG W/FULL RADIUS AT THE BOTTOM |
Restrictions/Controls & Freight Information | NSN 5120-00-950-4330
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | SR | Air Force Services Agency San Antonio, TX 78216-4138 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Y | Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-950-4330
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
