Product Details | DRIVE SHANK BOLT HOLE FORMING CUTTER
5133-00-228-2323 A tool consisting of any combination of drill, pilot drill, reamer, countersink, or counterbore. It is designed to form a hole for fasteners with a specific grip length and machined to a close tolerance to provide a drive fit. The tool has a shank requiring a special tool holder to be used in a power feed hand drilling machine or a power feed drill press.
Part Alternates: B94.11M, B9411M, GGGC613, GGG-C-613, GGG-C-613 TY3CLASZ6, GGGC613TY3CLASZ6, 1495, 25046, 5133-00-228-2323, 00-228-2323, 5133002282323, 002282323
Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-228-2323 | 32727 ( CUTTER, HOLE FORMING, DRIVE SHANK BOLT ) |
Drawings & Photos | NSN 5133-00-228-2323
Demand History | NSN 5133-00-228-2323
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1495 | 2020-10-295 | 24 | US |
| 1495 | 2016-08-221 | 2 | India |
| 1495 | 2016-06-182 | 1 | Thailand |
| 1495 | 2016-06-181 | 12 | Thailand |
| 1495 | 2016-04-118 | 50 | UY |
| 1495 | 2012-10-285 | 70 | Italy |
Cross Reference | NSN 5133-00-228-2323
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1495 | 067J8 | MORSE CUTTING TOOLS |
| 1495 | 41672 | MORSE CUTTING TOOLS DIV OF MORSE CUTTING TOOL CORP |
| 25046 | 067J8 | MORSE CUTTING TOOLS |
| 25046 | 41672 | MORSE CUTTING TOOLS DIV OF MORSE CUTTING TOOL CORP |
| B94.11M | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| GGG-C-613 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| GGG-C-613 TY3CLASZ6 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5133-00-228-2323
Related Products | NSN 5133-00-228-2323
Technical Data | NSN 5133-00-228-2323
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

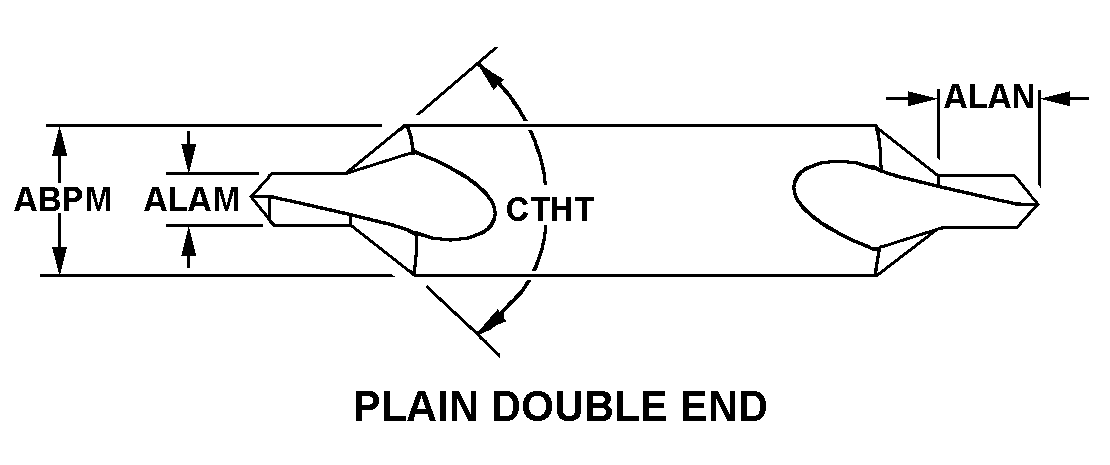

| CUTTING END STYLE | 40 PLAIN DOUBLE END |
