NSN 5305-00-054-6671 MS24693051, MS24693-051, MS3523346

Product Details | MACHINE SCREW

5305-00-054-6671 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS24693051, MS24693-051, MS3523346, MS35233-46, MS5195746, MS51957-46, N0153P15012, AN515C810, AN515-C8-10, HS083210PP3X, HS0832-10-PP-3X, F13810L, F13-8-10L, FFS92, FF-S-92, P150007146, 946830-810, 9800K32901, 9800K329-01 , 003007864046, 003-007864-046, 10124902 , 1121052046, 112-1052-046, 120266-306 ITEM #14, 120266306ITEM14, 12500237, 13218E0493, 13218E04931309PIIC, 13218E0493-1309PIIC, 2312520-46, 2452652, 245265-2, 245323, 2845150810, 284-515-0810, 401635723027, 401-6357230-27, 41829346, 418293-46, 4912532-01, 5000 085608, 5000085608, 5120008-10, 54320810, 5432-0810, 60239661, 60-23-9661, 74455226046, 7581384P65, 8800 PIECE 53, 8800PIECE53, 91772A196, 91946, 919-46, 5305-00-054-6671, 00-054-6671, 5305000546671 , 5305008558280, 000546671, 512000810, 946830810, 491253201, 231252046

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1961	00-054-6671	06657 ( SCREW, MACHINE )

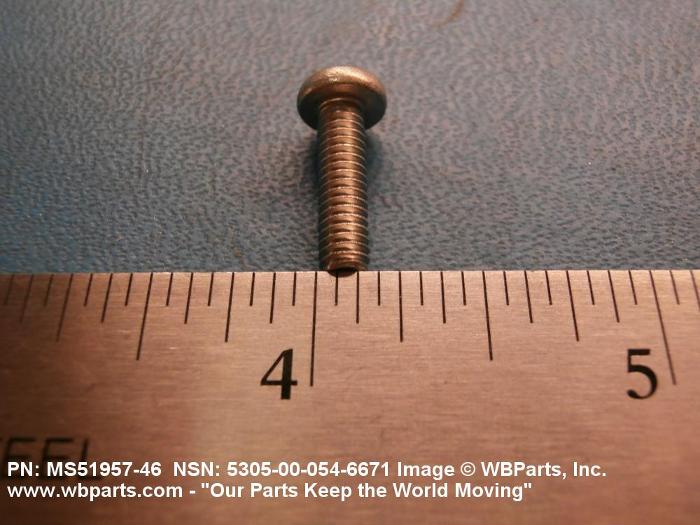

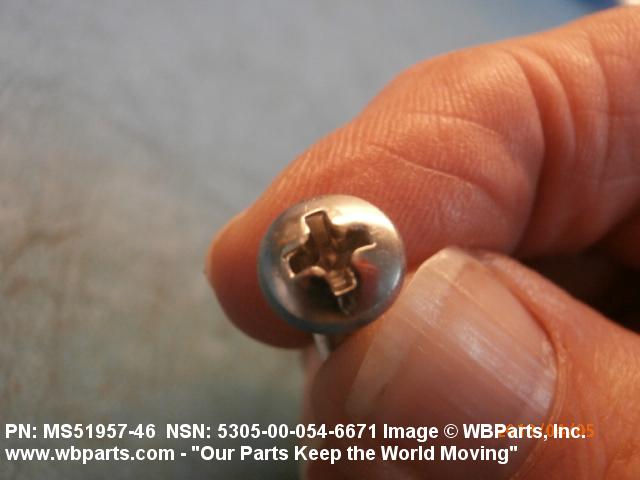

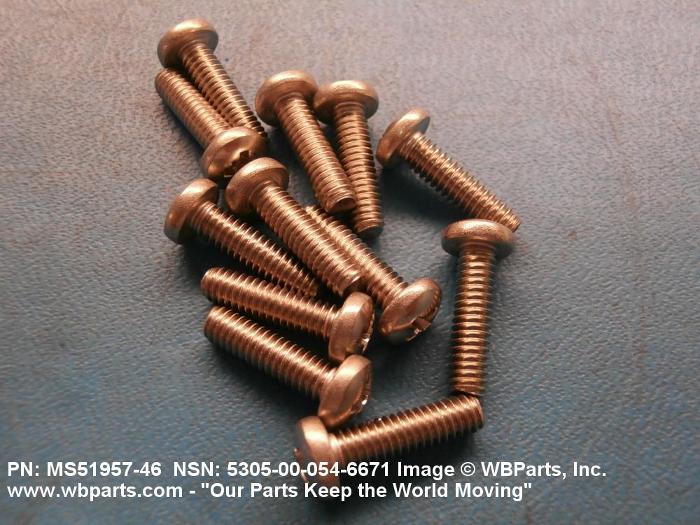

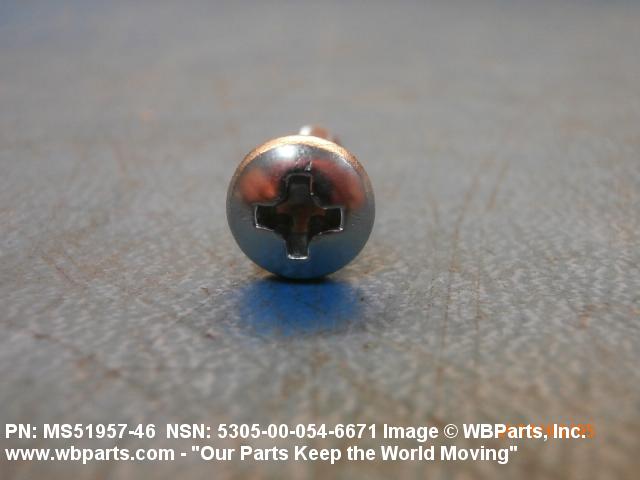

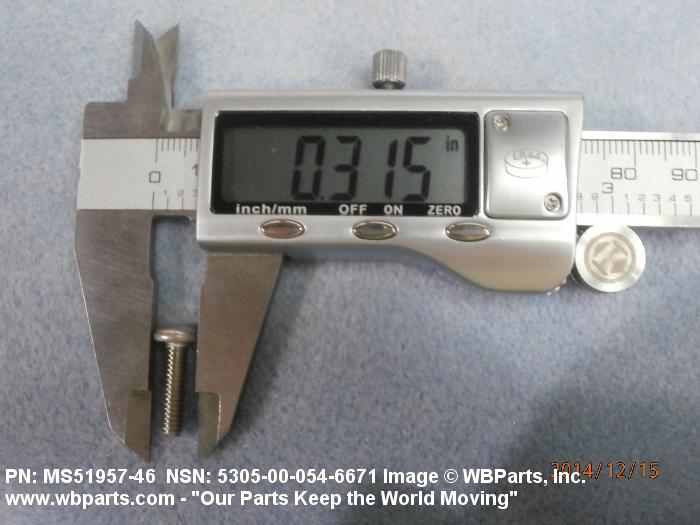

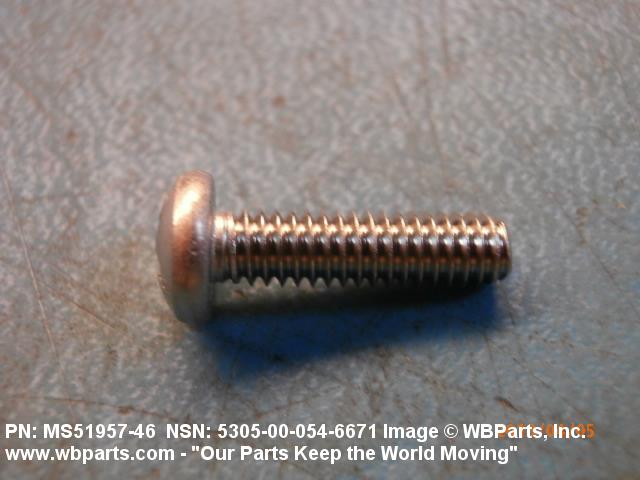

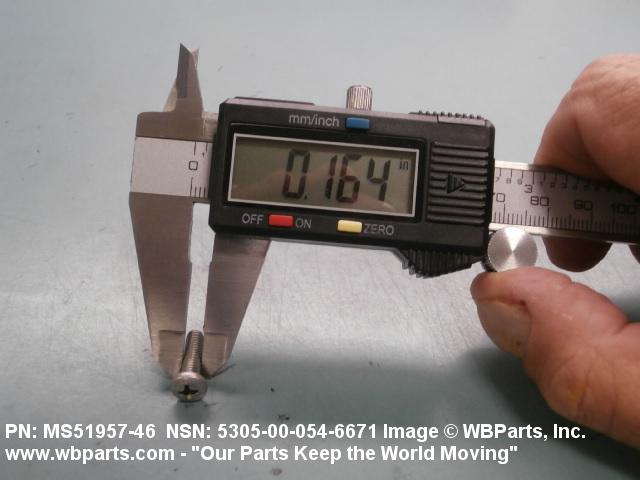

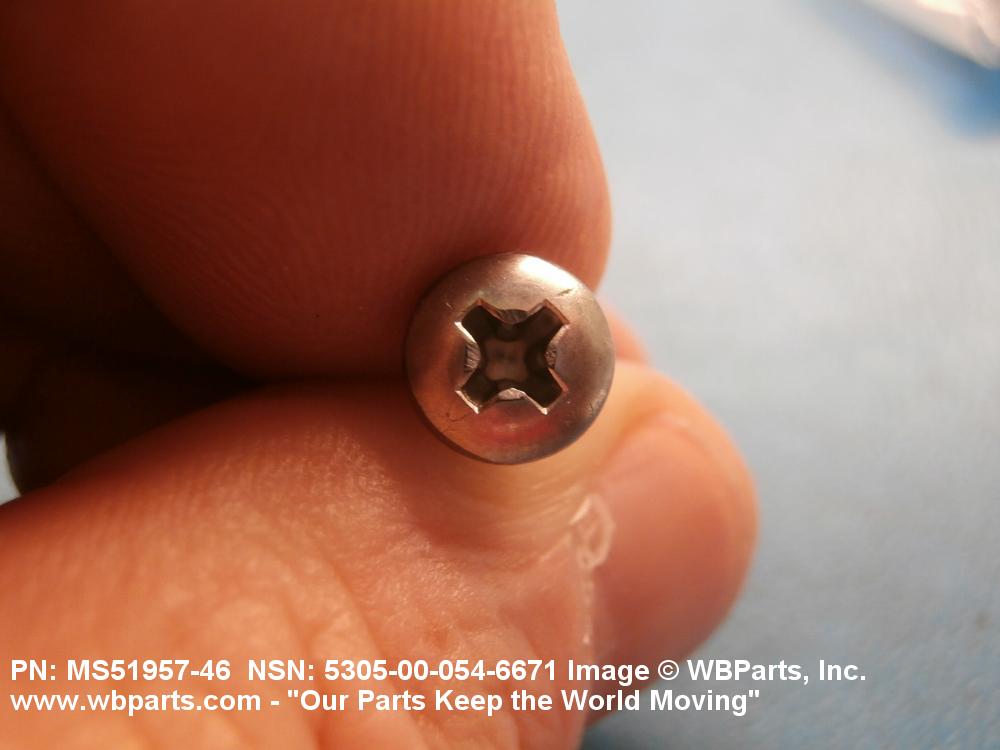

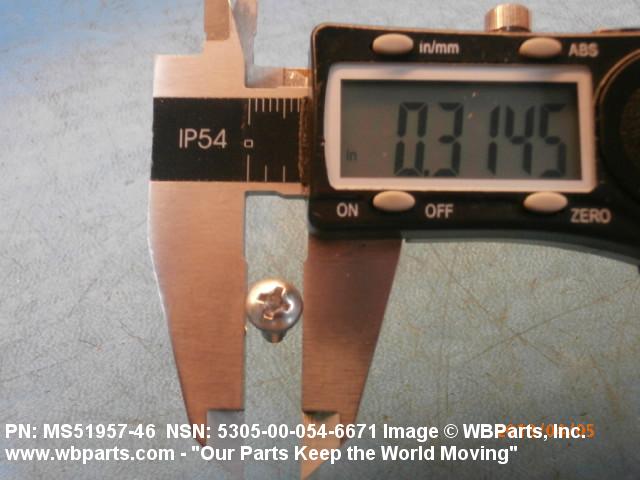

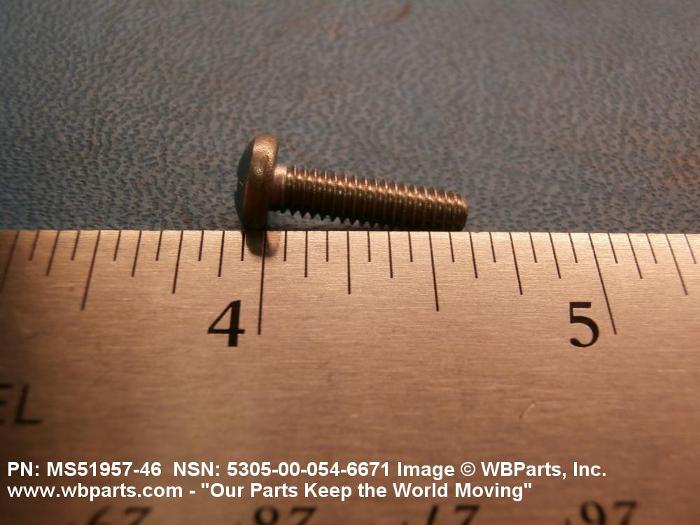

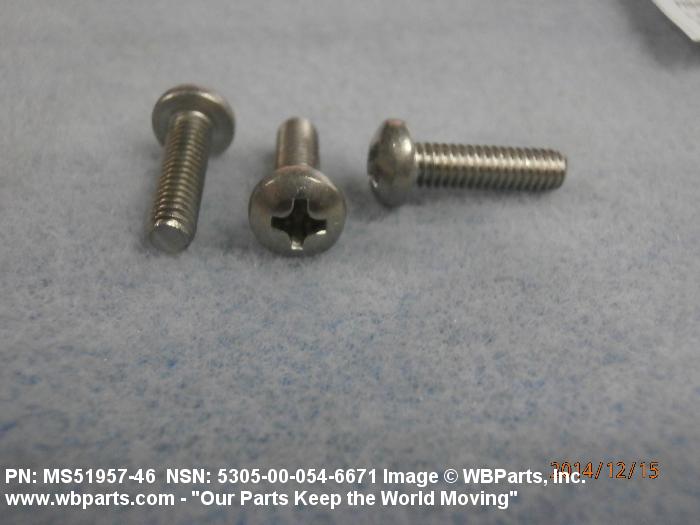

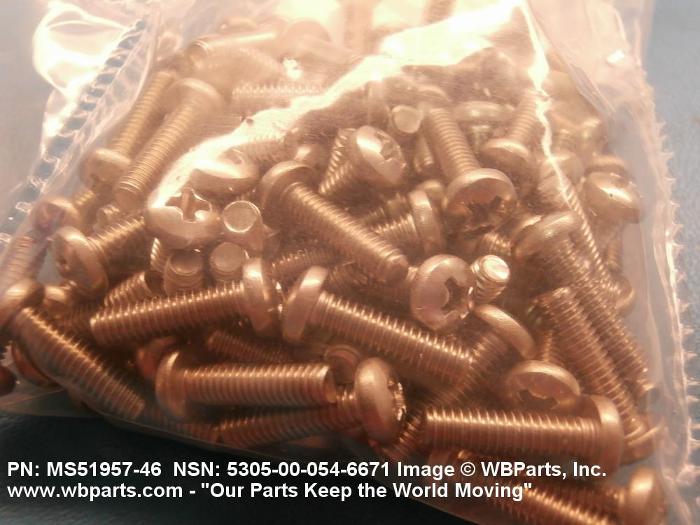

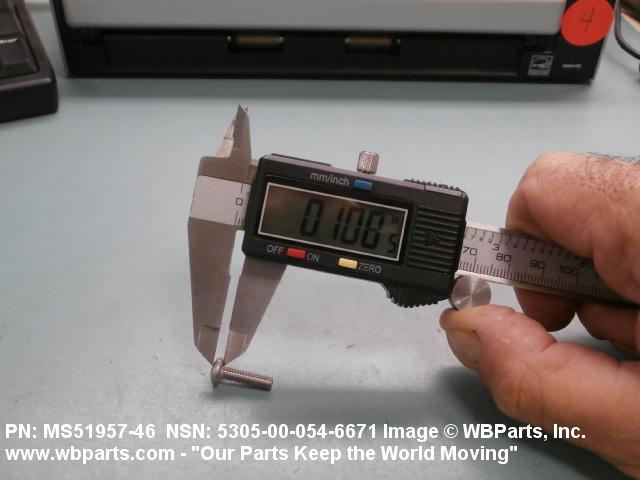

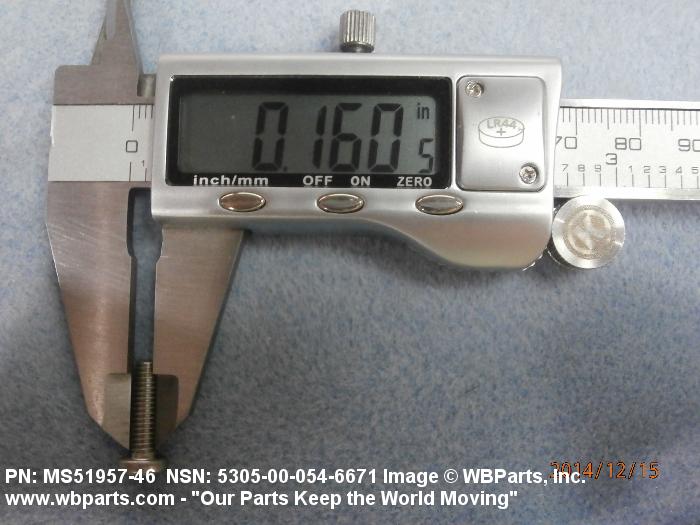

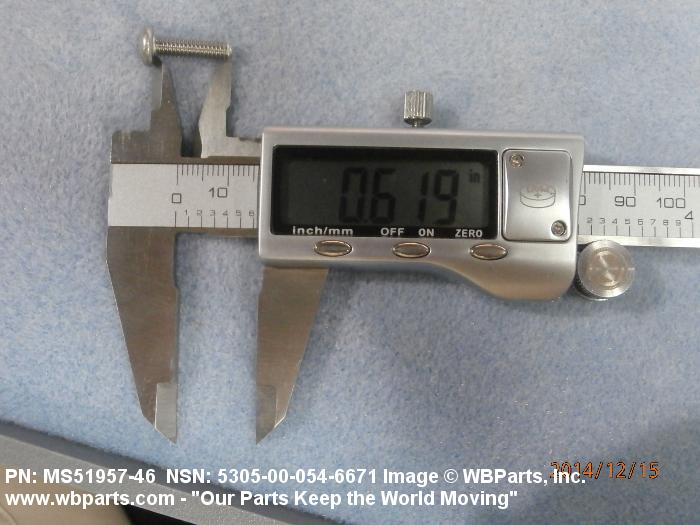

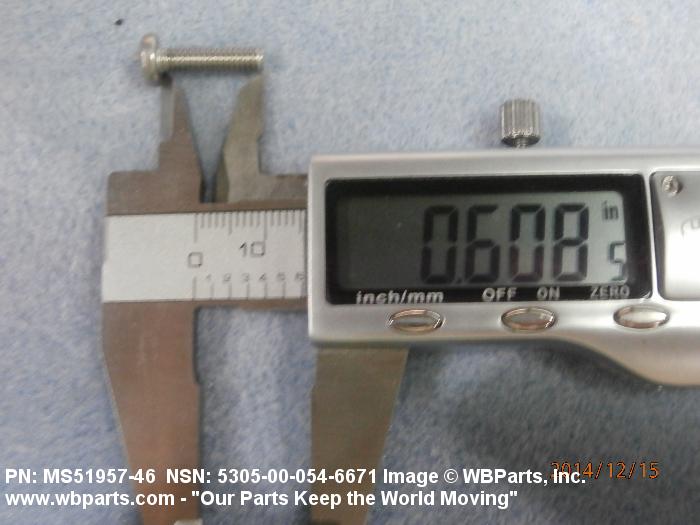

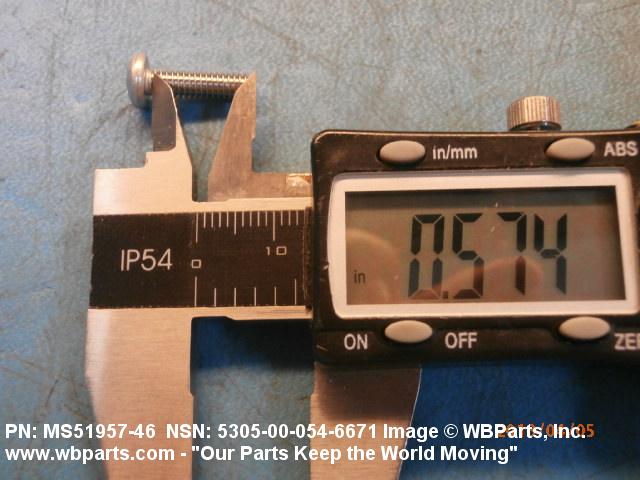

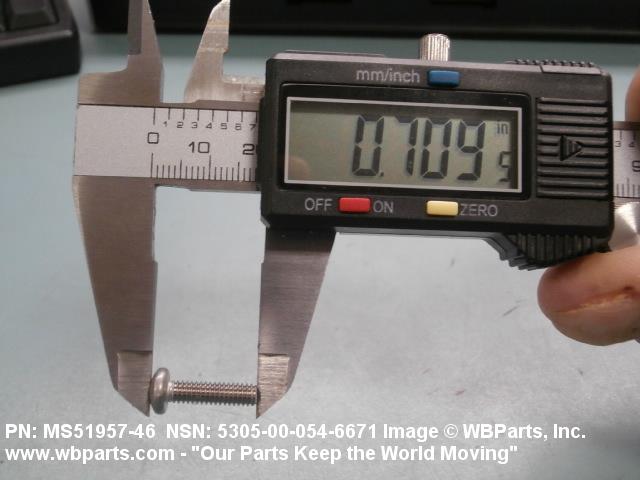

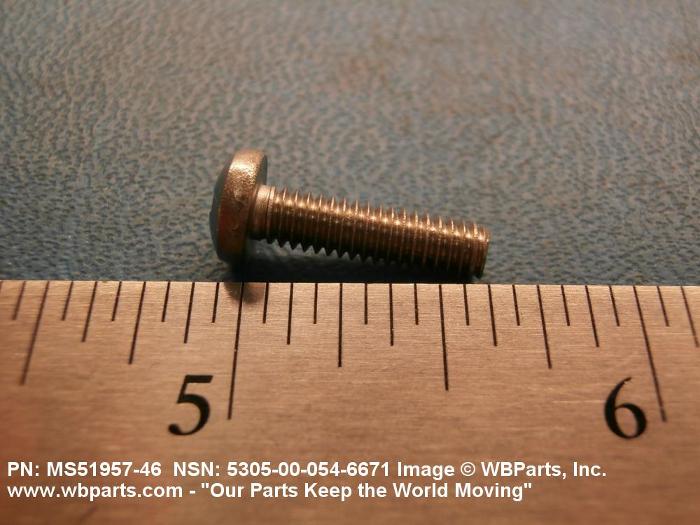

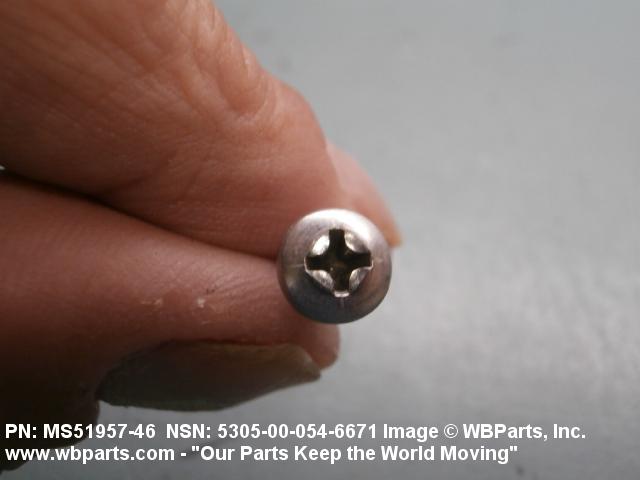

Drawings & Photos | NSN 5305-00-054-6671

Part Number	Request Date	QTY	Origin
5305-00-054-6671	2025-05-147	96	United States
MS5195746	2025-03-76	4	United States
5305-00-054-6671	2024-03-77	43	DIBBS
MS5195746	2024-01-31	36	United States
5305-00-054-6671	2023-11-323	214	DIBBS
FFS92	2023-08-236	14	US
5305-00-054-6671	2023-06-170	111	DIBBS
5305-00-054-6671	2023-03-88	25	DIBBS
5305-00-054-6671	2022-04-115	195	TW
MS5195746	2022-02-40	30	United States
MS5195746	2021-07-188	12	United States
5305-00-054-6671	2020-06-182	195	MANUAL
MS51957-46	2020-06-174	160	Hong Kong
MS5195746	2018-03-85	20	United States
MS5195746	2015-08-232	975	US
MS51957-46	2014-07-199	100	United States
MS3523346	2014-07-188	80	us
MS35233-46	2014-06-176	80
MS5195746	2014-03-85	1500	Singapore
FF-S-92	2014-02-59	75	United States
MS24693051	2014-02-36	50	US
5305-00-054-6671	2013-10-284	114	United States
5305-00-054-6671	2013-10-283	288	United States
5305-00-054-6671	2013-06-169	32	MANUAL
MS51957-46	2013-06-169	32	United States
5305-00-054-6671	2013-02-37	100	United States
5305-00-054-6671	2013-01-24	25	MANUAL
MS51957-46	2013-01-24	25	United States
5305-00-054-6671	2013-01-22	1	United States
MS51957-46	2012-07-187	300	KR
MS5195746	2012-06-158	316	US
MS5195746	2012-04-102	300	United States
MS51957-46	2012-02-40	50	TR
MS5195746	2011-10-287	840	United States
5305-00-054-6671	2011-08-238	120	United States
MS5195746	2011-06-157	18	US
MS5195746	2011-05-145	2	us
FFS92	2011-02-49	5	US
FFS92	2011-02-49	50	US
MS5195746	2010-12-356	1	Italy
FFS92	2010-11-323	165	US
MS5195746	2010-10-278	8	Saudi Arabia
MS5195746	2010-10-278	8	Saudi Arabia
MS5195746	2010-10-278	32	Saudi Arabia
MS5195746	2010-10-278	32	Saudi Arabia
5305-00-054-6671	2010-06-172	4	US
FFS92	2009-12-338	100	US
5305-00-054-6671	2009-11-317	144	Italy
5305-00-054-6671	2009-11-317	270	Italy
FFS92	2009-10-292	50	United States
5305-00-054-6671	2009-09-265	40	US
5305-00-054-6671	2009-07-208	400	United States
MS5195746	2009-07-197	200	US
5305-00-054-6671	2008-08-233	100	US
5305-00-054-6671	2008-08-221	4	US
FFS92	2008-03-80	50	United States

Cross Reference | NSN 5305-00-054-6671

Part Number	Cage Code	Manufacturer
003-007864-046	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
112-1052-046	94756	BOEING COMPANY, THE DBA BOEING
120266-306 ITEM #14	3J458	RAYTHEON COMPANY DBA RAYTHEON
12500237	52315	L-3 COMMUNICATIONS KLEIN ASSOCIATES, INC.
13218E0493	97403	CECOM LR CENTER
13218E0493-1309PIIC	97403	CECOM LR CENTER
2312520-46	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
245265-2	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
245323	35679	SINCLAIR TECHNOLOGIES INC.
284-515-0810	95542	NORTHROP GRUMMAN SYSTEMS CORPORATION
401-6357230-27	53711	NAVAL SEA SYSTEMS COMMAND
418293-46	96214	RAYTHEON COMPANY DBA RAYTHEON
4912532-01	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
4912532-01	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
5000 085608	04801	POWER PARAGON INC DBA POWER SYSTEMS GROUP
5120008-10	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
5305000546671	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5305008558280	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5432-0810	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
60-23-9661	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
74455226046	89944	KOLLSMAN, INC.
7581384P65	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
8800 PIECE 53	51210	CITY ENTERTAINMENT CORPORATION DBA JANUS FILMS
91772A196	0KVE6	MCMASTER-CARR SUPPLY COMPANY
919-46	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
946830-810	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
946830-810	13973	LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION
9800K329-01	S7341	ELISRA ELECTRONIC SYSTEM LTD
AN515-C8-10	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
F13-8-10L	72314	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
FF-S-92	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
HS0832-10-PP-3X	26073	ELECTRORACK PRODUCTS COMPANY
MS24693-051	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35233-46	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS51957-46	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
N0153P15012	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
P150007146	16786	F E L CORP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-054-6671

Compare

Related Products | NSN 5305-00-054-6671

5305-00-054-6672, 5305-00-054-6673, 5305-00-054-6674, 5305-00-054-6675, 5305-00-054-6676

Technical Data | NSN 5305-00-054-6671

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.164 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.563 INCHES MINIMUM AND 0.625 INCHES MAXIMUM
FASTENER LENGTH	0.625 INCHES NOMINAL
SCREW MATERIAL	STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES
SCREW SURFACE TREATMENT	PASSIVATE
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE
MINIMUM TENSILE STRENGTH	80000 POUNDS PER SQUARE INCH
HEAD STYLE	A23 PAN
HEAD DIAMETER	0.306 INCHES MINIMUM AND 0.322 INCHES MAXIMUM
HEAD HEIGHT	0.105 INCHES MINIMUM AND 0.115 INCHES MAXIMUM
INTERNAL DRIVE STYLE	B1 CROSS RECESS TYPE 1
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FF-S-92
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS51957-46

Restrictions/Controls & Freight Information | NSN 5305-00-054-6671

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-054-6671

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
