NSN 5305-00-162-0377 FRB750008B4, FRB75000-8B4, FRB75008B4

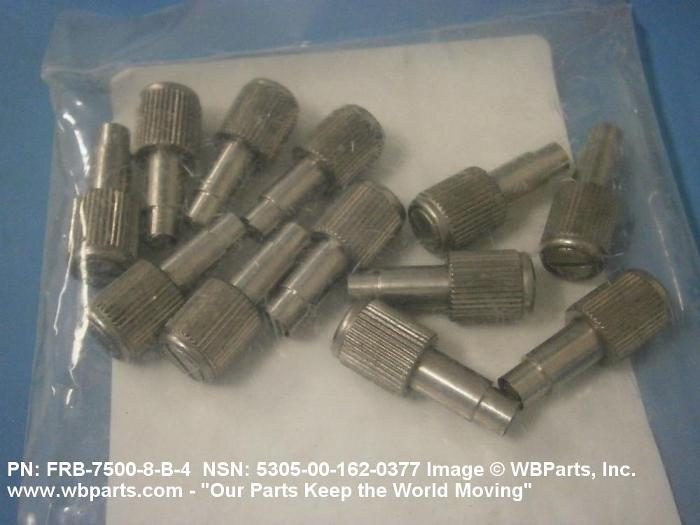

Product Details | PANEL SCREW ASSEMBLY
5305-00-162-0377 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.
Part Alternates: FRB750008B4, FRB75000-8B4, FRB75008B4, FRB-7500-8-B-4, FRB7500-8B4, FRSS75008B4, FRSS7500-8-B-4, FT1300834, FT1300-8-3-4, 46550805, 465508-05, 48110658, 481106-58, 5305-00-162-0377, 00-162-0377, 5305001620377, 001620377
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 OCT 1971 | 00-162-0377 | 33044 ( SCREW ASSEMBLY, PANEL ) |
Drawings & Photos | NSN 5305-00-162-0377
Demand History | NSN 5305-00-162-0377
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 481106-58 | 2019-10-303 | 108 | DIBBS |
| FRSS7500-8-B-4 | 2019-10-303 | 108 | DIBBS |
| FT1300-8-3-4 | 2019-10-303 | 108 | DIBBS |
| 5305-00-162-0377 | 2011-10-285 | 12 | us |
| FRB75008B4 | 2011-10-284 | 12 | United States |
| FRSS75008B4 | 2010-04-119 | 1000 | US |
| 48110658 | 2010-04-97 | 25 | UM |
| 5305-00-162-0377 | 2010-03-63 | 85 | DIBBS |
| 5305-00-162-0377 | 2009-11-307 | 340 | DIBBS |
| 48110658 | 2008-07-211 | 28 | US |
| FRSS75008B4 | 2008-02-50 | 80 | United States |
| 5305-00-162-0377 | 2008-02-42 | 273 | DIBBS |
| 5305-00-162-0377 | 2008-01-23 | 75 | DIBBS |
Cross Reference | NSN 5305-00-162-0377
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 465508-05 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 481106-58 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 481106-58 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| FRB-7500-8-B-4 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| FRB7500-8B4 | 97928 | HUCK INTL INC |
| FRB75000-8B4 | 97928 | HUCK INTL INC |
| FRSS7500-8-B-4 | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| FT1300-8-3-4 | 58794 | FASTENER TECHNOLOGY CORP. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-162-0377
Related Products | NSN 5305-00-162-0377
Technical Data | NSN 5305-00-162-0377
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.483 INCHES MINIMUM AND 0.647 INCHES MAXIMUM |
| FASTENER LENGTH | 0.535 INCHES MINIMUM AND 0.605 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY 6061 HEAD STEEL COMP 301 PRIMARY WASHER STEEL COMP 302 SPRING ALUMINUM ALLOY 6061 STAND-OFF STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OR STEEL COMP 321 OR STEEL COMP 347 OR STEEL COMP 384 OR STEEL COMP 385 FASTENER |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/8 FED SPEC SINGLE MATERIAL RESPONSE HEAD MIL-S-5059 MIL SPEC SINGLE MATERIAL RESPONSE PRIMARY WASHER QQ-W-423 COND B FED SPEC SINGLE MATERIAL RESPONSE SPRING QQ-A-225/8 FED SPEC SINGLE MATERIAL RESPONSE STAND-OFF ASTM A493 ASSN STD ALL MATERIAL RESPONSES FASTENER |
| SURFACE TREATMENT | ANODIZE HEAD PASSIVATE PRIMARY WASHER PASSIVATE SPRING ANODIZE STAND-OFF PASSIVATE FASTENER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 TY 1 CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE HEAD QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE PRIMARY WASHER QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPRING MIL-A-8625 TY 1 CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE STAND-OFF QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE FASTENER |
| HEAD STYLE | C69 KNURLED NO. 4 |
| HEAD DIAMETER | 0.405 INCHES MINIMUM AND 0.435 INCHES MAXIMUM |
| HEAD HEIGHT | 0.480 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| MATERIAL ACCOMMODATED THICKNESS | 0.047 INCHES MINIMUM AND 0.109 INCHES MAXIMUM |
| SPECIAL FEATURES | STRAIGHT KNURL |
| III END ITEM IDENTIFICATION | MILSTAR SYSTEM;NIMITZ CLASS CVN;OLIVER PERRY |
Restrictions/Controls & Freight Information | NSN 5305-00-162-0377
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
