Product Details | PANEL SCREW ASSEMBLY

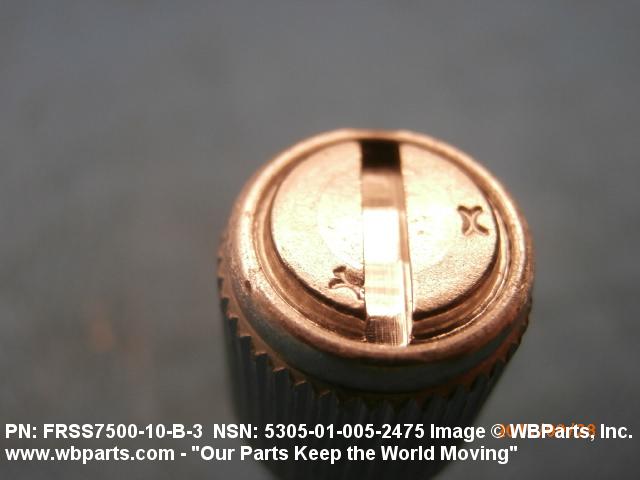

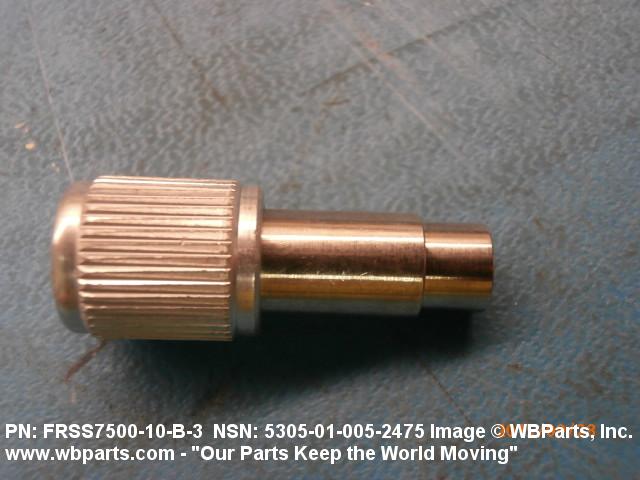

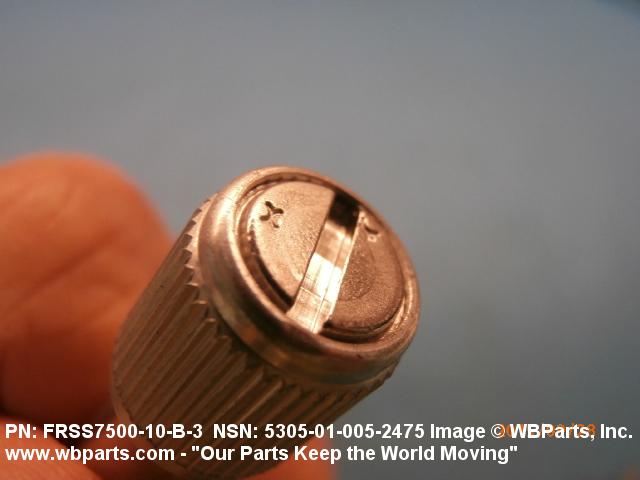

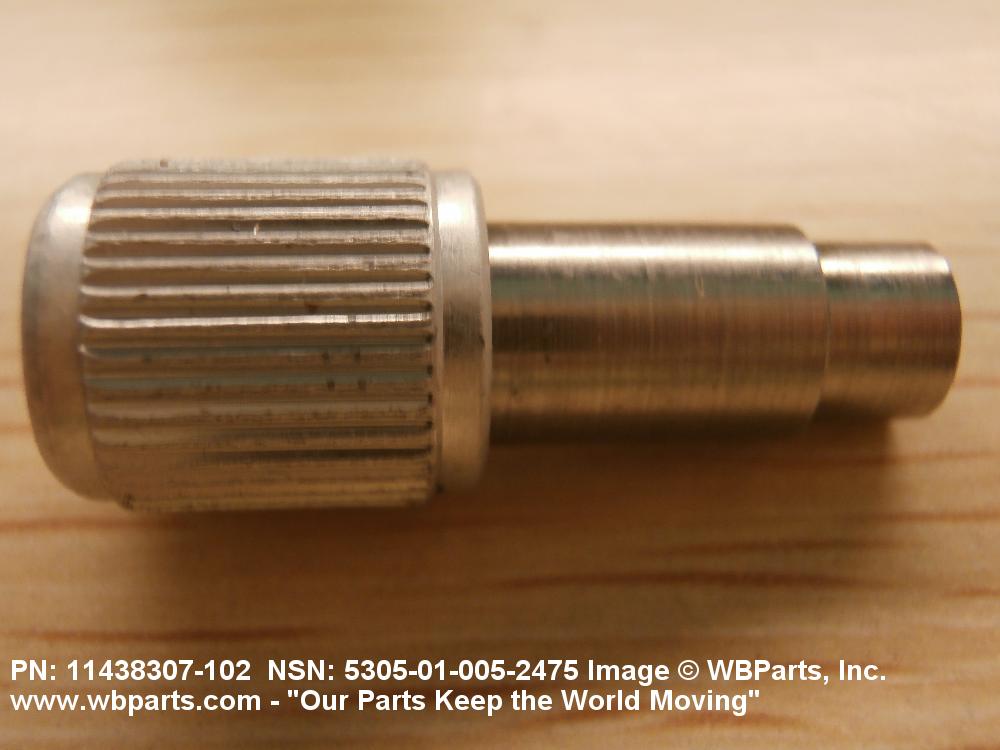

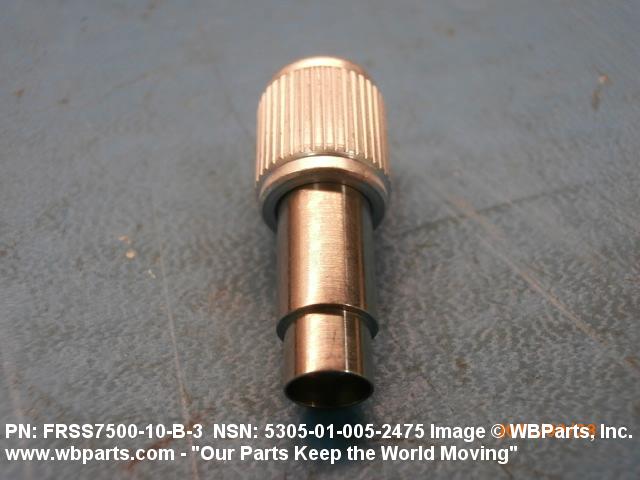

5305-01-005-2475 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.
Part Alternates: FRSS750010B3, FRSS7500-10B3, 11438307-2, 11438307102, 11438307-102, 11438307-7, 48110676, 481106-76, 5305-01-005-2475, 01-005-2475, 5305010052475, 010052475, 114383072, 114383077
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 JUN 1975 | 01-005-2475 | 33044 ( SCREW ASSEMBLY, PANEL ) |
Drawings & Photos | NSN 5305-01-005-2475
Demand History | NSN 5305-01-005-2475
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FRSS750010B3 | 2024-05-07 | 20 | United States |
| FRSS750010B3 | 2024-05-07 | 100 | United States |
| FRSS750010B3 | 2023-09-14 | 1000 | IL |
| 5305-01-005-2475 | 2022-10-24 | 34 | United States |
| 481106-76 | 2022-09-28 | 449 | DIBBS |
| FRSS7500-10B3 | 2022-09-28 | 449 | DIBBS |
| 481106-76 | 2022-06-30 | 381 | DIBBS |
| FRSS7500-10B3 | 2022-06-30 | 381 | DIBBS |
| 481106-76 | 2022-01-19 | 411 | DIBBS |
| FRSS7500-10B3 | 2022-01-19 | 411 | DIBBS |
| 481106-76 | 2021-12-07 | 58 | DIBBS |
| FRSS7500-10B3 | 2021-12-07 | 58 | DIBBS |
| 481106-76 | 2021-11-07 | 92 | DIBBS |
| FRSS7500-10B3 | 2021-11-07 | 92 | DIBBS |
| 481106-76 | 2021-10-26 | 71 | DIBBS |
| FRSS7500-10B3 | 2021-10-26 | 71 | DIBBS |
| FRSS750010B3 | 2021-10-13 | 100 | India |
| 481106-76 | 2021-10-12 | 564 | DIBBS |
| FRSS7500-10B3 | 2021-10-12 | 564 | DIBBS |
| 481106-76 | 2021-09-29 | 564 | DIBBS |
| FRSS7500-10B3 | 2021-09-29 | 564 | DIBBS |
| 481106-76 | 2021-07-21 | 430 | DIBBS |
| FRSS7500-10B3 | 2021-07-21 | 430 | DIBBS |
| 481106-76 | 2021-06-17 | 92 | DIBBS |
| FRSS7500-10B3 | 2021-06-17 | 92 | DIBBS |
| 481106-76 | 2019-12-02 | 537 | DIBBS |
| FRSS7500-10B3 | 2019-12-02 | 537 | DIBBS |
| 5305-01-005-2475 | 2018-04-03 | 787 | DIBBS |
| 5305-01-005-2475 | 2017-06-27 | 345 | DIBBS |
| 5305-01-005-2475 | 2017-05-24 | 345 | DIBBS |
| 5305-01-005-2475 | 2017-04-13 | 178 | United States |
| 5305-01-005-2475 | 2017-02-13 | 262 | United States |
| 5305-01-005-2475 | 2017-02-12 | 1389 | DIBBS |
| 5305-01-005-2475 | 2016-12-11 | 1195 | DIBBS |
| FRSS750010B3 | 2015-11-23 | 40 | US |
| FRSS750010B3 | 2015-09-22 | 100 | Denmark |
| FRSS750010B3 | 2014-10-06 | 2 | United States |
| 48110676 | 2014-01-30 | 2 | United States |
| 48110676 | 2013-11-19 | 30 | United States |
| 11438307102 | 2012-08-14 | 20 | United States |
| 48110676 | 2012-04-19 | 5 | United States |
| 48110676 | 2011-06-24 | 5 | us |
| 11438307102 | 2011-05-19 | 5 | United States |
| 5305-01-005-2475 | 2011-05-19 | 5 | United States |
| 5305-01-005-2475 | 2010-04-10 | 186 | DIBBS |
| 5305-01-005-2475 | 2009-05-06 | 14 | US |
| 5305-01-005-2475 | 2008-06-25 | 200 | US |
| 5305-01-005-2475 | 2007-12-14 | 500 | United States |
Cross Reference | NSN 5305-01-005-2475
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11438307-102 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 11438307-2 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 11438307-7 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 481106-76 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 481106-76 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 481106-76 | 58794 | FASTENER TECHNOLOGY CORP. |
| FRSS7500-10B3 | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| FRSS7500-10B3 | 97928 | HUCK INTL INC |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5305-01-005-2475
Related Products | NSN 5305-01-005-2475
5305-01-005-3109, 5305-01-005-3181, 5305-01-005-3182, 5305-01-005-3183, 5305-01-005-3185
Technical Data | NSN 5305-01-005-2475

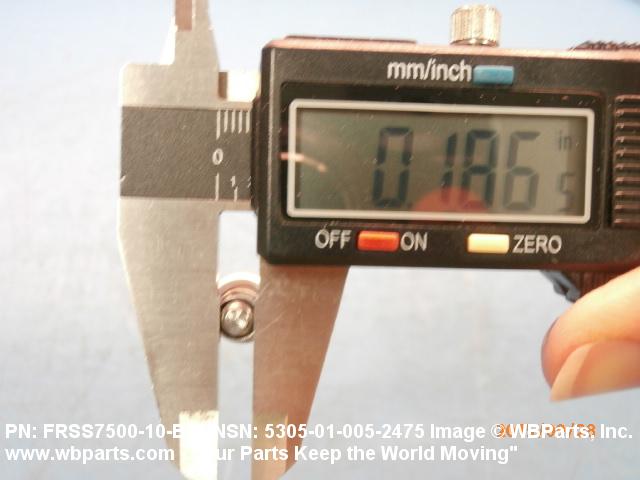

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |

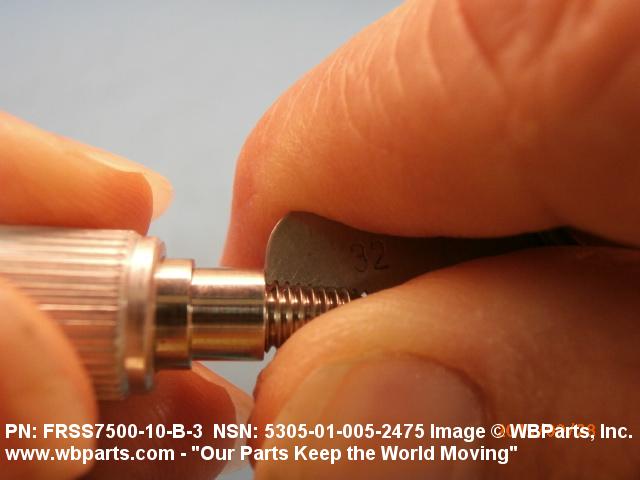

| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

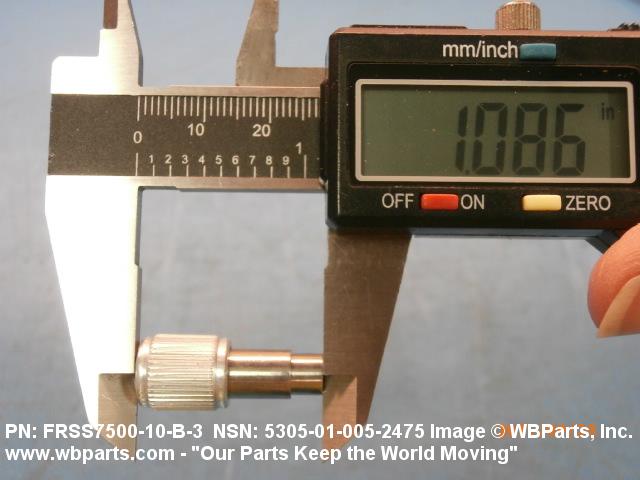

| FASTENER LENGTH | 1.067 INCHES MINIMUM AND 1.107 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY 6061 HEAD STEEL COMP 301 PRIMARY WASHER STEEL COMP 302B SPRING STEEL COMP 304 STAND-OFF STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OR STEEL COMP 321 OR STEEL COMP 347 OR STEEL COMP 384 OR STEEL COMP 385 FASTENER |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/8 FED SPEC SINGLE MATERIAL RESPONSE HEAD MIL-S-5059 MIL SPEC SINGLE MATERIAL RESPONSE PRIMARY WASHER ASTM A580 ASSN STD SINGLE MATERIAL RESPONSE SPRING QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE STAND-OFF ASTM A493 ASSN STD ALL MATERIAL RESPONSES FASTENER |
| SURFACE TREATMENT | ANODIZE HEAD PASSIVATE PRIMARY WASHER PASSIVATE SPRING PASSIVATE STAND-OFF PASSIVATE FASTENER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 1,CL 1 MIL SPEC SINGLE TREATMENT RESPONSE HEAD QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE PRIMARY WASHER QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPRING QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE STAND-OFF QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE FASTENER |
| HEAD STYLE | C66 KNURLED NO. 1 |

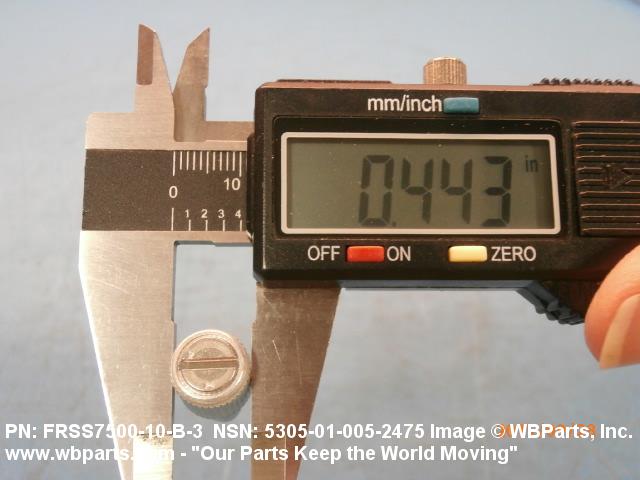

| HEAD DIAMETER | 0.451 INCHES NOMINAL |

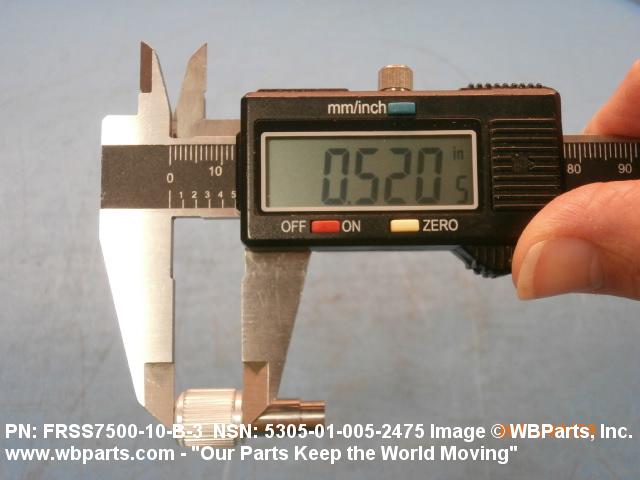

| HEAD HEIGHT | 0.520 INCHES NOMINAL |

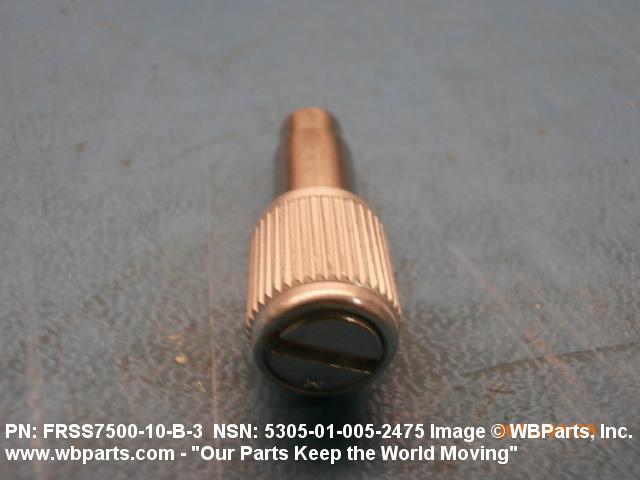

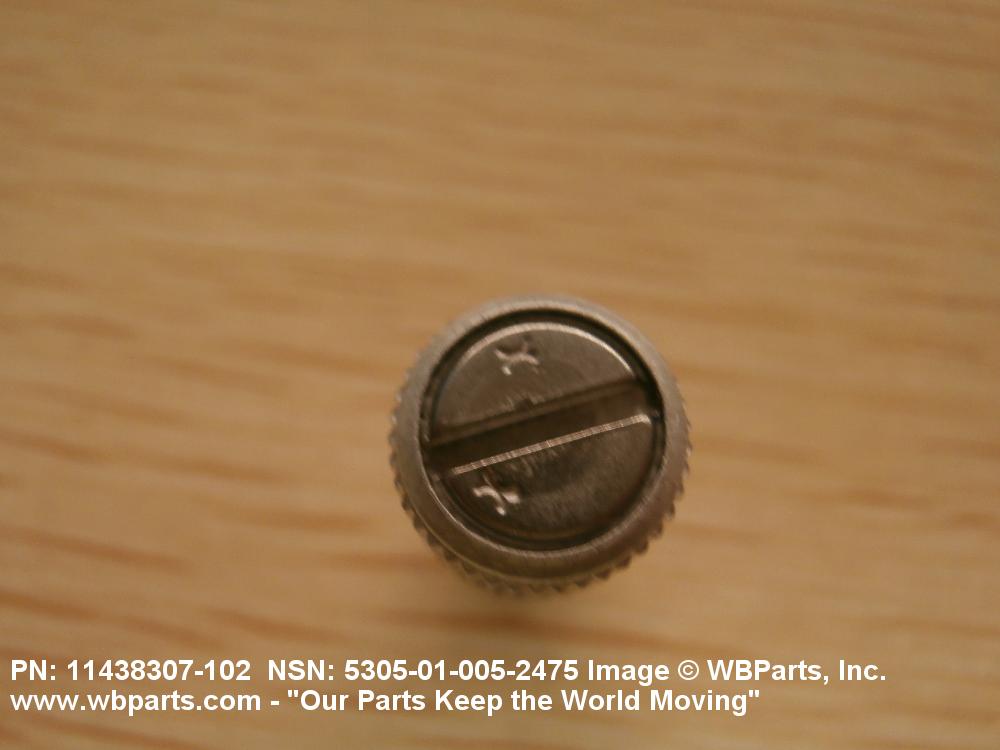

| INTERNAL DRIVE STYLE | D14 SLOT |
| MATERIAL ACCOMMODATED THICKNESS | 0.032 INCHES MINIMUM AND 0.093 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | AUSTIN SHIP CLASS LPD-4AMPHIBIOUS TRANSPORT DOCK |
