Product Details | PANEL SCREW ASSEMBLY
5305-01-277-2369 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.
Part Alternates: 138C574H10, 51-99-181-10, 5305-01-277-2369, 01-277-2369, 5305012772369, 012772369, 519918110
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 APR 1988 | 01-277-2369 | 33044 ( SCREW ASSEMBLY, PANEL ) |

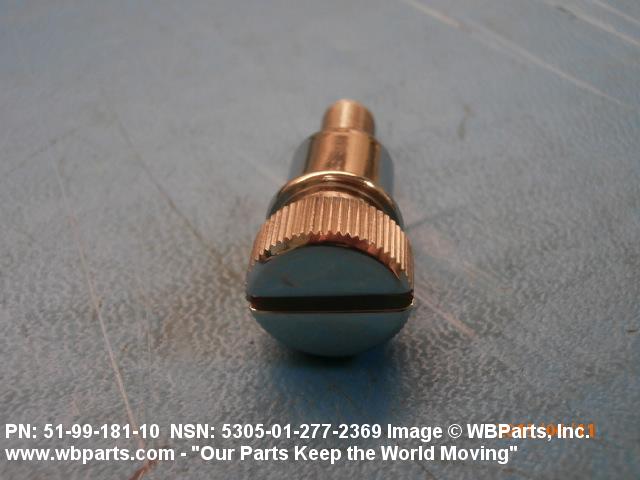

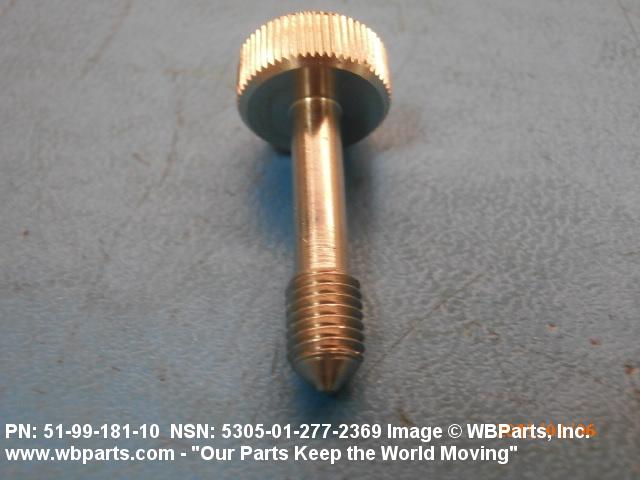

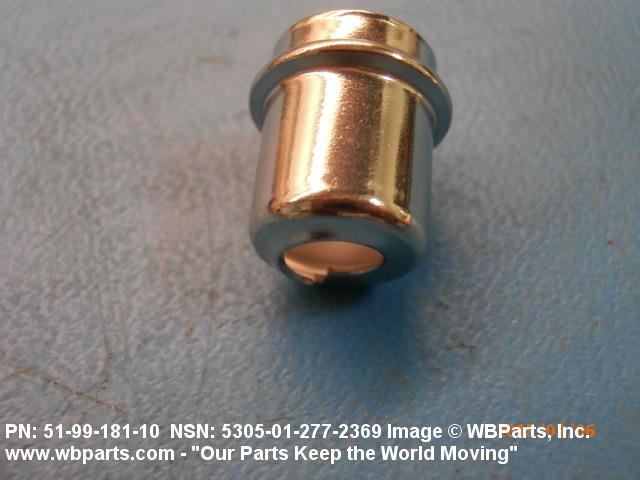

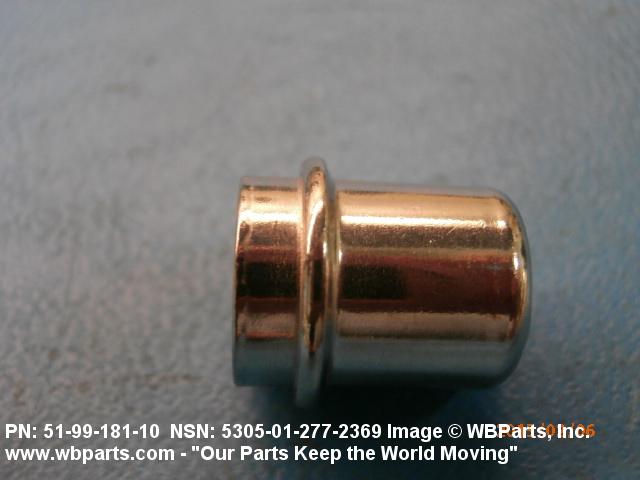

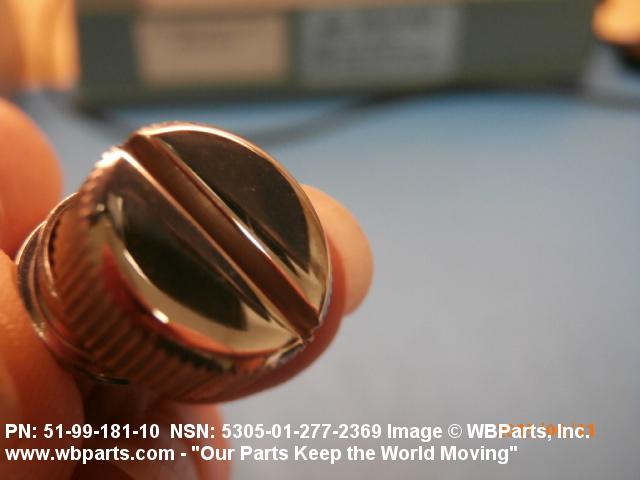

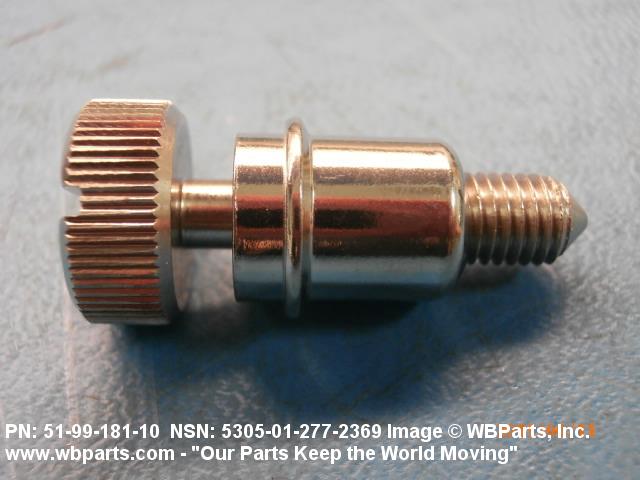

Drawings & Photos | NSN 5305-01-277-2369
Demand History | NSN 5305-01-277-2369
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-277-2369 | 2016-07-20 | 16 | us |
| 5305-01-277-2369 | 2015-06-01 | 8 | United States |
| 5305-01-277-2369 | 2015-01-20 | 24 | United States |
| 5305-01-277-2369 | 2015-01-15 | 6 | United States |
| 5305-01-277-2369 | 2015-01-15 | 24 | United States |
| 5305-01-277-2369 | 2014-11-09 | 18 | DIBBS |
| 5305-01-277-2369 | 2011-04-12 | 1 | DIBBS |
| 5305-01-277-2369 | 2010-11-01 | 100 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5305-01-277-2369
Related Products | NSN 5305-01-277-2369
5305-01-277-2370, 5305-01-277-2564, 5305-01-277-3181, 5305-01-277-3182, 5305-01-277-3183
Technical Data | NSN 5305-01-277-2369
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |

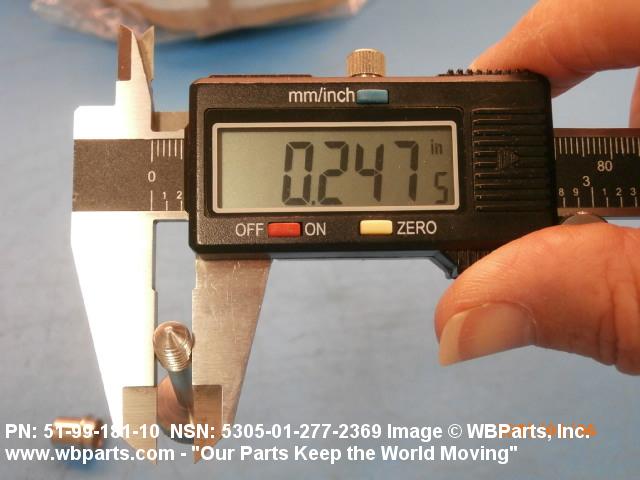

| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

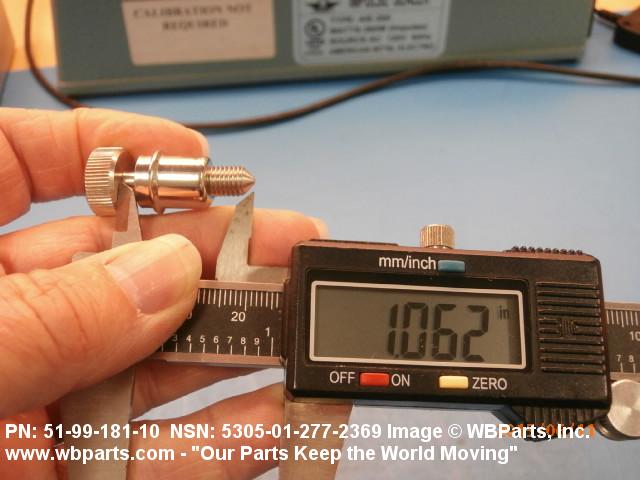

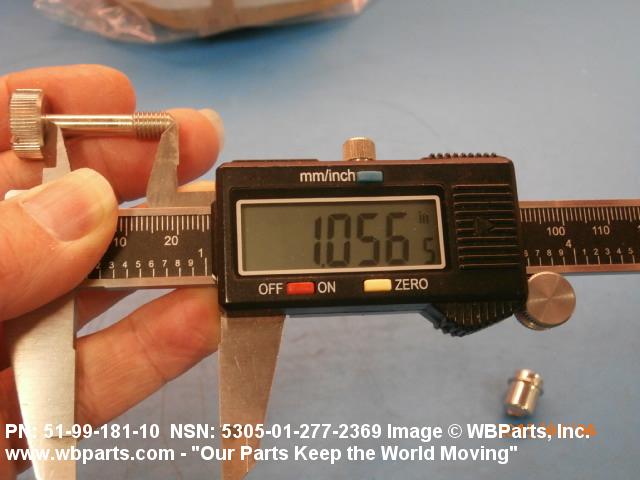

| FASTENER LENGTH | 1.060 INCHES NOMINAL |
| MATERIAL | STEEL COMP 303 STAND-OFF STEEL COMP 303 FASTENER |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A582 TY 303 ASSN STD SINGLE MATERIAL RESPONSE STAND-OFF ASTM A582 TY 303 ASSN STD SINGLE MATERIAL RESPONSE FASTENER |
| SURFACE TREATMENT | PASSIVATE STAND-OFF PASSIVATE FASTENER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-F-14072 MIL SPEC SINGLE TREATMENT RESPONSE STAND-OFF MIL-F-14072 MIL SPEC SINGLE TREATMENT RESPONSE FASTENER |
| HEAD STYLE | C66 KNURLED NO. 1 |
| HEAD DIAMETER | 0.500 INCHES MINIMUM AND 0.620 INCHES MAXIMUM |

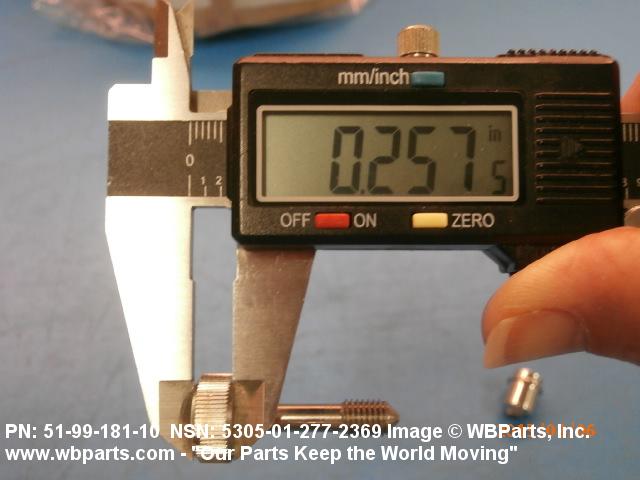

| HEAD HEIGHT | 0.250 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D14 SLOT |
| MATERIAL ACCOMMODATED THICKNESS | 0.130 INCHES NOMINAL |
| SPECIAL FEATURES | FLAT POINT STYLE |
Restrictions/Controls & Freight Information | NSN 5305-01-277-2369
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-277-2369
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
