Product Details | PANEL SCREW ASSEMBLY
5305-01-407-9481 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.
Part Alternates: FRSW7500SL8A4, FRSW7500SL-8-A-4, FSC9004S084A, FSC9004S08-4-A, FTT7062814DL, FTT7062-8-1-4DL, 1323497731, 13234977-31, 5305-01-407-9481, 01-407-9481, 5305014079481, 014079481
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 FEB 1995 | 01-407-9481 | 33044 ( SCREW ASSEMBLY, PANEL ) |

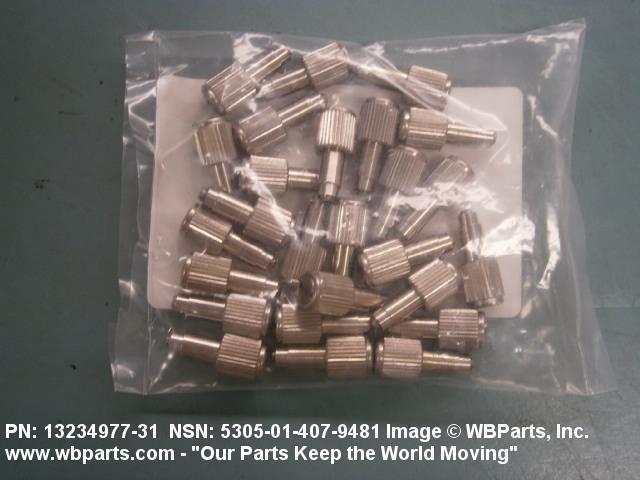

Drawings & Photos | NSN 5305-01-407-9481
Demand History | NSN 5305-01-407-9481
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-407-9481 | 2013-09-27 | 26 | United States |
| 5305-01-407-9481 | 2013-09-23 | 26 | United States |
| 5305-01-407-9481 | 2012-06-02 | 25 | DIBBS |
| 5305-01-407-9481 | 2012-04-02 | 39 | DIBBS |
| 5305-01-407-9481 | 2012-03-08 | 25 | DIBBS |
| 5305-01-407-9481 | 2011-11-15 | 53 | DIBBS |
| 5305-01-407-9481 | 2011-07-28 | 53 | DIBBS |
Cross Reference | NSN 5305-01-407-9481
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13234977-31 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| 13234977-31 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 13234977-31 | 58794 | FASTENER TECHNOLOGY CORP. |
| FRSW7500SL-8-A-4 | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| FRSW7500SL-8-A-4 | 97928 | HUCK INTL INC |
| FSC9004S08-4-A | 58998 | EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY |
| FTT7062-8-1-4DL | 58794 | FASTENER TECHNOLOGY CORP. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5305-01-407-9481
Related Products | NSN 5305-01-407-9481
5305-01-407-9487, 5305-01-407-9493, 5305-01-407-9494, 5305-01-407-9498, 5305-01-407-9499
Technical Data | NSN 5305-01-407-9481
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |

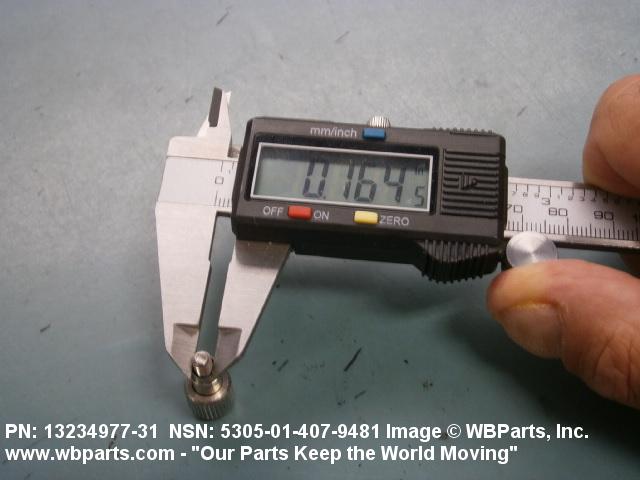

| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| FASTENER LENGTH | 0.510 INCHES NOMINAL |
| MATERIAL | STEEL COMP 303 HEAD STEEL COMP 301 SECONDARY WASHER STEEL COMP 631 PRIMARY WASHER STEEL COMP 303 SPRING STEEL COMP 304 STAND-OFF STEEL COMP 303 FASTENER |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A582 ASSN STD SINGLE MATERIAL RESPONSE HEAD MIL-S-5059 MIL SPEC SINGLE MATERIAL RESPONSE SECONDARY WASHER MIL-S-25043 MIL SPEC SINGLE MATERIAL RESPONSE PRIMARY WASHER ASTM A313 ASSN STD SINGLE MATERIAL RESPONSE SPRING MIL-S-23195 MIL SPEC SINGLE MATERIAL RESPONSE STAND-OFF ASTM A493 ASSN STD SINGLE MATERIAL RESPONSE FASTENER |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C100 KNURLED NO. 5 |
| HEAD DIAMETER | 0.385 INCHES NOMINAL |

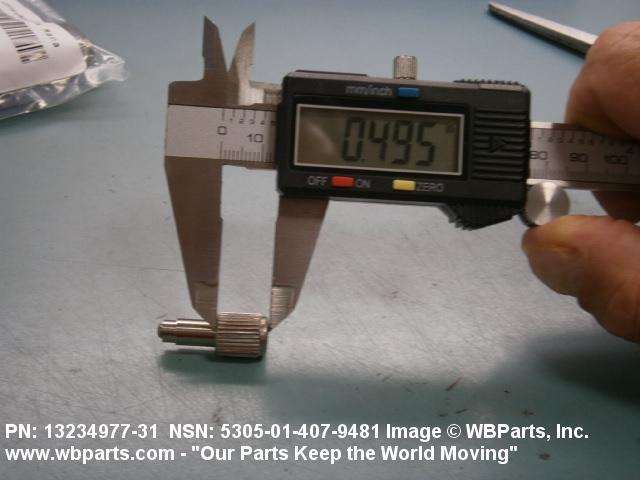

| HEAD HEIGHT | 0.495 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D14 SLOT |
| MATERIAL ACCOMMODATED THICKNESS | 0.020 INCHES MINIMUM AND 0.031 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5305-01-407-9481
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-407-9481
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 7 | An item that has been reviewed and determined not to fit the definition of codes 0 thru 6. These items are not assigned a specific application within the Marine Corps. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
