NSN 5305-00-245-5097 CS6018TS37B, CS6018TS3-7-B, DLC790010B7

Product Details | PANEL SCREW ASSEMBLY

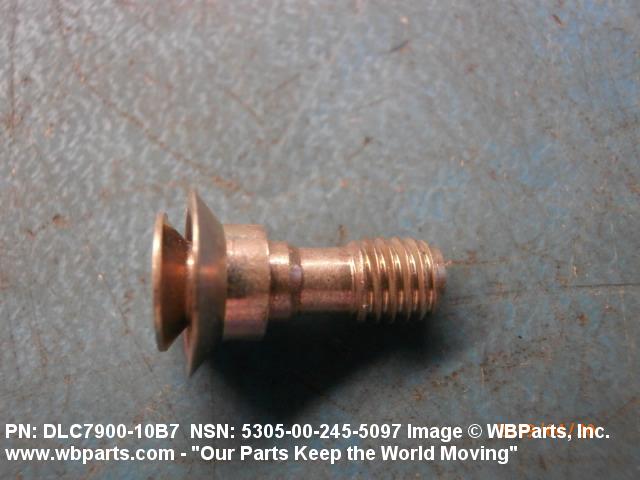

5305-00-245-5097 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.

Part Alternates: CS6018TS37B, CS6018TS3-7-B, DLC790010B7, DLC7900-10B7, FT11661027, FT1166-10-2-7, 5305-00-245-5097, 00-245-5097, 5305002455097, 002455097

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JUL 1969	00-245-5097	33044 ( SCREW ASSEMBLY, PANEL )

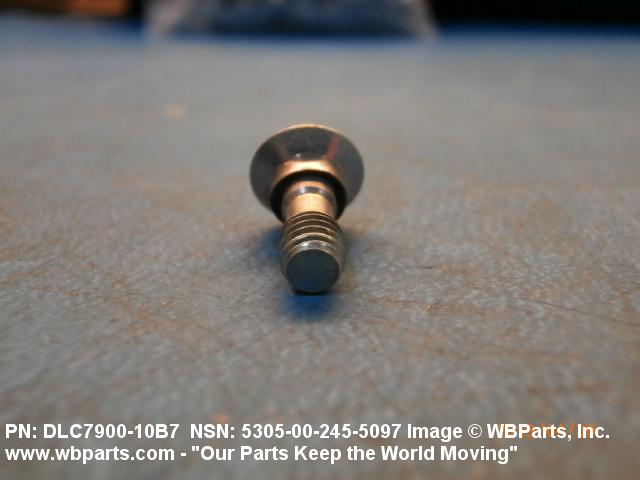

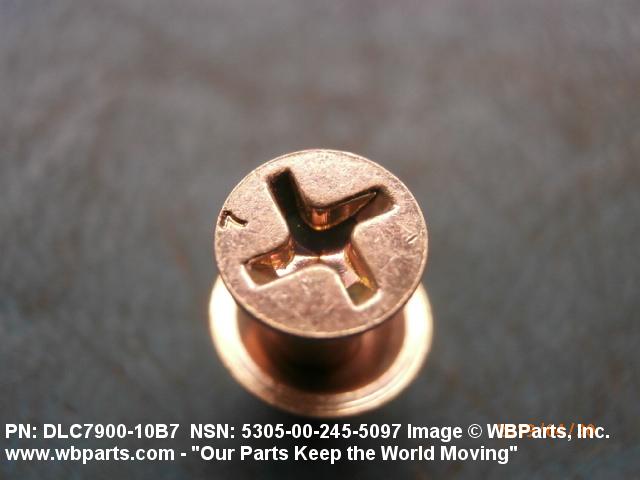

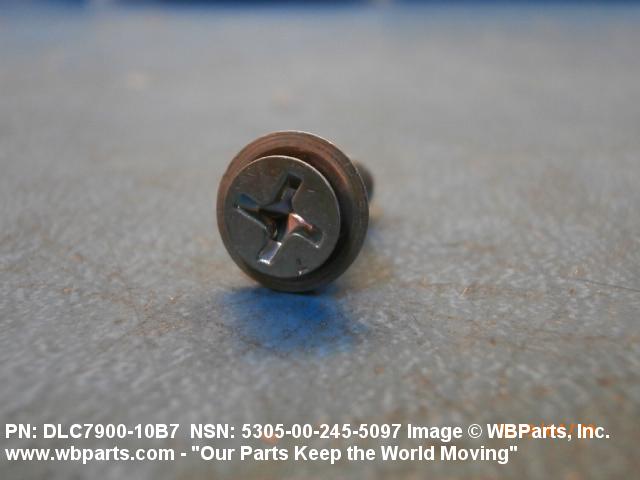

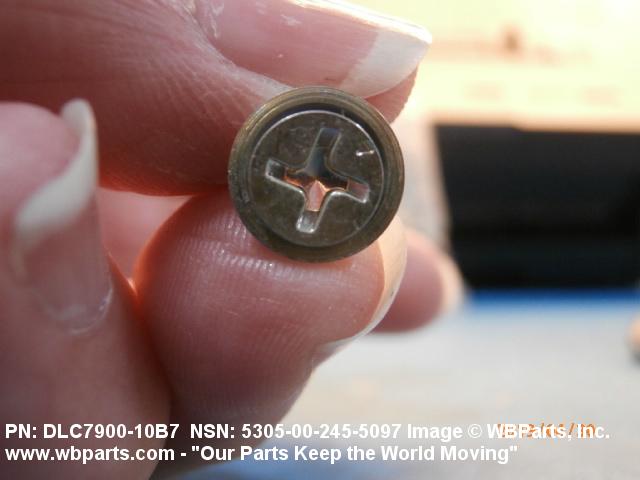

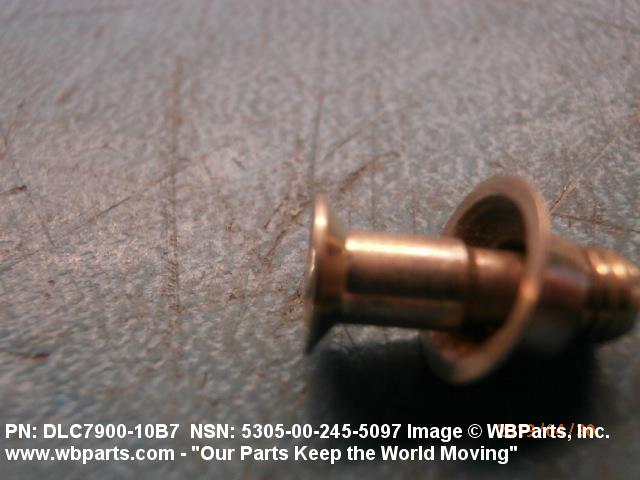

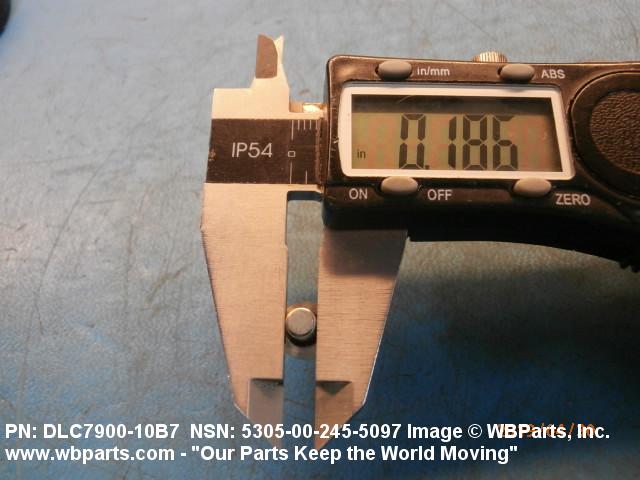

Drawings & Photos | NSN 5305-00-245-5097

Part Number	Request Date	QTY	Origin
DLC790010B7	2022-03-62	10	United States
5305-00-245-5097	2019-04-95	100	United States
5305-00-245-5097	2010-12-348	1150	DIBBS
5305-00-245-5097	2010-06-181	1090	DIBBS
5305-00-245-5097	2009-05-151	3164	DIBBS
5305-00-245-5097	2009-05-140	4400	DIBBS
5305-00-245-5097	2009-04-106	3400	DIBBS
5305-00-245-5097	2009-03-75	374	DIBBS
5305-00-245-5097	2009-03-69	228	DIBBS
5305-00-245-5097	2009-02-41	280	DIBBS
5305-00-245-5097	2008-10-291	168	DIBBS

Cross Reference | NSN 5305-00-245-5097

Part Number	Cage Code	Manufacturer
CS6018TS3-7-B	58998	EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY
DLC7900-10B7	0HDW7	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
DLC7900-10B7	97928	HUCK INTL INC
FT1166-10-2-7	58794	FASTENER TECHNOLOGY CORP.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-245-5097

Compare

Related Products | NSN 5305-00-245-5097

5305-00-245-5116, 5305-00-245-5117, 5305-00-245-5155, 5305-00-245-5157, 5305-00-245-5236

Technical Data | NSN 5305-00-245-5097

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNJF

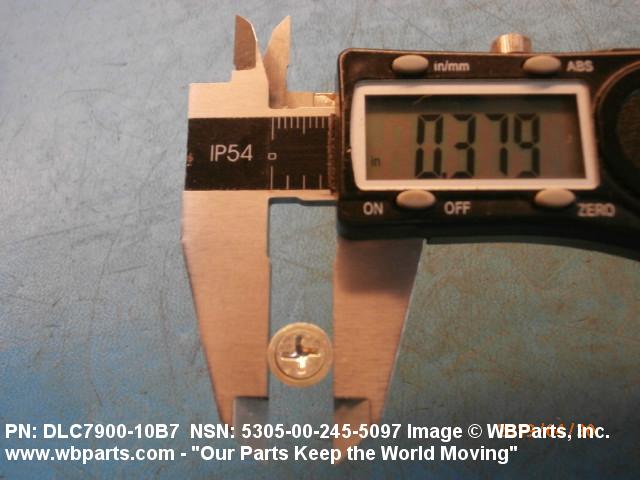

NOMINAL THREAD DIAMETER	0.190 INCHES

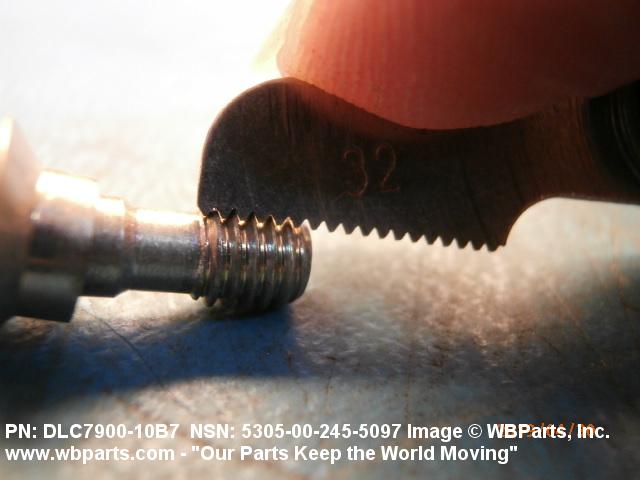

THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

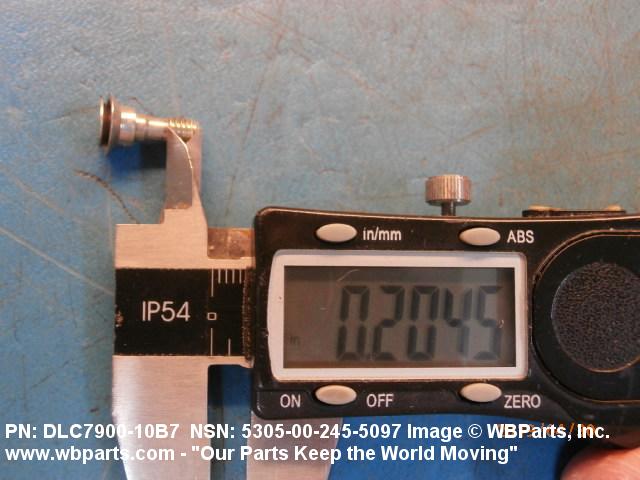

THREAD LENGTH	0.200 INCHES NOMINAL

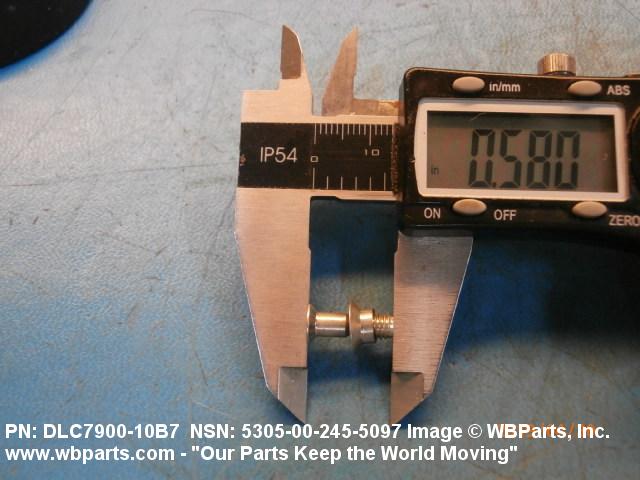

FASTENER LENGTH	0.528 INCHES MINIMUM AND 0.580 INCHES MAXIMUM
