NSN 5305-00-281-9682 NAS336CA16, 00-281-9682, 002819682
Product Details | CLOSE TOLERANCE SCREW
5305-00-281-9682 A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: NAS336CA16, 5305-00-281-9682, 00-281-9682, 5305002819682, 002819682
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-281-9682 | 29294 ( SCREW, CLOSE TOLERANCE ) |

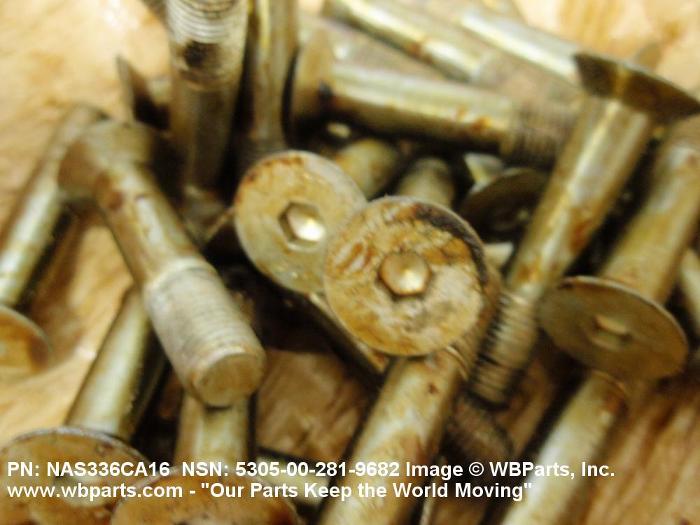

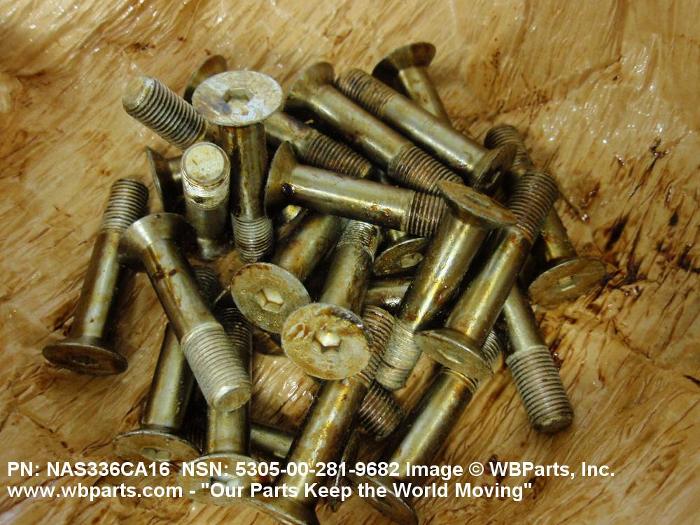

Drawings & Photos | NSN 5305-00-281-9682
Demand History | NSN 5305-00-281-9682
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-281-9682 | 2018-02-42 | 5 | US |
| 5305-00-281-9682 | 2011-03-70 | 1 | US |
| NAS336CA16 | 2011-03-62 | 30 | United States |
| NAS336CA16 | 2011-02-41 | 2 | United States |
| 5305-00-281-9682 | 2011-02-39 | 2 | United States |
Cross Reference | NSN 5305-00-281-9682
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS336CA16 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-281-9682
Technical Data | NSN 5305-00-281-9682
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.615 INCHES MINIMUM AND 0.682 INCHES MAXIMUM |
| FASTENER LENGTH | 1.813 INCHES MINIMUM AND 1.860 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 4140 OR STEEL COMP E4340 OR STEEL COMP 6150 OR STEEL COMP 8735 OR STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5000 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-8503 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-6098 MIL SPEC 4TH MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 5TH MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C50 FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.752 INCHES MINIMUM AND 0.762 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.220 INCHES MINIMUM AND 0.222 INCHES MAXIMUM |
| GRIP LENGTH | 1.178 INCHES MINIMUM AND 1.198 INCHES MAXIMUM |
| GRIP DIAMETER | 0.3737 INCHES MINIMUM AND 0.3742 INCHES MAXIMUM |
| SURFACE FINISH | 32.0 MICROINCHES GRIP |
| SPECIFICATION/STANDARD DATA | 80205-NAS336 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5305-00-281-9682
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-281-9682
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
