NSN 5305-00-373-1418 CA13911029, CA1391-10-2-9, FT11541
Product Details | PANEL SCREW ASSEMBLY
5305-00-373-1418 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.
Part Alternates: CA13911029, CA1391-10-2-9, FT11541, FT1154-1, 21294361, 2129436-1, 5305-00-373-1418, 00-373-1418, 5305003731418, 003731418
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 MAR 1974 | 00-373-1418 | 33044 ( SCREW ASSEMBLY, PANEL ) |

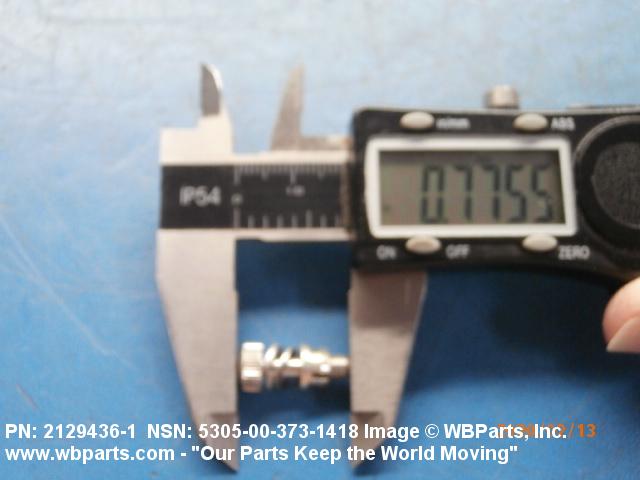

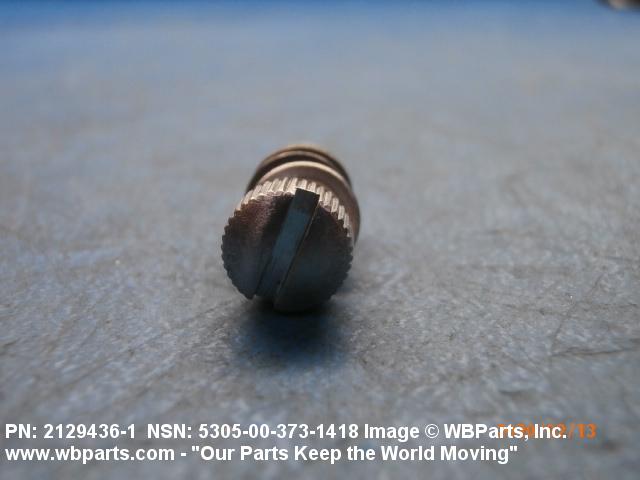

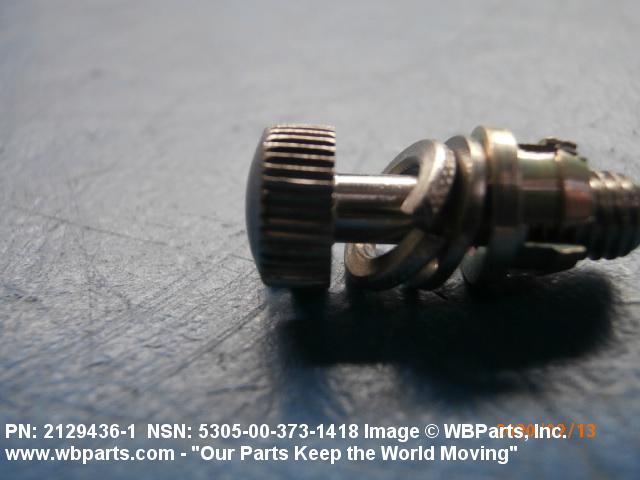

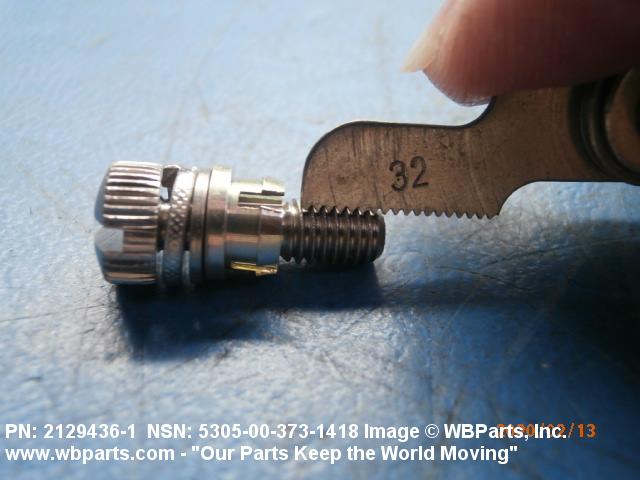

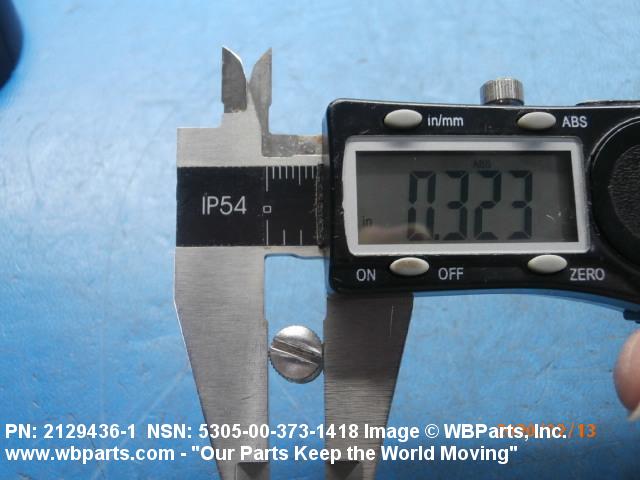

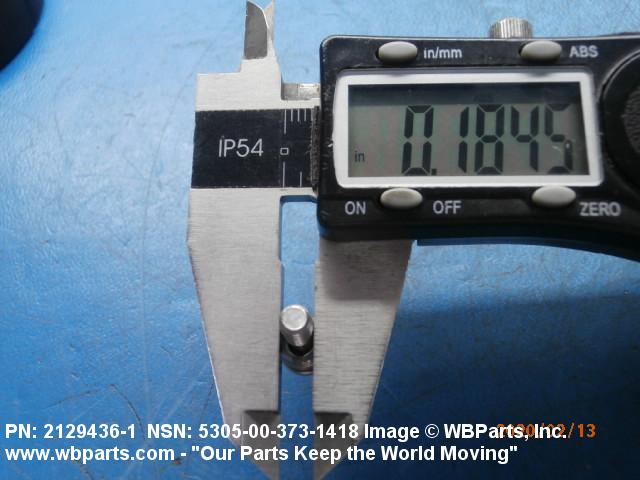

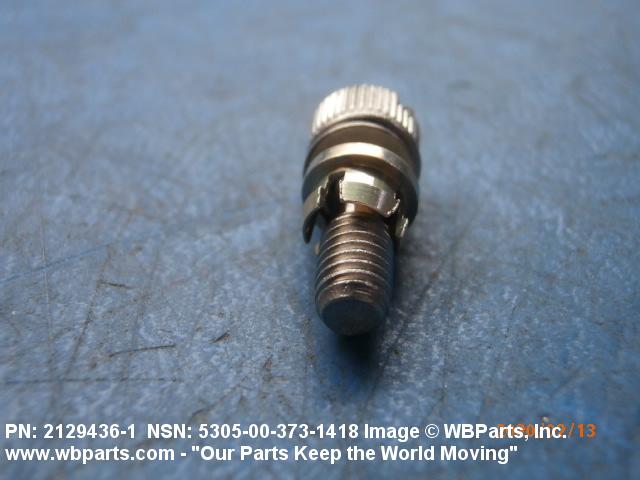

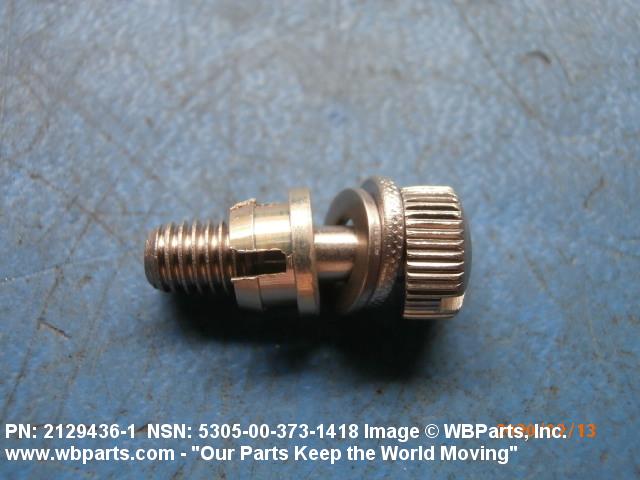

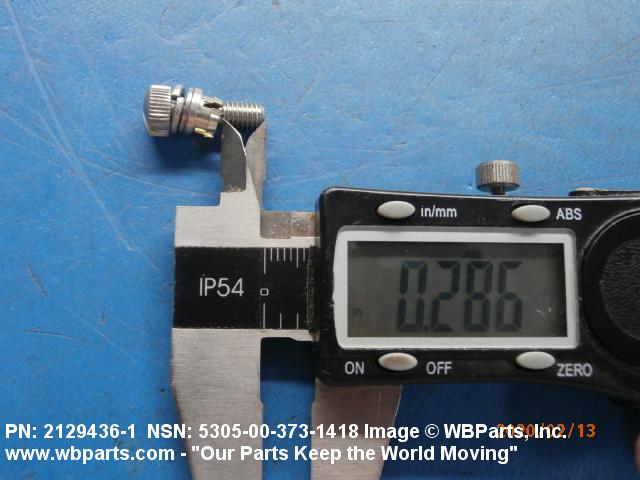

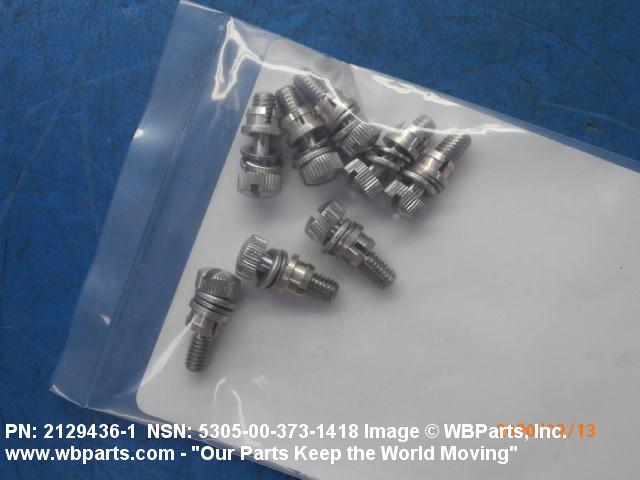

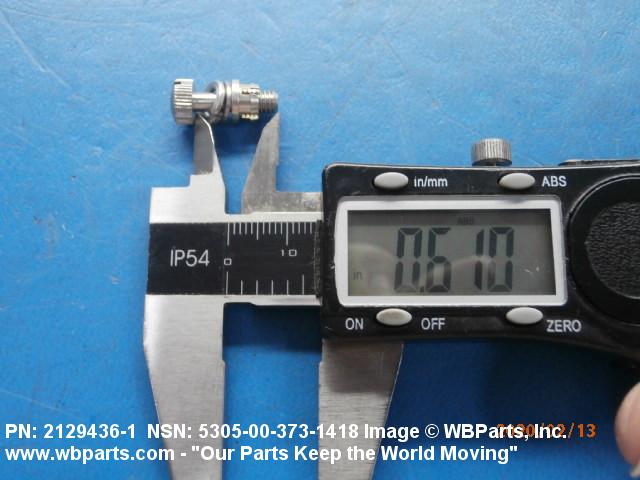

Drawings & Photos | NSN 5305-00-373-1418
Demand History | NSN 5305-00-373-1418
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-373-1418 | 2024-12-345 | 40 | PR |
| 21294361 | 2020-01-03 | 8 | United States |
| 21294361 | 2017-06-159 | 32 | US |
| 21294361 | 2011-01-18 | 10 | US |
| 21294361 | 2011-01-18 | 35 | US |
| 21294361 | 2011-01-17 | 35 | United States |
| 21294361 | 2010-12-361 | 10 | US |
Cross Reference | NSN 5305-00-373-1418
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2129436-1 | 19315 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX NAVIGATION AND |
| 2129436-1 | 55974 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS |
| CA1391-10-2-9 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| FT1154-1 | 58794 | FASTENER TECHNOLOGY CORP. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-373-1418
Related Products | NSN 5305-00-373-1418
Technical Data | NSN 5305-00-373-1418
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.281 INCHES NOMINAL |
| FASTENER LENGTH | 0.705 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING SECONDARY WASHER STEEL CORROSION RESISTING PRIMARY WASHER ALUMINUM STAND-OFF STEEL CORROSION RESISTING FASTENER |
| SURFACE TREATMENT | PASSIVATE SECONDARY WASHER PASSIVATE PRIMARY WASHER CHROMATE STAND-OFF PASSIVATE FASTENER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SECONDARY WASHER QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE PRIMARY WASHER MIL-C-5541 CL 3 MIL SPEC SINGLE TREATMENT RESPONSE STAND-OFF QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE FASTENER |
| HEAD STYLE | C44 FILLISTER |
| HEAD DIAMETER | 0.340 INCHES NOMINAL |

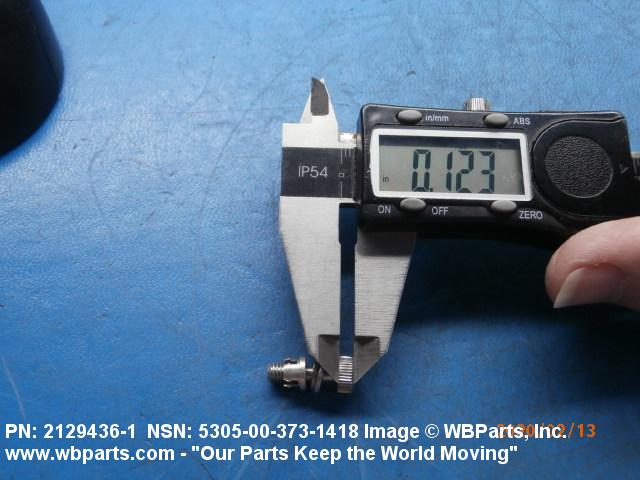

| HEAD HEIGHT | 0.123 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |

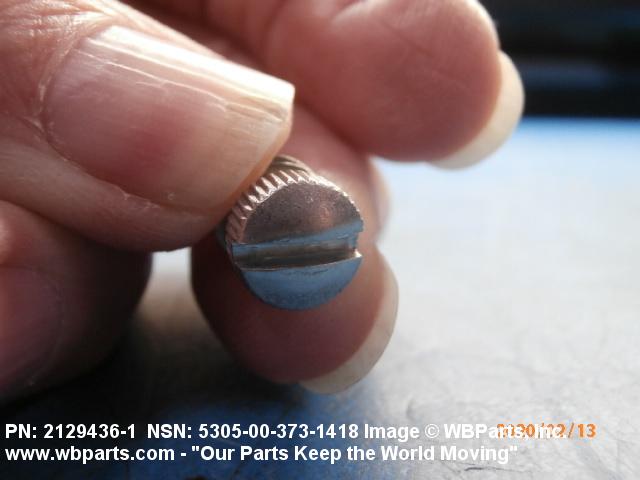

| INTERNAL DRIVE STYLE | D14 SLOT |
Restrictions/Controls & Freight Information | NSN 5305-00-373-1418
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-373-1418
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
