NSN 5305-00-410-3400 CS6018TS34, CS6018TS3-4, DLC790010B4

Product Details | PANEL SCREW ASSEMBLY

5305-00-410-3400 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.

Part Alternates: CS6018TS34, CS6018TS3-4, DLC790010B4, DLC7900-10B4, FT11661024, FT1166-10-2-4, 5305-00-410-3400, 00-410-3400, 5305004103400, 004103400

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	08 AUG 1969	00-410-3400	33044 ( SCREW ASSEMBLY, PANEL )

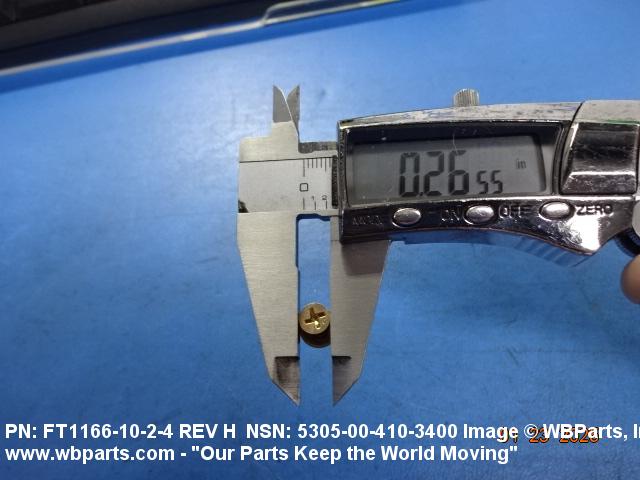

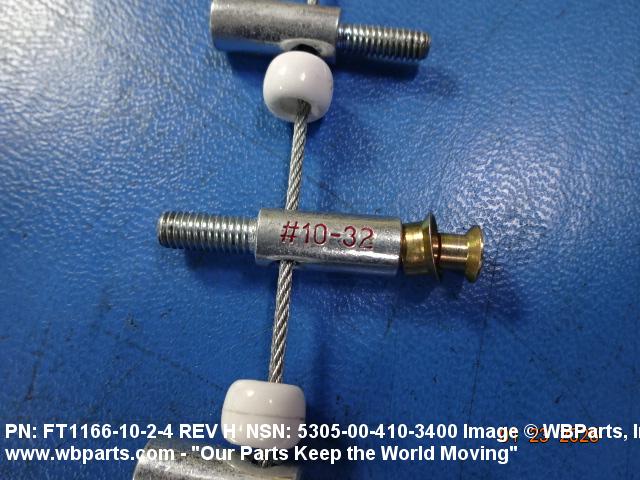

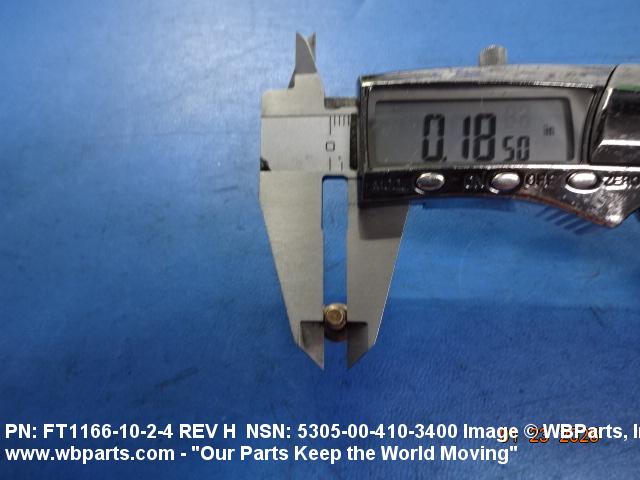

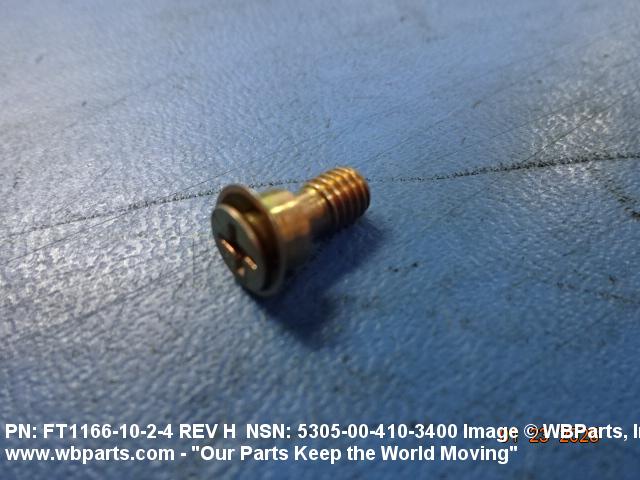

Drawings & Photos | NSN 5305-00-410-3400

Part Number	Request Date	QTY	Origin
DLC790010B4	2026-02-48	45	us
5305-00-410-3400	2024-12-347	145	us
CS6018TS3-4	2024-08-233	709	DIBBS
DLC7900-10B4	2024-08-233	709	DIBBS
FT1166-10-2-4	2024-08-233	709	DIBBS
CS6018TS3-4	2023-02-53	1422	DIBBS
DLC7900-10B4	2023-02-53	1422	DIBBS
FT1166-10-2-4	2023-02-53	1422	DIBBS
CS6018TS3-4	2022-09-254	656	DIBBS
DLC7900-10B4	2022-09-254	656	DIBBS
FT1166-10-2-4	2022-09-254	656	DIBBS
CS6018TS3-4	2022-07-202	488	DIBBS
DLC7900-10B4	2022-07-202	488	DIBBS
FT1166-10-2-4	2022-07-202	488	DIBBS
CS6018TS3-4	2022-05-128	455	DIBBS
DLC7900-10B4	2022-05-128	455	DIBBS
FT1166-10-2-4	2022-05-128	455	DIBBS
CS6018TS3-4	2021-04-105	907	DIBBS
DLC7900-10B4	2021-04-105	907	DIBBS
FT1166-10-2-4	2021-04-105	907	DIBBS
CS6018TS3-4	2021-04-94	907	DIBBS
DLC7900-10B4	2021-04-94	907	DIBBS
FT1166-10-2-4	2021-04-94	907	DIBBS
5305-00-410-3400	2008-06-161	2738	DIBBS
5305-00-410-3400	2008-05-133	1348	DIBBS

Cross Reference | NSN 5305-00-410-3400

Part Number	Cage Code	Manufacturer
CS6018TS3-4	58998	EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY
DLC7900-10B4	0HDW7	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
DLC7900-10B4	97928	HUCK INTL INC
FT1166-10-2-4	58794	FASTENER TECHNOLOGY CORP.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-410-3400

Compare

Related Products | NSN 5305-00-410-3400

5305-00-410-3414, 5305-00-410-3423, 5305-00-410-3444, 5305-00-410-3449, 5305-00-410-3450

Technical Data | NSN 5305-00-410-3400

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD DIAMETER	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.200 INCHES NOMINAL

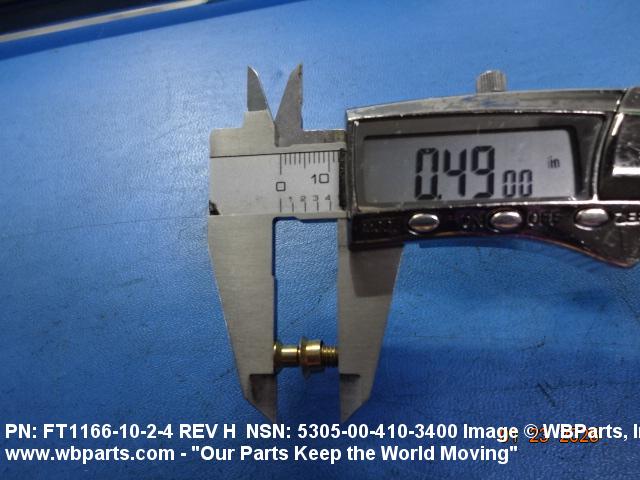

FASTENER LENGTH	0.490 INCHES NOMINAL
MATERIAL	STEEL COMP 304 STAND-OFF STEEL COMP 302 FASTENER
MATERIAL DOCUMENT AND CLASSIFICATION	AMS-5639 ASSN STD SINGLE MATERIAL RESPONSE STAND-OFF ASTM-A-493 ASSN STD SINGLE MATERIAL RESPONSE FASTENER
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 2 CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
COLOR	YELLOW OVERALL
HEAD STYLE	C50 FLAT COUNTERSUNK

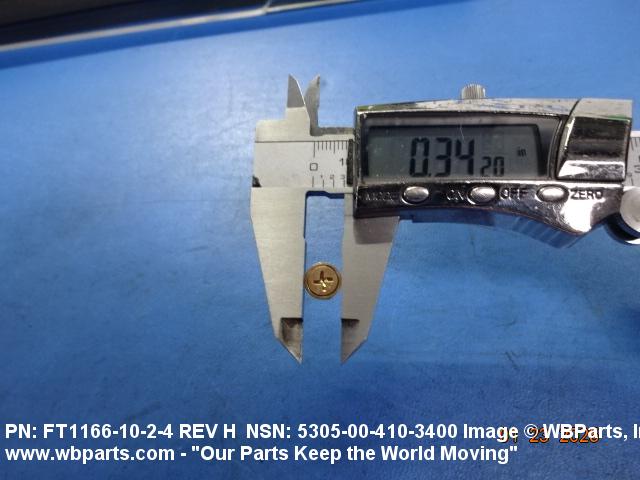

HEAD DIAMETER	0.323 INCHES MINIMUM AND 0.333 INCHES MAXIMUM
COUNTERSINK ANGLE	99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM
INTERNAL DRIVE STYLE	D8 TORQUE SET
MATERIAL ACCOMMODATED THICKNESS	0.090 INCHES MINIMUM AND 0.125 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5305-00-410-3400

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	SG	403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-410-3400

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each
