NSN 5305-00-445-1147 F750010B3, F7500-10B3, 128C613F10B3
Product Details | PANEL SCREW ASSEMBLY

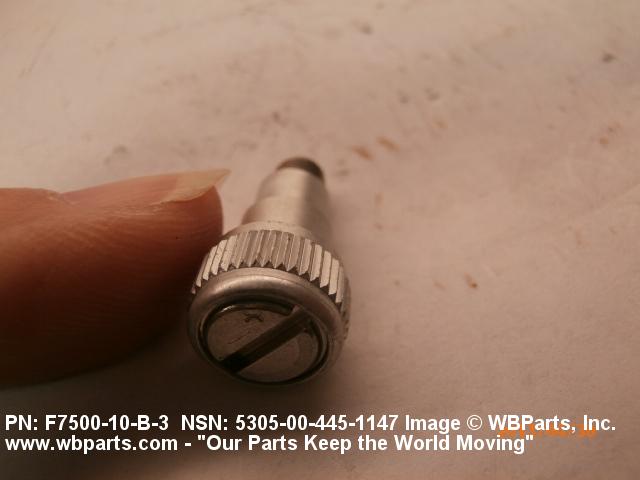

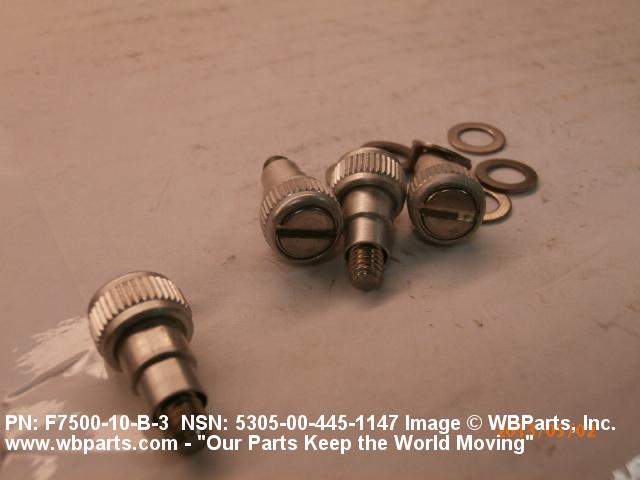

5305-00-445-1147 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.
Part Alternates: F750010B3, F7500-10B3, 128C613F10B3, 5305-00-445-1147, 00-445-1147, 5305004451147, 004451147
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 DEC 1970 | 00-445-1147 | 33044 ( SCREW ASSEMBLY, PANEL ) |

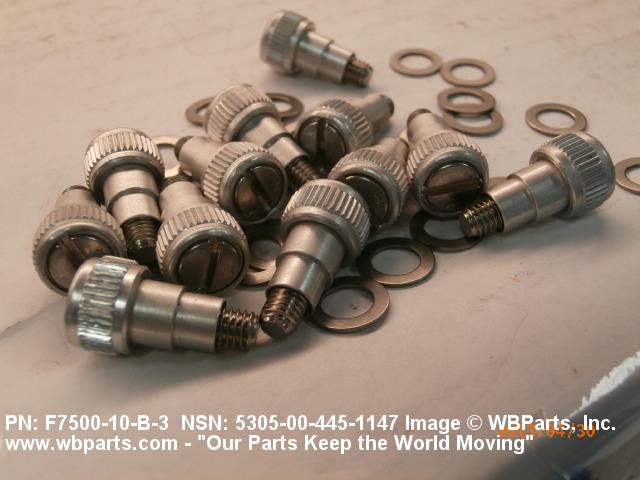

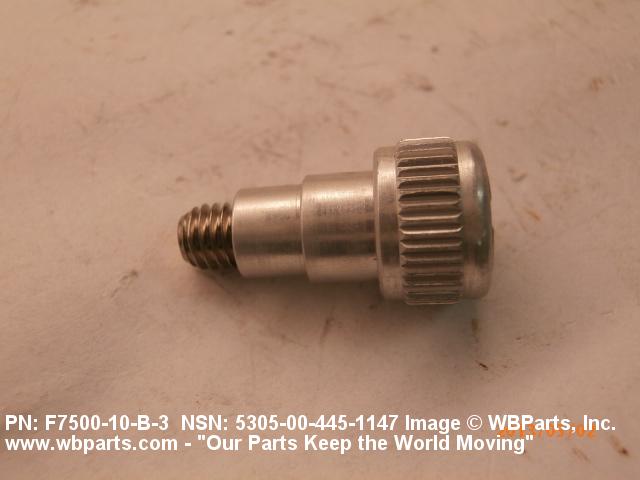

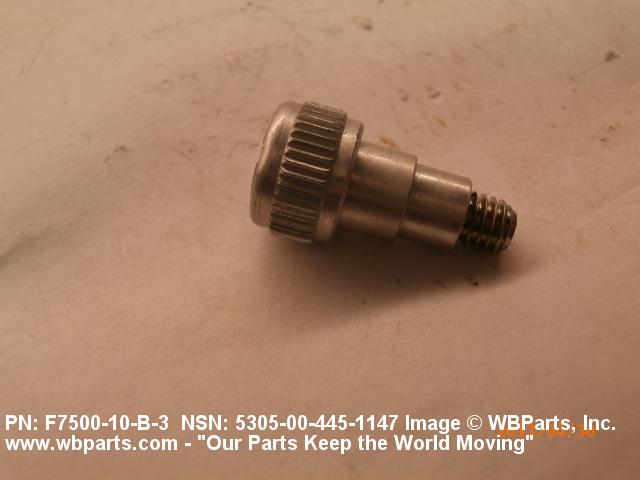

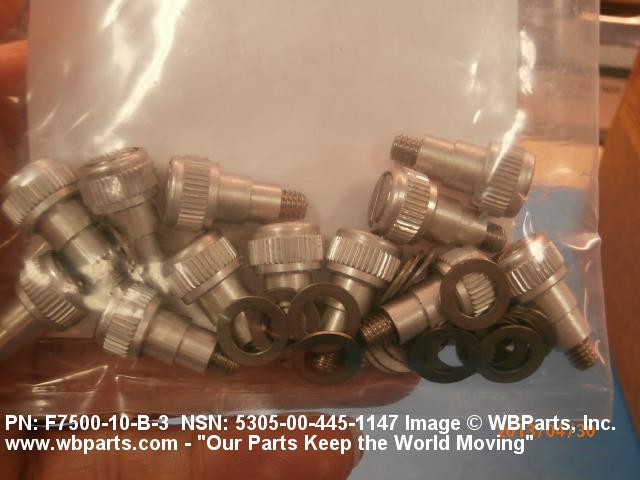

Drawings & Photos | NSN 5305-00-445-1147
Demand History | NSN 5305-00-445-1147
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-445-1147 | 2020-06-156 | 32 | India |
| 5305-00-445-1147 | 2013-09-269 | 4 | United States |
| 5305-00-445-1147 | 2013-09-269 | 4 | United States |
| F750010B3 | 2013-04-116 | 4 | United States |
| F750010B3 | 2013-04-113 | 12 | United States |
| F750010B3 | 2012-11-332 | 6 | US |
Cross Reference | NSN 5305-00-445-1147
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-445-1147
Related Products | NSN 5305-00-445-1147
Technical Data | NSN 5305-00-445-1147
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |

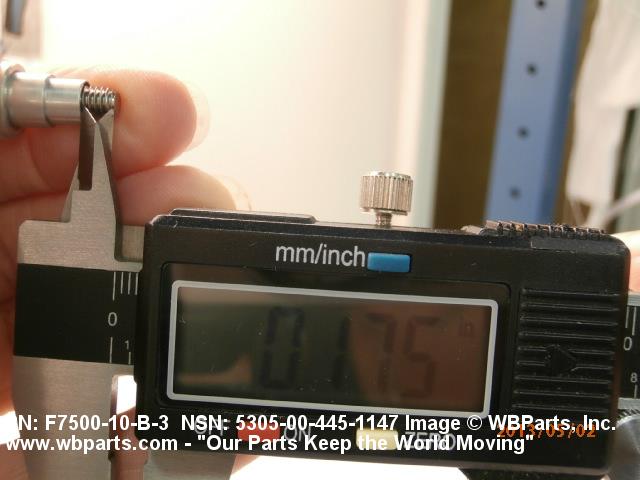

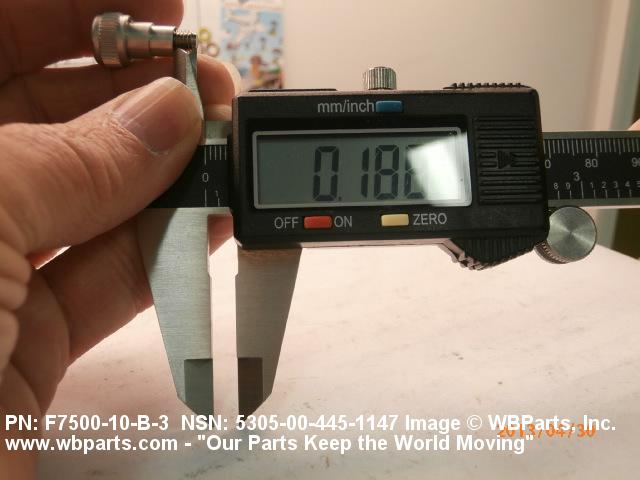

| THREAD LENGTH | 0.180 INCHES NOMINAL |

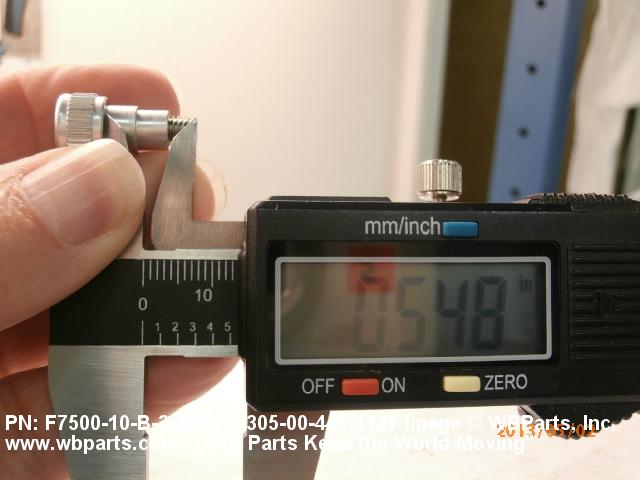

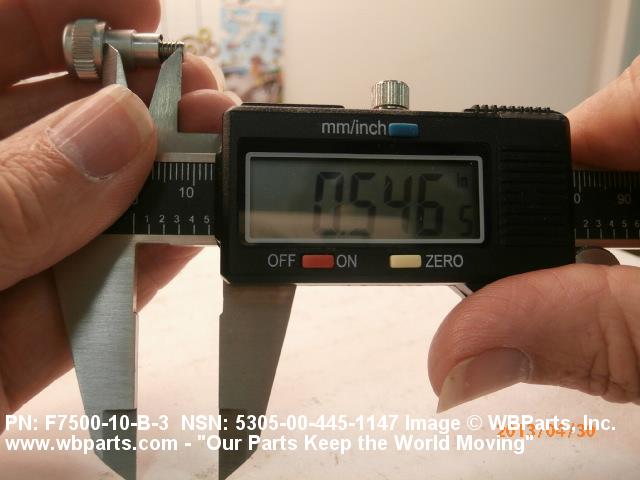

| FASTENER LENGTH | 0.542 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 6061 HEAD STEEL COMP 302 SPRING ALUMINUM ALLOY 6061 STAND-OFF STEEL COMP 303 THREADS |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/8 FED SPEC 1ST MATERIAL RESPONSE HEAD QQ-W-423 FED SPEC 2ND MATERIAL RESPONSE SPRING QQ-A-225/8 FED SPEC 3RD MATERIAL RESPONSE STAND-OFF ASTM A582 ASSN STD 4TH MATERIAL RESPONSE THREADS |
| SURFACE TREATMENT | ANODIZE HEAD PASSIVATE SPRING ANODIZE STAND-OFF PASSIVATE THREADS |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE HEAD QQ-P-35STDC2BDJDDMIL-A-8625 FED SPEC 2ND TREATMENT RESPONSE SPRING QQ-P-35 FED SPEC 4TH TREATMENT RESPONSE THREADS |

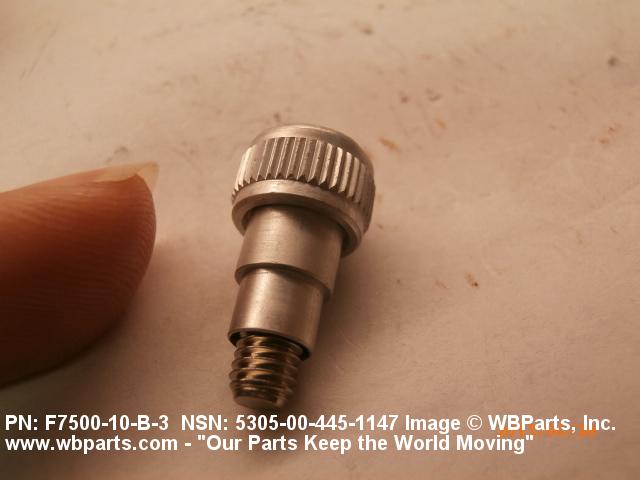

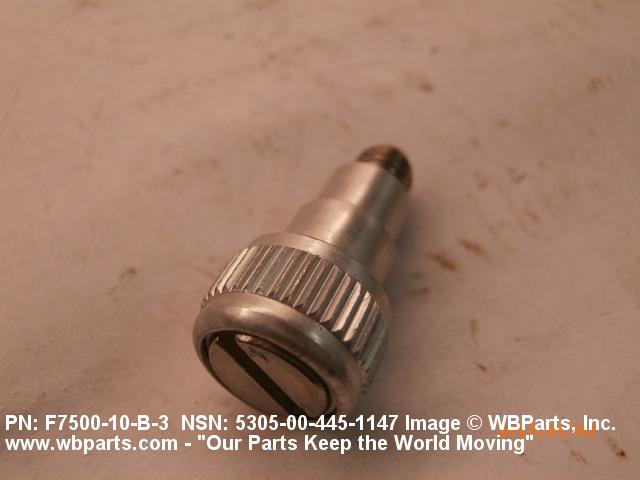

| HEAD STYLE | C67 KNURLED NO. 2 |

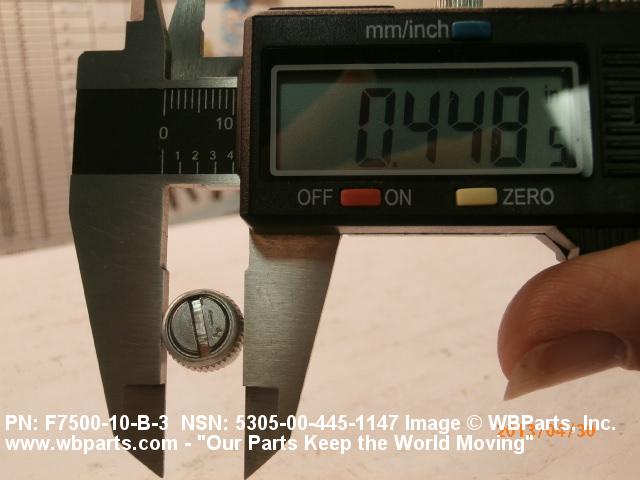

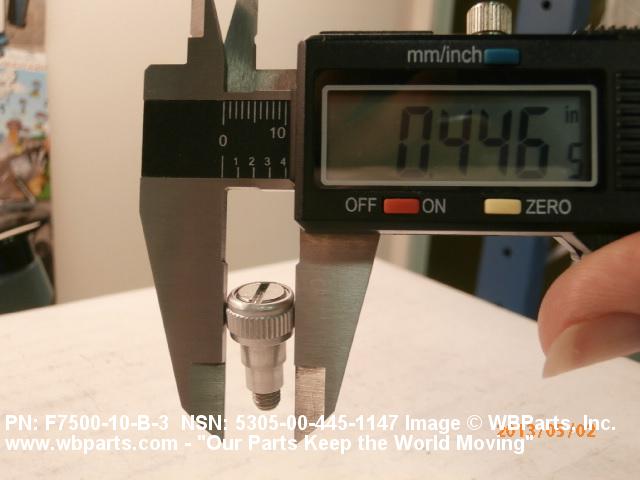

| HEAD DIAMETER | 0.451 INCHES NOMINAL |

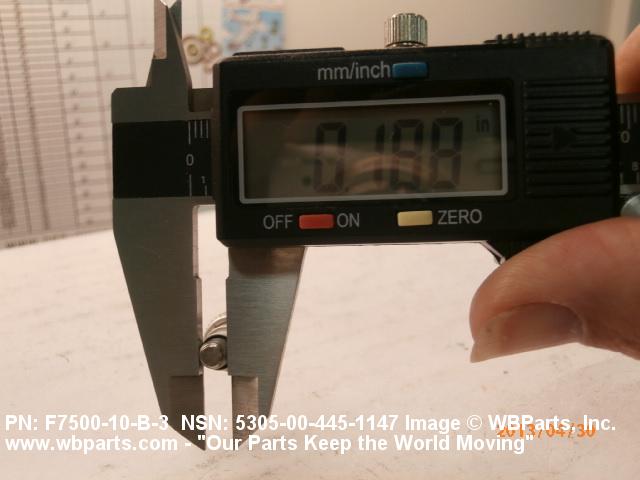

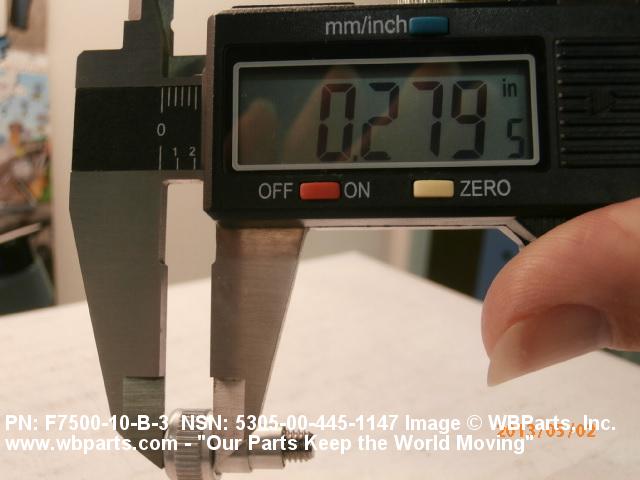

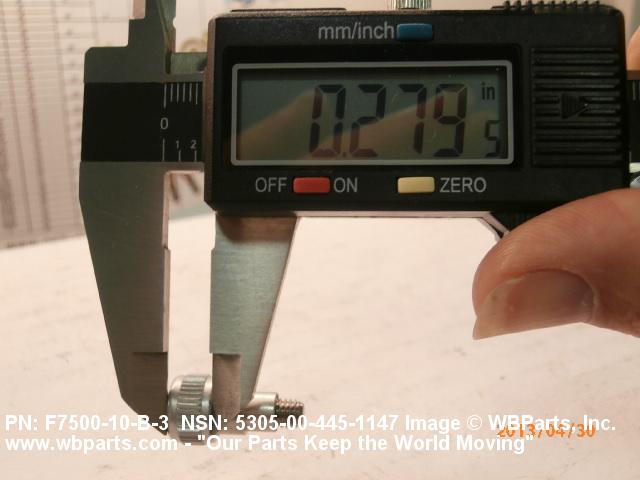

| HEAD HEIGHT | 0.290 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5305-00-445-1147
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093490 | BOLT/NUT/SCREW/CLIPS/FASTENER/ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
