NSN 5305-00-528-5672 DBR75006B3, DBR7500-6B3, DRB7500623

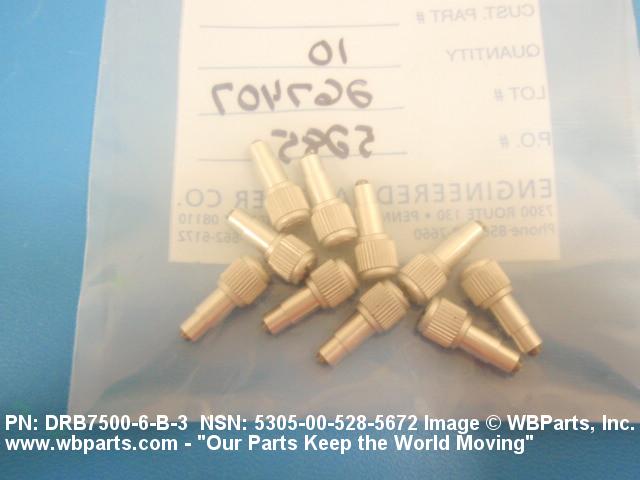

Product Details | PANEL SCREW ASSEMBLY
5305-00-528-5672 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.
Part Alternates: DBR75006B3, DBR7500-6B3, DRB7500623, DRB7500-6-2-3, DRB75006B3, DRB7500-6B3, FT1600623, FT1600-6-2-3, 03A2360623, 03A236-06-2-3, 3311267, 331126-7, 46079-0603, 5305-00-528-5672, 00-528-5672, 5305005285672, 005285672, 460790603
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 AUG 1974 | 00-528-5672 | 33044 ( SCREW ASSEMBLY, PANEL ) |
Drawings & Photos | NSN 5305-00-528-5672
Demand History | NSN 5305-00-528-5672
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| DRB75006B3 | 2009-04-98 | 10 | United States |
Cross Reference | NSN 5305-00-528-5672
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 03A236-06-2-3 | 1W025 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 03A236-06-2-3 | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 331126-7 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 331126-7 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 46079-0603 | 27914 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
| DBR7500-6B3 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| DRB7500-6-2-3 | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| DRB7500-6-2-3 | 97928 | HUCK INTL INC |
| DRB7500-6B3 | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| DRB7500-6B3 | 97928 | HUCK INTL INC |
| FT1600-6-2-3 | 58794 | FASTENER TECHNOLOGY CORP. |
