NSN 5305-00-762-6211 C51632632, C5163263-2, FRB750010B3

Product Details | PANEL SCREW ASSEMBLY

5305-00-762-6211 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.

Part Alternates: C51632632, C5163263-2, FRB750010B3, FRB7500-10B3, 10243467-2, 28134007, 72021729, 720217-29, 88803076, 888030-76, 5305-00-762-6211, 00-762-6211, 5305007626211, 102434672, 007626211

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	20 FEB 1970	00-762-6211	33044 ( SCREW ASSEMBLY, PANEL )

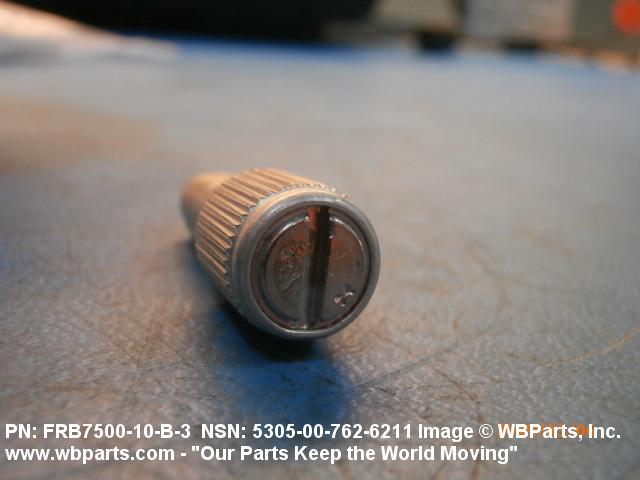

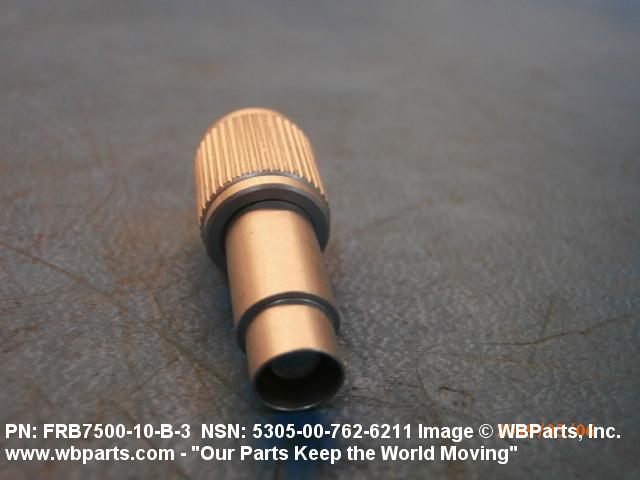

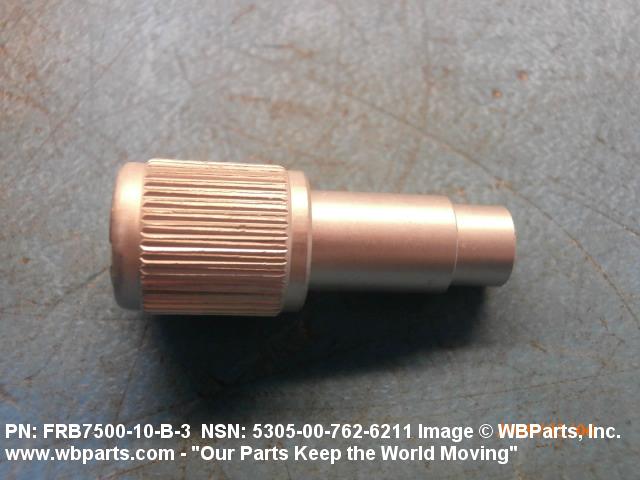

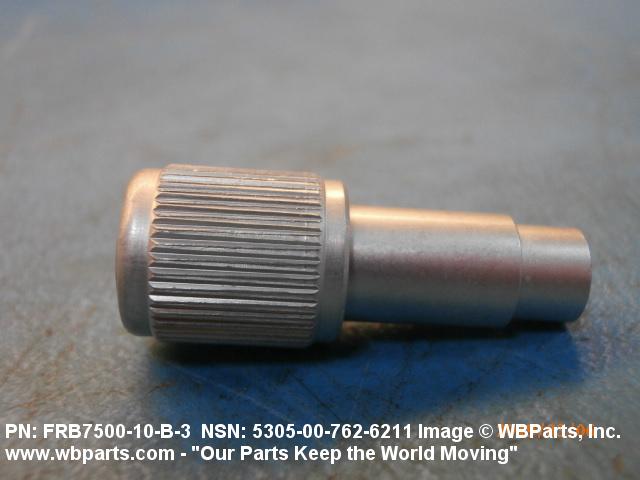

Drawings & Photos | NSN 5305-00-762-6211

Part Number	Request Date	QTY	Origin
5305-00-762-6211	2025-09-259	50	US
5305-00-762-6211	2025-05-130	200	IN
720217-29	2024-07-200	126	DIBBS
FRB7500-10B3	2024-07-200	126	DIBBS
720217-29	2024-04-106	285	DIBBS
FRB7500-10B3	2024-04-106	285	DIBBS
FRB750010B3	2023-04-94	6	US
720217-29	2023-03-78	24	DIBBS
FRB7500-10B3	2023-03-78	24	DIBBS
5305-00-762-6211	2020-06-157	1	DIBBS-RFPs
5305-00-762-6211	2020-06-156	32	India
720217-29	2019-10-275	500	DIBBS
FRB7500-10B3	2019-10-275	500	DIBBS
720217-29	2019-09-265	191	DIBBS
FRB7500-10B3	2019-09-265	191	DIBBS
720217-29	2019-08-231	299	DIBBS
FRB7500-10B3	2019-08-231	299	DIBBS
5305-00-762-6211	2019-01-22	15	India
5305-00-762-6211	2019-01-19	15	India
FRB750010B3	2018-05-137	160	IN
FRB750010B3	2018-03-85	10	India
5305-00-762-6211	2013-02-51	248	DIBBS
FRB750010B3	2012-05-143	25	US
5305-00-762-6211	2011-12-362	131	DIBBS
5305-00-762-6211	2011-10-278	124	DIBBS
FRB750010B3	2011-06-172	10	US
5305-00-762-6211	2010-04-116	132	DIBBS
5305-00-762-6211	2009-03-63	10	US

Cross Reference | NSN 5305-00-762-6211

Part Number	Cage Code	Manufacturer
10243467-2	18876	U S ARMY AVIATION AND MISSILE COMMAND
28134007	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
720217-29	82577	RAYTHEON COMPANY DBA RAYTHEON
888030-76	00012	MT. PLEASANT STANDARD BASE MIDDLE SCHOOL INC.
C5163263-2	57958	SIGNALS WARFARE PROJECT MANAGER
FRB7500-10B3	0HDW7	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
FRB7500-10B3	97928	HUCK INTL INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-762-6211

Compare

Related Products | NSN 5305-00-762-6211

5305-00-762-6214, 5305-00-762-6215, 5305-00-762-6255, 5305-00-762-6258, 5305-00-762-6265

Technical Data | NSN 5305-00-762-6211

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF

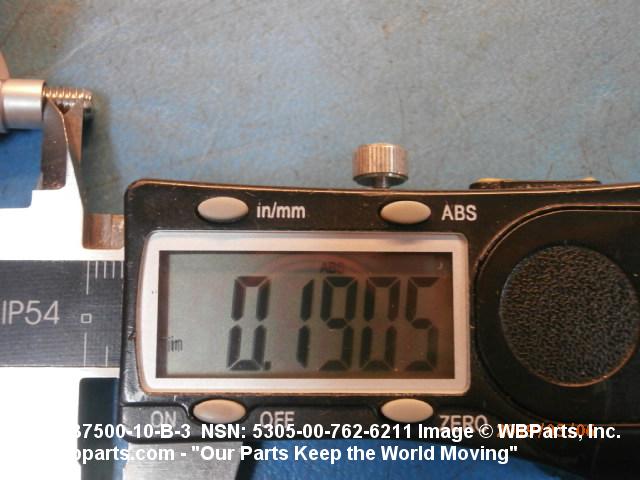

NOMINAL THREAD DIAMETER	0.190 INCHES

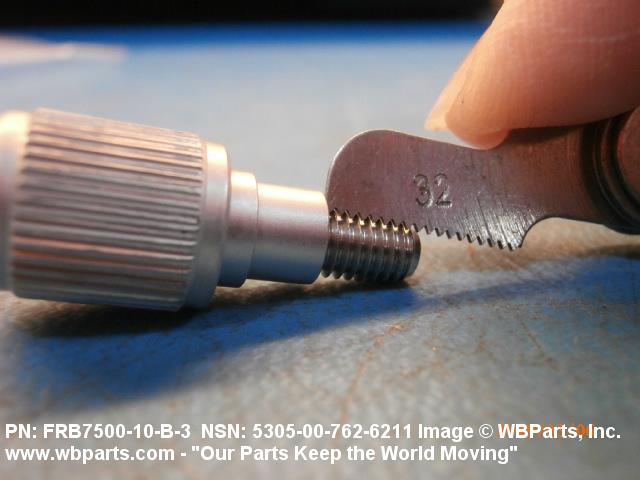

THREAD QUANTITY PER INCH	32
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND

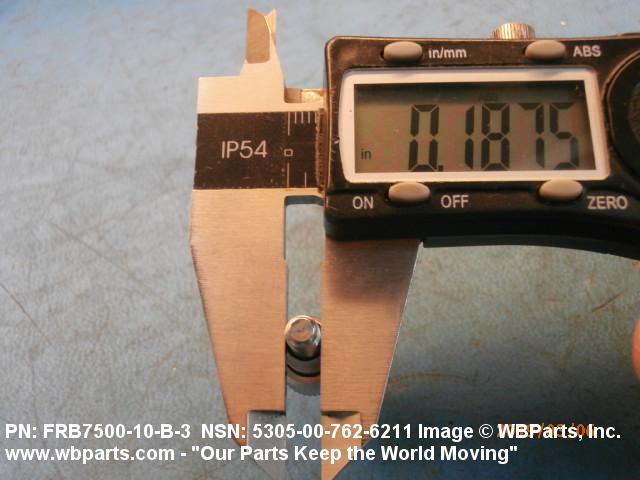

THREAD LENGTH	0.187 INCHES NOMINAL

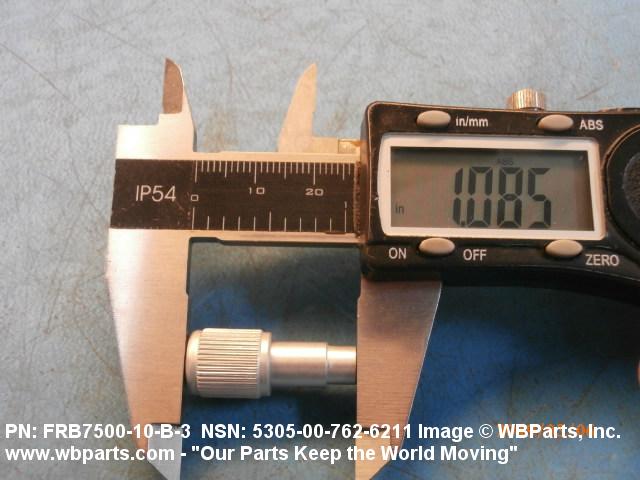

FASTENER LENGTH	1.082 INCHES NOMINAL
MATERIAL	STEEL COMP 302 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS5636 ASSN STD 1ST MATERIAL RESPONSE OR MIL-C-13924, CLASS 4 MIL SPEC 2ND MATERIAL RESPONSE OVERALL
HEAD STYLE	C48 FLAT FILLISTER

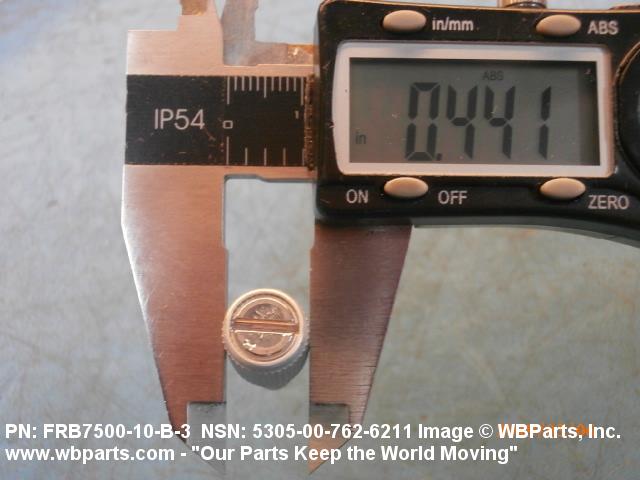

HEAD DIAMETER	0.451 INCHES NOMINAL

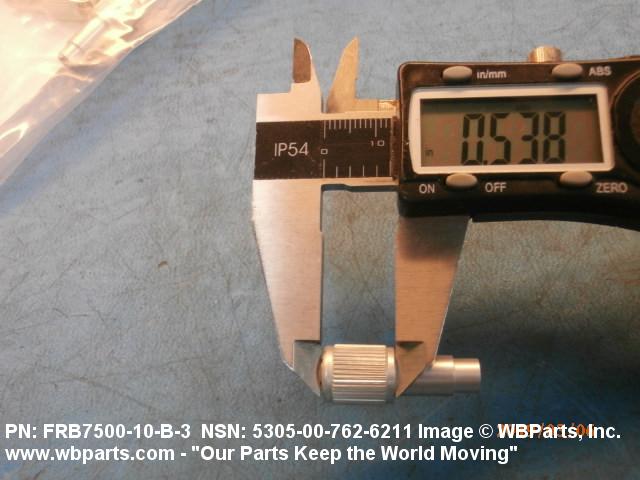

HEAD HEIGHT	0.520 INCHES NOMINAL

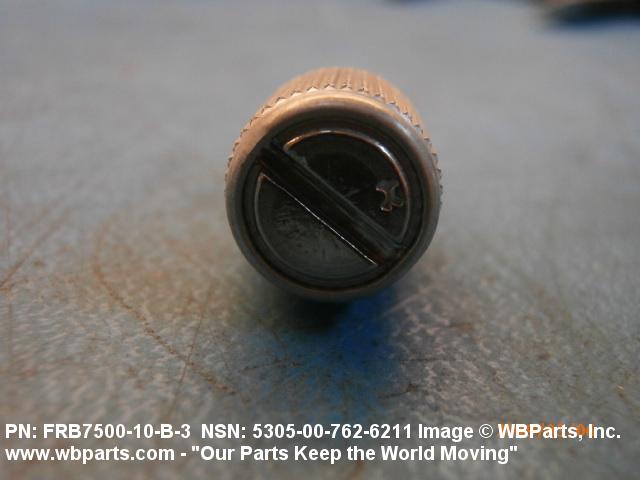

INTERNAL DRIVE STYLE	D14 SLOT
MATERIAL ACCOMMODATED THICKNESS	0.188 INCHES MINIMUM AND 0.312 INCHES MAXIMUM
FEATURES PROVIDED	FINISHED HEAD
SPECIAL FEATURES	TURN-LOC, HIGH PROFILE; OPTIONAL RECESS, .031 RADIAL FLT
III END ITEM IDENTIFICATION	HELICOPTER, CARRIER BASED ASW, SH-60F; TICONDEROGA CLASS CG (47); COMPUTER DISPLAY SET, AN/UYQ-21(V); SPRUANCE CLASS DD (963); SONAR ACOUSTIC MISCELLANEOUS; SUPPORT EQUIPMENT, B-52 AIRCRAFT; HELICOPTER, USCG SEARCH AND RESCUE, HH-60J; DEEP SUBMERGENCE SYSTEMS PROGRAMS(DSSP); HELICOPTER, SEARCH AND RESCUE, HH-60H

Restrictions/Controls & Freight Information | NSN 5305-00-762-6211

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-762-6211

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each
