NSN 5305-00-984-4989 MS2458426, MS24584-26, MS35206229

Product Details | MACHINE SCREW

5305-00-984-4989 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS2458426, MS24584-26, MS35206229, MS35206-229, MS3520626, MS35206-26, MS3522529, MS35225-29, NASM35206, A88470391, A8847039-1, AN51567, AN515-6-7, C103950307, C10395-0307, FFS92TYPE3STYLE9C, 0714207, 124C941H13, 19045, 2035, 415 146 , 415146, 471070, 471-070, 55836315, 558363-15, 6550159012, 655-015-9012, 65564493229, 655-644-93229, 85806300, 858063-00, 911724, 91-172-4, 935.63.11.041, 9356311041, 9461192607, 946119-2607, 5305-00-984-4989, 00-984-4989, 5305009844989 , 009844989

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-984-4989	06657 ( SCREW, MACHINE )

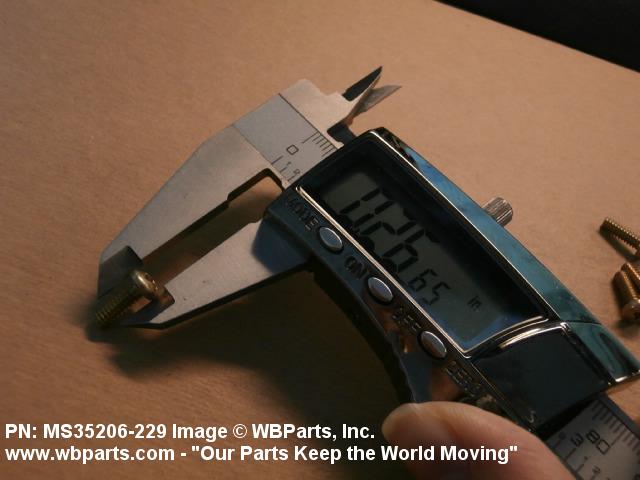

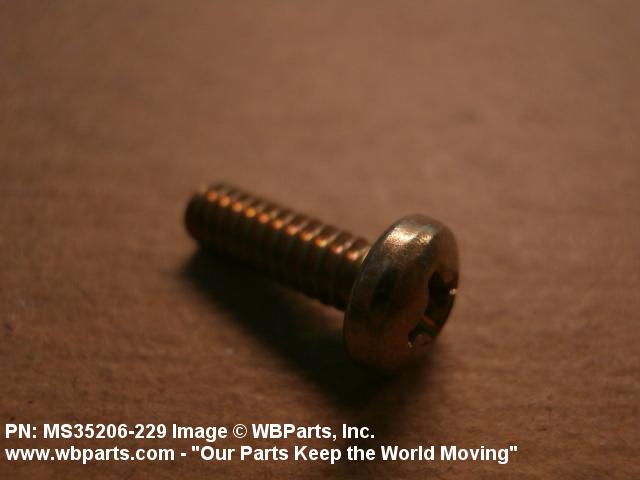

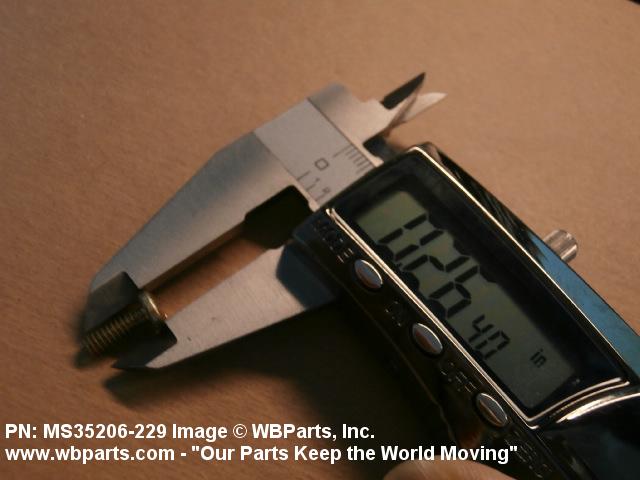

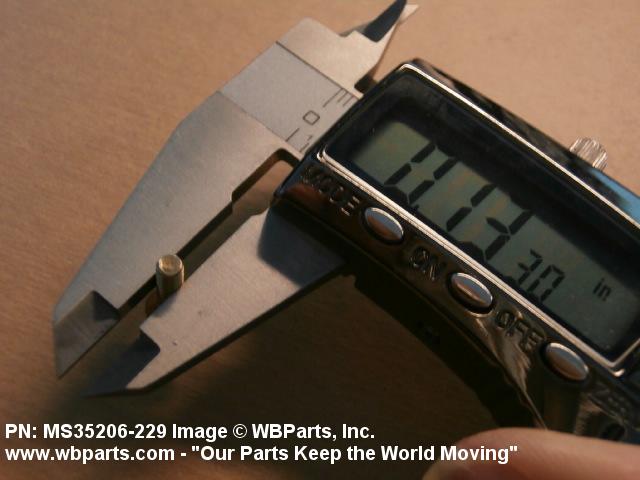

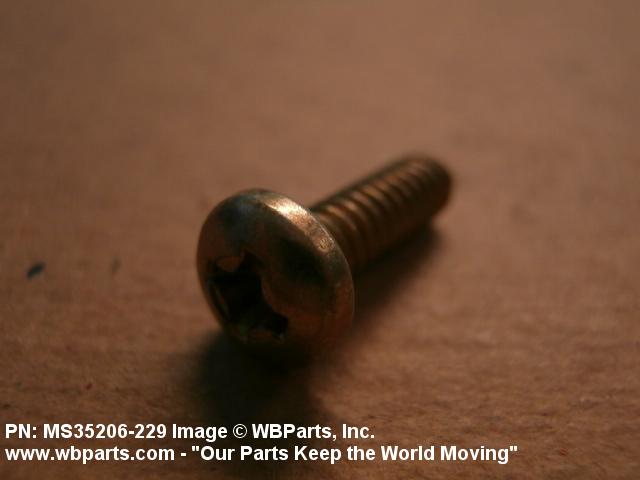

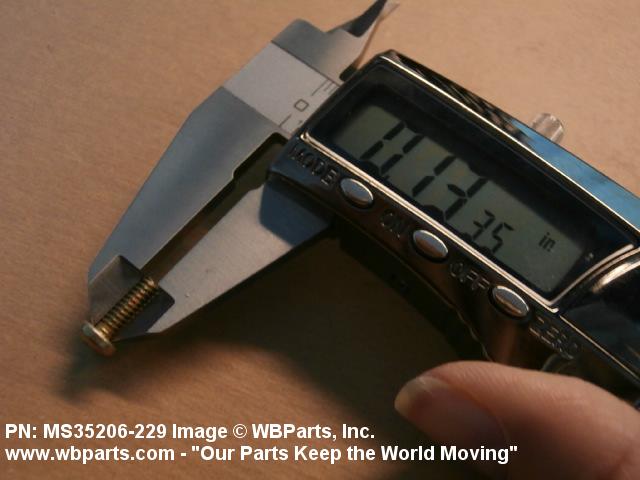

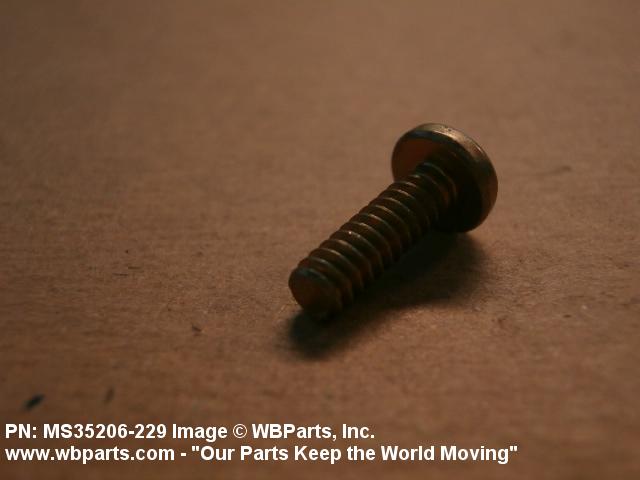

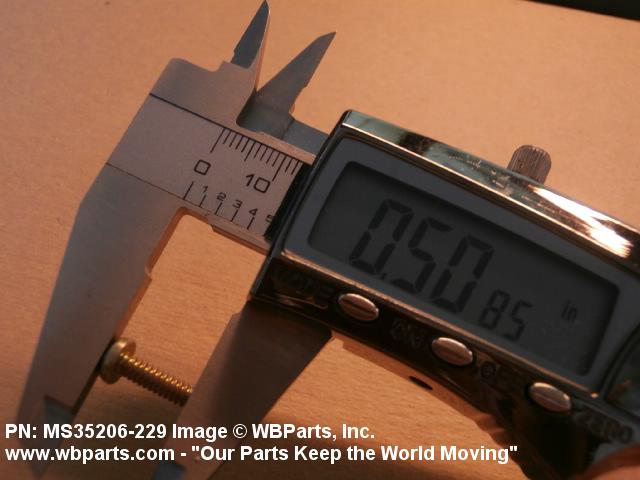

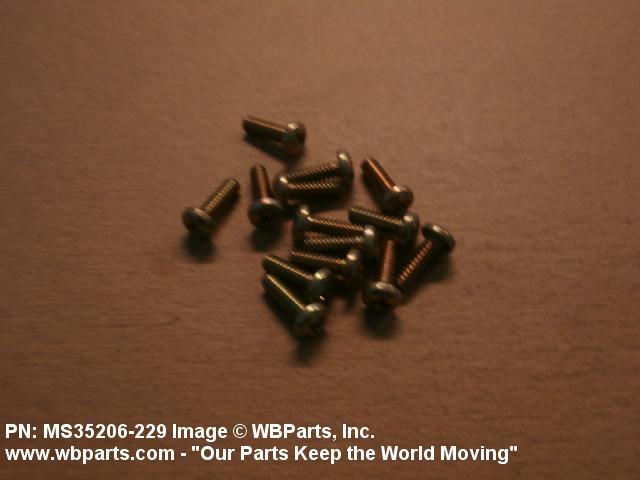

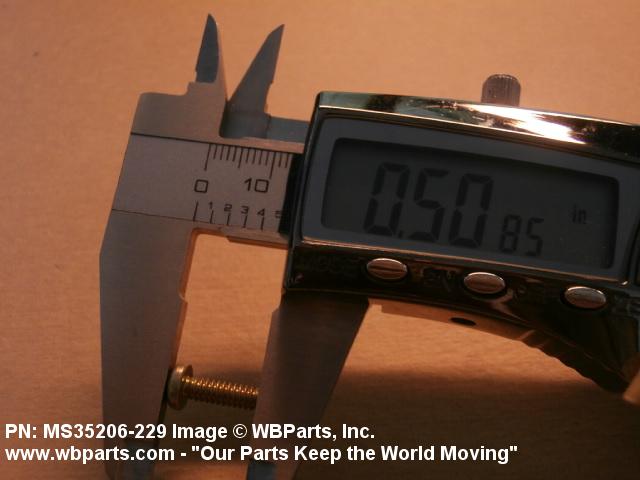

Drawings & Photos | NSN 5305-00-984-4989

Part Number	Request Date	QTY	Origin
MS35206229	2025-11-309	40	Israel
5305-00-984-4989	2025-03-90	100	Germany
MS35206229	2024-08-226	28	Japan
MS35206229	2023-11-314	1255	us
MS35206229	2023-04-103	39	South Africa
MS35206229	2021-07-203	125	United States
MS35206229	2021-07-203	25	United States
MS35206229	2020-04-99	10	United States
5305-00-984-4989	2019-04-116	40	Russian Federation
5305-00-984-4989	2018-01-08	4425	DIBBS
5305-00-984-4989	2017-09-248	4	Colombia
MS35206229	2017-08-220	6	United States
5305-00-984-4989	2017-06-170	1801	DIBBS
MS35206229	2016-10-301	20	IN
5305-00-984-4989	2016-06-175	1319	DIBBS
5305-00-984-4989	2016-02-41	1492	DIBBS
MS35206229	2015-10-278	600	us
MS35206229	2015-08-226	280	South Korea
MS35206-229	2015-04-91	200	Greece
5305-00-984-4989	2014-09-272	685	DIBBS
5305-00-984-4989	2014-01-23	850	DIBBS
MS35206229	2013-08-240	100	United States
MS35206229	2012-11-321	20	IT
MS35206-229	2012-11-310	67
MS35206229	2012-08-216	150	US
MS35206229	2012-03-83	200	US
5305-00-984-4989	2011-08-231	939	DIBBS
Ms35206-229	2011-06-178	100	United States
MS35206229	2011-06-175	32	United States
5305-00-984-4989	2010-11-309	340	US
5305-00-984-4989	2010-03-71	100	US
5305-00-984-4989	2009-11-309	50	Colombia
NASM35206	2009-06-174	1624	US
MS35206229	2008-11-323	100	United States
5305-00-984-4989	2008-08-219	190	DIBBS
MS35206229	2008-07-197	100	United States

Cross Reference | NSN 5305-00-984-4989

Part Number	Cage Code	Manufacturer
0714207	S3002	GENERAL DYNAMICS EUROPEAN,LAND-SYSTEMS-MOWAG GMBH
124C941H13	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
19045	73734	FEDERAL SCREW PRODUCTS INC.
2035	73734	FEDERAL SCREW PRODUCTS INC.
415 146	77294	PIPER AIRCRAFT INC.
471-070	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
5305009844989	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
558363-15	96214	RAYTHEON COMPANY DBA RAYTHEON
655-015-9012	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
655-644-93229	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
858063-00	32345	DEFENSE REDUCTION AGENCY
91-172-4	04320	CURTISS-WRIGHT CONTROLS INTEGRATED SENSING, INC.
935.63.11.041	S4080	PILATUS AIRCRAFT LTD
946119-2607	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
A8847039-1	11447	L-3 COMMUNICATIONS CORPORATION DBA COMMUNICATION SYSTEMS - EAST
A8847039-1	49671	LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS
AN515-6-7	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
C10395-0307	60678	ROSEMOUNT AEROSPACE INC. DBA ROSEMOUNT AEROSPACE DIVISION
C10395-0307	U8539	ROSEMOUNT AEROSPACE LTD
FFS92TYPE3STYLE9C	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MS24584-26	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35206-229	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS35206-229	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35206-26	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35225-29	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NASM35206	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-984-4989

Compare

Related Products | NSN 5305-00-984-4989

5305-00-984-4992, 5305-00-984-4993, 5305-00-984-5672, 5305-00-984-5674, 5305-00-984-5675

Technical Data | NSN 5305-00-984-4989

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.138 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.376 INCHES MINIMUM AND 0.438 INCHES MAXIMUM
FASTENER LENGTH	0.438 INCHES NOMINAL
SCREW MATERIAL	STEEL COMP 1010 OR STEEL COMP 1011 OR STEEL COMP 1013
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES
SCREW SURFACE TREATMENT	CADMIUM AND CHROMATE
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE
MINIMUM TENSILE STRENGTH	60000 POUNDS PER SQUARE INCH
HEAD STYLE	A23 PAN
HEAD DIAMETER	0.256 INCHES MINIMUM AND 0.270 INCHES MAXIMUM
HEAD HEIGHT	0.087 INCHES MINIMUM AND 0.097 INCHES MAXIMUM
INTERNAL DRIVE STYLE	B1 CROSS RECESS TYPE 1
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FFS92TYPE3STYLE9C

Restrictions/Controls & Freight Information | NSN 5305-00-984-4989

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-984-4989

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BX	OH-58D Army Helicopter Improvement Program (AHIP)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	BO	SX:BREATHING OXYGEN SYSTEMS AND COMPONENT
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q HD : Each
