NSN 5305-01-020-5510 PPD7910B3, PPD79-10B3, PPD79-10-B-3
Product Details | PANEL SCREW ASSEMBLY
5305-01-020-5510 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.
Part Alternates: PPD7910B3, PPD79-10B3, PPD79-10-B-3, 5305-01-020-5510, 01-020-5510, 5305010205510, 010205510
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 APR 1976 | 01-020-5510 | 33044 ( SCREW ASSEMBLY, PANEL ) |

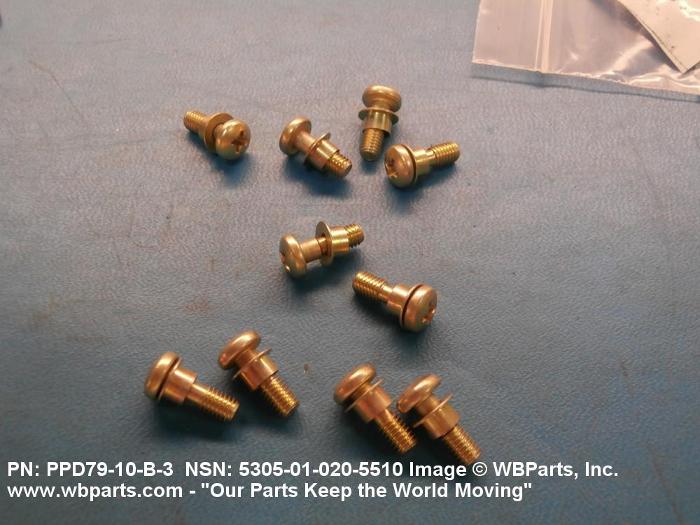

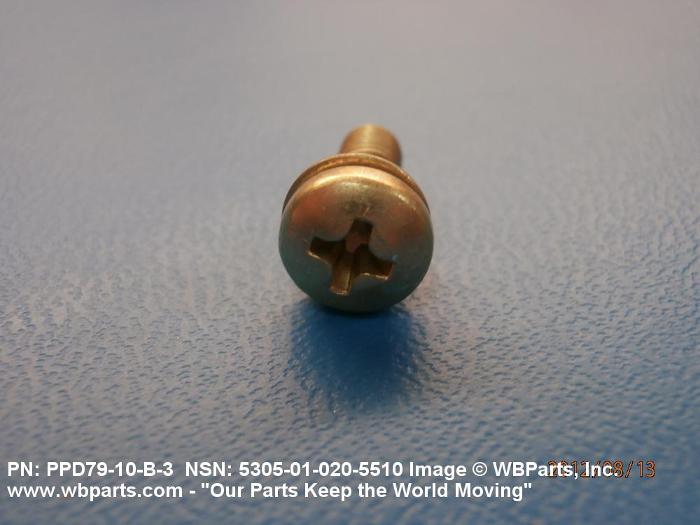

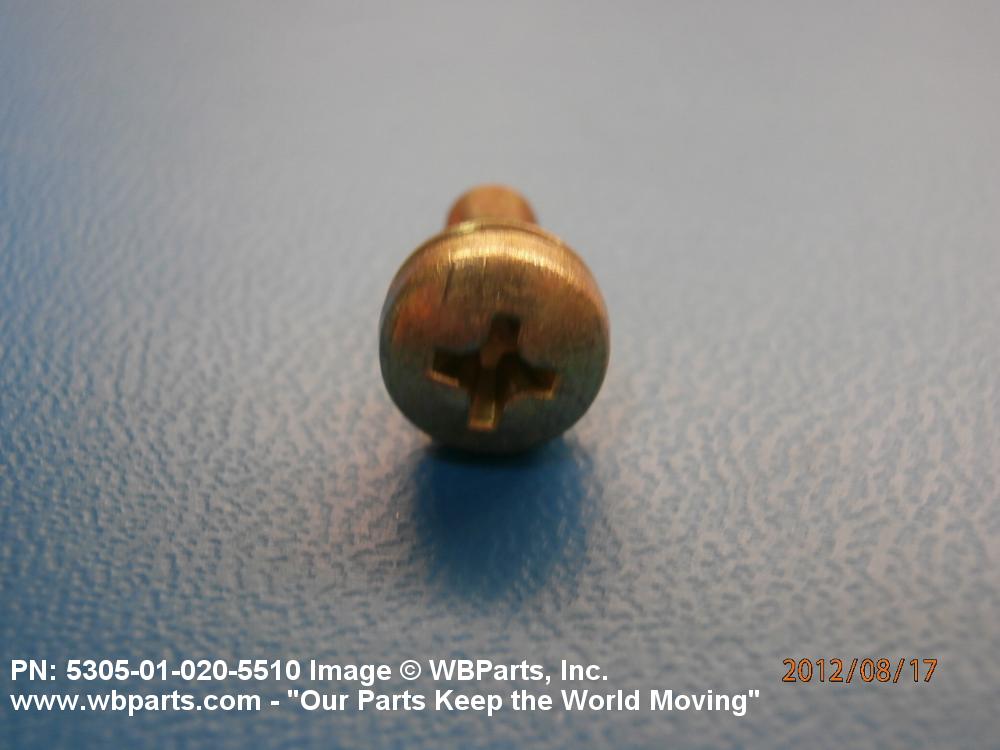

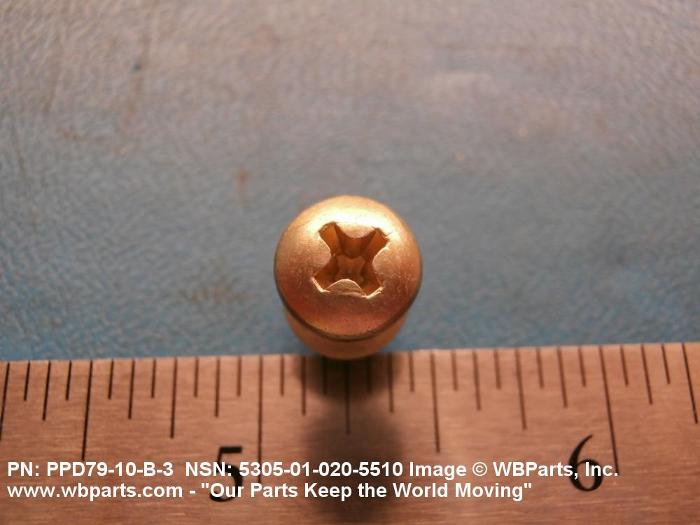

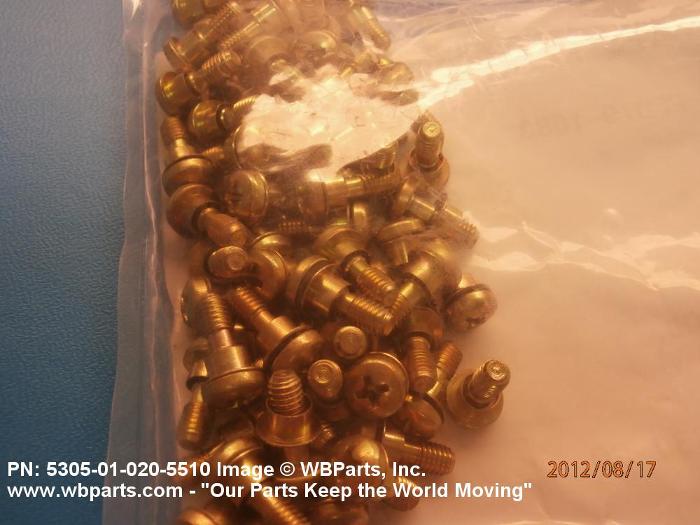

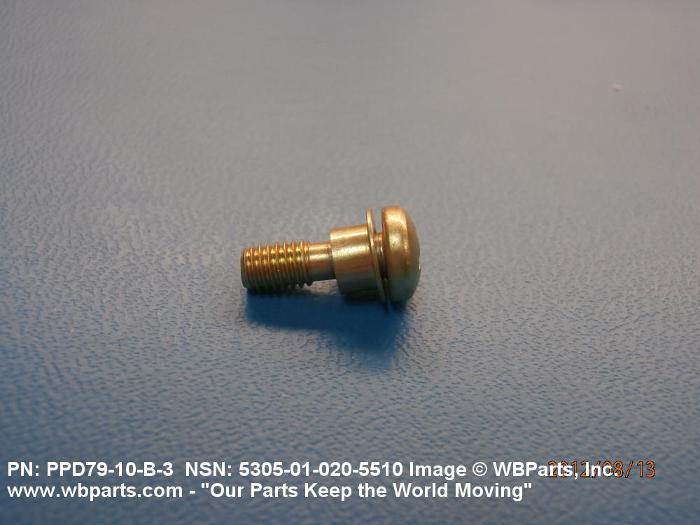

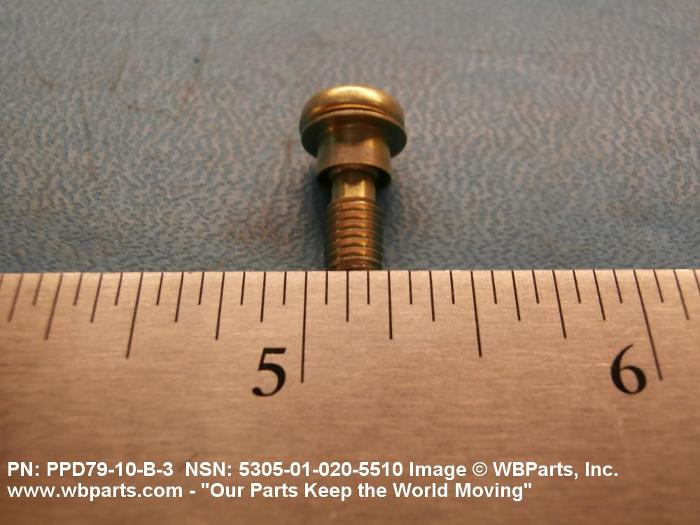

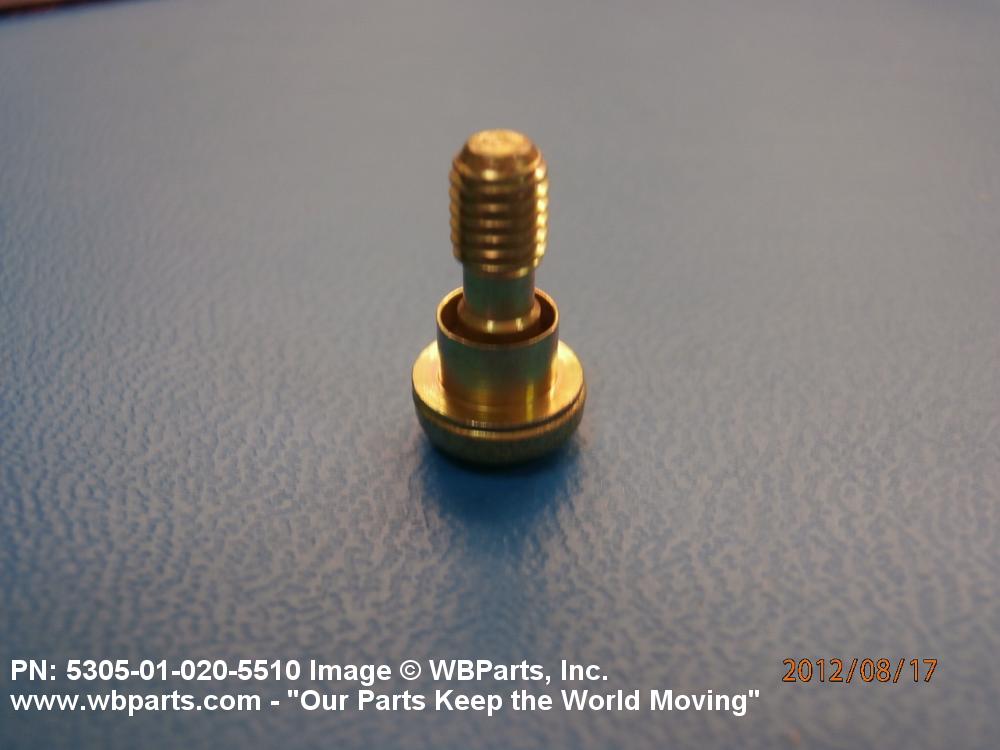

Drawings & Photos | NSN 5305-01-020-5510
Demand History | NSN 5305-01-020-5510
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-020-5510 | 2023-02-48 | 22 | UK |
| 5305-01-020-5510 | 2023-01-05 | 50 | UM |
| PPD7910B3 | 2012-12-362 | 2 | United States |
| PPD7910B3 | 2012-07-200 | 63 | United States |
| PPD7910B3 | 2012-07-200 | 100 | United States |
| 5305-01-020-5510 | 2012-04-110 | 114 | US |
| 5305-01-020-5510 | 2012-03-68 | 80 | United States |
| 5305-01-020-5510 | 2012-02-58 | 98 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-020-5510
Technical Data | NSN 5305-01-020-5510
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| FASTENER LENGTH | 0.535 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING STAND-OFF STEEL FASTENER |
| SURFACE TREATMENT | CADMIUM OVERALL |
| HEAD STYLE | C33 PAN NO. 2 |
| HEAD DIAMETER | 0.360 INCHES NOMINAL |
| HEAD HEIGHT | 0.128 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D1 CROSS RECESS TYPE 1 |
| MATERIAL ACCOMMODATED THICKNESS | 0.063 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| MANUFACTURERS CODE | 17446 |
| DESIGN CONTROL REFERENCE | PPD79-10-B-3 |
Restrictions/Controls & Freight Information | NSN 5305-01-020-5510
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-020-5510
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
