Product Details | PANEL SCREW ASSEMBLY
5305-01-029-7875 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.
Part Alternates: FRSS750010D3, FRSS7500-10D3, 1143830711, 11438307-11, 11438307111, 11438307-111, 48110678, 481106-78, 5305-01-029-7875, 01-029-7875, 5305010297875, 010297875
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 OCT 1976 | 01-029-7875 | 33044 ( SCREW ASSEMBLY, PANEL ) |

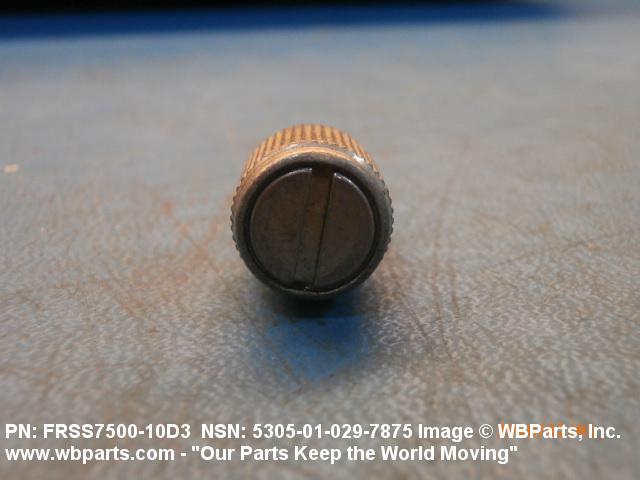

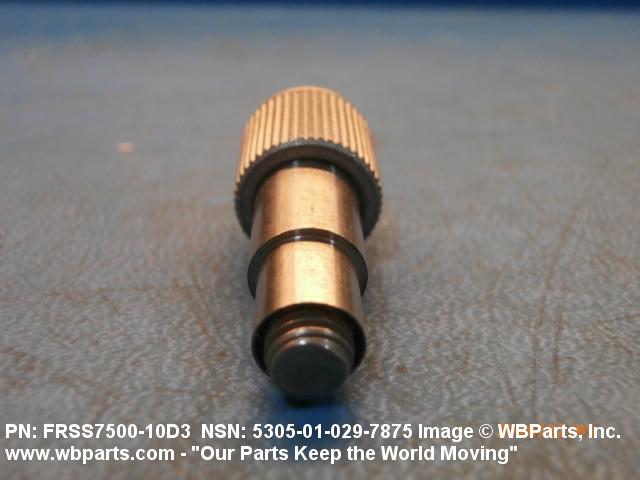

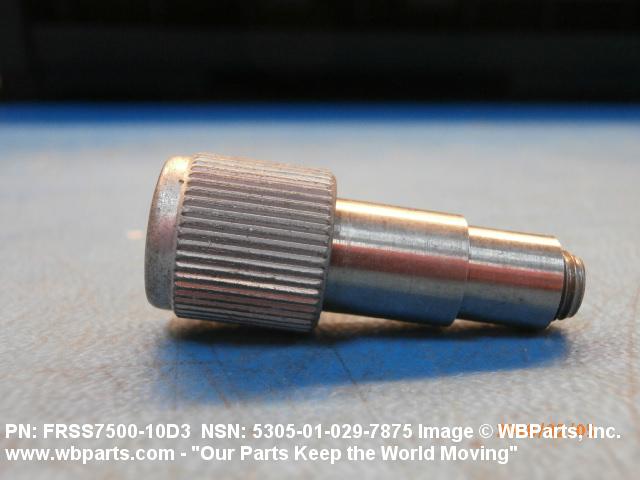

Drawings & Photos | NSN 5305-01-029-7875
Demand History | NSN 5305-01-029-7875
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FRSS7500-10D3 | 2025-04-113 | 25 | DIBBS |
| FRSS7500-10D3 | 2025-03-86 | 25 | DIBBS |
| FRSS7500-10D3 | 2023-03-73 | 4 | DIBBS |
| FRSS7500-10D3 | 2020-04-112 | 6 | DIBBS |
| 5305-01-029-7875 | 2018-08-213 | 100 | United States |
| 5305-01-029-7875 | 2018-01-16 | 12 | United States |
| 5305-01-029-7875 | 2009-02-41 | 15 | DIBBS |
| 5305-01-029-7875 | 2008-07-192 | 25 | DIBBS |
Cross Reference | NSN 5305-01-029-7875
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11438307-11 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 11438307-111 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 481106-78 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 481106-78 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| FRSS7500-10D3 | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| FRSS7500-10D3 | 58794 | FASTENER TECHNOLOGY CORP. |
| FRSS7500-10D3 | 97928 | HUCK INTL INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-029-7875
Related Products | NSN 5305-01-029-7875
Technical Data | NSN 5305-01-029-7875

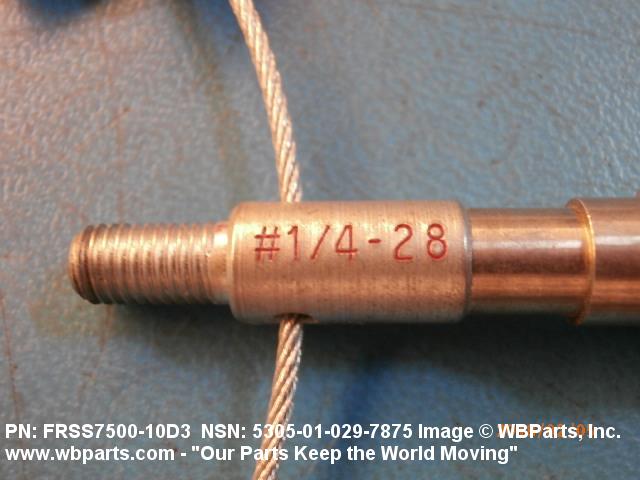

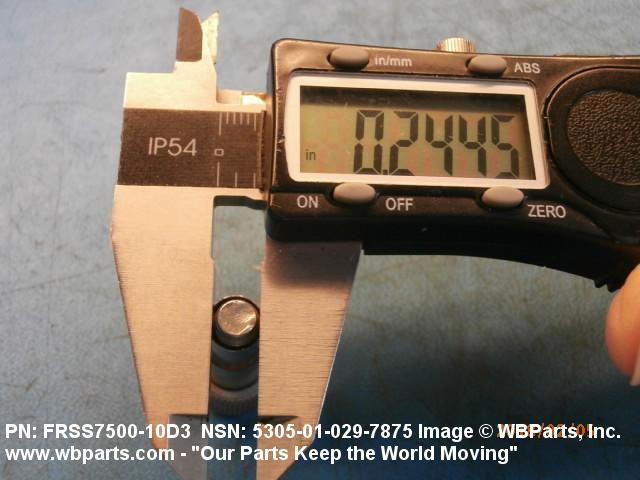

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |

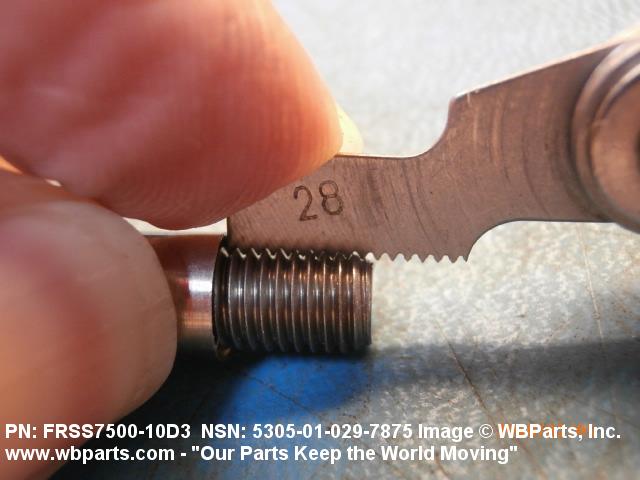

| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

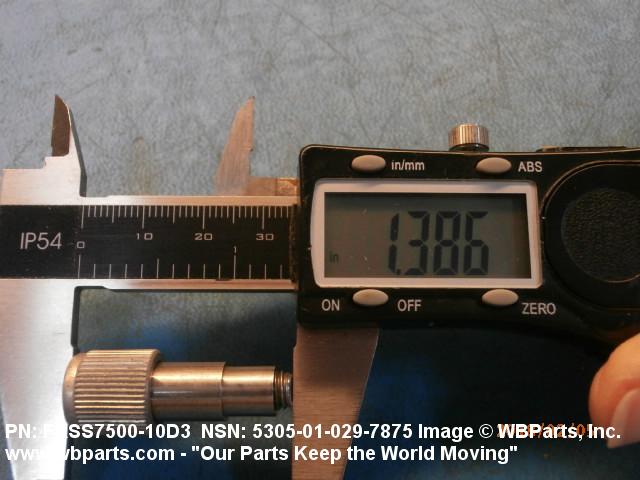

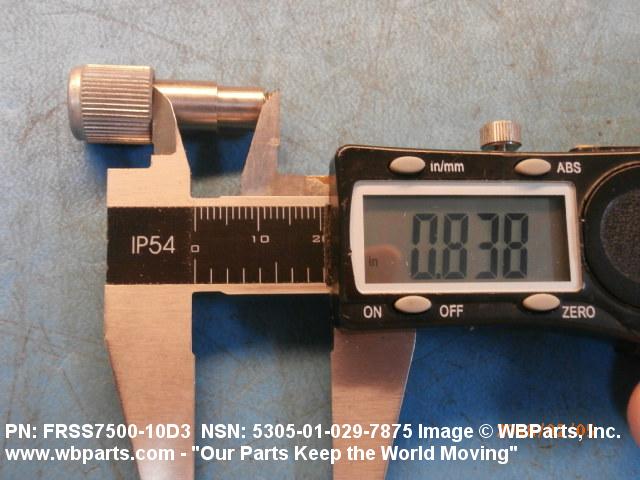

| FASTENER LENGTH | 1.067 INCHES MINIMUM AND 1.107 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY 6061 HEAD STEEL COMP 301 PRIMARY WASHER STEEL COMP 302B SPRING STEEL COMP 304 STAND-OFF STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OR STEEL COMP 321 OR STEEL COMP 347 OR STEEL COMP 384 OR STEEL COMP 385 FASTENER |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/8 FED SPEC SINGLE MATERIAL RESPONSE HEAD MIL-S-5059 MIL SPEC SINGLE MATERIAL RESPONSE PRIMARY WASHER ASTM A580 ASSN STD SINGLE MATERIAL RESPONSE SPRING QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE STAND-OFF ASTM A493 ASSN STD ALL MATERIAL RESPONSES FASTENER |
| SURFACE TREATMENT | ANODIZE HEAD PASSIVATE PRIMARY WASHER PASSIVATE SPRING PASSIVATE STAND-OFF PASSIVATE FASTENER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 1,CL 1 MIL SPEC SINGLE TREATMENT RESPONSE HEAD QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE PRIMARY WASHER QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPRING QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE STAND-OFF QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE FASTENER |

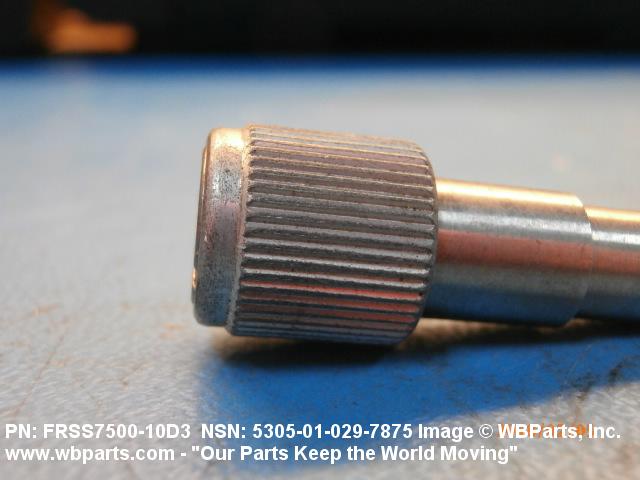

| HEAD STYLE | C66 KNURLED NO. 1 |
| HEAD DIAMETER | 0.451 INCHES NOMINAL |

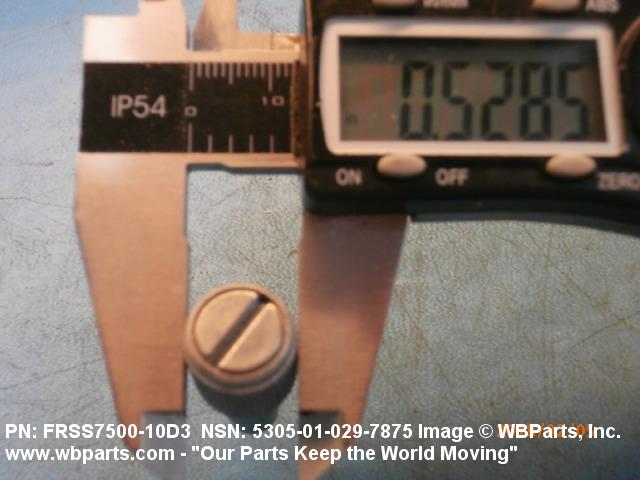

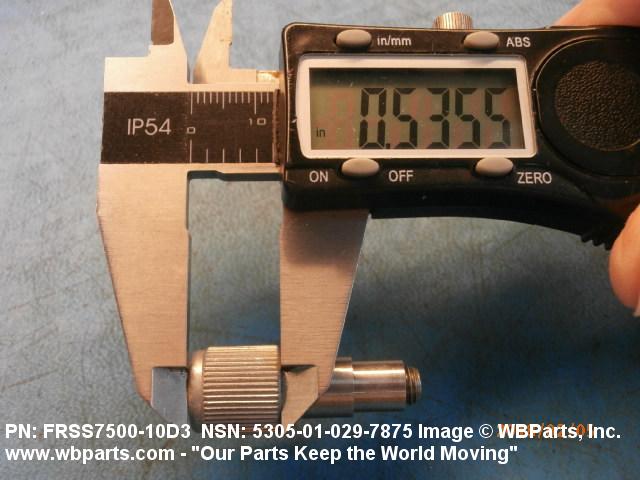

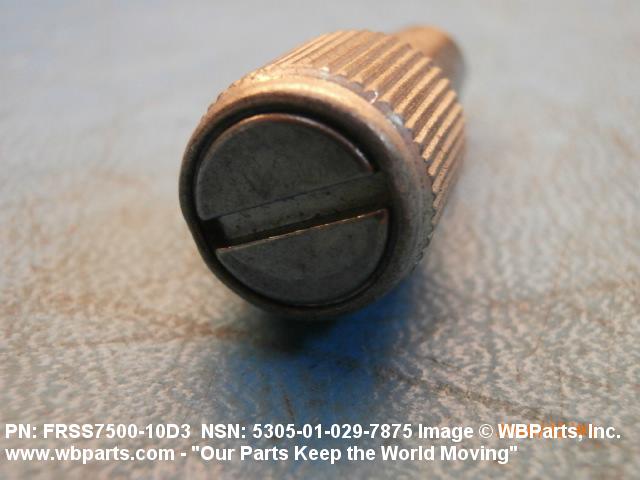

| HEAD HEIGHT | 0.520 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D14 SLOT |
| MATERIAL ACCOMMODATED THICKNESS | 0.156 INCHES MINIMUM AND 0.217 INCHES MAXIMUM |
| MANUFACTURERS CODE | 0HDW7 |
| DESIGN CONTROL REFERENCE | FRSS7500-10D3 |
Restrictions/Controls & Freight Information | NSN 5305-01-029-7875
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
