NSN 5305-01-054-6245 AIC9535715, AIC9535-7-15, C9535715
Product Details | CLOSE TOLERANCE SCREW

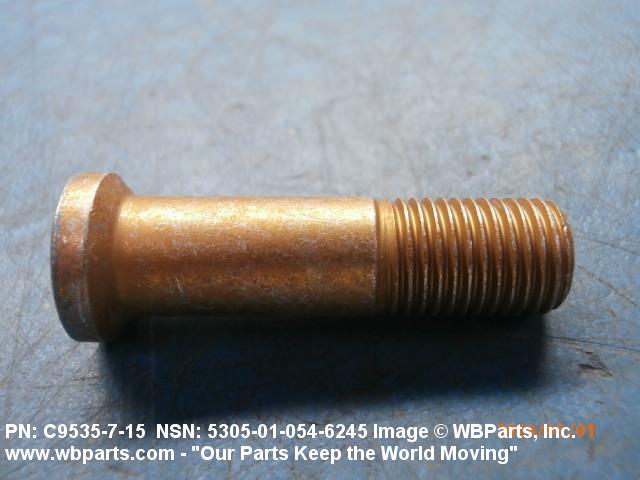

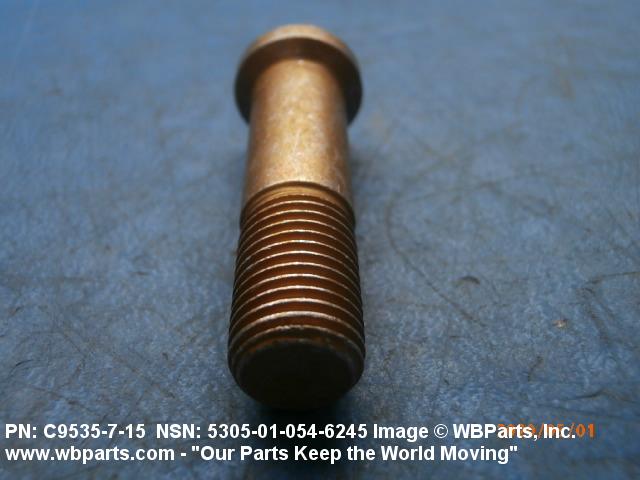

5305-01-054-6245 A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: AIC9535715, AIC9535-7-15, C9535715, C9535-7-15, PBF1198715, PBF1198-7-15, VT1696715, VT1696-7-15, 121754-7-15, 5305-01-054-6245, 01-054-6245, 5305010546245, 121754715, 010546245
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 JAN 1978 | 01-054-6245 | 29294 ( SCREW, CLOSE TOLERANCE ) |
Drawings & Photos | NSN 5305-01-054-6245
Demand History | NSN 5305-01-054-6245
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-054-6245 | 2020-04-107 | 50 | Singapore |
| 121754-7-15 | 2020-01-16 | 63 | DIBBS |
| AIC9535-7-15 | 2020-01-16 | 63 | DIBBS |
| PBF1198-7-15 | 2020-01-16 | 63 | DIBBS |
| VT1696-7-15 | 2020-01-16 | 63 | DIBBS |
| 5305-01-054-6245 | 2018-08-236 | 20 | Singapore |
| 5305-01-054-6245 | 2017-05-132 | 577 | DIBBS |
| 5305-01-054-6245 | 2017-05-124 | 577 | DIBBS |
| 5305-01-054-6245 | 2008-08-231 | 1600 | DIBBS |
| 5305-01-054-6245 | 2008-08-231 | 981 | DIBBS |
| 5305-01-054-6245 | 2008-01-16 | 32 | DIBBS |
| 5305-01-054-6245 | 2008-01-15 | 32 | DIBBS |
Cross Reference | NSN 5305-01-054-6245
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 121754-7-15 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 121754-7-15 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| AIC9535-7-15 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| C9535-7-15 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| PBF1198-7-15 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| VT1696-7-15 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| VT1696-7-15 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-054-6245
Related Products | NSN 5305-01-054-6245
Technical Data | NSN 5305-01-054-6245
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.438 INCHES |

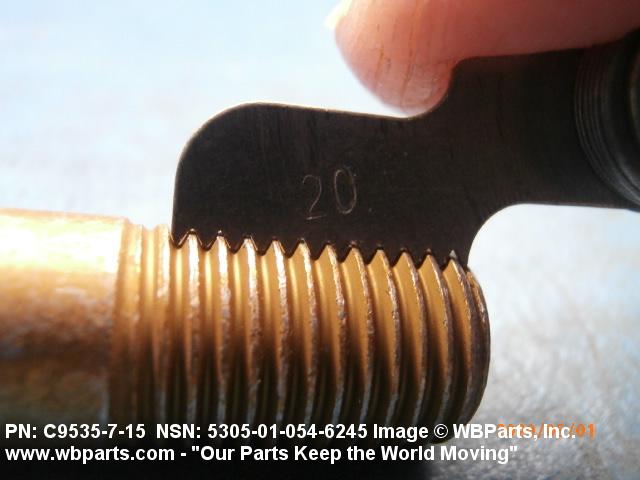

| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.668 INCHES MINIMUM AND 0.698 INCHES MAXIMUM |

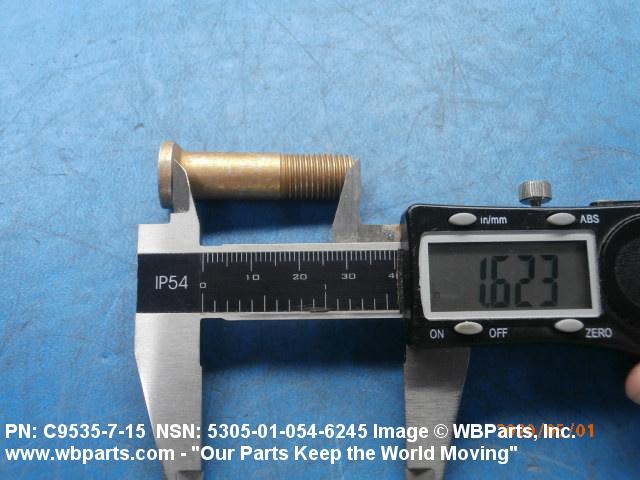

| FASTENER LENGTH | 1.621 INCHES NOMINAL |
| MATERIAL | STEEL COMP H11 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6487 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | NAS 672 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 220000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C49 FLAT CHAMFER |

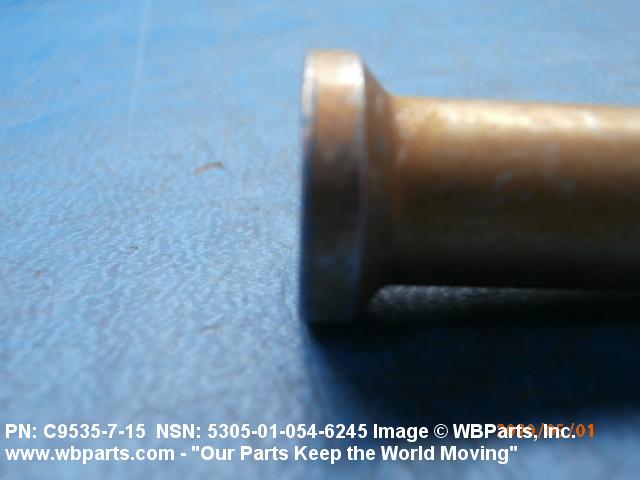

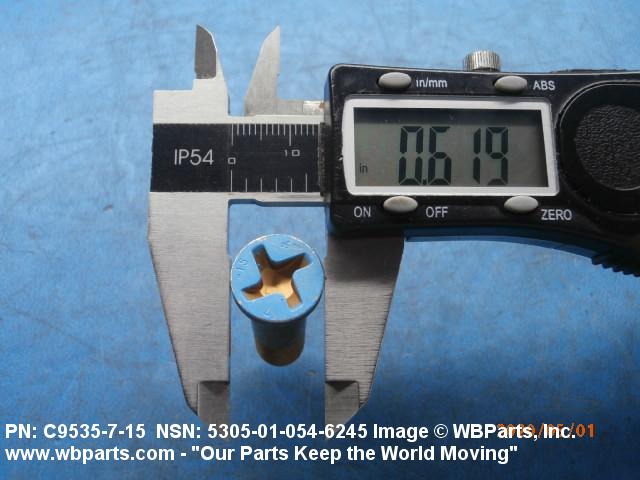

| HEAD DIAMETER | 0.605 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |

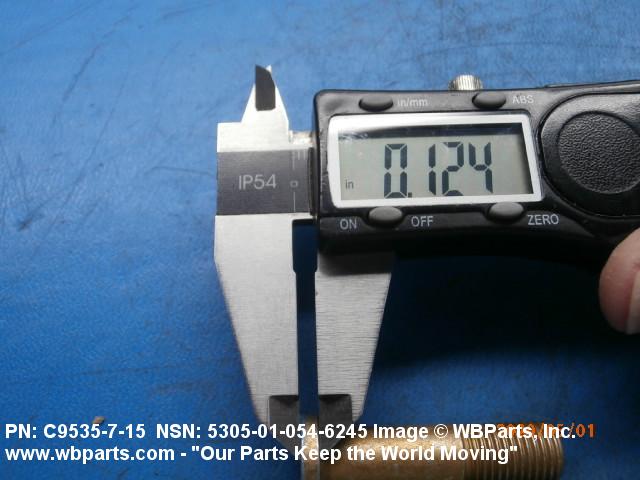

| HEAD HEIGHT | 0.112 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |

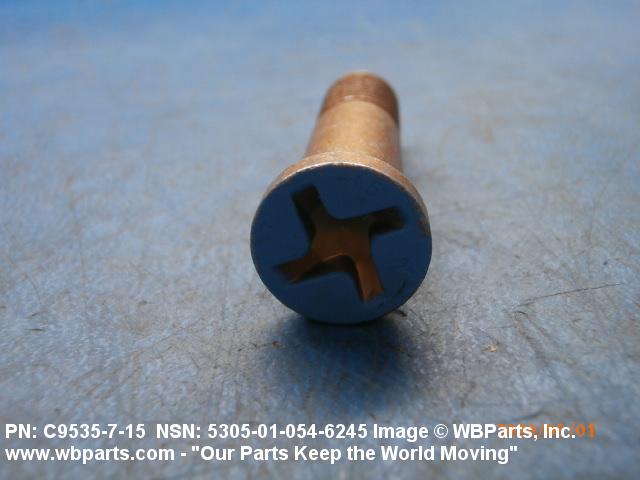

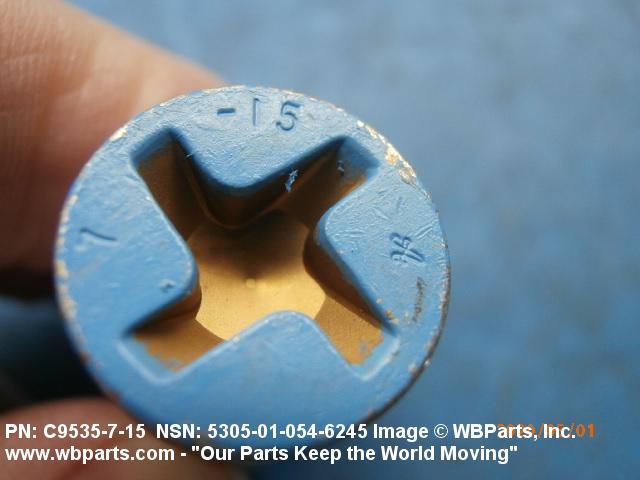

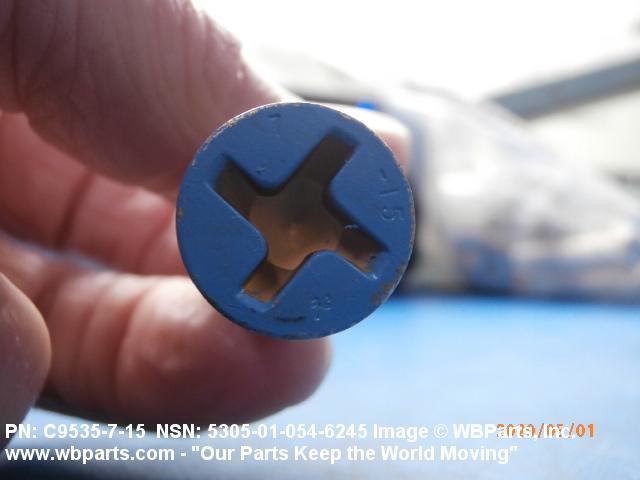

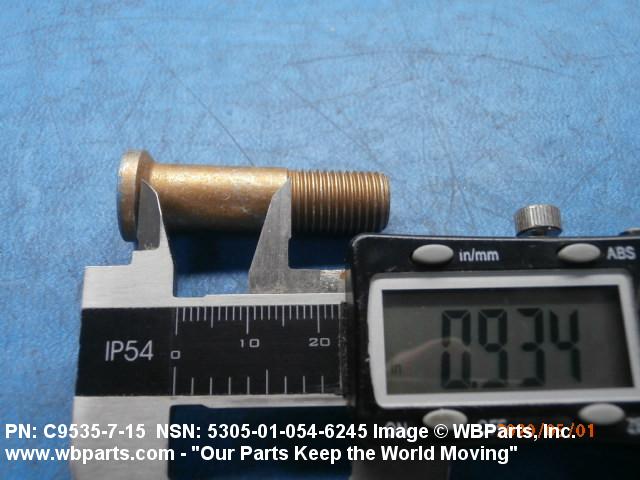

| INTERNAL DRIVE STYLE | D8 TORQUE SET |
| GRIP LENGTH | 0.928 INCHES MINIMUM AND 0.948 INCHES MAXIMUM |

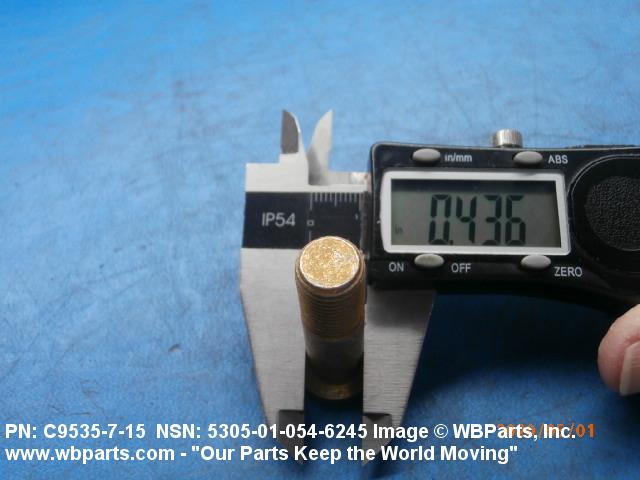

| GRIP DIAMETER | 0.4360 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM |
| SURFACE FINISH | 32.0 MICROINCHES GRIP 32.0 MICROINCHES THREADS |
| SPECIAL FEATURES | CONICAL BEARING SURFACE OF HEAD 99.0 DEGREE TO 101.0 DEGREE INCLUDED ANGLE 0.077 IN. LONG |
