NSN 5305-01-059-7469 NAS1580V3T6, 10114938 , 01-059-7469

Product Details | CLOSE TOLERANCE SCREW

5305-01-059-7469 A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads.

Part Alternates: NAS1580V3T6, 10114938 , 5305-01-059-7469, 01-059-7469, 5305010597469, 010597469

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	15 APR 1978	01-059-7469	29294 ( SCREW, CLOSE TOLERANCE )

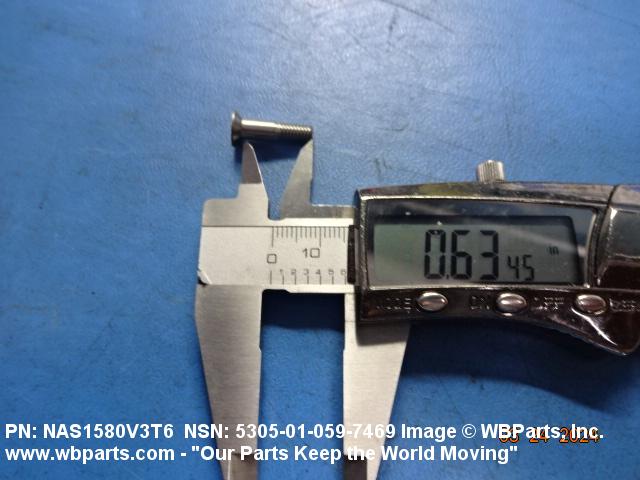

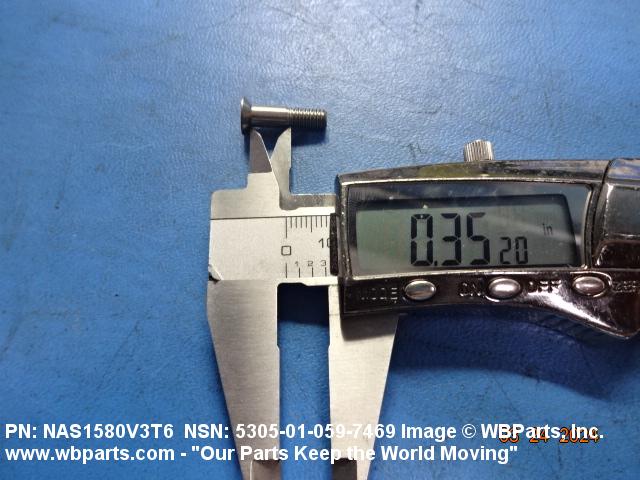

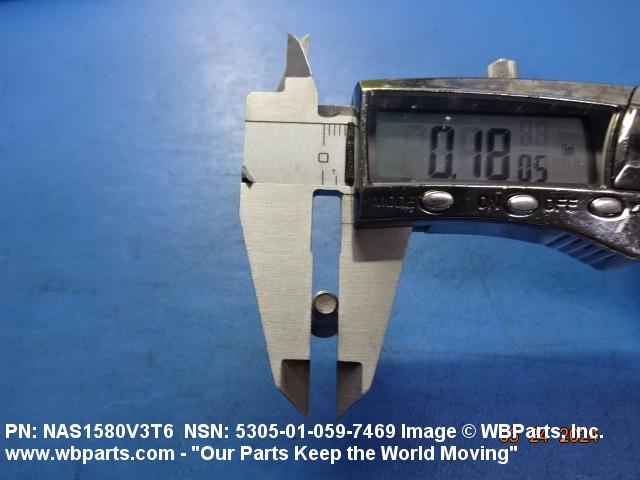

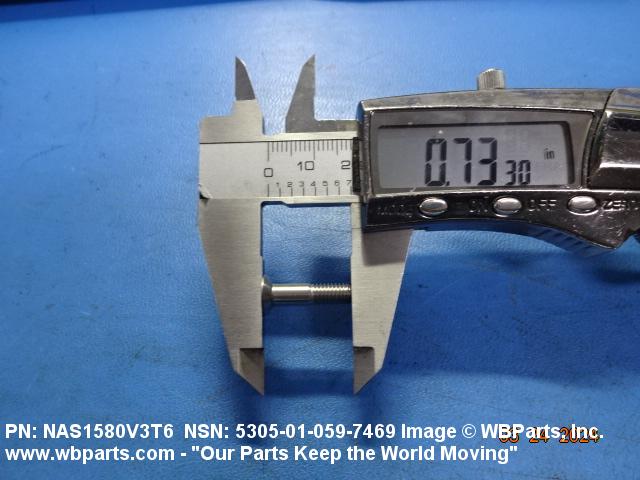

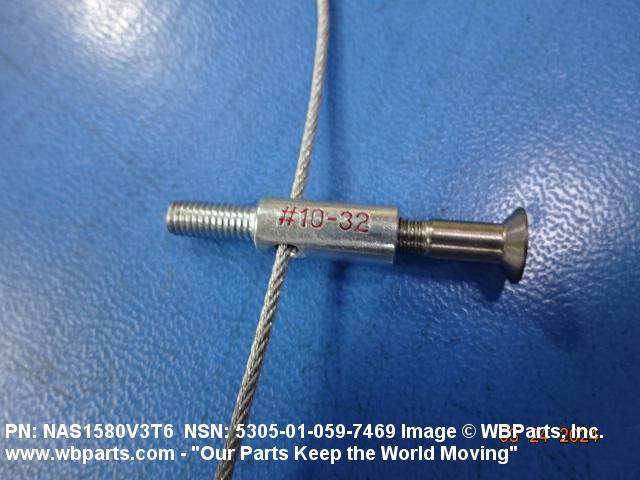

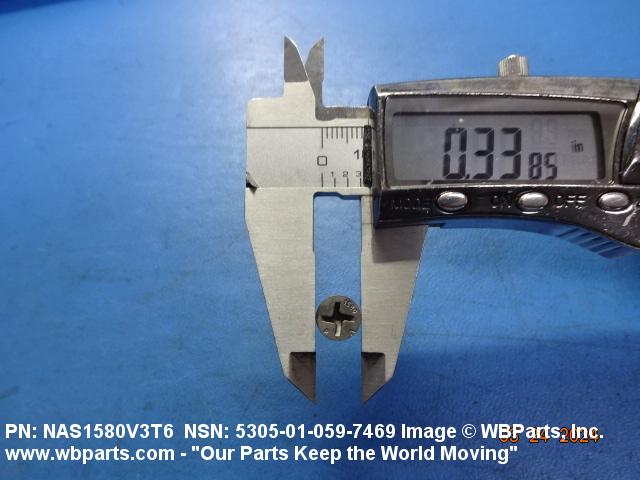

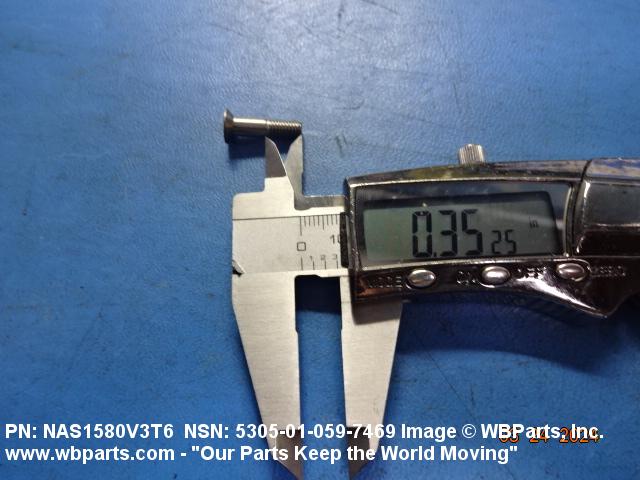

Drawings & Photos | NSN 5305-01-059-7469

Part Number	Request Date	QTY	Origin
NAS1580V3T6	2024-03-73	160	United States
5305-01-059-7469	2018-11-305	15047	DIBBS
5305-01-059-7469	2018-08-214	16730	DIBBS
5305-01-059-7469	2018-07-193	20712	DIBBS
5305-01-059-7469	2015-12-356	8000	DIBBS
5305-01-059-7469	2015-12-342	1804	DIBBS
5305-01-059-7469	2015-11-334	2250	US
5305-01-059-7469	2015-11-330	2222	DIBBS
5305-01-059-7469	2015-11-327	2219	DIBBS
5305-01-059-7469	2015-09-273	3710	DIBBS
5305-01-059-7469	2015-09-250	4974	DIBBS
5305-01-059-7469	2014-03-84	25199	DIBBS
5305-01-059-7469	2014-03-82	19308	DIBBS
NAS1580V3T6	2013-06-164	40	US
5305-01-059-7469	2011-03-77	100	ES
5305-01-059-7469	2010-05-144	1500	China
5305-01-059-7469	2009-02-44	50000	DIBBS
5305-01-059-7469	2008-09-263	100	UM
5305-01-059-7469	2008-03-88	30000	DIBBS

Cross Reference | NSN 5305-01-059-7469

Part Number	Cage Code	Manufacturer
NAS1580V3T6	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-01-059-7469

Compare

Related Products | NSN 5305-01-059-7469

5305-01-059-7470, 5305-01-059-7471, 5305-01-059-7472, 5305-01-059-7473, 5305-01-059-7474

Technical Data | NSN 5305-01-059-7469

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD DIAMETER	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.338 INCHES MINIMUM AND 0.388 INCHES MAXIMUM
FASTENER LENGTH	0.723 INCHES MINIMUM AND 0.753 INCHES MAXIMUM
MATERIAL	TITANIUM ALLOY OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	NAS 621 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
MINIMUM TENSILE STRENGTH	160000 POUNDS PER SQUARE INCH
HEAD STYLE	C50 FLAT COUNTERSUNK
HEAD DIAMETER	0.339 INCHES MINIMUM AND 0.381 INCHES MAXIMUM
COUNTERSINK ANGLE	99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM
INTERNAL DRIVE STYLE	D8 TORQUE SET
GRIP LENGTH	0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM
GRIP DIAMETER	0.1890 INCHES MINIMUM AND 0.1895 INCHES MAXIMUM
SURFACE FINISH	32.0 MICROINCHES GRIP 32.0 MICROINCHES THREADS
SPECIFICATION/STANDARD DATA	80205-NAS1580 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Restrictions/Controls & Freight Information | NSN 5305-01-059-7469

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	136500	METAL NOI/METAL ALLOYS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-01-059-7469

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
