NSN 5305-01-104-7313 S1051, S-1051, FRSS75008B4

Product Details | PANEL SCREW ASSEMBLY

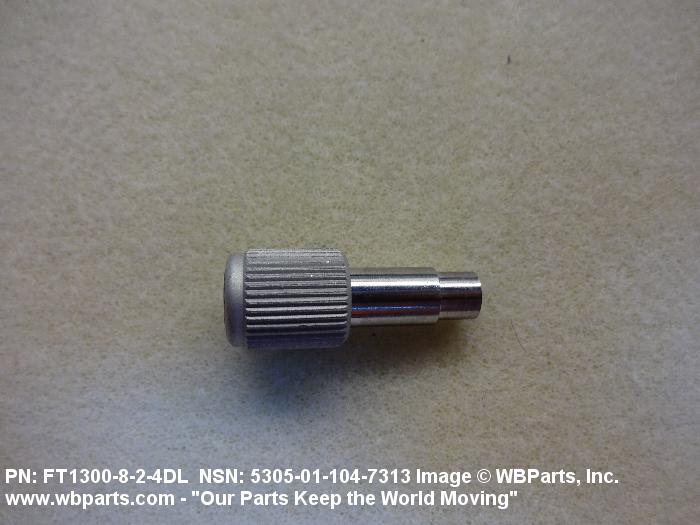

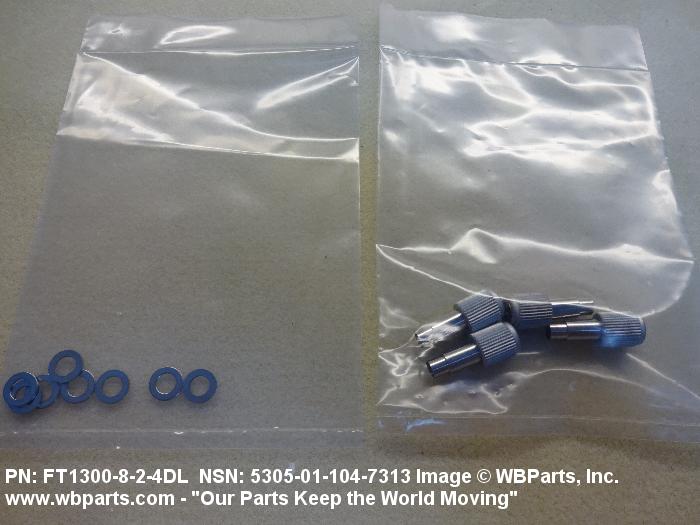

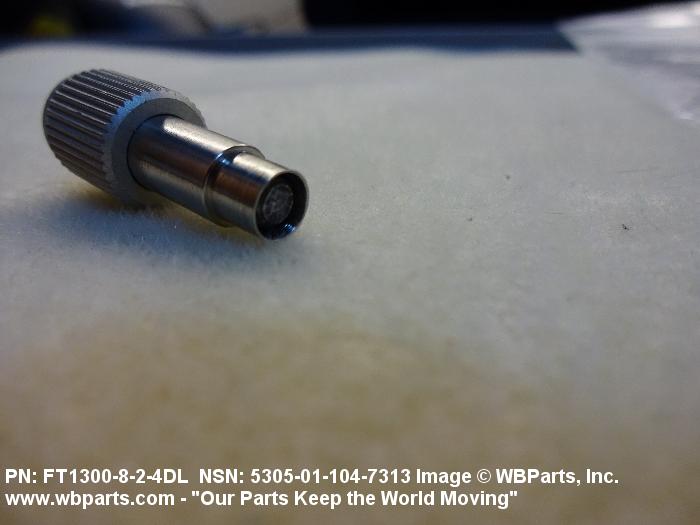

5305-01-104-7313 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.

Part Alternates: S1051, S-1051, FRSS75008B4, FRSS7500-8-B-4, FRSS75008B4DL, FRSS7500-8-B-4DL , FT1300824DL, FT1300-8-2-4DL , 11438307105, 11438307-105, 11438307-5, 5305-01-104-7313, 01-104-7313, 5305011047313, 011047313, 114383075

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	10 DEC 1980	01-104-7313	33044 ( SCREW ASSEMBLY, PANEL )

Drawings & Photos | NSN 5305-01-104-7313

Part Number	Request Date	QTY	Origin
FT1300824DL	2022-07-187	10	United States
5305-01-104-7313	2017-02-45	4	United States
5305-01-104-7313	2016-09-270	1401	DIBBS
5305-01-104-7313	2016-09-258	250	United States
5305-01-104-7313	2016-08-239	500	United States
5305-01-104-7313	2016-08-222	357	DIBBS
5305-01-104-7313	2014-04-104	1235	DIBBS
5305-01-104-7313	2014-04-93	1235	DIBBS
5305-01-104-7313	2014-03-85	644	DIBBS
5305-01-104-7313	2014-03-70	644	DIBBS
FRSS75008B4DL	2014-02-52	10	United States
FRSS75008B4DL	2012-11-334	3	United States
FT1300824DL	2012-11-306	30	United States
5305-01-104-7313	2011-10-292	1345	DIBBS
5305-01-104-7313	2011-06-161	623	DIBBS
FRSS75008B4	2010-04-119	1000	US
FRSS75008B4	2008-02-50	80	United States

Cross Reference | NSN 5305-01-104-7313

Part Number	Cage Code	Manufacturer
11438307-105	18876	U S ARMY AVIATION AND MISSILE COMMAND
11438307-5	18876	U S ARMY AVIATION AND MISSILE COMMAND
FRSS7500-8-B-4	0HDW7	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
FRSS7500-8-B-4	97928	HUCK INTL INC
FRSS7500-8-B-4DL	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
FT1300-8-2-4DL	58794	FASTENER TECHNOLOGY CORP.
S-1051	97928	HUCK INTL INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-01-104-7313

Compare

Related Products | NSN 5305-01-104-7313

5305-01-104-7935, 5305-01-104-8113, 5305-01-104-8138, 5305-01-104-8139, 5305-01-104-8142

Technical Data | NSN 5305-01-104-7313

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.164 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND

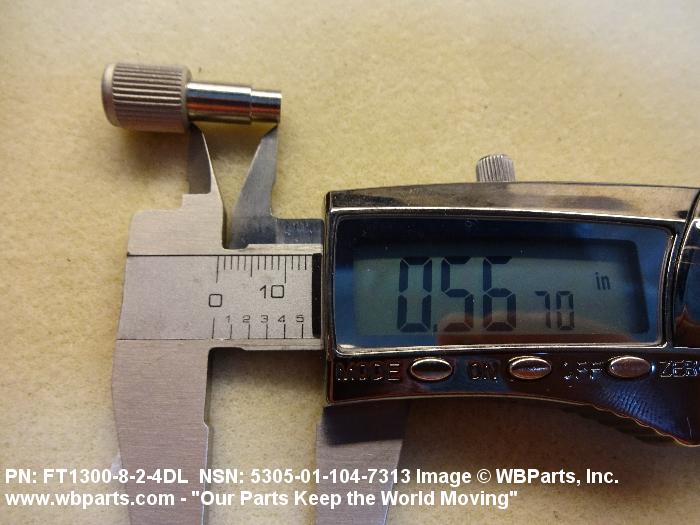

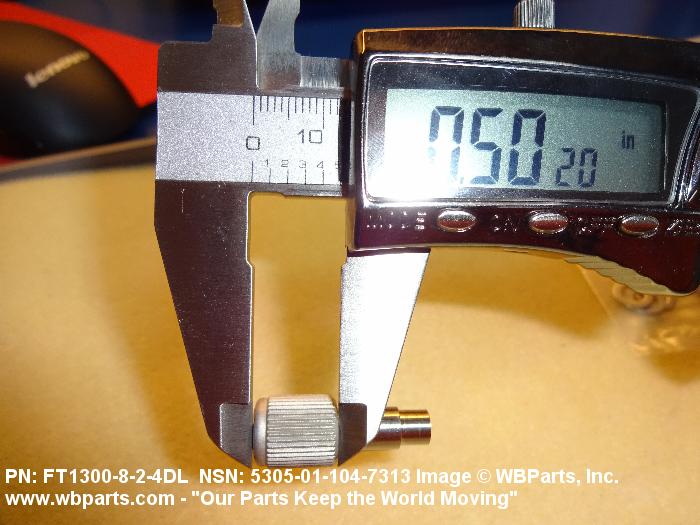

THREAD LENGTH	0.550 INCHES MINIMUM AND 0.590 INCHES MAXIMUM

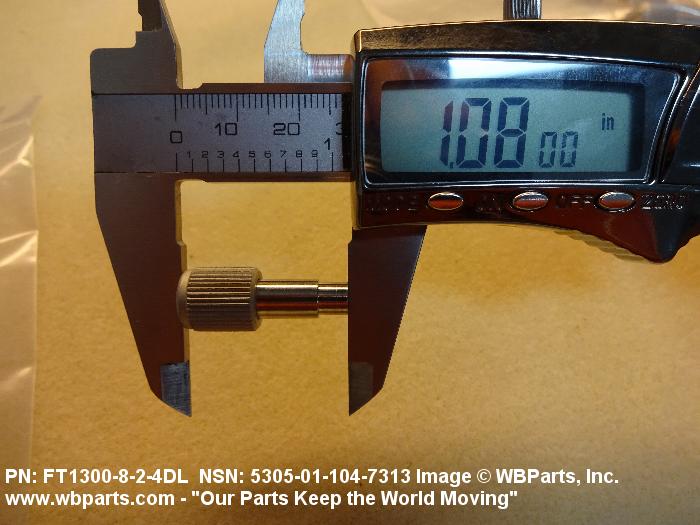

FASTENER LENGTH	1.045 INCHES MINIMUM AND 1.085 INCHES MAXIMUM
MATERIAL	ALUMINUM ALLOY 6061 HEAD STEEL COMP 301 PRIMARY WASHER STEEL COMP 302 SPRING STEEL COMP 304 STAND-OFF STEEL COMP 303 FASTENER
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-225/8 FED SPEC SINGLE MATERIAL RESPONSE HEAD MIL-S-5059 MIL SPEC SINGLE MATERIAL RESPONSE PRIMARY WASHER QQ-W-423 COND B FED SPEC SINGLE MATERIAL RESPONSE SPRING MIL-S-23195 MIL SPEC SINGLE MATERIAL RESPONSE STAND-OFF
SURFACE TREATMENT	ANODIZE HEAD PASSIVATE PRIMARY WASHER PASSIVATE SPRING PASSIVATE STAND-OFF PASSIVATE FASTENER
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE FASTENER
HEAD STYLE	C49 FLAT CHAMFER

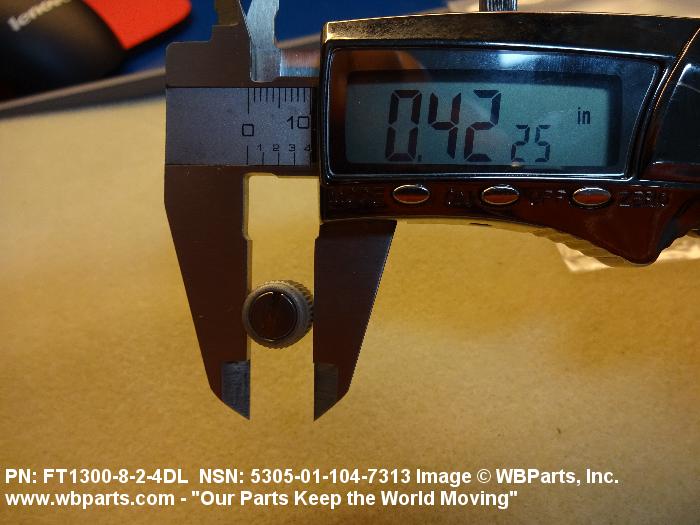

HEAD DIAMETER	0.420 INCHES NOMINAL
HEAD HEIGHT	0.495 INCHES NOMINAL
MATERIAL ACCOMMODATED THICKNESS	0.032 INCHES MINIMUM AND 0.093 INCHES MAXIMUM

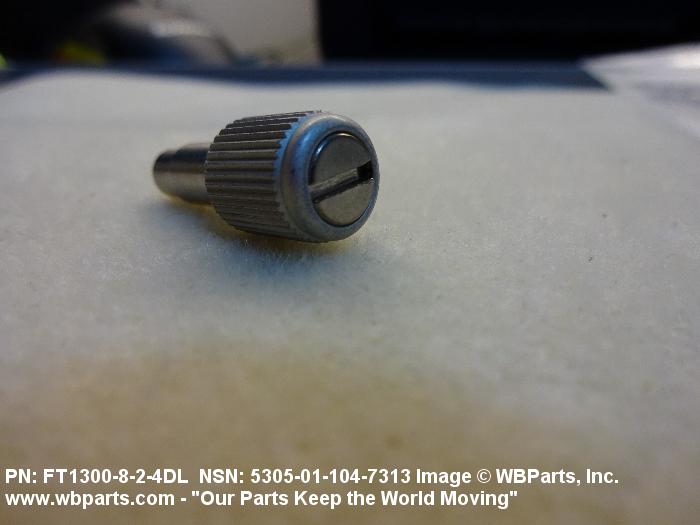

SPECIAL FEATURES	STRAIGHT KNURLED
III END ITEM IDENTIFICATION	PATRIOT MISSILE
