NSN 5305-01-110-4732 D75008A3, D7500-8-A-3, 10001390001
Product Details | PANEL SCREW ASSEMBLY

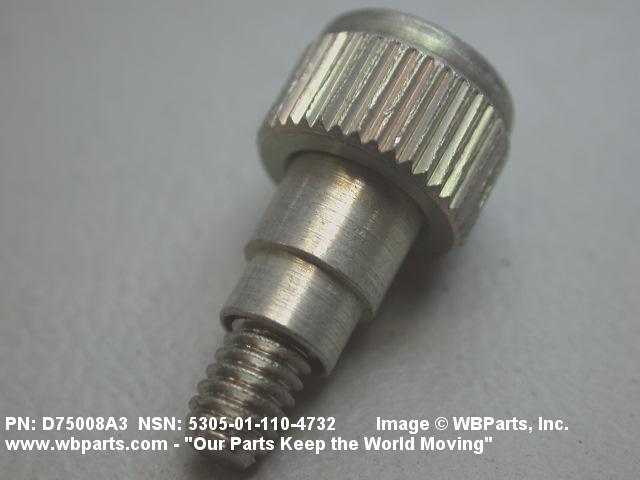

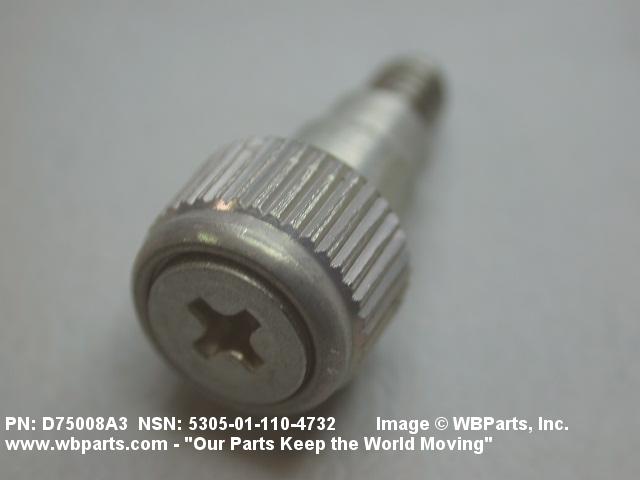

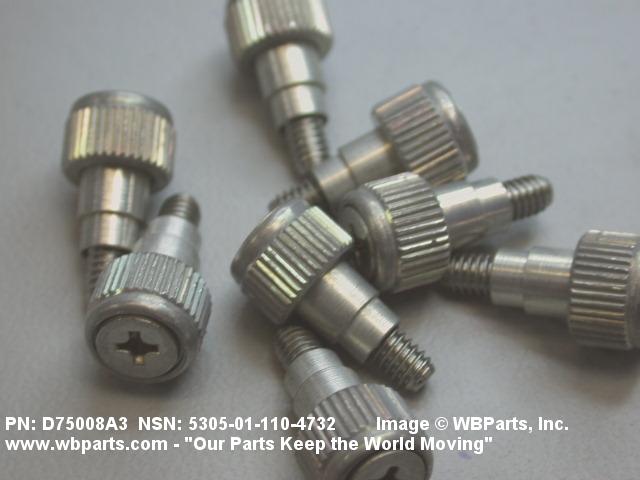

5305-01-110-4732 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.
Part Alternates: D75008A3, D7500-8-A-3, 10001390001, 1000-1390-001, 5305-01-110-4732, 01-110-4732, 5305011104732, 011104732
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 APR 1981 | 01-110-4732 | 33044 ( SCREW ASSEMBLY, PANEL ) |
Drawings & Photos | NSN 5305-01-110-4732
Demand History | NSN 5305-01-110-4732
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| D7500-8-A-3 | 2022-06-172 | 423 | DIBBS |
| D7500-8-A-3 | 2022-06-159 | 423 | DIBBS |
| D7500-8-A-3 | 2020-07-201 | 204 | DIBBS |
| 5305-01-110-4732 | 2018-12-347 | 185 | DIBBS |
| 5305-01-110-4732 | 2018-07-198 | 185 | DIBBS |
| 5305-01-110-4732 | 2018-07-190 | 185 | DIBBS |
| 5305-01-110-4732 | 2015-04-105 | 117 | DIBBS |
| 5305-01-110-4732 | 2013-10-289 | 105 | DIBBS |
| 5305-01-110-4732 | 2011-04-100 | 251 | DIBBS |
| 5305-01-110-4732 | 2011-01-29 | 500 | DIBBS |
| 5305-01-110-4732 | 2011-01-28 | 500 | DIBBS |
| 5305-01-110-4732 | 2010-02-48 | 98 | DIBBS |
| D75008A3 | 2009-05-131 | 24 | us |
| D75008A3 | 2007-10-304 | 600 | US |
| D75008A3 | 2007-06-173 | 330 | United States |
| D75008A3 | 2007-06-173 | 330 | United States |
| D75008A3 | 2007-06-158 | 330 | United States |
| 5305-01-110-4732 | 2007-04-95 | 26 | US |
| 5305-01-110-4732 | 2007-03-75 | 300 | United States |
Cross Reference | NSN 5305-01-110-4732
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-110-4732
Related Products | NSN 5305-01-110-4732
Technical Data | NSN 5305-01-110-4732
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| FASTENER LENGTH | 0.795 INCHES MINIMUM AND 0.835 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY 2024 HEAD STEEL COMP 302 SPRING ALUMINUM ALLOY 6061 STAND-OFF STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OR STEEL COMP 321 OR STEEL COMP 347 OR STEEL COMP 384 OR STEEL COMP 385 FASTENER |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/8 FED SPEC SINGLE MATERIAL RESPONSE HEAD QQ-W-423 COND B FED SPEC SINGLE MATERIAL RESPONSE SPRING QQ-A-225/8 FED SPEC SINGLE MATERIAL RESPONSE STAND-OFF ASTM A493 ASSN STD ALL MATERIAL RESPONSES FASTENER |
| SURFACE TREATMENT | ANODIZE HEAD PASSIVATE SPRING ANODIZE STAND-OFF PASSIVATE FASTENER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 TY 1 CL 1 MIL SPEC SINGLE TREATMENT RESPONSE HEAD QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPRING MIL-A-8625 TY 1 CL 1 MIL SPEC SINGLE TREATMENT RESPONSE STAND-OFF QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE FASTENER |
| HEAD STYLE | C49 FLAT CHAMFER |
| HEAD DIAMETER | 0.420 INCHES NOMINAL |
| HEAD HEIGHT | 0.290 INCHES MINIMUM |
| INTERNAL DRIVE STYLE | D14 SLOT |
| MATERIAL ACCOMMODATED THICKNESS | 0.313 INCHES MINIMUM AND 0.437 INCHES MAXIMUM |
| SPECIAL FEATURES | HEAD VERTICALLY KNURLED |
