NSN 5305-01-162-9721 C96234A1, C9623-4A1, DPY7900P4A1

Product Details | PANEL SCREW ASSEMBLY

5305-01-162-9721 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.

Part Alternates: C96234A1, C9623-4A1, DPY7900P4A1, DPY7900P-4-A-1, FT10664A1, FT1066-4-A-1, 5305-01-162-9721, 01-162-9721, 5305011629721, 011629721

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	26 SEP 1983	01-162-9721	33044 ( SCREW ASSEMBLY, PANEL )

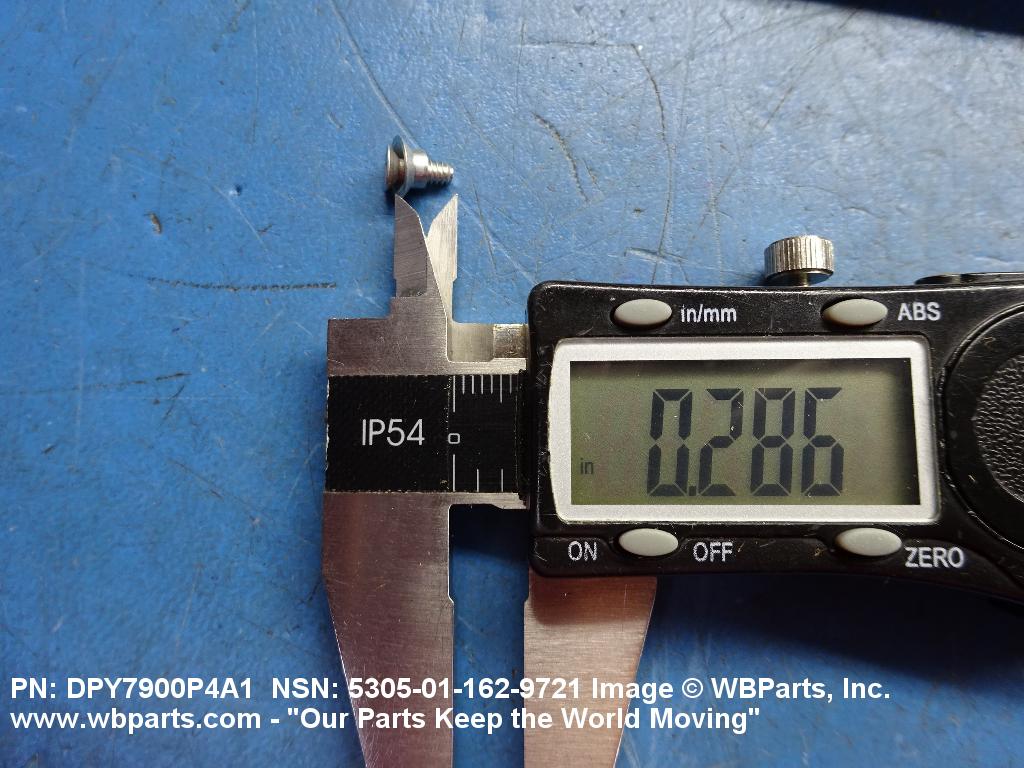

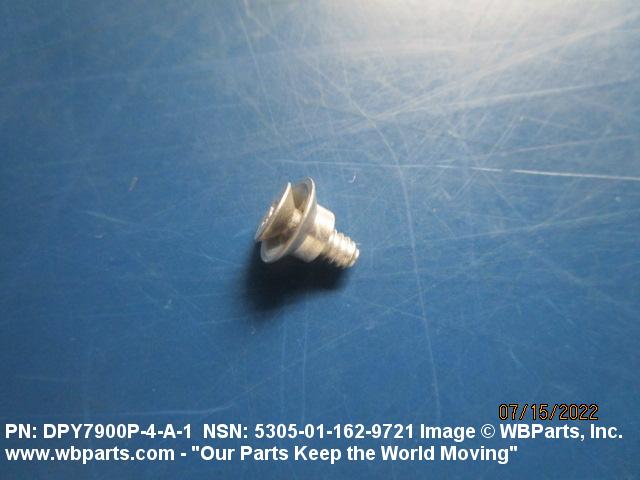

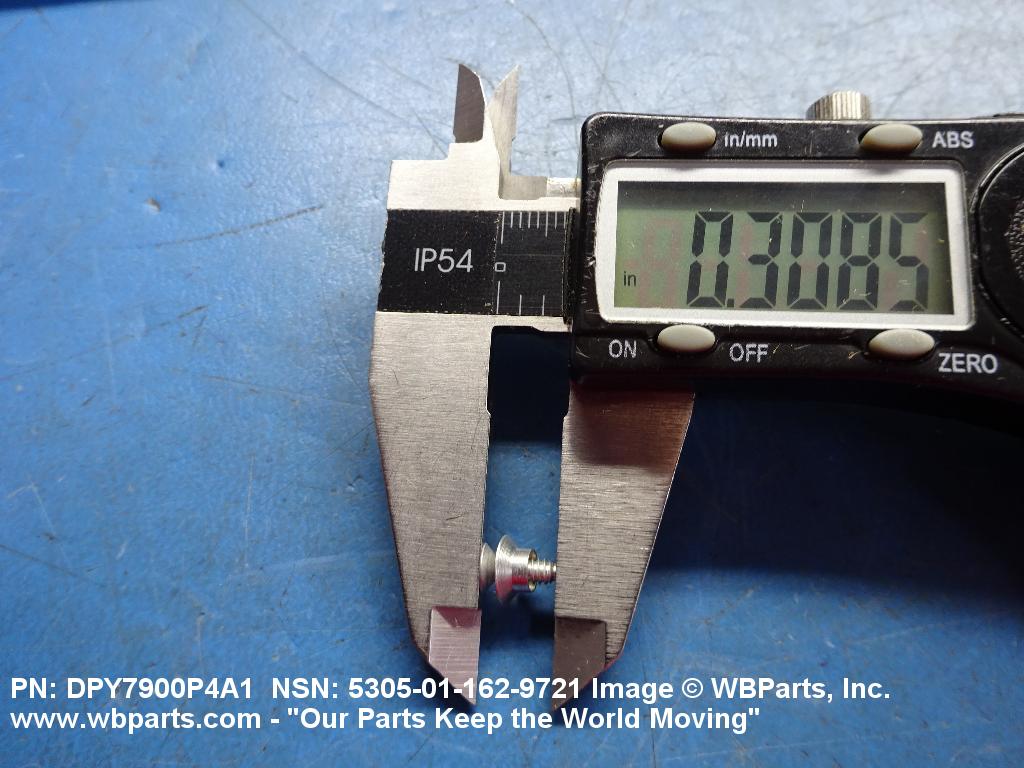

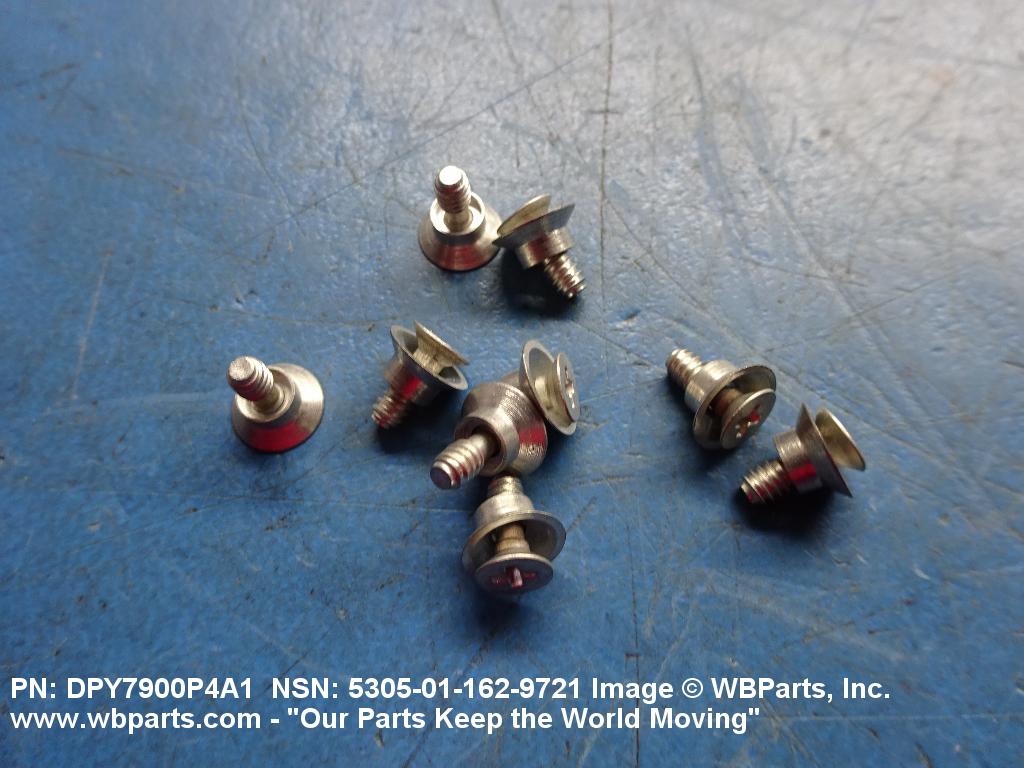

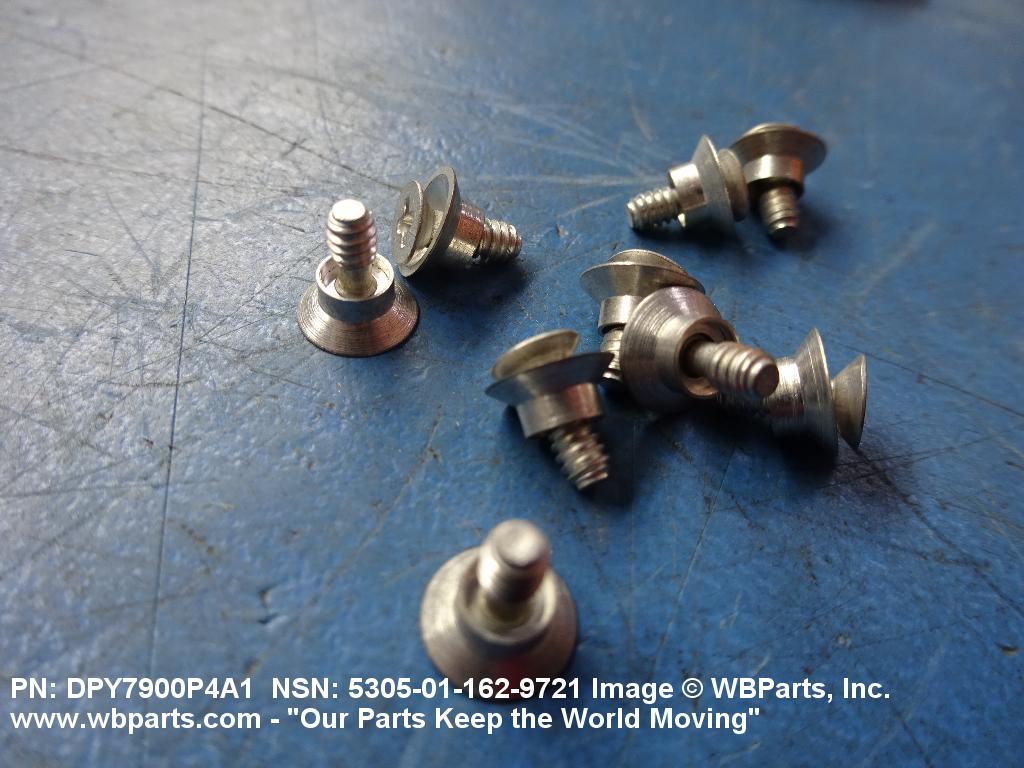

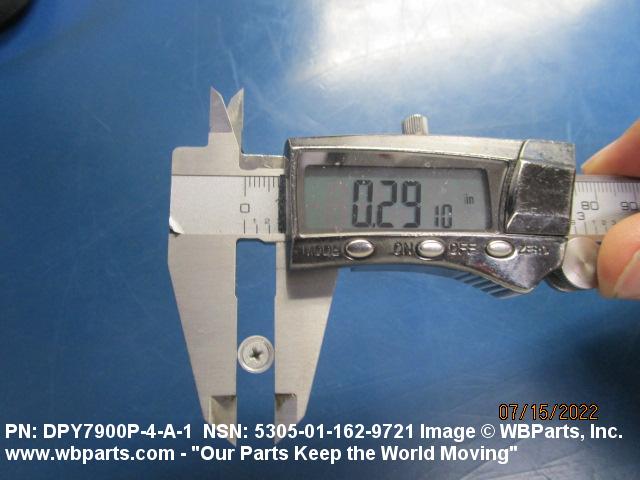

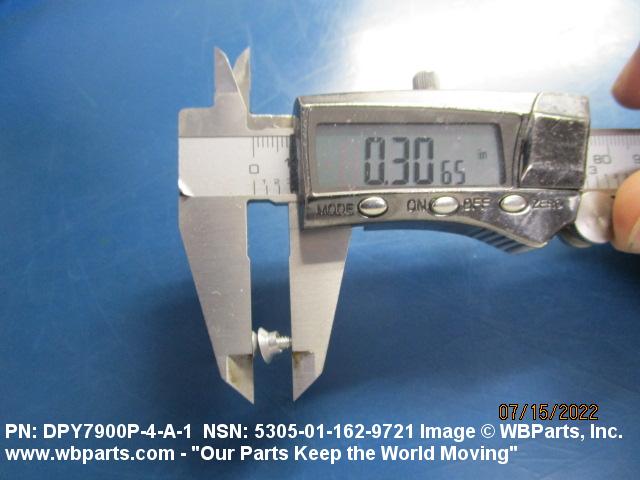

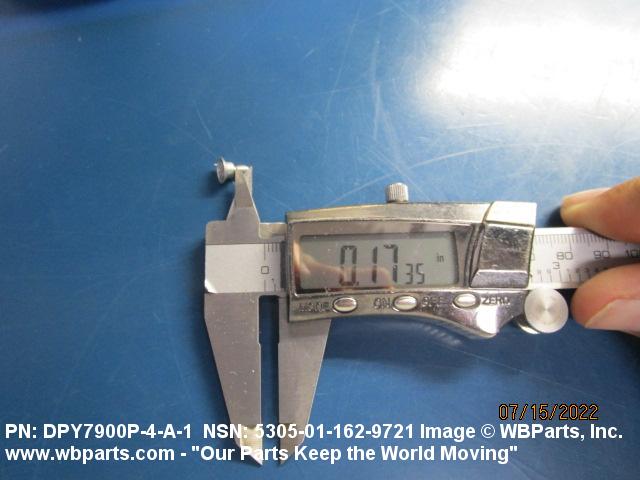

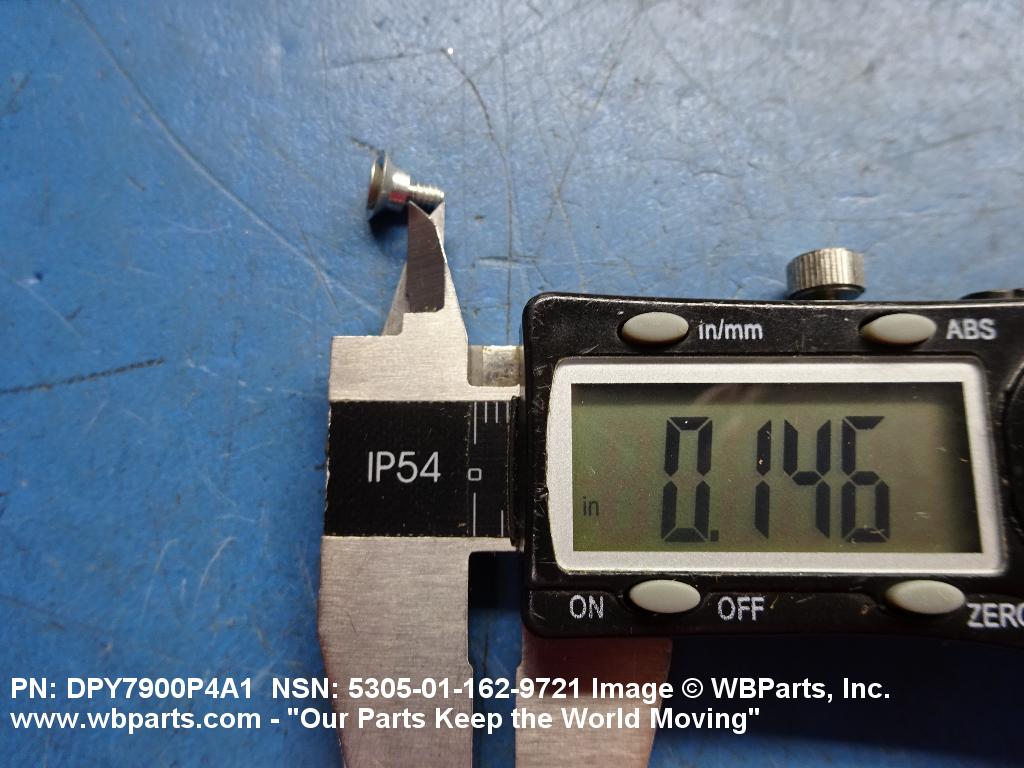

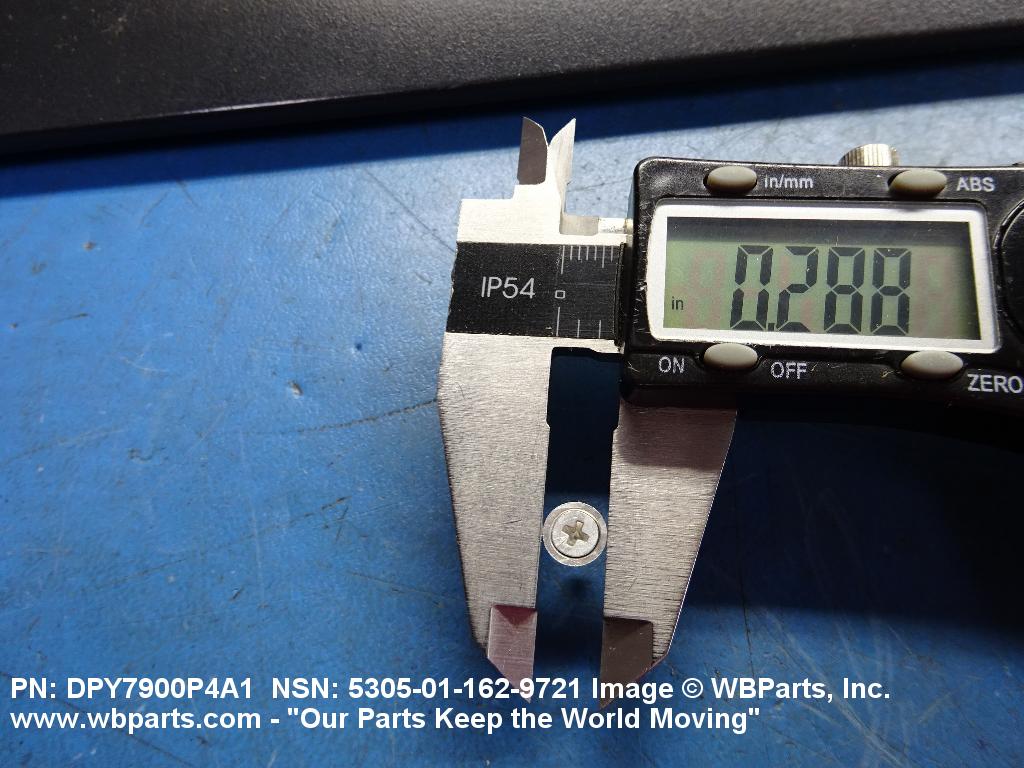

Drawings & Photos | NSN 5305-01-162-9721

Part Number	Request Date	QTY	Origin
DPY7900P4A1	2022-09-249	300	United States
DPY7900P4A1	2022-07-188	300	United States
5305-01-162-9721	2020-01-27	150	United States
5305-01-162-9721	2015-09-260	110	DIBBS
5305-01-162-9721	2015-07-182	48	DIBBS
5305-01-162-9721	2014-04-96	34	DIBBS
5305-01-162-9721	2010-04-105	13	DIBBS

Cross Reference | NSN 5305-01-162-9721

Part Number	Cage Code	Manufacturer
C9623-4A1	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
DPY7900P-4-A-1	97928	HUCK INTL INC
FT1066-4-A-1	58794	FASTENER TECHNOLOGY CORP.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-01-162-9721

Compare

Related Products | NSN 5305-01-162-9721

5305-01-163-0085, 5305-01-163-0116, 5305-01-163-0139, 5305-01-163-0140, 5305-01-163-0382

Technical Data | NSN 5305-01-162-9721

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.112 INCHES
THREAD QUANTITY PER INCH	40
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.175 INCHES NOMINAL
FASTENER LENGTH	0.290 INCHES MINIMUM AND 0.310 INCHES MAXIMUM
MATERIAL	COPPER ALLOY 360 STAND-OFF STEEL COMP 4037 FASTENER
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-B-626 FED SPEC SINGLE MATERIAL RESPONSE STAND-OFF AMS6300 ASSN STD SINGLE MATERIAL RESPONSE FASTENER
SURFACE TREATMENT	CADMIUM STAND-OFF CADMIUM FASTENER
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1 CL 2 FED SPEC SINGLE TREATMENT RESPONSE STAND-OFF QQ-P-416,TY 1 CL 2 FED SPEC SINGLE TREATMENT RESPONSE FASTENER
HARDNESS RATING	34.0 ROCKWELL C MINIMUM AND 38.0 ROCKWELL C MAXIMUM FASTENER
HEAD STYLE	C50 FLAT COUNTERSUNK
HEAD DIAMETER	0.317 INCHES MAXIMUM
COUNTERSINK ANGLE	99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM
INTERNAL DRIVE STYLE	D1 CROSS RECESS TYPE 1
MATERIAL ACCOMMODATED THICKNESS	0.075 INCHES MINIMUM AND 0.089 INCHES MAXIMUM
III END ITEM IDENTIFICATION	AIRCRAFT,EAGLE F-15;F-16 AIRCRAFT

Restrictions/Controls & Freight Information | NSN 5305-01-162-9721

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	096630	SCREWS NOI BRASS/BRONZE/COPPER
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-01-162-9721

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
