NSN 5305-01-198-6960 F750012C5, F7500-12C5, 01-198-6960
Product Details | PANEL SCREW ASSEMBLY
5305-01-198-6960 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.
Part Alternates: F750012C5, F7500-12C5, 5305-01-198-6960, 01-198-6960, 5305011986960, 011986960
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 JAN 1985 | 01-198-6960 | 33044 ( SCREW ASSEMBLY, PANEL ) |

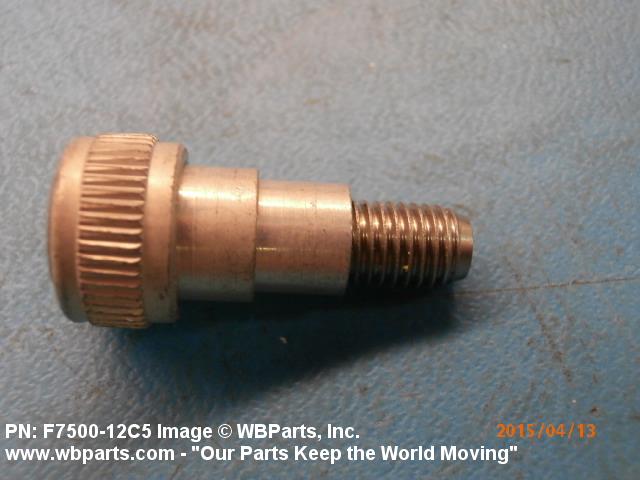

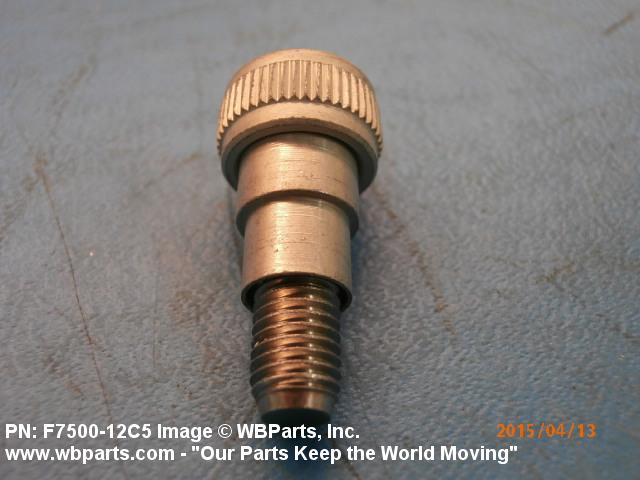

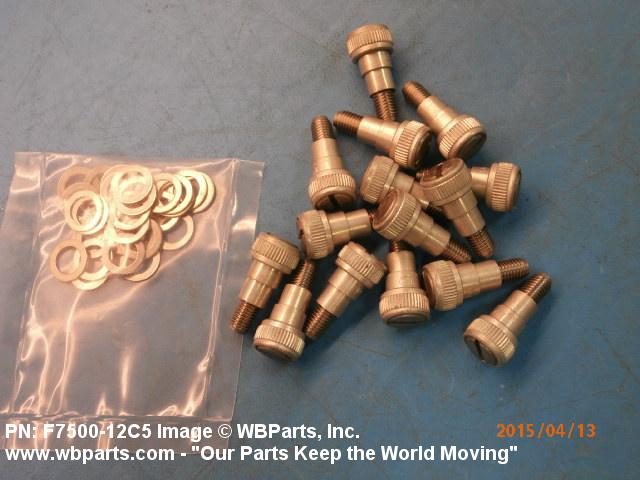

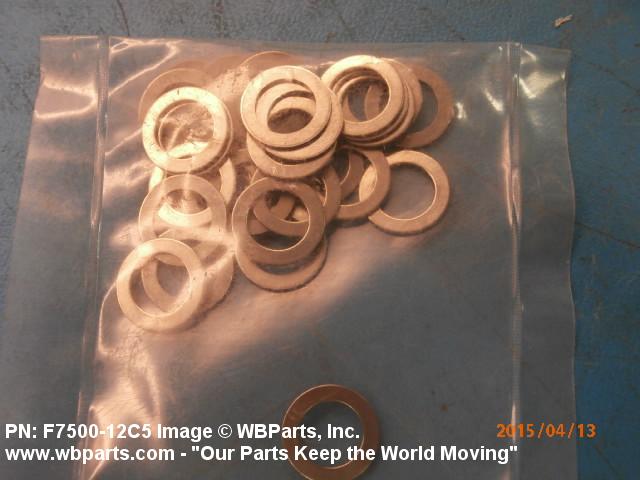

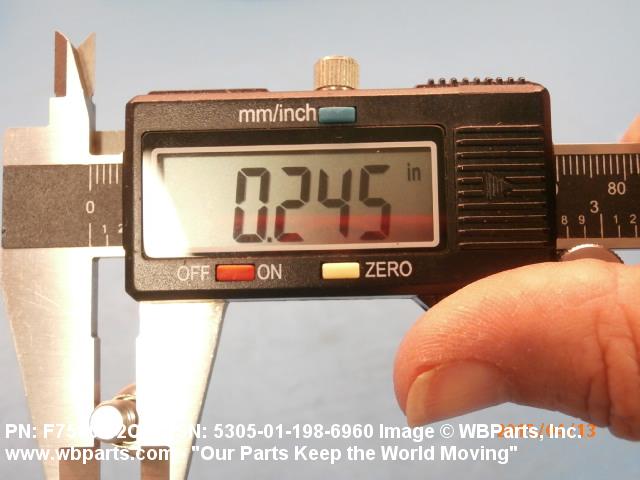

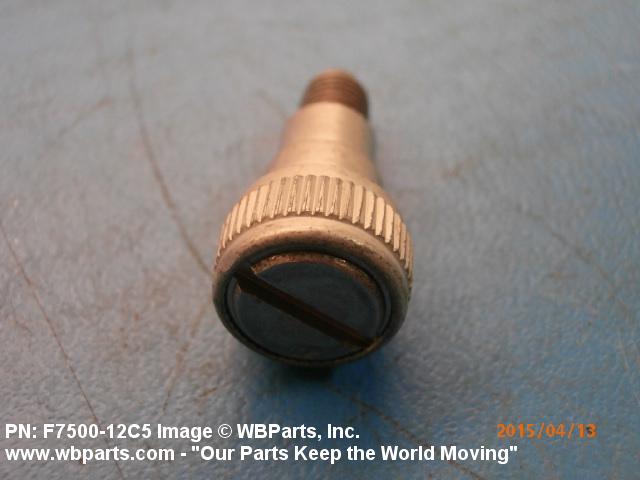

Drawings & Photos | NSN 5305-01-198-6960
Demand History | NSN 5305-01-198-6960
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| F750012C5 | 2015-04-97 | 15 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-198-6960
Technical Data | NSN 5305-01-198-6960
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.755 INCHES NOMINAL |

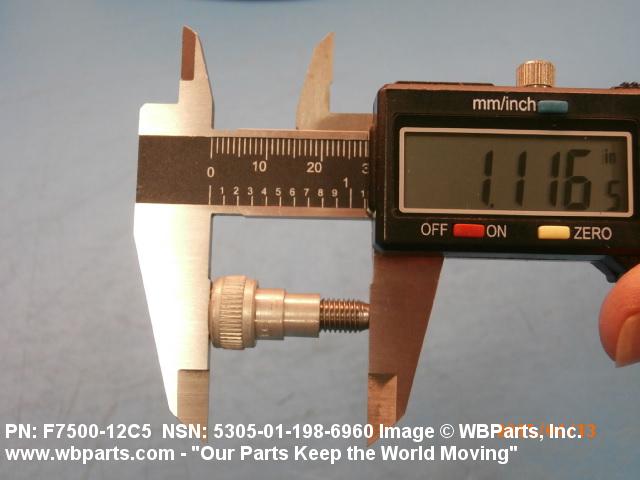

| FASTENER LENGTH | 1.120 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 6061 HEAD STEEL COMP 303 PRIMARY WASHER STEEL COMP 303 SPRING STEEL COMP 303 FASTENER |
| SURFACE TREATMENT | ANODIZE HEAD PASSIVATE PRIMARY WASHER PASSIVATE SPRING PASSIVATE FASTENER |
| HEAD STYLE | C49 FLAT CHAMFER |

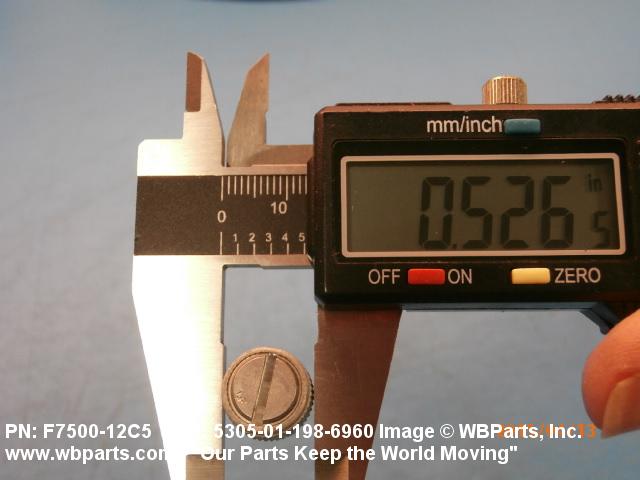

| HEAD DIAMETER | 0.531 INCHES NOMINAL |

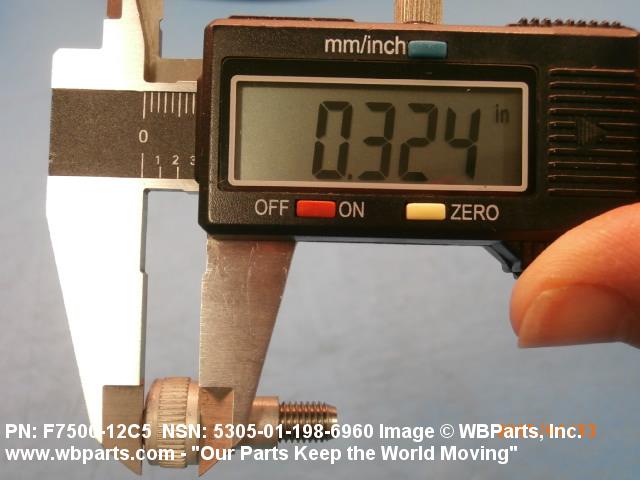

| HEAD HEIGHT | 0.365 INCHES NOMINAL |

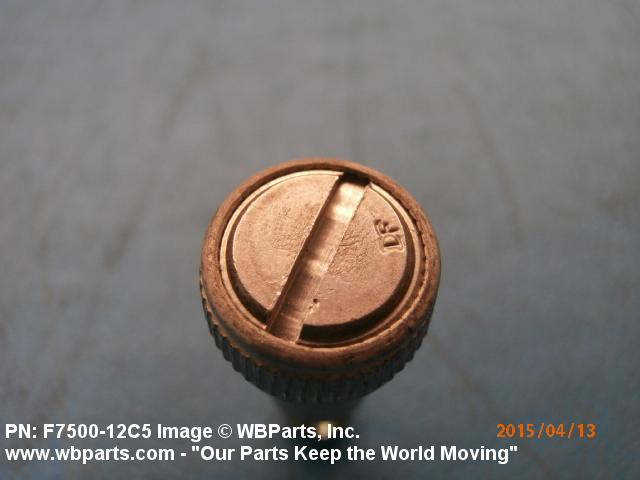

| INTERNAL DRIVE STYLE | D14 SLOT |
| MATERIAL ACCOMMODATED THICKNESS | 0.094 INCHES MINIMUM AND 0.155 INCHES MAXIMUM |
| SPECIAL FEATURES | HEAD VERTICALLY KNURLED |
| III PURCHASE DESCRIPTION IDENTIFICATION | 08524-F7500-12C5 |
Restrictions/Controls & Freight Information | NSN 5305-01-198-6960
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
