NSN 5305-01-210-2919 NAS1581A8T16, NAS1581F8T16, 01-210-2919
Product Details | CLOSE TOLERANCE SCREW
5305-01-210-2919 A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: NAS1581A8T16, NAS1581F8T16, 5305-01-210-2919, 01-210-2919, 5305012102919, 012102919
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 JUN 1985 | 01-210-2919 | 29294 ( SCREW, CLOSE TOLERANCE ) |
Drawings & Photos | NSN 5305-01-210-2919
Demand History | NSN 5305-01-210-2919
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-210-2919 | 2025-08-234 | 309 | DIBBS |
| 5305-01-210-2919 | 2025-08-226 | 309 | DIBBS |
| 5305-01-210-2919 | 2025-06-154 | 260 | Singapore |
| 5305-01-210-2919 | 2025-02-44 | 309 | DIBBS |
| 5305-01-210-2919 | 2024-11-319 | 136 | DIBBS |
| 5305-01-210-2919 | 2024-09-249 | 509 | DIBBS |
| 5305-01-210-2919 | 2024-07-208 | 276 | DIBBS |
| 5305-01-210-2919 | 2024-07-200 | 276 | DIBBS |
| 5305-01-210-2919 | 2024-06-158 | 233 | DIBBS |
| 5305-01-210-2919 | 2023-12-338 | 24 | United States |
| 5305-01-210-2919 | 2017-02-53 | 11 | MANUAL |
| 5305-01-210-2919 | 2017-02-53 | 22 | MANUAL |
| 5305-01-210-2919 | 2016-11-327 | 1 | DIBBS-RFPs |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-210-2919
Related Products | NSN 5305-01-210-2919
Technical Data | NSN 5305-01-210-2919
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E4340 OR STEEL COMP 4140 OR STEEL COMP 8740 OR STEEL COMP 8735 OR STEEL COMP 6150 OVERALL |
| THREAD DIRECTION | RIGHT-HAND |

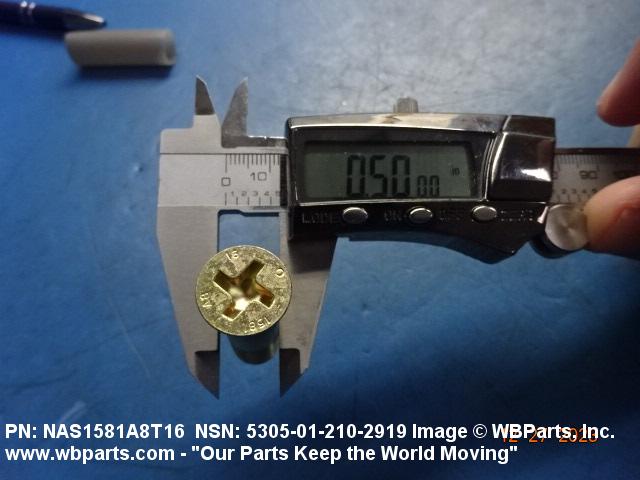

| NOMINAL THREAD DIAMETER | 0.500 INCHES |

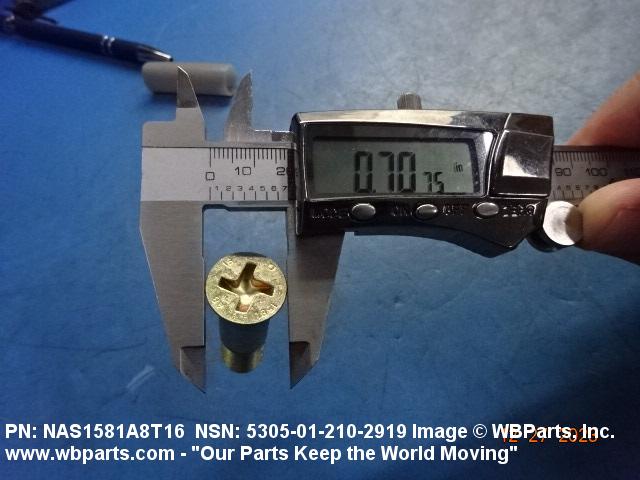

| HEAD DIAMETER | 0.6901 INCHES MINIMUM AND 0.7611 INCHES MAXIMUM |
| HEAD STYLE | FLAT COUNTERSUNK |
| INTERNAL DRIVE STYLE | OFFSET CRUCIFORM (TORQUE SET) |

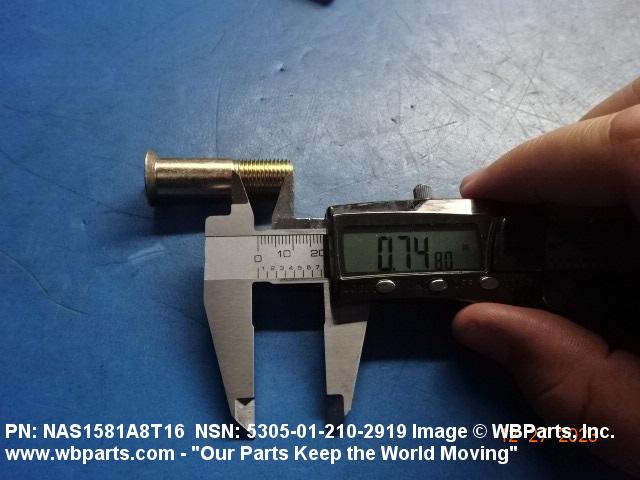

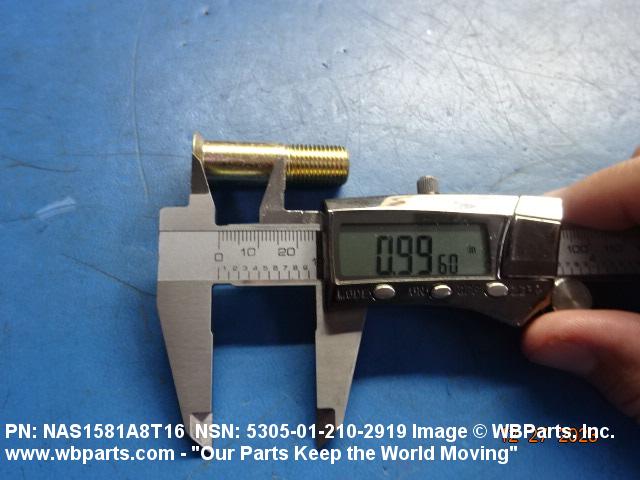

| GRIP LENGTH | 0.990 INCHES MINIMUM AND 1.010 INCHES MAXIMUM |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| GRIP DIAMETER | 0.4985 INCHES MINIMUM AND 0.4995 INCHES MAXIMUM |
| SURFACE FINISH | 32.0 MICROINCHES THREADS |
| THREAD SERIES DESIGNATOR | UNJF |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM OVERALL |

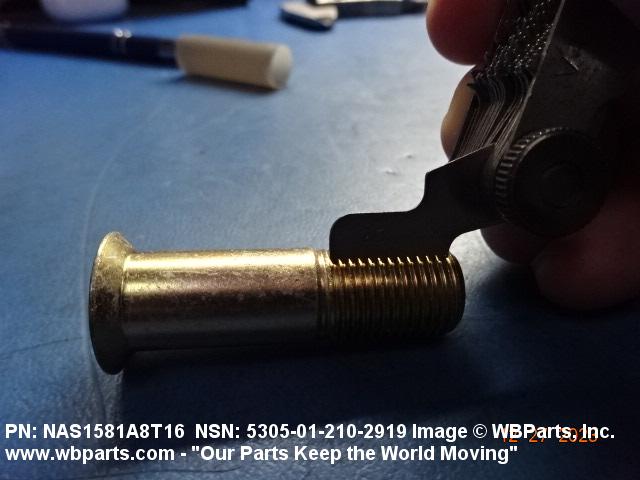

| THREAD QUANTITY PER INCH | 20 |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| THREAD LENGTH | 0.743 INCHES MINIMUM AND 0.793 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1581 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| SURFACE FINISH | 32.0 MICROINCHES GRIP |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

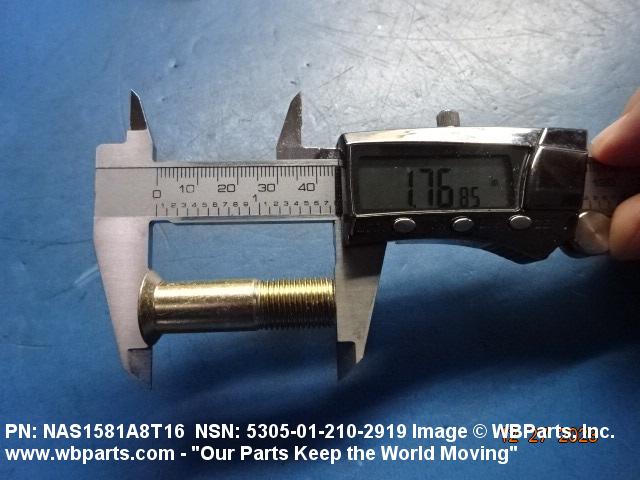

| FASTENER LENGTH | 1.753 INCHES MINIMUM AND 1.783 INCHES MAXIMUM |
| THREAD CLASS | 3A |
