NSN 5305-01-212-4558 F750010B4, F7500-10-B-4, FRAS750010B4
Product Details | PANEL SCREW ASSEMBLY
5305-01-212-4558 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.
Part Alternates: F750010B4, F7500-10-B-4, FRAS750010B4, FRAS7500-10B4, FRAS7500-10-B-4, 5305-01-212-4558, 01-212-4558, 5305012124558, 012124558
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 JUL 1985 | 01-212-4558 | 33044 ( SCREW ASSEMBLY, PANEL ) |

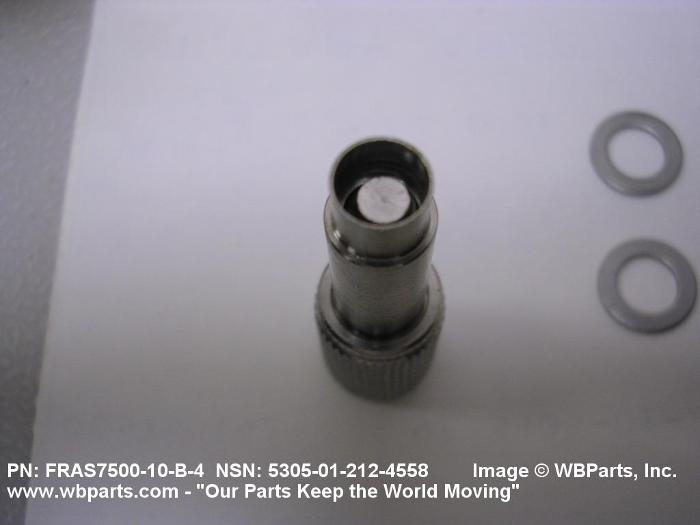

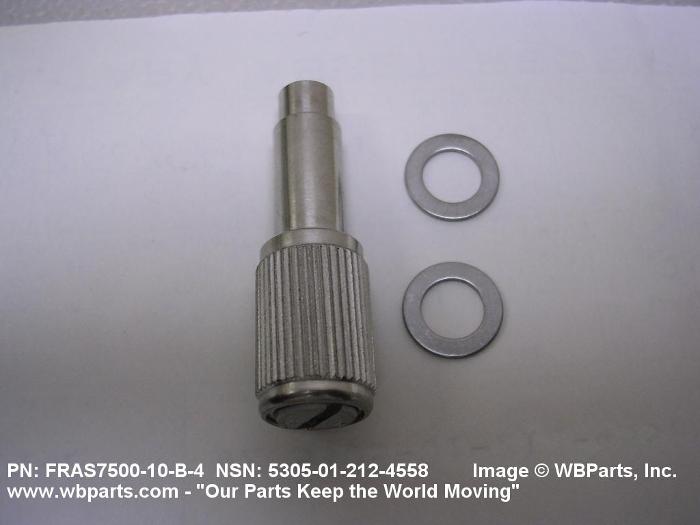

Drawings & Photos | NSN 5305-01-212-4558
Demand History | NSN 5305-01-212-4558
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| F750010B4 | 2008-11-311 | 80 | United States |
| F750010B4 | 2008-11-311 | 100 | United States |
| F750010B4 | 2008-11-311 | 100 | United States |
| F750010B4 | 2008-11-311 | 80 | United States |
| F750010B4 | 2008-11-311 | 100 | United States |
| 5305-01-212-4558 | 2007-05-141 | 25 | US |
| FRAS750010B4 | 2007-05-137 | 25 | United States |
Cross Reference | NSN 5305-01-212-4558
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-212-4558
Related Products | NSN 5305-01-212-4558
Technical Data | NSN 5305-01-212-4558
| Characteristic | Specifications |
|---|---|
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-23195 MIL SPEC SINGLE MATERIAL RESPONSE STAND-OFF |
| MATERIAL | STEEL COMP 302 SPRING |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTMA493 ASSN STD SINGLE MATERIAL RESPONSE FASTENER |
| HEAD STYLE | FLAT CHAMFER |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5059 MIL SPEC SINGLE MATERIAL RESPONSE PRIMARY WASHER |
| THREAD SERIES DESIGNATOR | UNF |
| MATERIAL | STEEL COMP 304 STAND-OFF |
| HEAD DIAMETER | 0.451 INCHES NOMINAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-764 FED SPEC SINGLE MATERIAL RESPONSE HEAD |
| THREAD QUANTITY PER INCH | 32 |
| FASTENER LENGTH | 1.362 INCHES MINIMUM AND 1.397 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 302 FASTENER |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-423 FED SPEC SINGLE MATERIAL RESPONSE SPRING |
| INTERNAL DRIVE STYLE | SLOT |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| MATERIAL | STEEL COMP 303 HEAD |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5059 MIL SPEC SINGLE MATERIAL RESPONSE SECONDARY WASHER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| THREAD LENGTH | 0.182 INCHES MINIMUM AND 0.192 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 301 PRIMARY WASHER |
| HEAD HEIGHT | 0.675 INCHES NOMINAL |
| MATERIAL | STEEL COMP 301 SECONDARY WASHER |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| MATERIAL ACCOMMODATED THICKNESS | 0.032 INCHES MINIMUM AND 0.093 INCHES MAXIMUM |
| THREAD CLASS | 3A |
Restrictions/Controls & Freight Information | NSN 5305-01-212-4558
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-212-4558
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
