NSN 5305-01-216-6622 F235A05914222, F235A059-14222, FRB7500P10B4

Product Details | PANEL SCREW ASSEMBLY

5305-01-216-6622 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.

Part Alternates: F235A05914222, F235A059-14222, FRB7500P10B4, FRB7500-P-10-B-4, 5305-01-216-6622, 01-216-6622, 5305012166622, 012166622

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	14 SEP 1985	01-216-6622	33044 ( SCREW ASSEMBLY, PANEL )

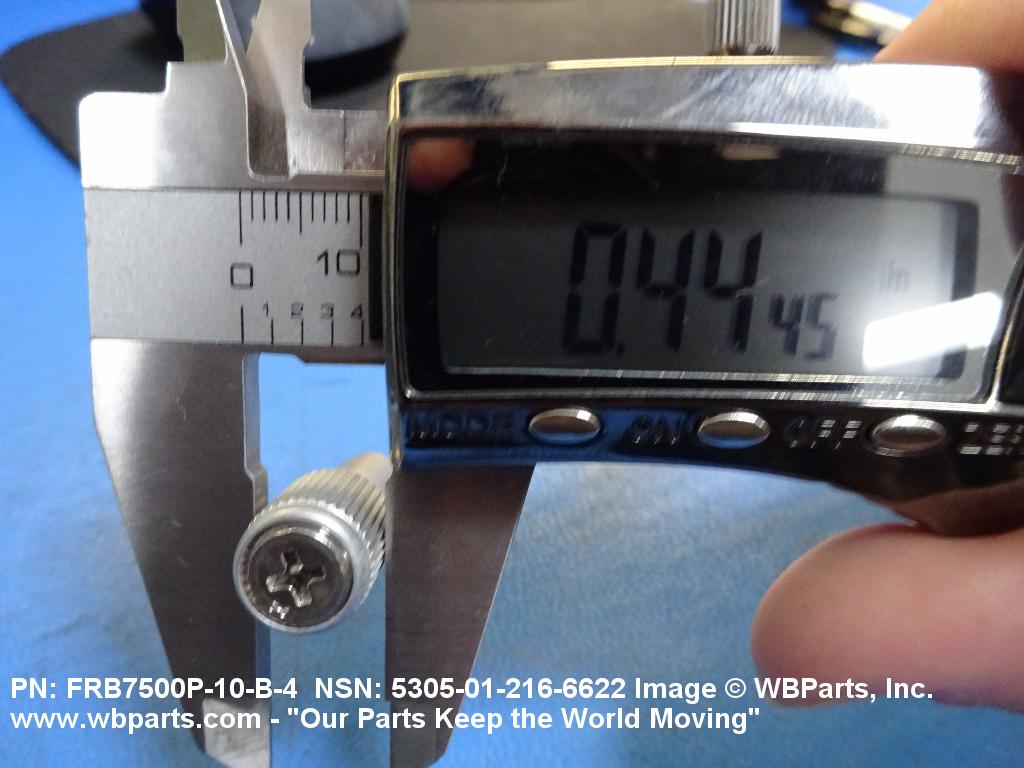

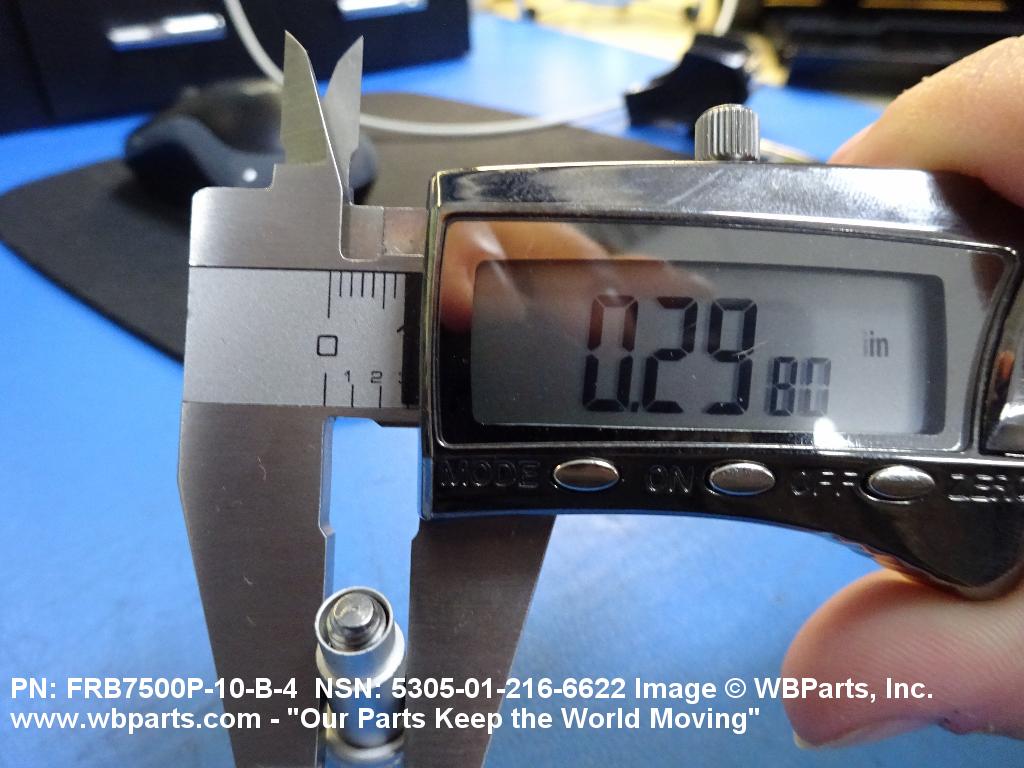

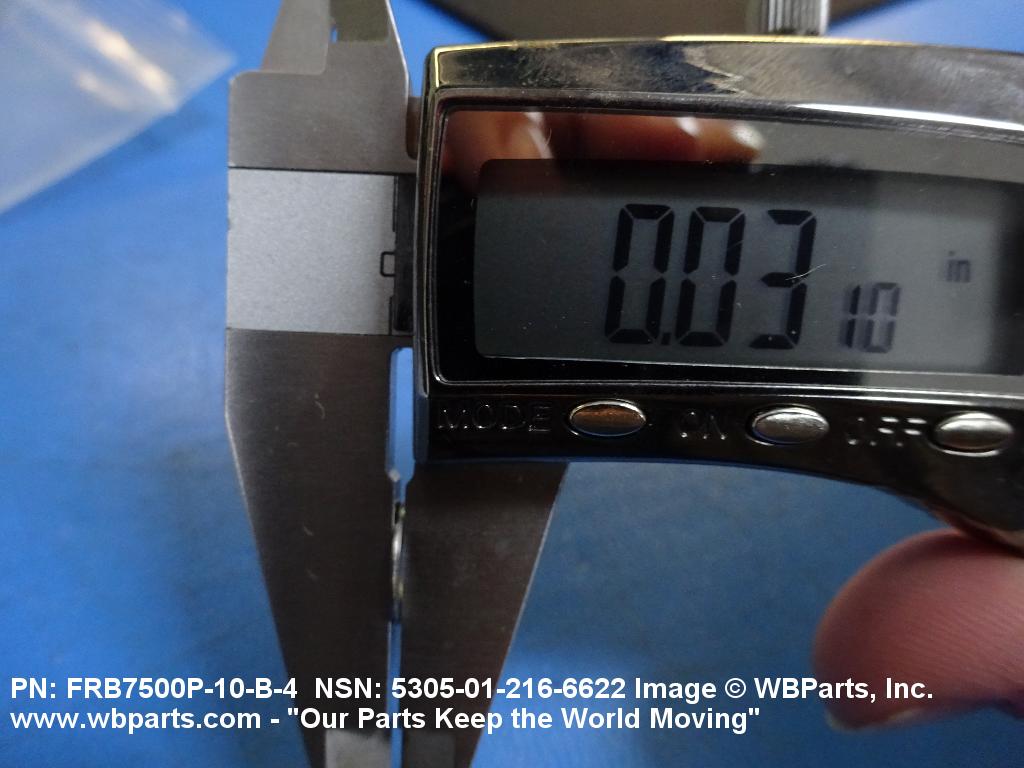

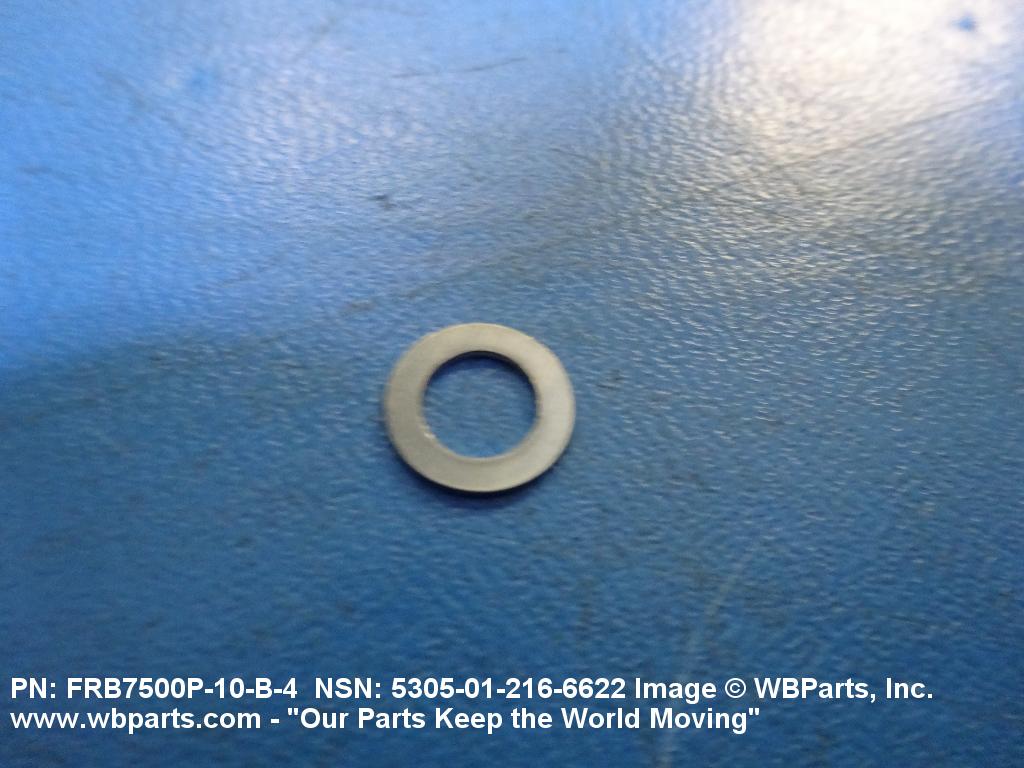

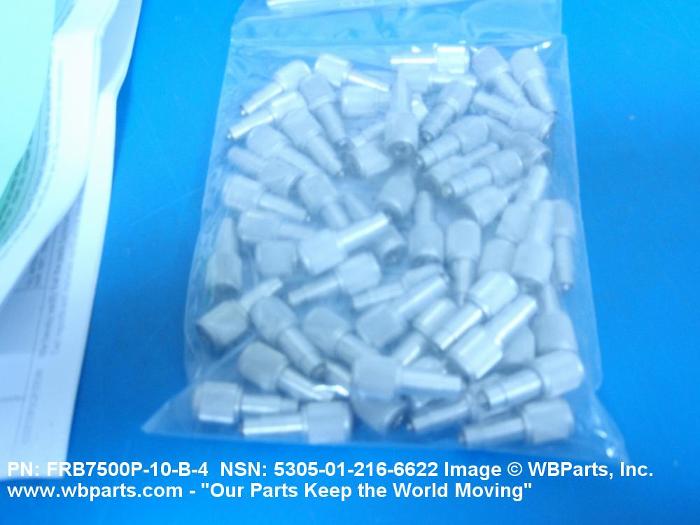

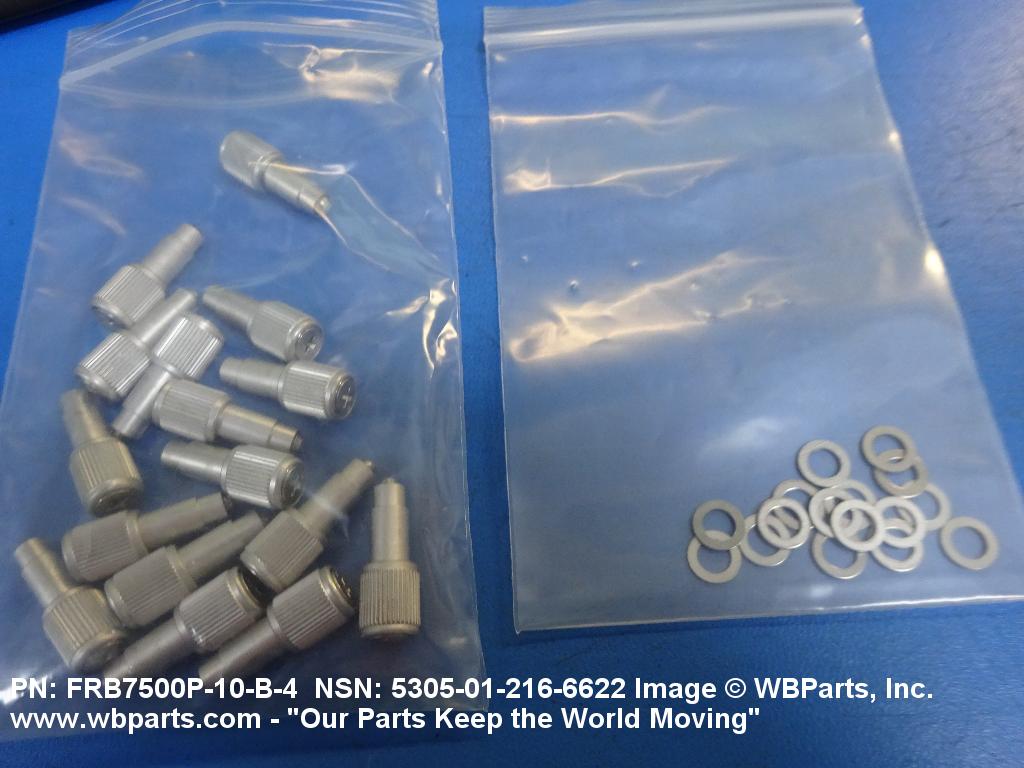

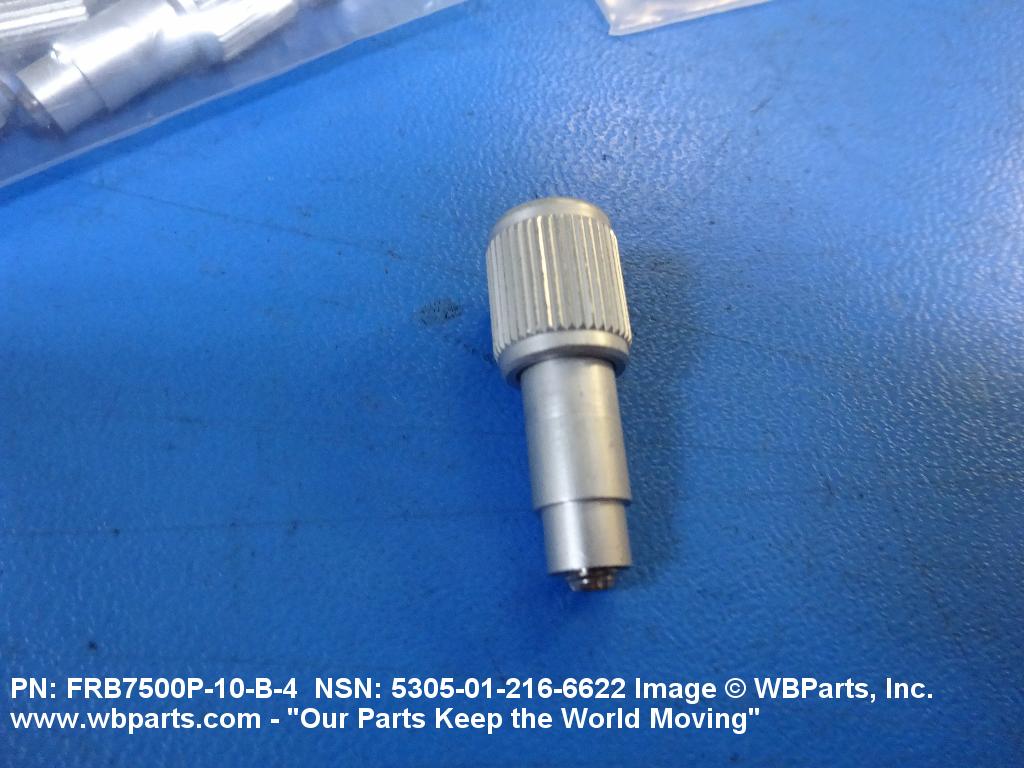

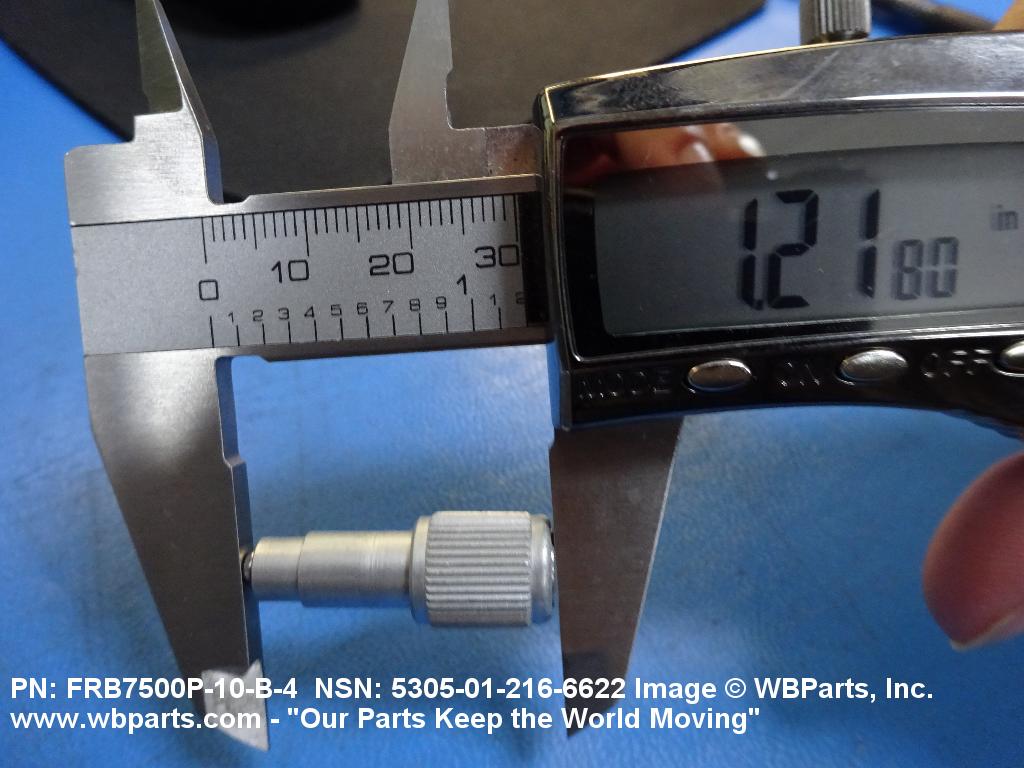

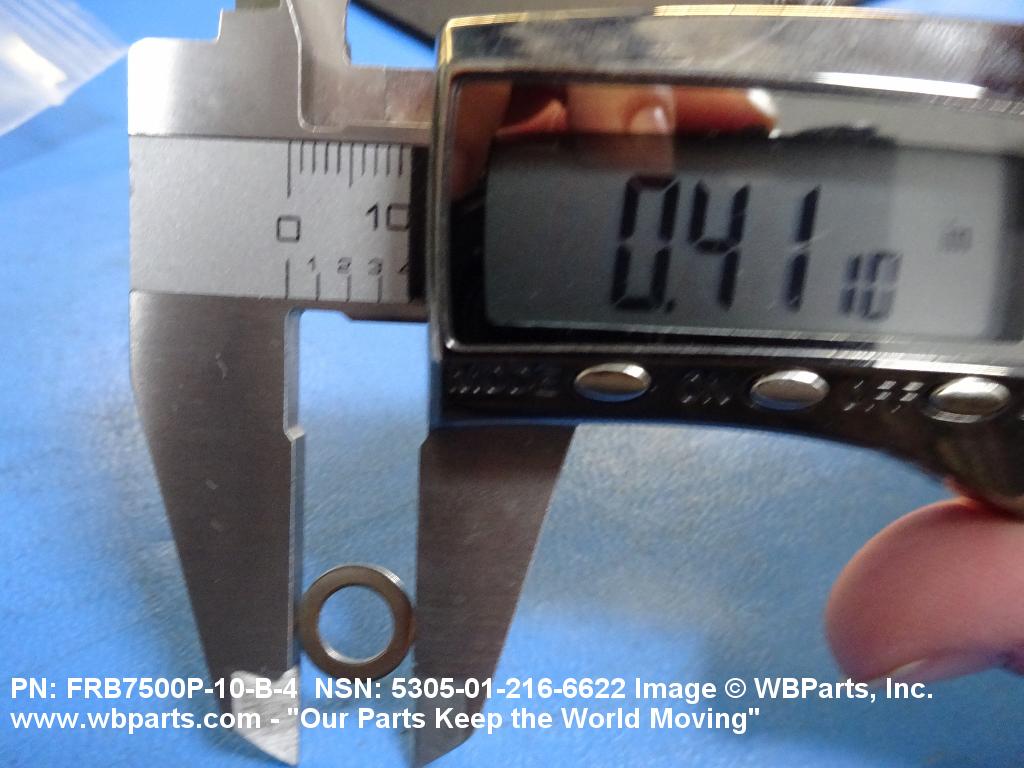

Drawings & Photos | NSN 5305-01-216-6622

Part Number	Request Date	QTY	Origin
5305-01-216-6622	2023-07-199	340	IL
5305-01-216-6622	2023-06-178	340	IL
5305-01-216-6622	2023-06-164	340	IL
FRB7500P10B4	2023-03-61	16	US
FRB7500P10B4	2022-03-68	16	United States
FRB7500-P-10-B-4	2020-11-321	331	DIBBS
FRB7500-P-10-B-4	2020-11-309	331	DIBBS
5305-01-216-6622	2018-07-204	447	DIBBS
5305-01-216-6622	2015-01-21	20	United States
5305-01-216-6622	2014-01-27	41	US
FRB7500P10B4	2014-01-27	32	US
5305-01-216-6622	2014-01-24	4	US
5305-01-216-6622	2013-02-43	100	US
5305-01-216-6622	2012-06-165	539	DIBBS
FRB7500P10B4	2012-03-89	46	United States
5305-01-216-6622	2010-11-326	102	DIBBS
5305-01-216-6622	2010-08-221	200	DIBBS
5305-01-216-6622	2010-06-160	101	DIBBS
FRB7500P10B4	2008-10-281	55	United States

Cross Reference | NSN 5305-01-216-6622

Part Number	Cage Code	Manufacturer
F235A059-14222	78711	TELEPHONICS CORPORATION DBA COMMUNICATIONS SYSTEMS DIVISION
FRB7500-P-10-B-4	0HDW7	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
FRB7500-P-10-B-4	97928	HUCK INTL INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-01-216-6622

Compare

Related Products | NSN 5305-01-216-6622

5305-01-216-7338, 5305-01-216-7352, 5305-01-216-7367, 5305-01-216-7368, 5305-01-216-7370

Technical Data | NSN 5305-01-216-6622

Characteristic	Specifications
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPRING
MATERIAL	STEEL COMP 302 SPRING
THREAD DIRECTION	RIGHT-HAND
FASTENER LENGTH	0.647 INCHES MINIMUM AND 0.677 INCHES MAXIMUM
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-225/8 FED SPEC SINGLE MATERIAL RESPONSE STAND-OFF
SURFACE TREATMENT	ANODIZE STAND-OFF
SURFACE TREATMENT	PASSIVATE SPRING
SURFACE TREATMENT	ANODIZE HEAD
MATERIAL	ALUMINUM ALLOY 6061 HEAD
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-225/8 FED SPEC SINGLE MATERIAL RESPONSE HEAD
HEAD STYLE	FLAT CHAMFER
THREAD SERIES DESIGNATOR	UNF
MATERIAL	STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OR STEEL COMP 321 OR STEEL COMP 347 OR STEEL COMP 384 OR STEEL COMP 385 FASTENER
HEAD DIAMETER	0.451 INCHES NOMINAL
THREAD QUANTITY PER INCH	32
MATERIAL ACCOMMODATED THICKNESS	0.182 INCHES MINIMUM AND 0.192 INCHES MAXIMUM
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-W-423 FED SPEC SINGLE MATERIAL RESPONSE SPRING
NOMINAL THREAD DIAMETER	0.190 INCHES
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625TYPE 1 CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE HEAD
MATERIAL	ALUMINUM ALLOY 6061 STAND-OFF
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE FASTENER
MATERIAL	STEEL COMP 301 PRIMARY WASHER
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE PRIMARY WASHER
SURFACE TREATMENT	PASSIVATE PRIMARY WASHER
INTERNAL DRIVE STYLE	CROSS RECESS TYPE 1
SURFACE TREATMENT	PASSIVATE FASTENER
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625 TYPE 1 CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE STAND-OFF
HEAD HEIGHT	0.520 INCHES NOMINAL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-5059A MIL SPEC SINGLE MATERIAL RESPONSE PRIMARY WASHER
MATERIAL DOCUMENT AND CLASSIFICATION	AST1M-A493 ASSN STD SINGLE MATERIAL RESPONSE FASTENER
THREAD CLASS	3A

Restrictions/Controls & Freight Information | NSN 5305-01-216-6622

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093490	BOLT/NUT/SCREW/CLIPS/FASTENER/ETC
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-01-216-6622

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
