NSN 5305-01-229-8979 DNU7600-12C-B-3.25-20UNC2A, DNU760012CB32520UNC2A, DNU790012CB3

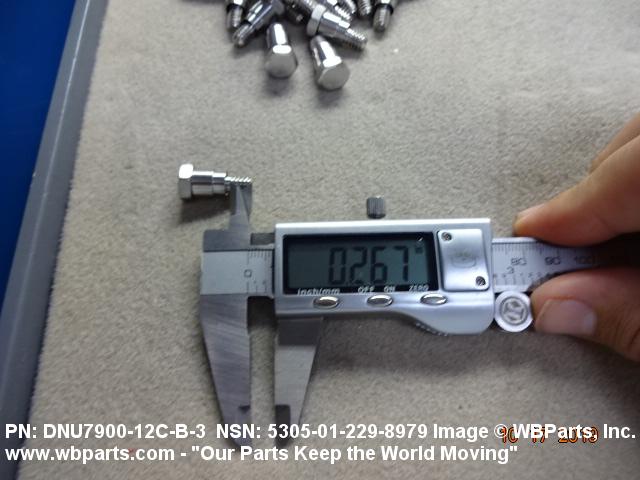

Product Details | PANEL SCREW ASSEMBLY

5305-01-229-8979 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.

Part Alternates: DNU7600-12C-B-3.25-20UNC2A, DNU760012CB32520UNC2A, DNU790012CB3, DNU7900-12C-B-3, 5305-01-229-8979, 01-229-8979, 5305012298979, 012298979

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	06 APR 1986	01-229-8979	33044 ( SCREW ASSEMBLY, PANEL )

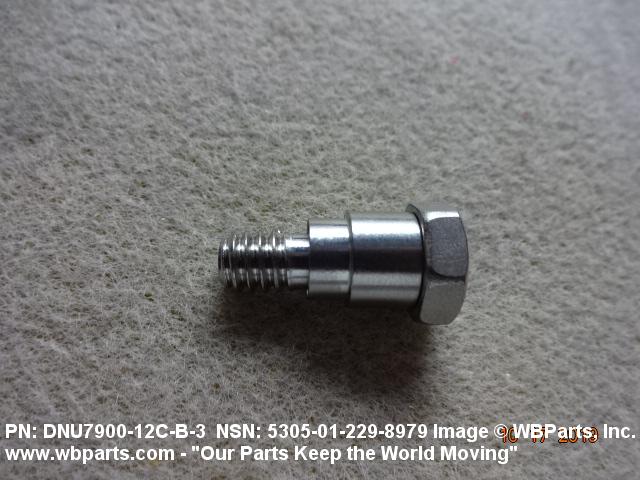

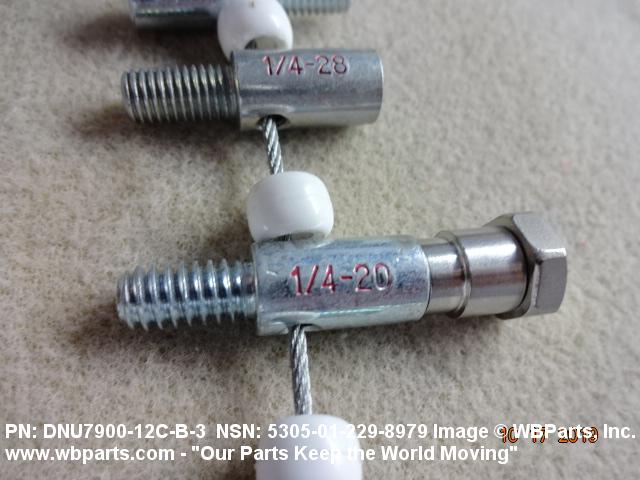

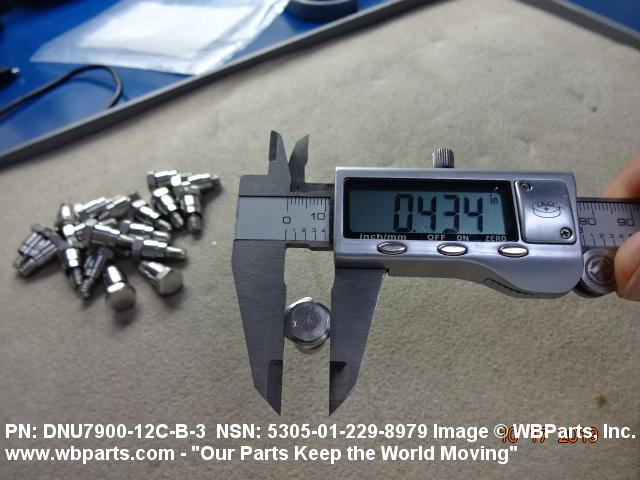

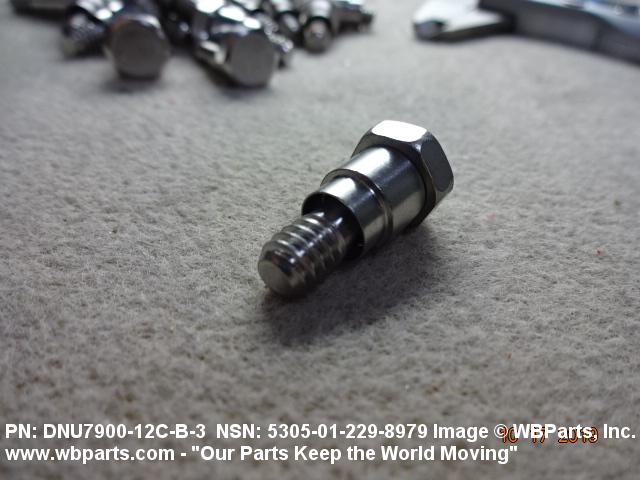

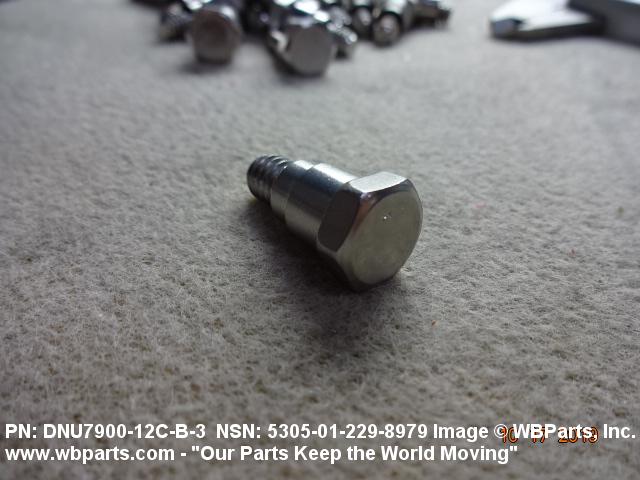

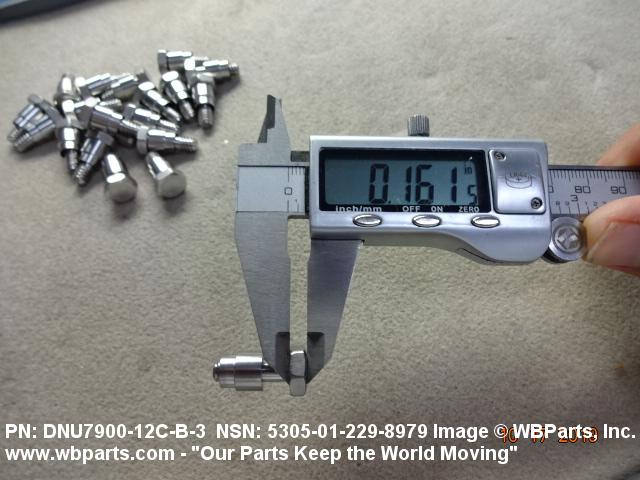

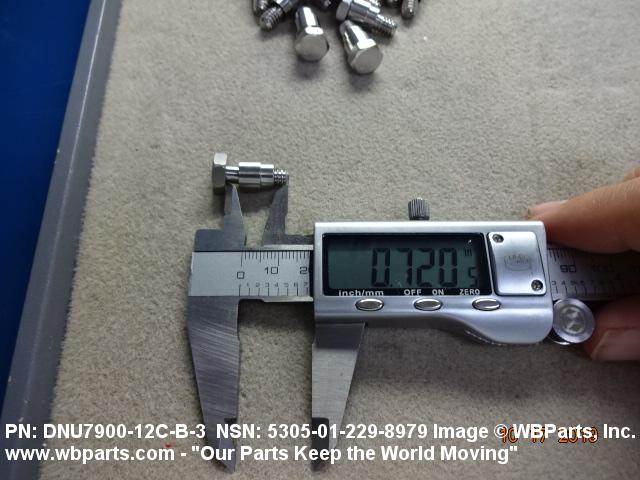

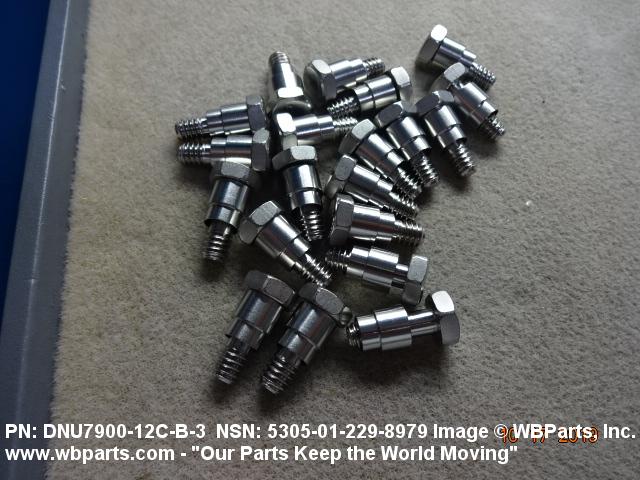

Drawings & Photos | NSN 5305-01-229-8979

Part Number	Request Date	QTY	Origin
DNU7900-12C-B-3	2021-09-256	57	DIBBS
DNU7900-12C-B-3	2019-10-297	53	DIBBS
5305-01-229-8979	2019-10-287	20	United States
5305-01-229-8979	2019-09-261	20	United States
5305-01-229-8979	2018-09-254	60	DIBBS
5305-01-229-8979	2012-07-185	35	DIBBS
5305-01-229-8979	2011-09-256	63	DIBBS
5305-01-229-8979	2011-06-162	0	DIBBS
5305-01-229-8979	2011-05-130	38	DIBBS
5305-01-229-8979	2010-12-338	41	DIBBS
5305-01-229-8979	2010-07-193	20	United States
5305-01-229-8979	2008-01-28	8	US

Cross Reference | NSN 5305-01-229-8979

Part Number	Cage Code	Manufacturer
DNU7600-12C-B-3.25-20UNC2A	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
DNU7600-12C-B-3.25-20UNC2A	34295	MIL-SPEC PAINTING, INC.
DNU7900-12C-B-3	0HDW7	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
DNU7900-12C-B-3	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
DNU7900-12C-B-3	97928	HUCK INTL INC
