NSN 5305-01-240-5184 HT4067319A, HT4067-3-19A, 11881C319A
Product Details | CLOSE TOLERANCE SCREW

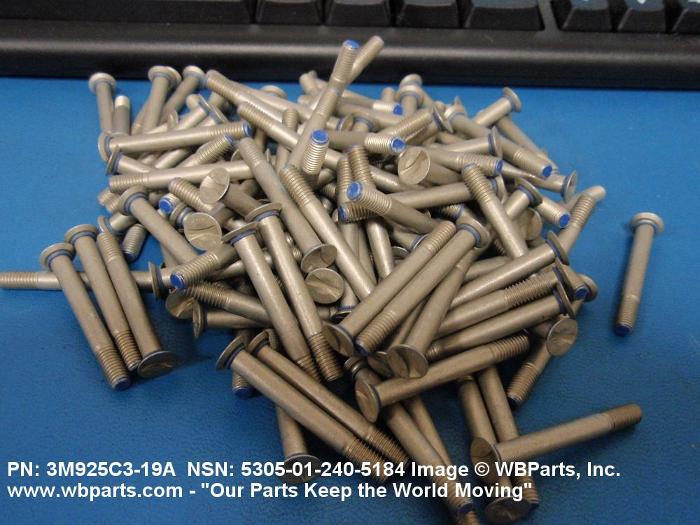

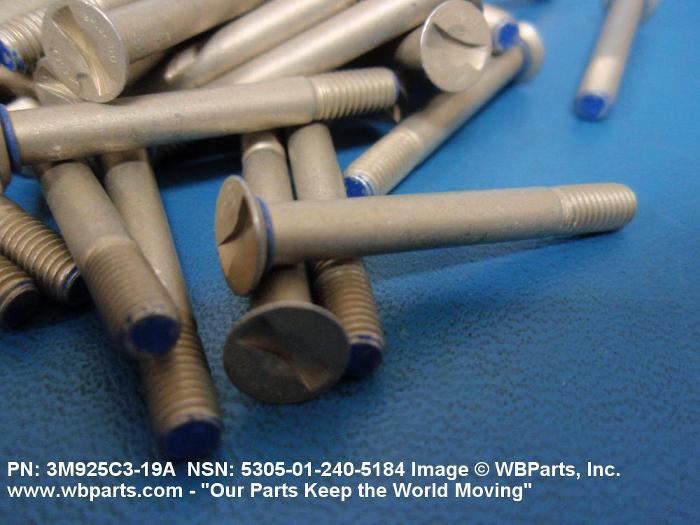

5305-01-240-5184 A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: HT4067319A, HT4067-3-19A, 11881C319A, 11881C3-19A , 3M925C319A, 3M925C3-19A , 642AS16312, 642AS1631-2, 5305-01-240-5184, 01-240-5184, 5305012405184, 012405184
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 SEP 1986 | 01-240-5184 | 29294 ( SCREW, CLOSE TOLERANCE ) |
Drawings & Photos | NSN 5305-01-240-5184
Demand History | NSN 5305-01-240-5184
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 642AS16312 | 2023-01-04 | 525 | United Kingdom |
| 642AS16312 | 2023-01-04 | 845 | United Kingdom |
| 5305-01-240-5184 | 2022-09-258 | 845 | United Kingdom |
| 642AS16312 | 2020-02-56 | 752 | United Kingdom |
| 642AS16312 | 2017-03-80 | 85 | United Kingdom |
| 3M925C319A | 2016-03-91 | 95 | United Kingdom |
| 642AS1631-2 | 2016-02-60 | 370 | United Kingdom |
| 5305-01-240-5184 | 2013-07-197 | 61 | DIBBS |
| 5305-01-240-5184 | 2013-05-150 | 61 | DIBBS |
| 642AS16312 | 2013-01-29 | 1920 | United Kingdom |
| 5305-01-240-5184 | 2012-12-342 | 300 | United States |
| HT4067319A | 2012-07-205 | 300 | United States |
| 5305-01-240-5184 | 2011-08-231 | 84 | DIBBS |
| 642AS16312 | 2011-06-173 | 1680 | United Kingdom |
| 5305-01-240-5184 | 2011-06-173 | 860 | United Kingdom |
| 642AS16312 | 2011-06-165 | 240 | UK |
| 5305-01-240-5184 | 2011-04-102 | 60 | DIBBS |
| 5305-01-240-5184 | 2011-03-83 | 170 | United States |
| 5305-01-240-5184 | 2011-03-83 | 500 | United States |
Cross Reference | NSN 5305-01-240-5184
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11881C3-19A | 59563 | REID PRODUCTS INC. DBA REID PRODUCTS |
| 3M925C3-19A | 06710 | VALLEY-TODECO, INC. |
| 3M925C3-19A | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| 3M925C3-19A | 0PTK6 | SPS TECHNOLOGIES INC |
| 3M925C3-19A | 0ZC92 | HEARTLAND PRECISION FASTENERS, INC. |
| 3M925C3-19A | 1VSL7 | HOUSTON PRECISION FASTENER L.L.C. |
| 3M925C3-19A | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| 3M925C3-19A | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 3M925C3-19A | 58998 | EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY |
| 3M925C3-19A | 59563 | REID PRODUCTS INC. DBA REID PRODUCTS |
| 3M925C3-19A | 60516 | WEST COAST AEROSPACE INC |
| 3M925C3-19A | 76301 | BOEING COMPANY, THE DBA BOEING |
| 3M925C3-19A | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 3M925C3-19A | K5673 | SPS TECHNOLOGIES LTD TJ BROOKS DIVISION |
| 642AS1631-2 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| HT4067-3-19A | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HT4067-3-19A | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HT4067-3-19A | 73197 | HI-SHEAR CORPORATION |
| HT4067-3-19A | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| HT4067-3-19A | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HT4067-3-19A | 97928 | HUCK INTL INC |
| HT4067-3-19A | L4528 | LISI AEROSPACE CANADA CORP |
