NSN 5305-01-266-5267 S90938212A, S9093-82-12A, 01-266-5267
Product Details | MACHINE SCREW
5305-01-266-5267 A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: S90938212A, S9093-82-12A, 5305-01-266-5267, 01-266-5267, 5305012665267, 012665267
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 OCT 1987 | 01-266-5267 | 29294 ( SCREW, CLOSE TOLERANCE ) |

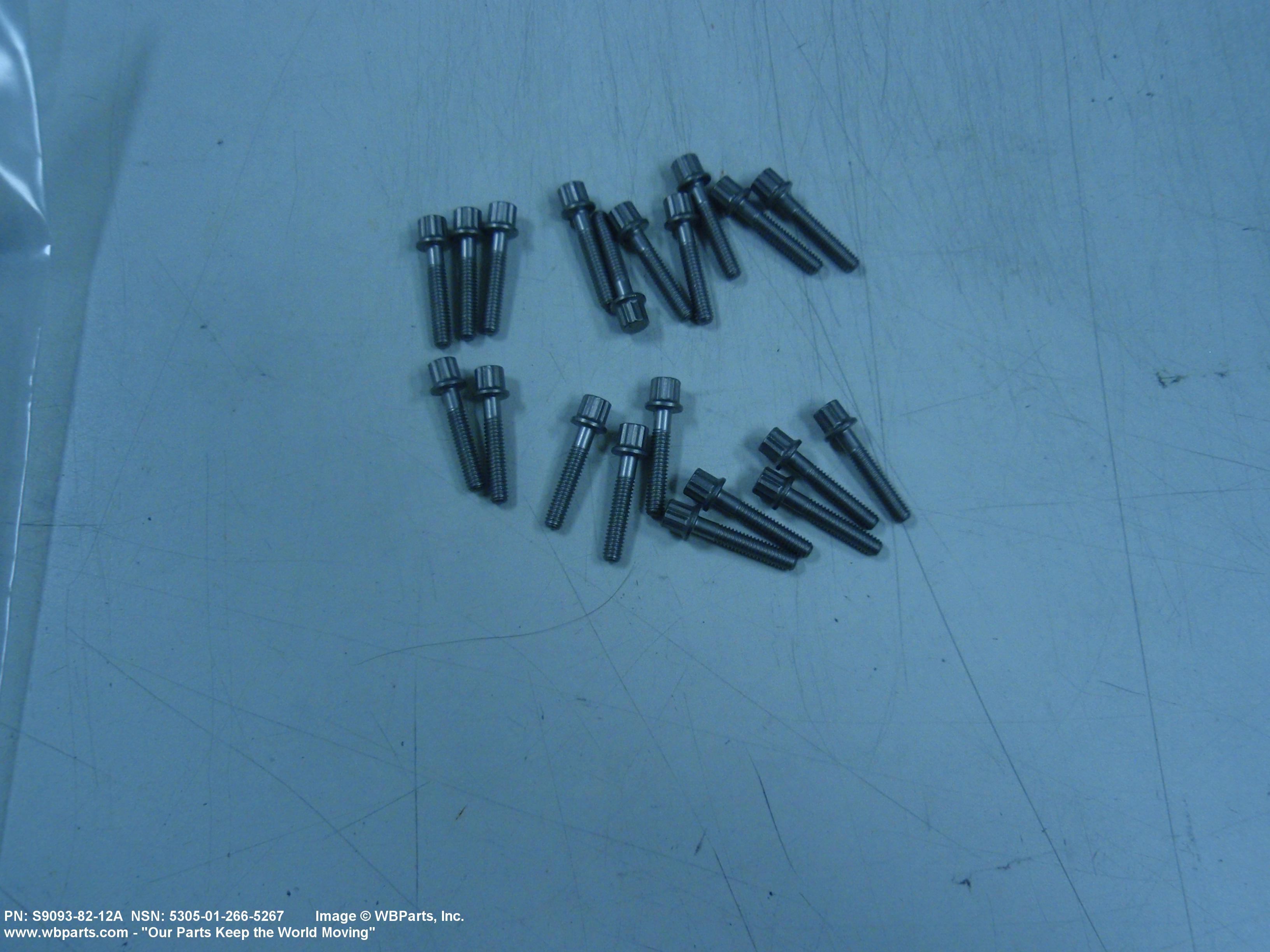

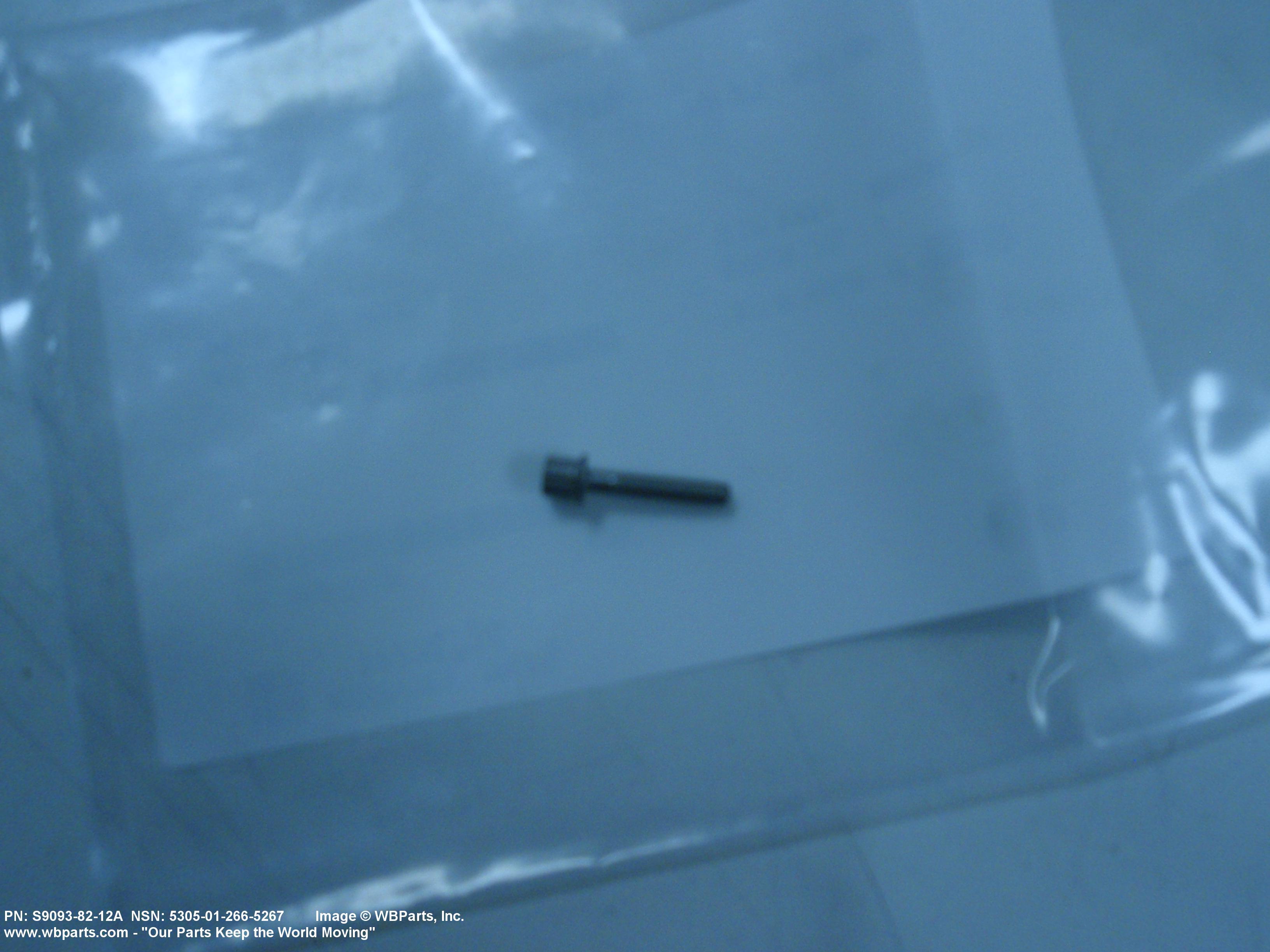

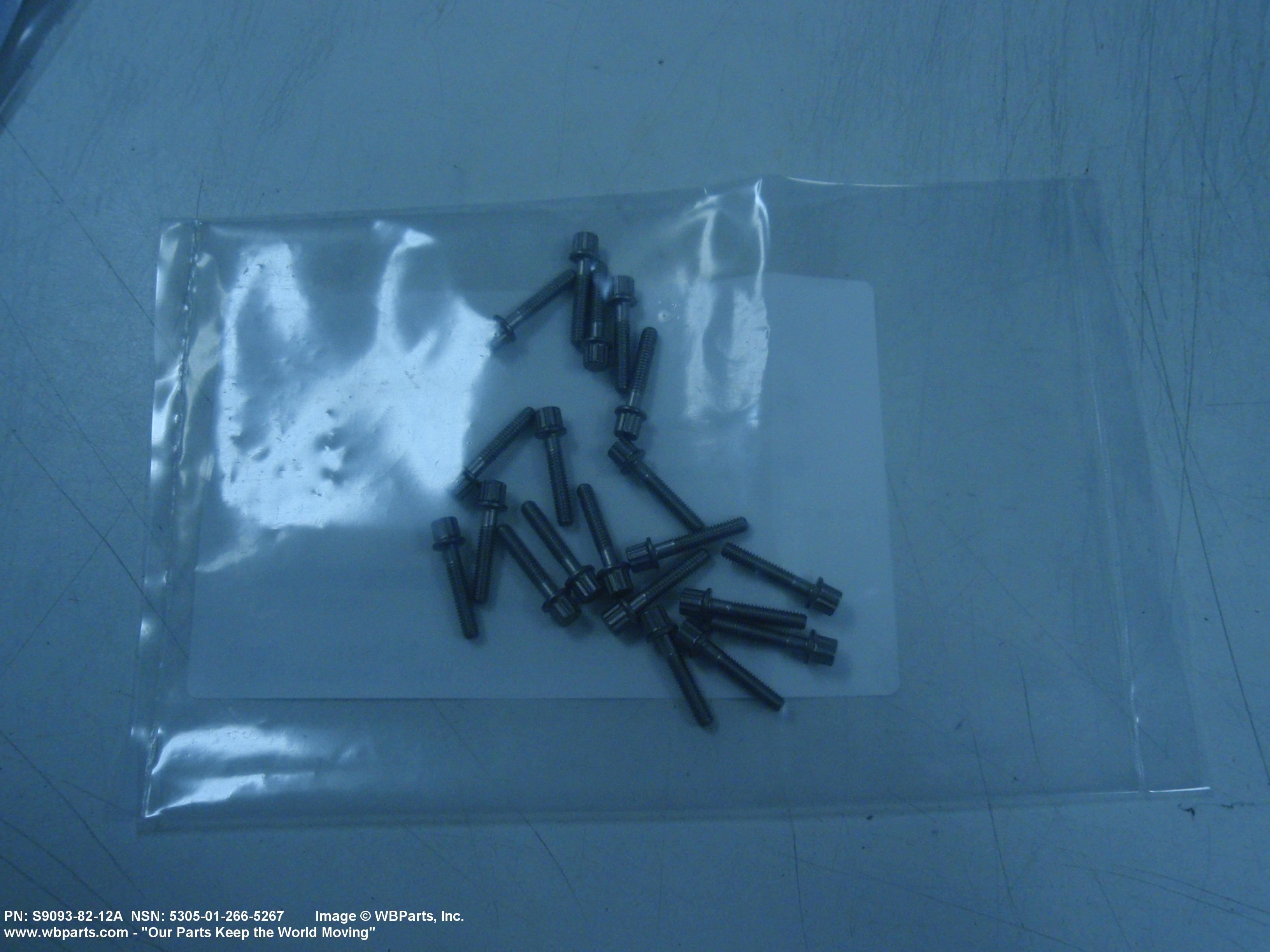

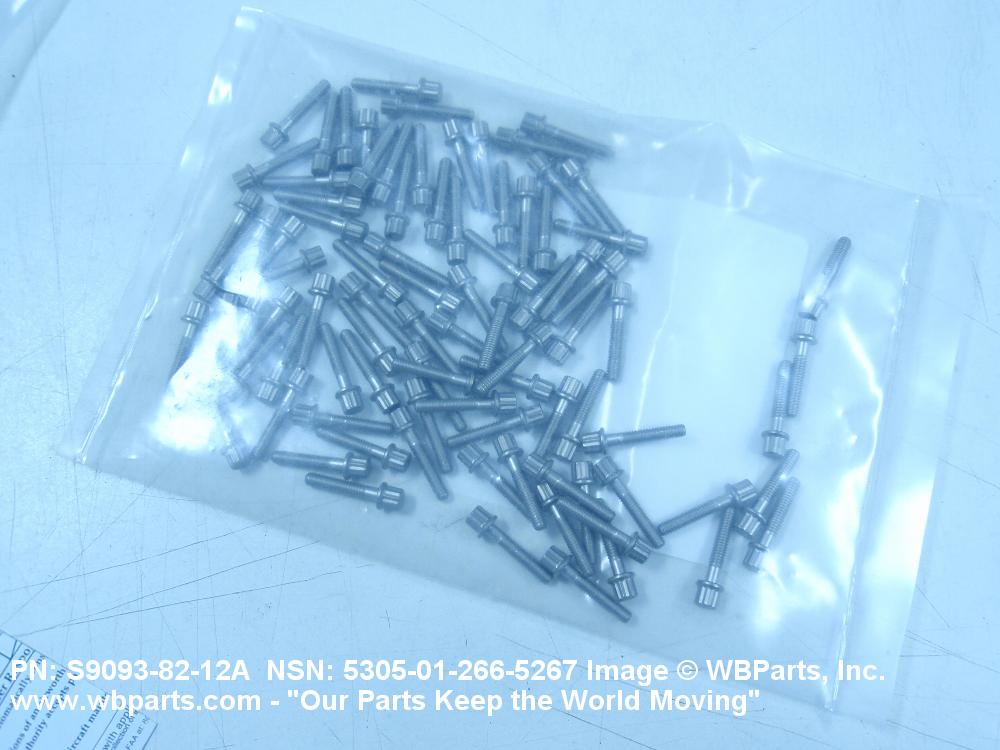

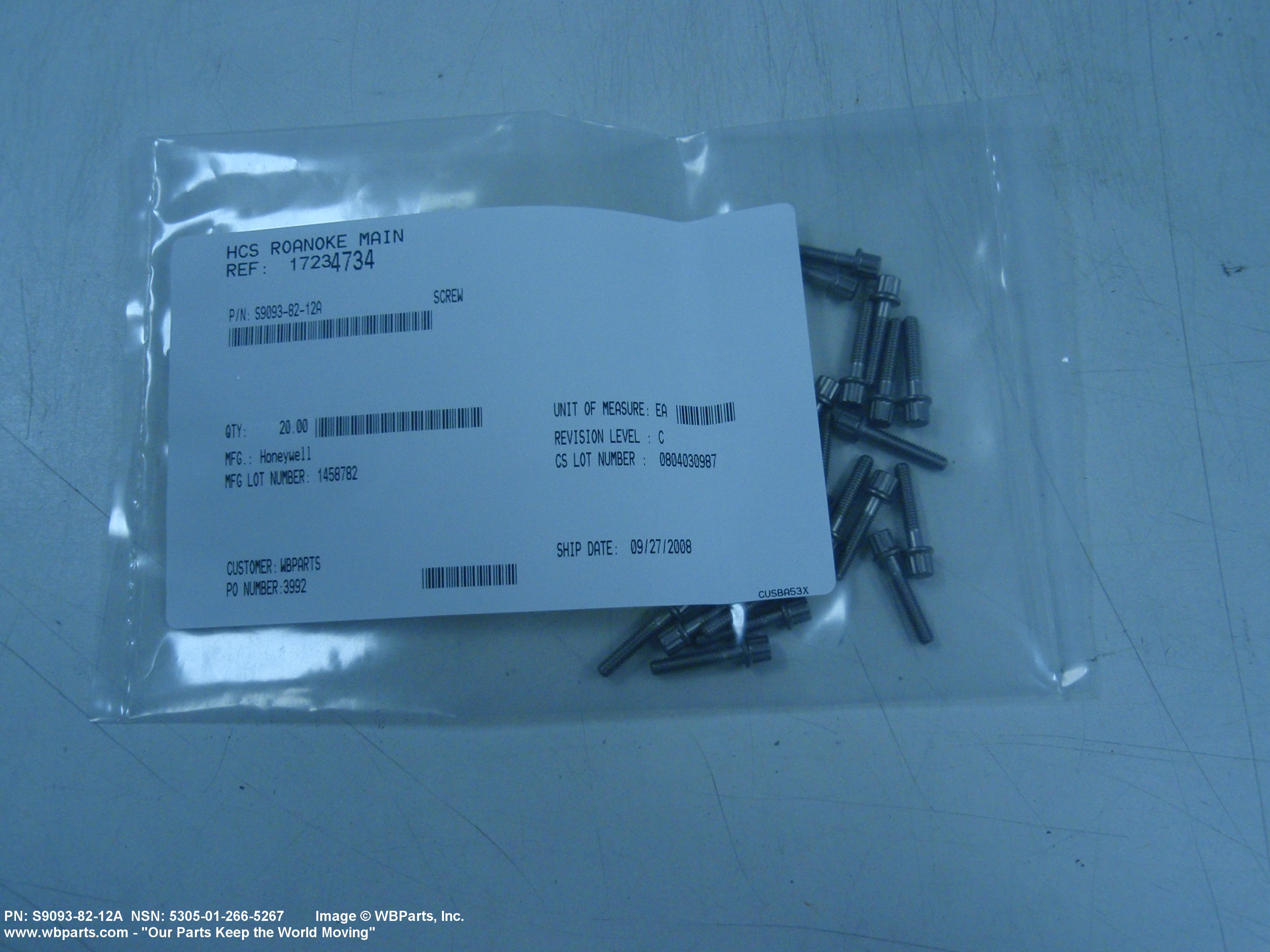

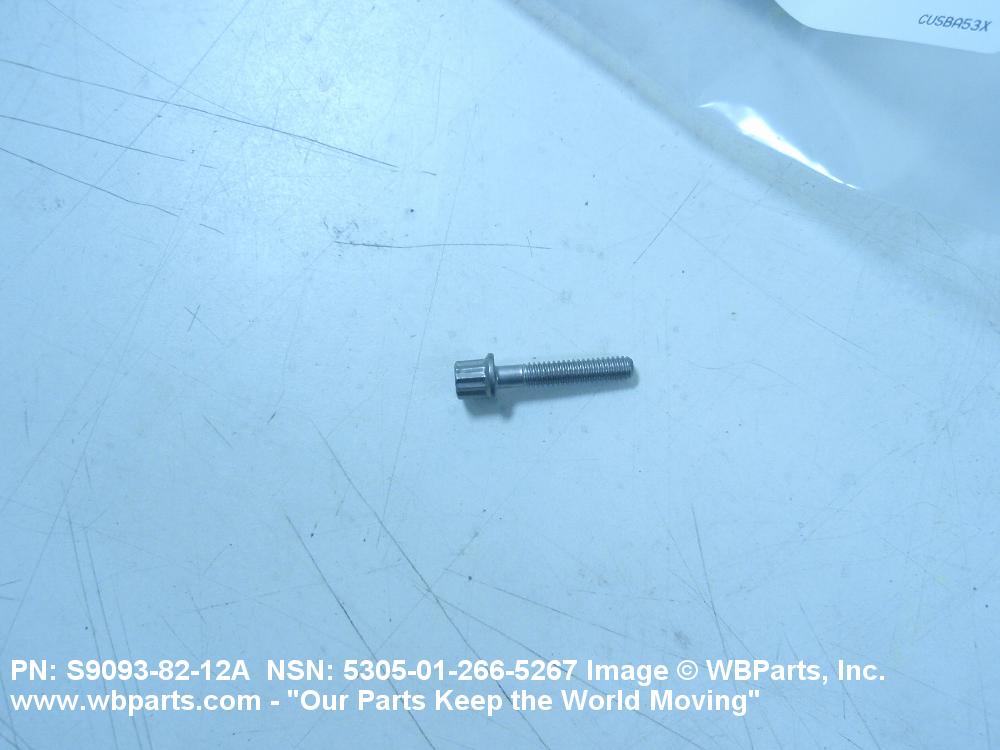

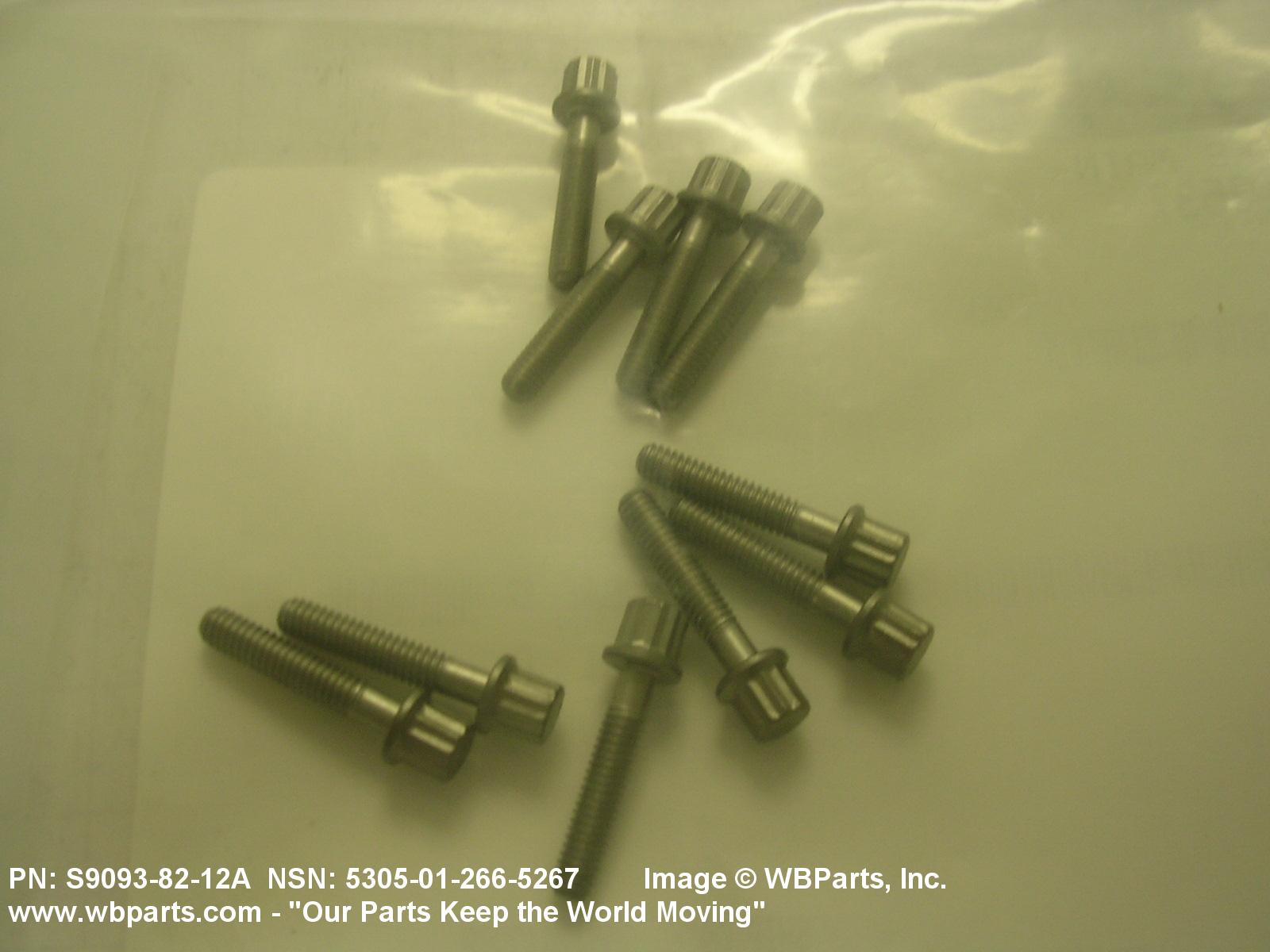

Drawings & Photos | NSN 5305-01-266-5267
Demand History | NSN 5305-01-266-5267
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| S90938212A | 2008-10-297 | 90 | United States |
| S90938212A | 2008-09-267 | 20 | United States |
| S90938212A | 2008-06-172 | 10 | United States |
Cross Reference | NSN 5305-01-266-5267
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S9093-82-12A | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-266-5267
Technical Data | NSN 5305-01-266-5267
| Characteristic | Specifications |
|---|---|
| WIDTH BETWEEN FLATS | 0.242 INCHES MINIMUM |
| THREAD DIRECTION | RIGHT-HAND |
| HEAD HEIGHT | 0.250 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 32 |
| THREAD SERIES DESIGNATOR | UNC |
| THREAD LENGTH | 0.625 INCHES MINIMUM AND 0.685 INCHES MAXIMUM |
| EXTENDED WASHER DIAMETER | 0.312 INCHES NOMINAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5735 ASSN STD 1ST MATERIAL RESPONSE OVERALL |
| GRIP DIAMETER | 0.140 INCHES MINIMUM AND 0.150 INCHES MAXIMUM |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | SCREW MACHINE |
| GRIP LENGTH | 0.190 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| HEAD STYLE | DOUBLE HEXAGON W/HOLE |
| MATERIAL | IRON ALLOY 660 OVERALL |
| EXTENDED WASHER THICKNESS | 0.030 INCHES MINIMUM AND 0.040 INCHES MAXIMUM |
| SPECIAL FEATURES | SAME AS MS21287 EXCEPT FOR THREAD SIZE AND/OR DRILLED HEA |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| FASTENER LENGTH | 0.875 INCHES NOMINAL |
| THREAD CLASS | 3A |
Restrictions/Controls & Freight Information | NSN 5305-01-266-5267
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5305-01-266-5267
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | E | The current standard price is an estimated price.
|
| Materiel Management Aggregation Code | MQ | TF:PREDATOR/MQ1 AND REAPER/MQ9 COMMON |
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F83 | General Atomics-Aeronautical Systems 16761 Via Del Campo Court San Diego, CA 92127-1713 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
