NSN 5305-01-268-2675 DPY7900P-8-B-3.5, DPY7900P8B35, 55463813
Product Details | PANEL SCREW ASSEMBLY
5305-01-268-2675 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.
Part Alternates: DPY7900P-8-B-3.5, DPY7900P8B35, 55463813, 5546381-3, 55463818, 5546381-8, 5305-01-268-2675, 01-268-2675, 5305012682675, 012682675
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 NOV 1987 | 01-268-2675 | 33044 ( SCREW ASSEMBLY, PANEL ) |

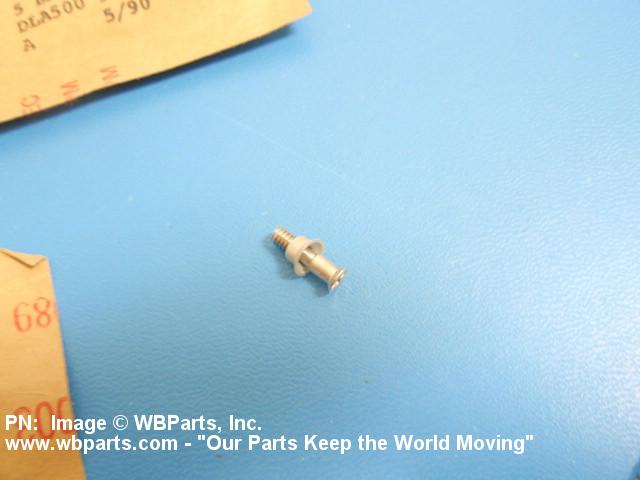

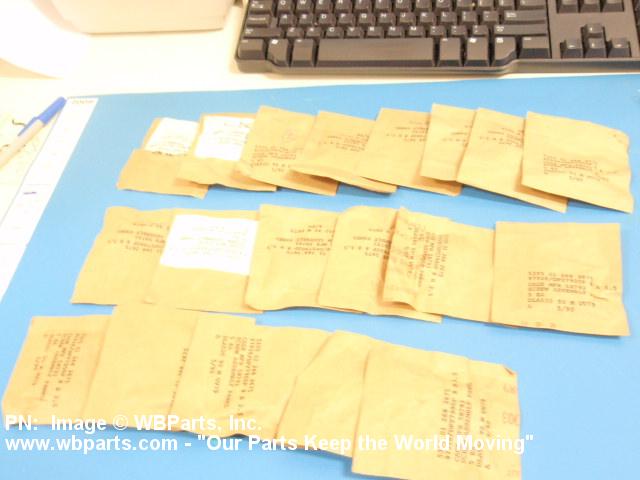

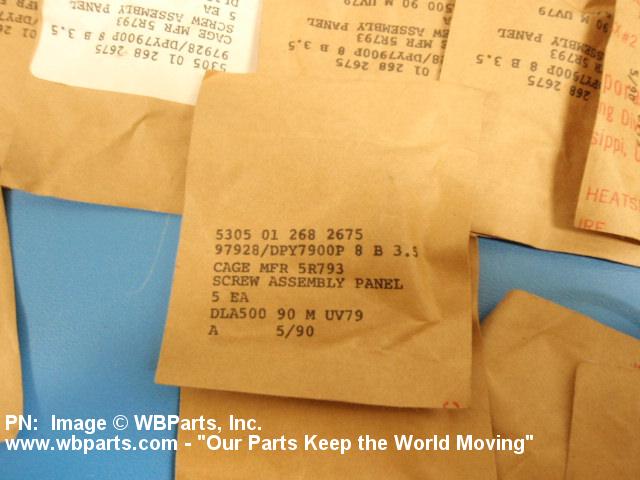

Drawings & Photos | NSN 5305-01-268-2675
Demand History | NSN 5305-01-268-2675
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-268-2675 | 2014-03-70 | 70 | DIBBS |
| 5305-01-268-2675 | 2014-02-54 | 70 | DIBBS |
| DPY7900P8B35 | 2009-02-49 | 92 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-268-2675
Technical Data | NSN 5305-01-268-2675
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.250 INCHES NOMINAL |
| FASTENER LENGTH | 0.587 INCHES MINIMUM AND 0.607 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY 6061 STAND-OFF STEEL COMP XM-7 OR STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OR STEEL COMP 384 FASTENER |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/8 FED SPEC SINGLE MATERIAL RESPONSE STAND-OFF ASTM A493 ASSN STD ALL MATERIAL RESPONSES FASTENER |
| SURFACE TREATMENT | ANODIZE STAND-OFF PASSIVATE FASTENER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 TY 1 CL 1 MIL SPEC SINGLE TREATMENT RESPONSE STAND-OFF QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE FASTENER |
| HEAD STYLE | C50 FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.340 INCHES MINIMUM AND 0.350 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| INTERNAL DRIVE STYLE | D1 CROSS RECESS TYPE 1 |
| MATERIAL ACCOMMODATED THICKNESS | 0.090 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5305-01-268-2675
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093490 | BOLT/NUT/SCREW/CLIPS/FASTENER/ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-268-2675
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
