NSN 5305-01-342-9434 70028204, 7002820-4, 01-342-9434
Product Details | CLOSE TOLERANCE SCREW
5305-01-342-9434 A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: 70028204, 7002820-4, 5305-01-342-9434, 01-342-9434, 5305013429434, 013429434
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 AUG 1991 | 01-342-9434 | 29294 ( SCREW, CLOSE TOLERANCE ) |

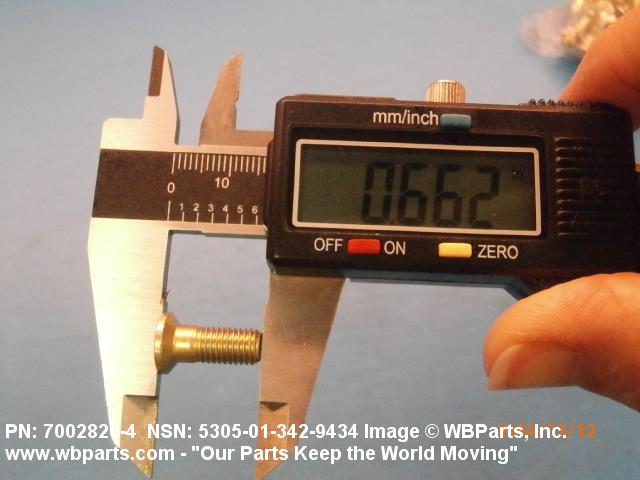

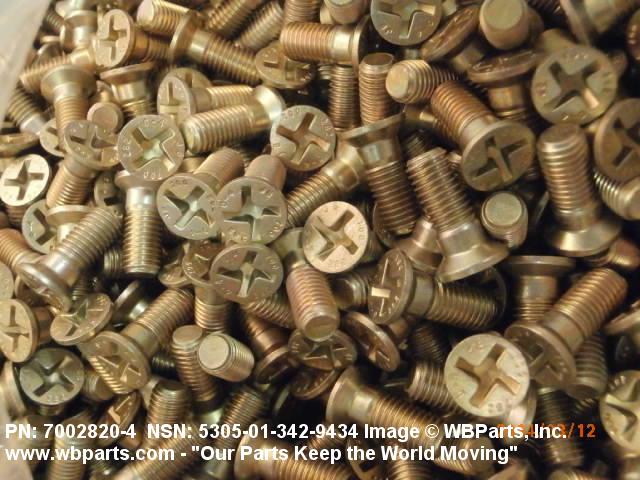

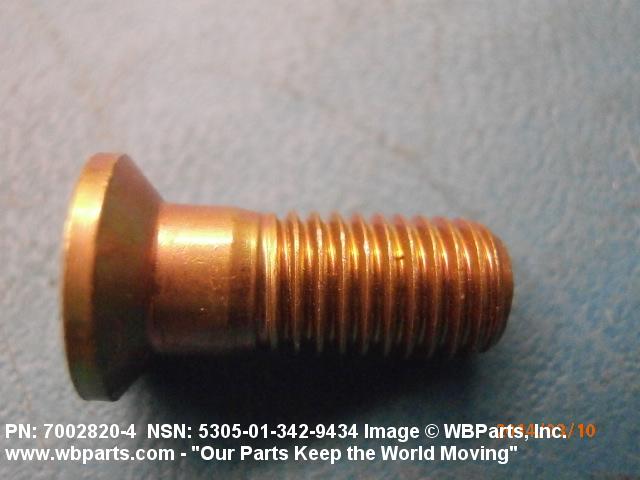

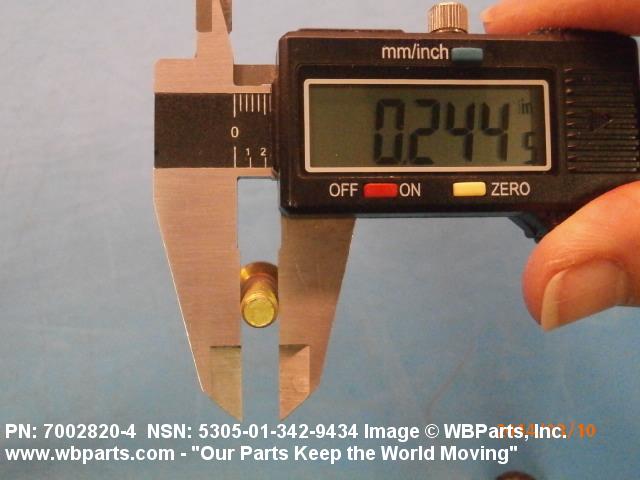

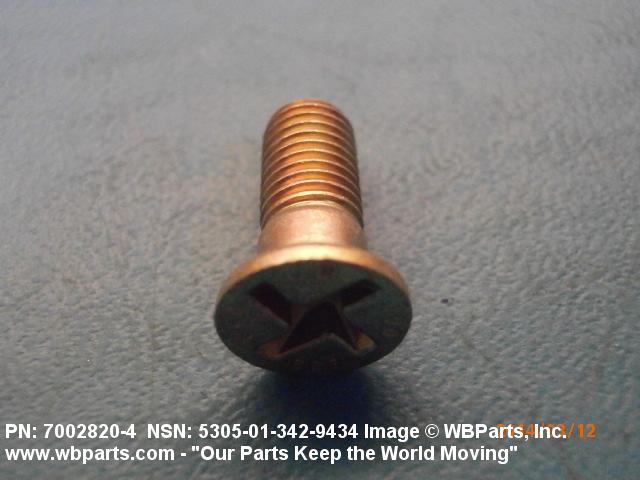

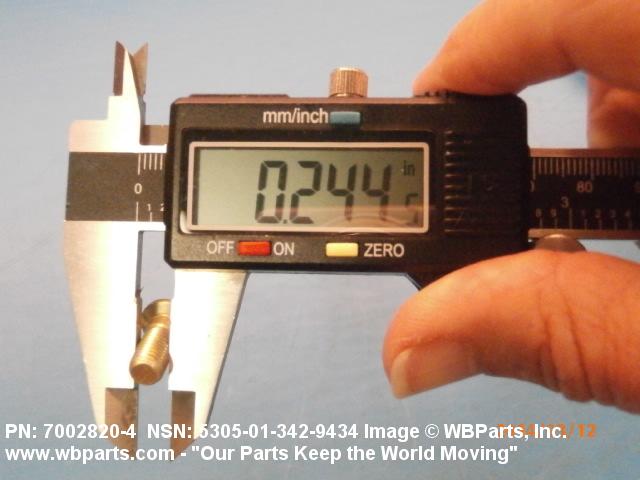

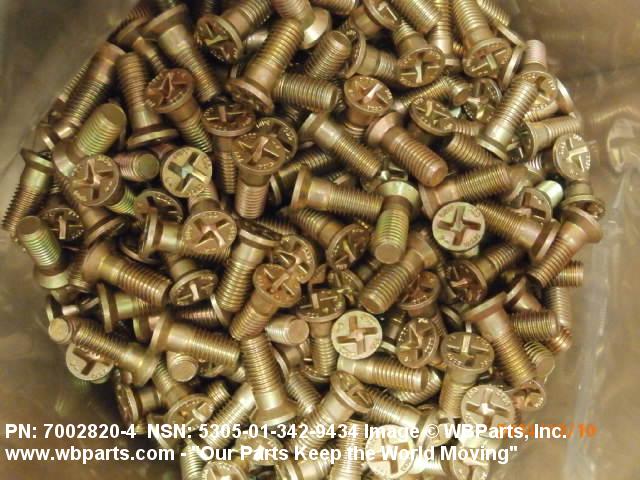

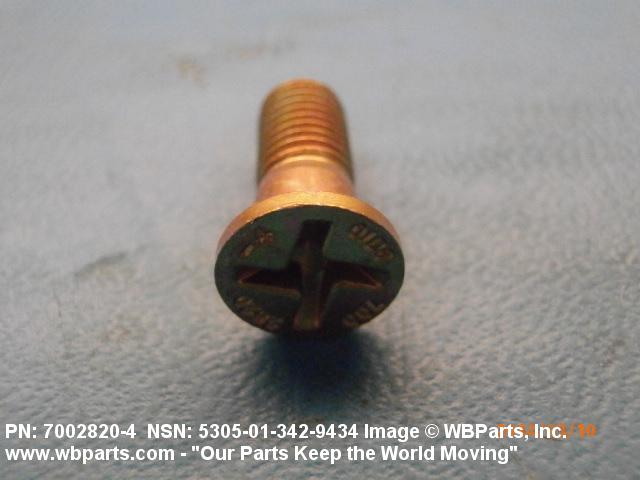

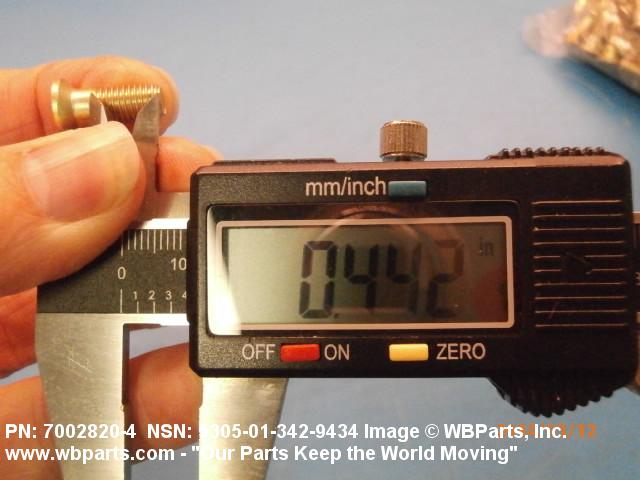

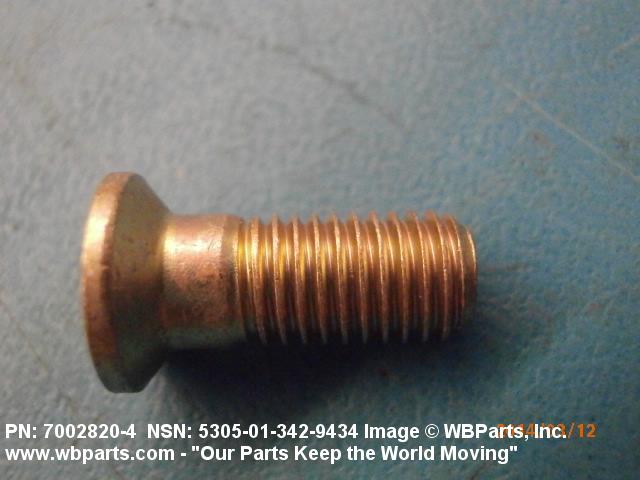

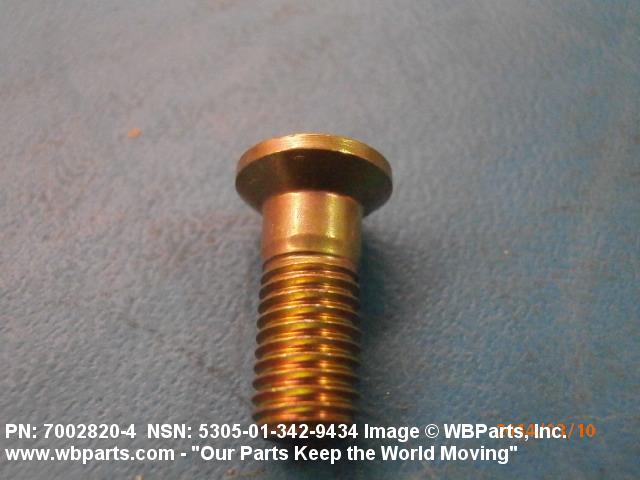

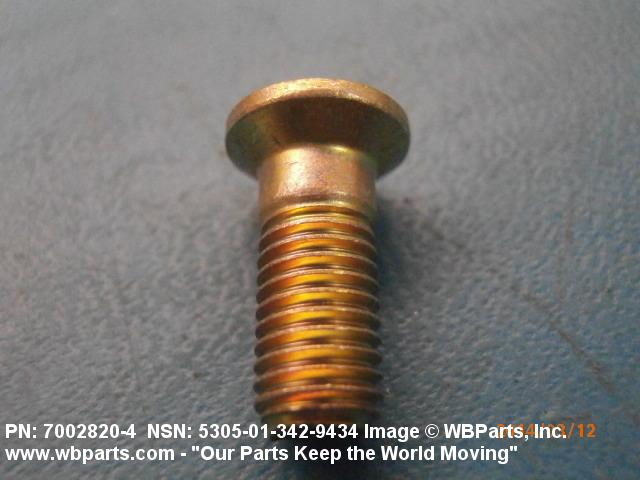

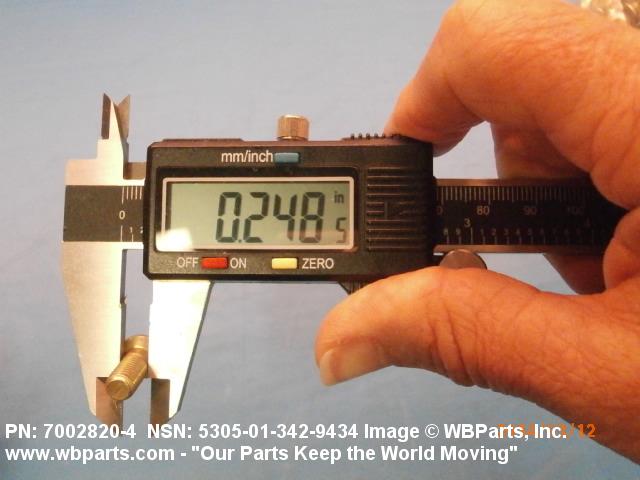

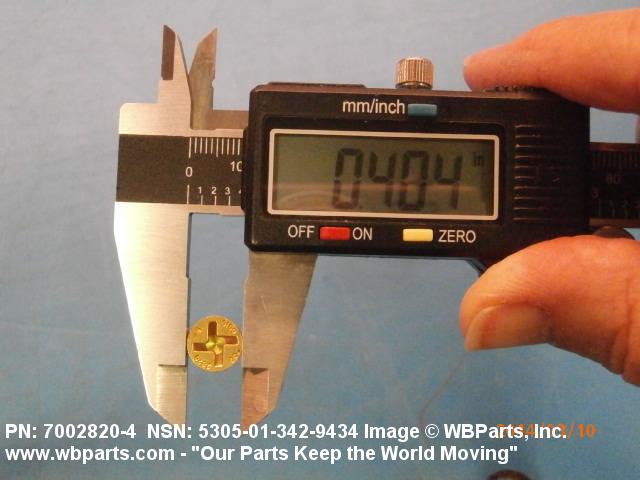

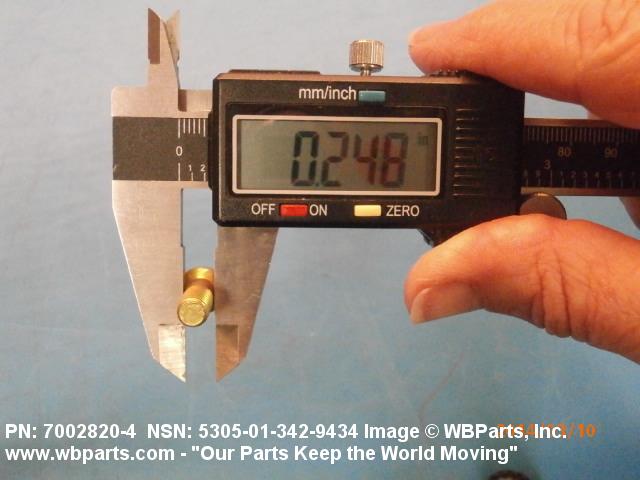

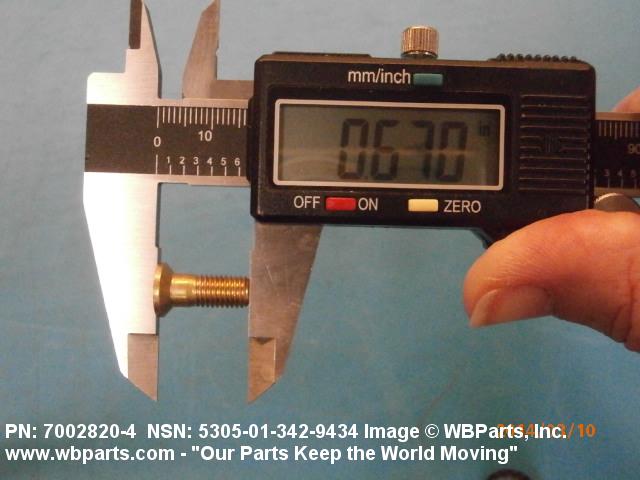

Drawings & Photos | NSN 5305-01-342-9434
Demand History | NSN 5305-01-342-9434
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-342-9434 | 2021-03-88 | 833 | TW |
| 5305-01-342-9434 | 2021-03-84 | 833 | Taiwan |
| 5305-01-342-9434 | 2020-09-261 | 5000 | Singapore |
| 5305-01-342-9434 | 2020-08-217 | 420 | US |
| 5305-01-342-9434 | 2017-02-53 | 270 | MANUAL |
| 5305-01-342-9434 | 2016-11-327 | 1 | DIBBS-RFPs |
| 5305-01-342-9434 | 2014-02-59 | 2500 | United States |
| 5305-01-342-9434 | 2009-01-28 | 274 | DIBBS |
| 5305-01-342-9434 | 2009-01-28 | 9195 | DIBBS |
| 5305-01-342-9434 | 2008-09-261 | 5700 | DIBBS |
| 5305-01-342-9434 | 2008-09-261 | 12792 | DIBBS |
Cross Reference | NSN 5305-01-342-9434
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7002820-4 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-342-9434
Technical Data | NSN 5305-01-342-9434
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

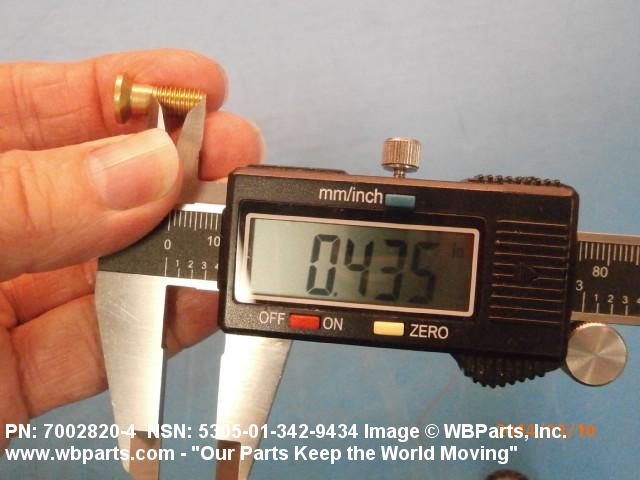

| THREAD LENGTH | 0.435 INCHES NOMINAL |
| FASTENER LENGTH | 0.653 INCHES NOMINAL |
| MATERIAL | STEEL COMP 4140 OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C50 FLAT COUNTERSUNK |

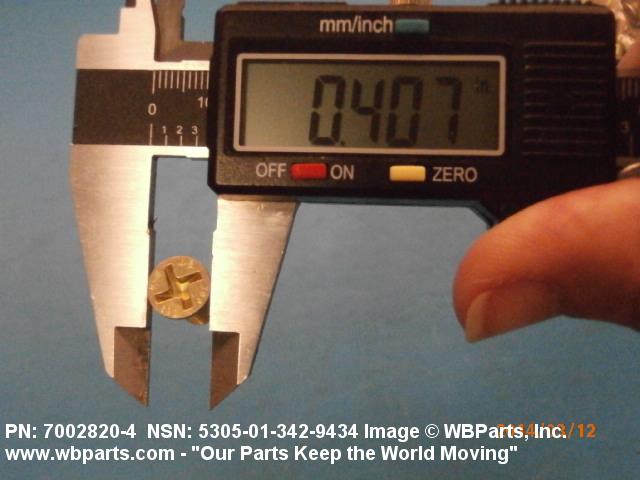

| HEAD DIAMETER | 0.390 INCHES MINIMUM AND 0.410 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |

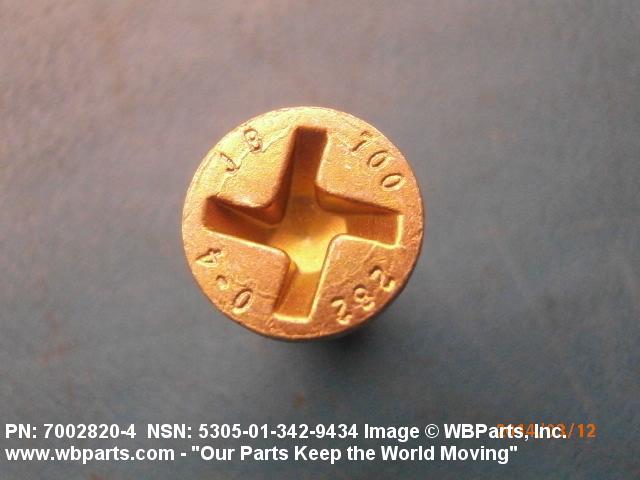

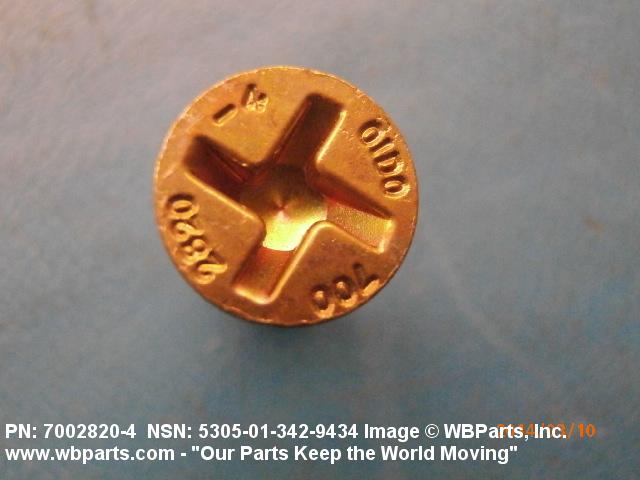

| INTERNAL DRIVE STYLE | D8 TORQUE SET |
| GRIP LENGTH | 0.218 INCHES NOMINAL |
| GRIP DIAMETER | 0.248 INCHES MINIMUM AND 0.249 INCHES MAXIMUM |
| MANUFACTURERS CODE | 82577 |
| DESIGN CONTROL REFERENCE | 7002820-4 |
Restrictions/Controls & Freight Information | NSN 5305-01-342-9434
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-342-9434
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | AL | TG:ADVANCE MEDIUM RANGE AIR-TO-AIR MISSILE |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
