NSN 5305-01-344-6728 DCT7900P10A2, DCT7900P-10-A-2, 01-344-6728

Product Details | PANEL SCREW ASSEMBLY

5305-01-344-6728 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.

Part Alternates: DCT7900P10A2, DCT7900P-10-A-2, 5305-01-344-6728, 01-344-6728, 5305013446728, 013446728

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	05 SEP 1991	01-344-6728	33044 ( SCREW ASSEMBLY, PANEL )

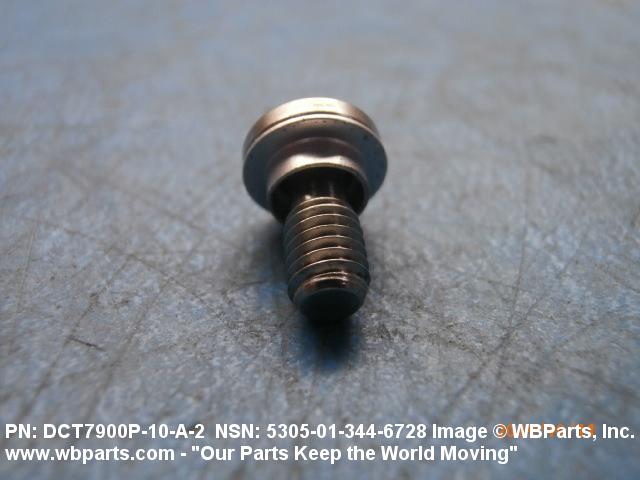

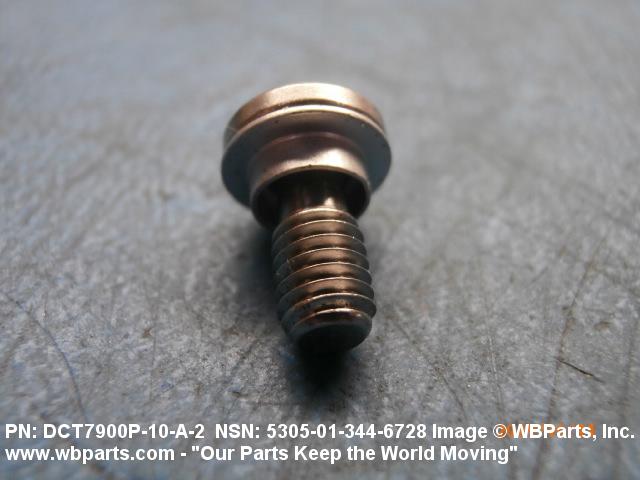

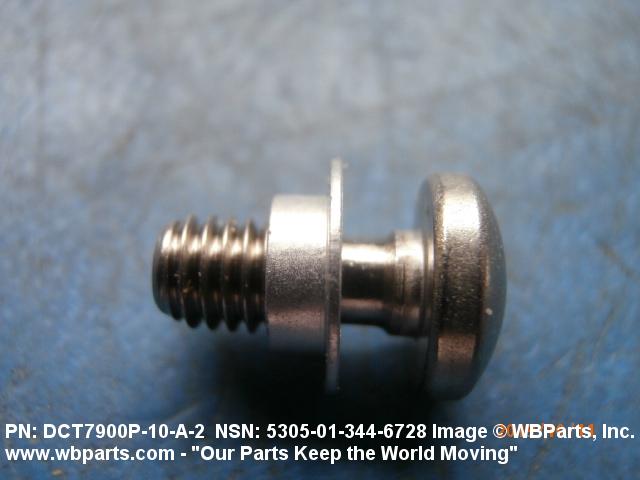

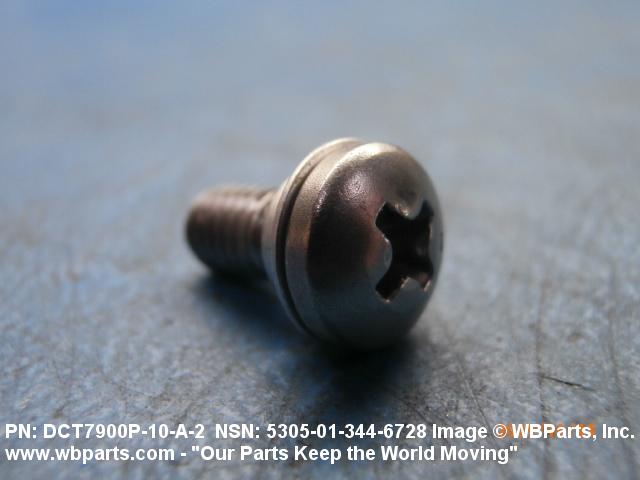

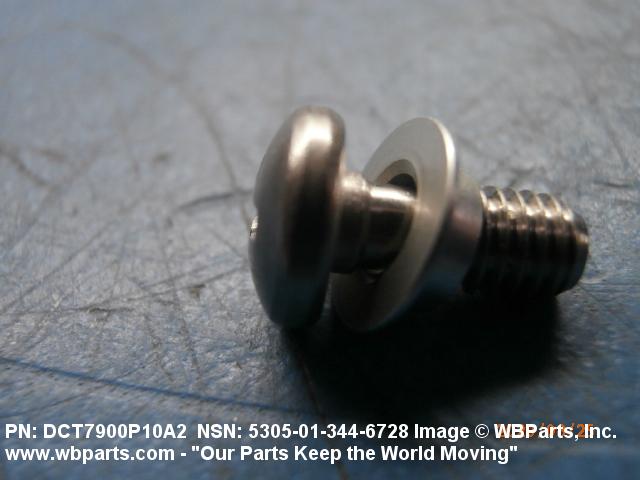

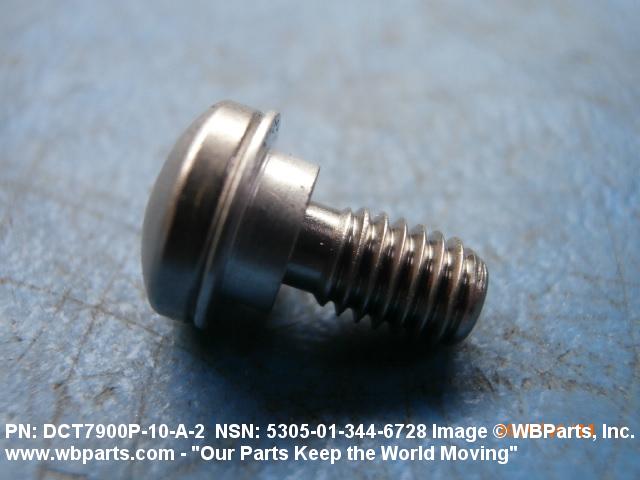

Drawings & Photos | NSN 5305-01-344-6728

Part Number	Request Date	QTY	Origin
5305-01-344-6728	2024-10-298	40	United States
5305-01-344-6728	2024-06-172	325	US
DCT7900P-10-A-2	2024-05-150	315	DIBBS
DCT7900P-10-A-2	2024-05-134	315	DIBBS
5305-01-344-6728	2023-09-254	400	US
DCT7900P10A2	2020-08-224	170	United States
DCT7900P10A2	2019-09-268	565	United States
5305-01-344-6728	2018-07-185	384	DIBBS
5305-01-344-6728	2018-02-46	173	DIBBS
DCT7900P10A2	2017-09-248	144	United States
5305-01-344-6728	2014-01-05	190	DIBBS
5305-01-344-6728	2012-11-307	120	United States
5305-01-344-6728	2012-08-243	104	DIBBS
DCT7900P10A2	2012-05-144	16	United States
DCT7900P10A2	2012-04-101	16	United States
5305-01-344-6728	2012-03-74	150	DIBBS
5305-01-344-6728	2012-02-46	35	DIBBS
5305-01-344-6728	2011-12-343	21	DIBBS
5305-01-344-6728	2011-11-311	23	DIBBS
5305-01-344-6728	2011-09-266	2	DIBBS
5305-01-344-6728	2011-09-266	2	DIBBS
5305-01-344-6728	2011-09-266	5	DIBBS
5305-01-344-6728	2011-05-140	4	DIBBS
5305-01-344-6728	2011-02-58	1	DIBBS
DCT7900P10A2	2010-11-320	100	US
5305-01-344-6728	2009-09-246	34	DIBBS

Cross Reference | NSN 5305-01-344-6728

Part Number	Cage Code	Manufacturer
DCT7900P-10-A-2	0HDW7	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
DCT7900P-10-A-2	97928	HUCK INTL INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-01-344-6728

Compare

Related Products | NSN 5305-01-344-6728

5305-01-344-7270, 5305-01-344-7271, 5305-01-344-7392, 5305-01-344-7393, 5305-01-344-7865

Technical Data | NSN 5305-01-344-6728

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF

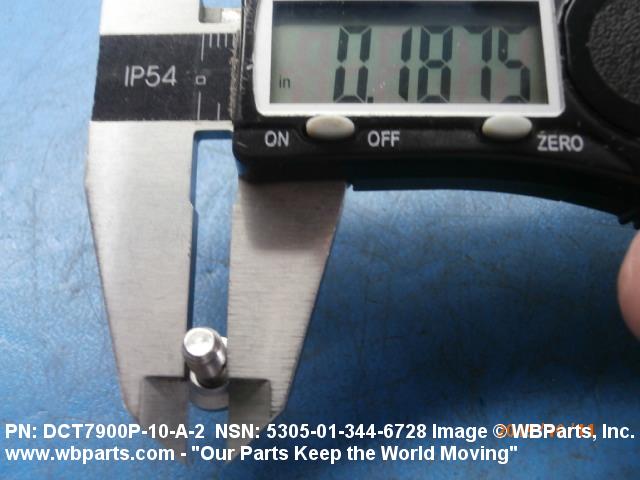

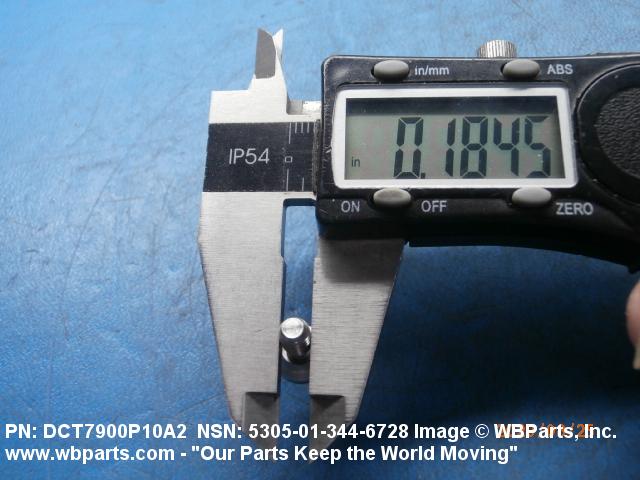

NOMINAL THREAD DIAMETER	0.190 INCHES

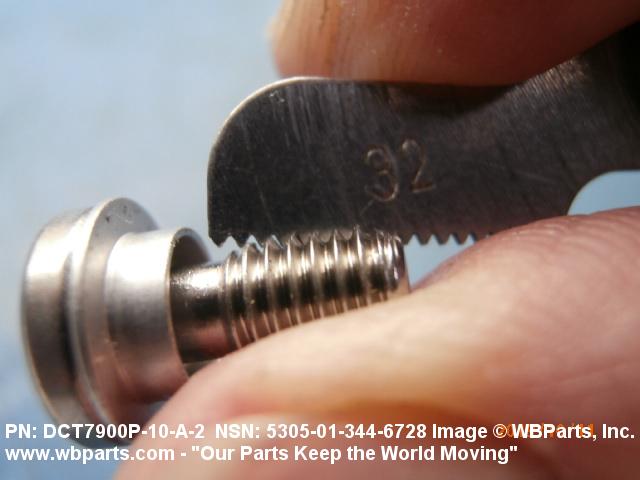

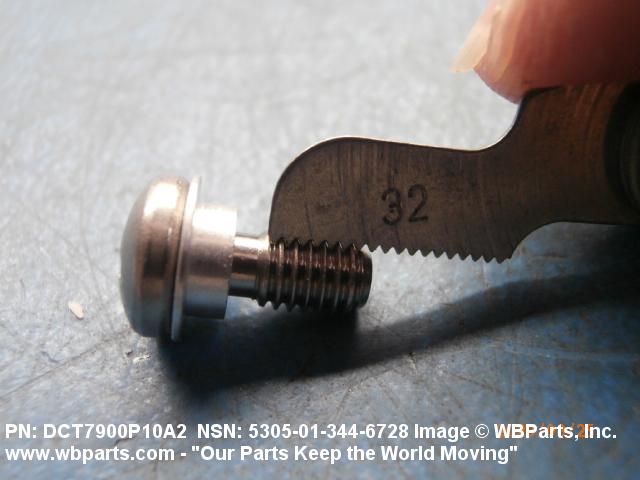

THREAD QUANTITY PER INCH	32
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND

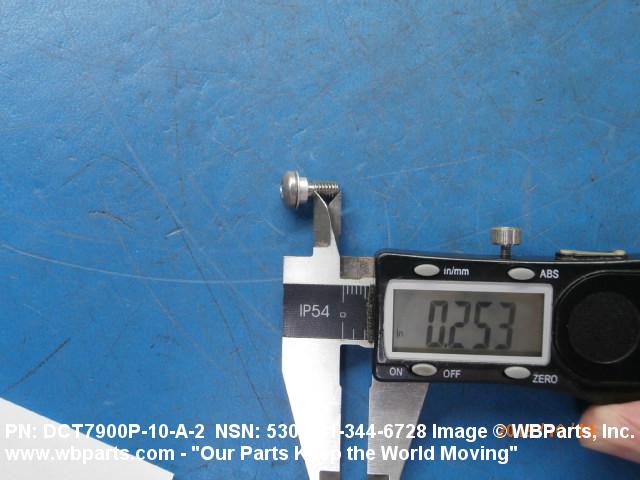

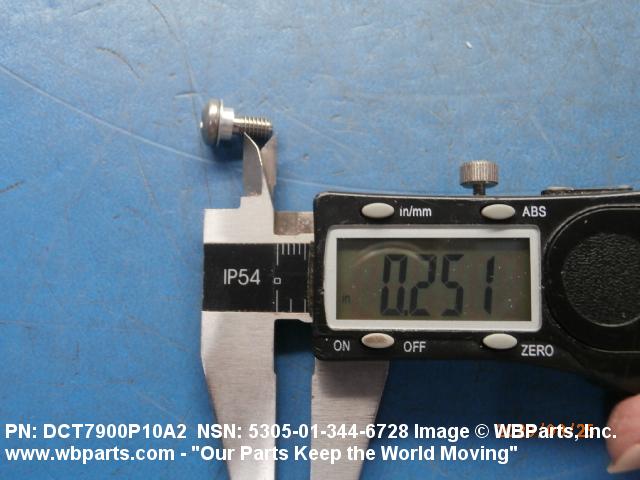

THREAD LENGTH	0.250 INCHES NOMINAL

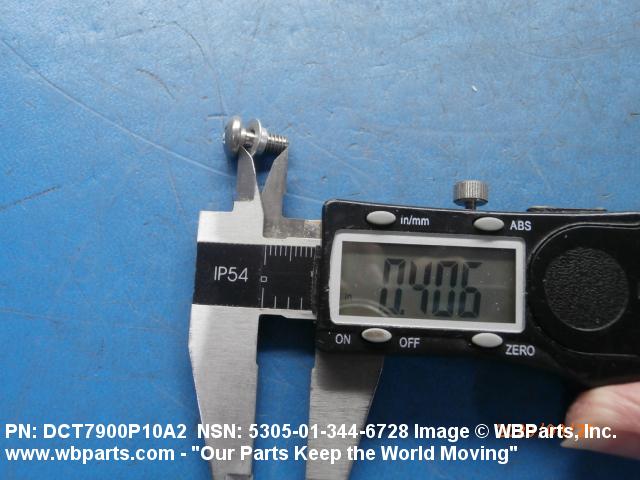

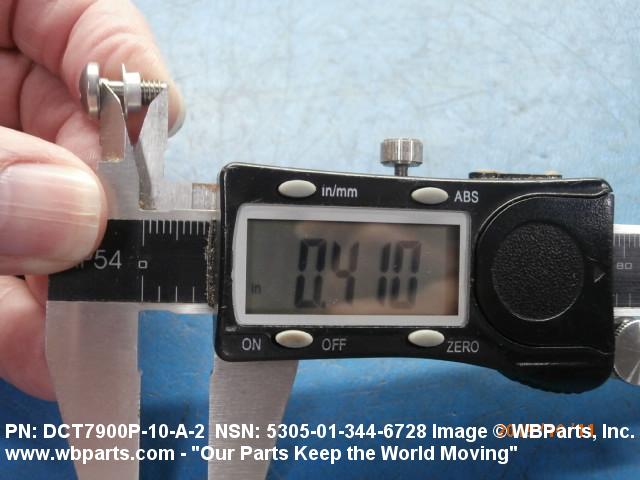

FASTENER LENGTH	0.390 INCHES NOMINAL
MATERIAL	ALUMINUM ALLOY 6061 STAND-OFF STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OR STEEL COMP 384 FASTENER
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-225/8 FED SPEC SINGLE MATERIAL RESPONSE STAND-OFF ASTM A493 ASSN STD SINGLE MATERIAL RESPONSE FASTENER
SURFACE TREATMENT	ANODIZE STAND-OFF PASSIVATE FASTENER
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625 TY1 CL1 MIL SPEC SINGLE TREATMENT RESPONSE STAND-OFF QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE FASTENER
HEAD STYLE	C32 PAN

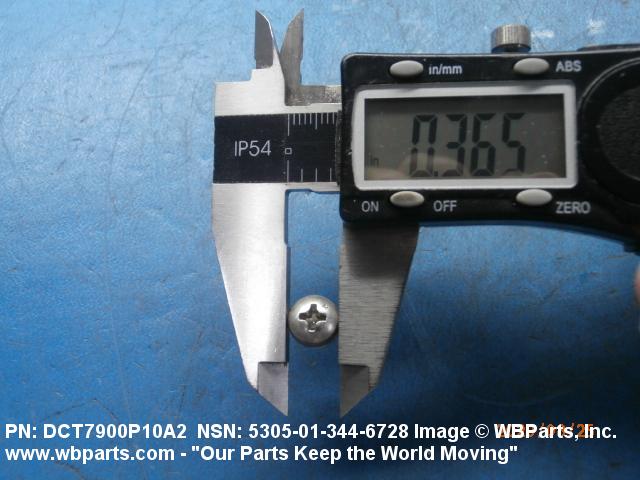

HEAD DIAMETER	0.365 INCHES NOMINAL

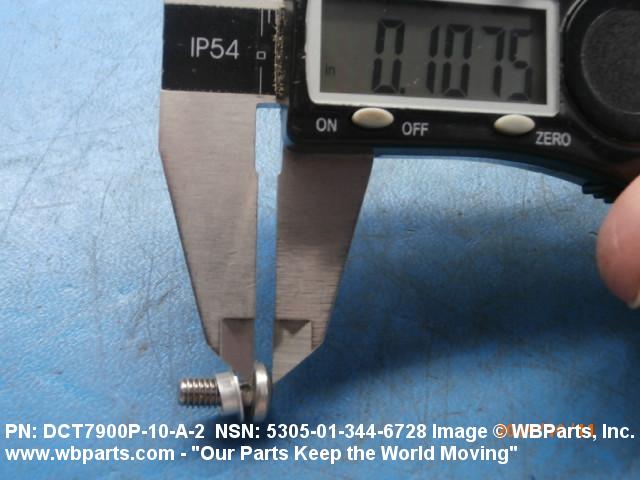

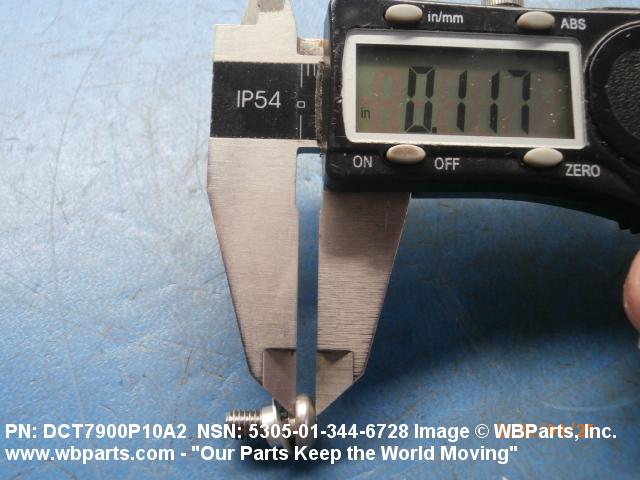

HEAD HEIGHT	0.105 INCHES NOMINAL

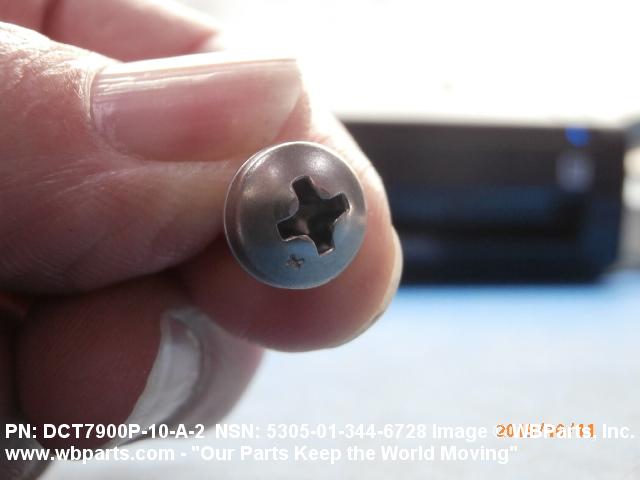

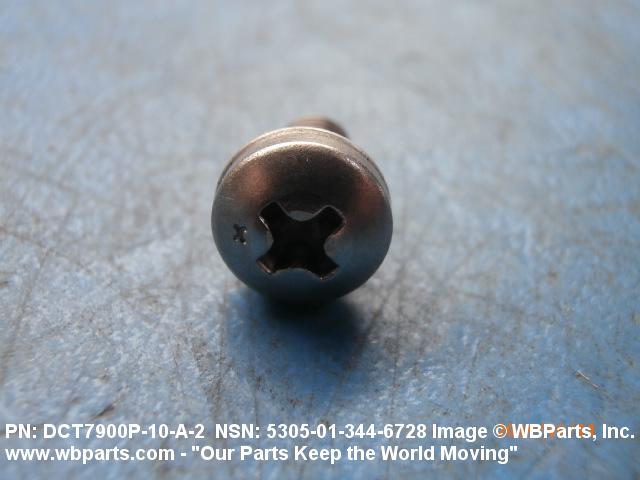

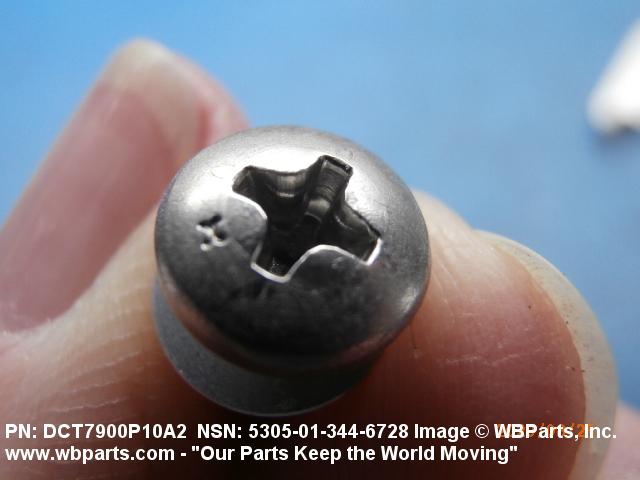

INTERNAL DRIVE STYLE	D1 CROSS RECESS TYPE 1
MATERIAL ACCOMMODATED THICKNESS	0.031 INCHES MINIMUM AND 0.062 INCHES MAXIMUM
