NSN 5305-01-393-5606 AIC61835, AIC618-3-5, C2064535
Product Details | CLOSE TOLERANCE SCREW

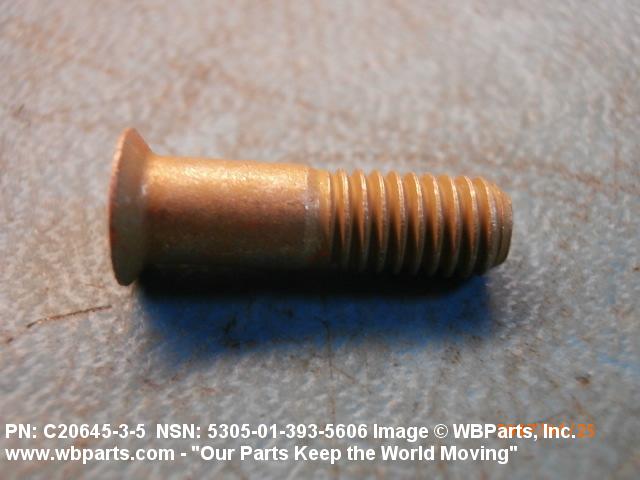

5305-01-393-5606 A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: AIC61835, AIC618-3-5, C2064535, C20645-3-5, 9392635, 93926-3-5, 5305-01-393-5606, 01-393-5606, 5305013935606, 013935606
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 JUL 1994 | 01-393-5606 | 29294 ( SCREW, CLOSE TOLERANCE ) |

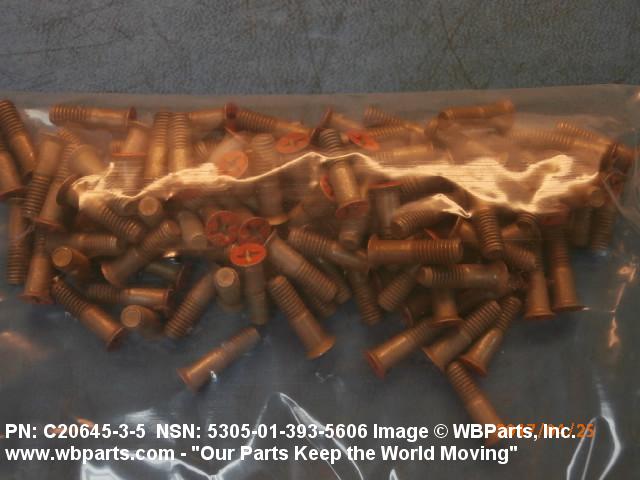

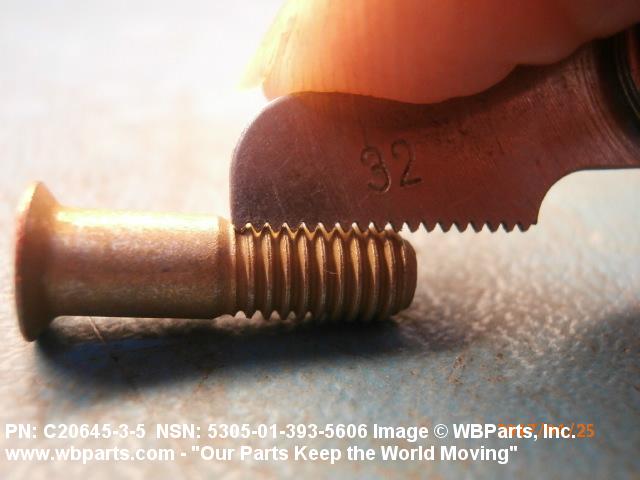

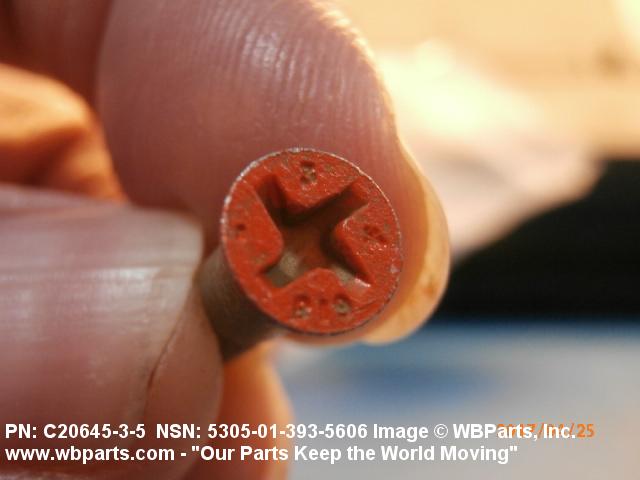

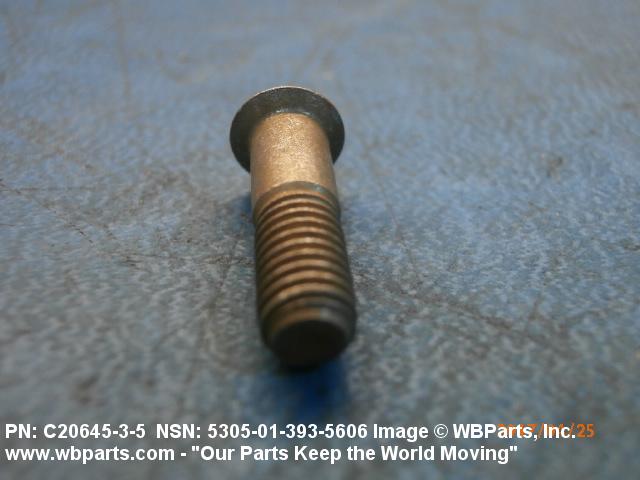

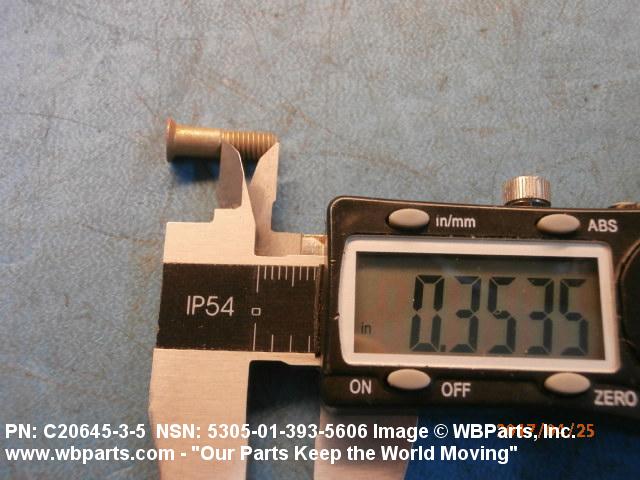

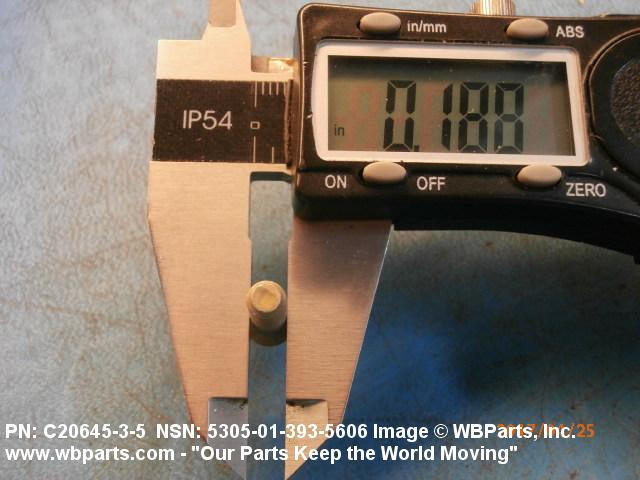

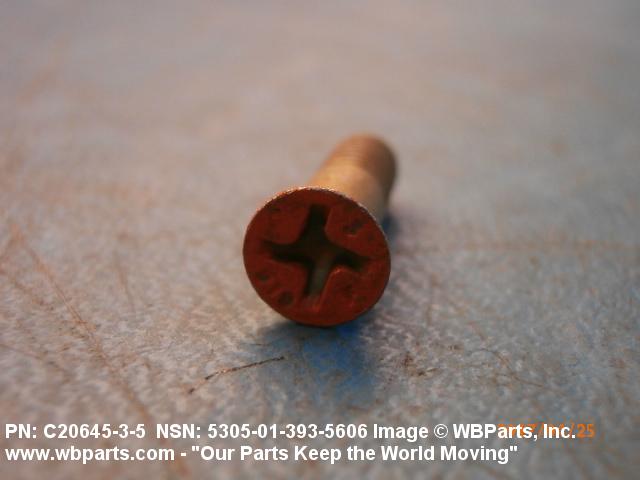

Drawings & Photos | NSN 5305-01-393-5606
Demand History | NSN 5305-01-393-5606
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 93926-3-5 | 2025-06-161 | 2263 | DIBBS |
| AIC618-3-5 | 2025-06-161 | 2263 | DIBBS |
| GS1009-3-5 | 2025-06-161 | 2263 | DIBBS |
| SF116-3-5 | 2025-06-161 | 2263 | DIBBS |
| VT10021-3-5 | 2025-06-161 | 2263 | DIBBS |
| C20645-3-5 | 2021-01-20 | 384 | IN |
| C20645-3-5 | 2021-01-20 | 384 | IN |
| 93926-3-5 | 2019-06-174 | 128 | DIBBS |
| AIC618-3-5 | 2019-06-174 | 128 | DIBBS |
| C2064535 | 2017-04-110 | 100 | United States |
| 9392635 | 2017-04-97 | 100 | United States |
Cross Reference | NSN 5305-01-393-5606
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-393-5606
Technical Data | NSN 5305-01-393-5606
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.338 INCHES MINIMUM AND 0.388 INCHES MAXIMUM |

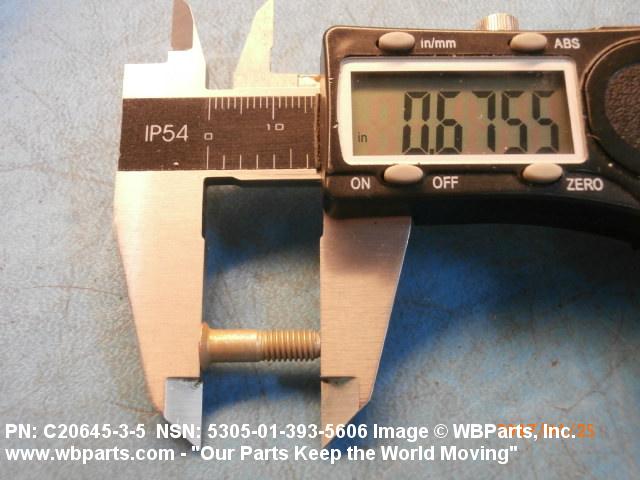

| FASTENER LENGTH | 0.660 INCHES MINIMUM AND 0.690 INCHES MAXIMUM |
| MATERIAL | STEEL COMP H11 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS6487 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | NAS672 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 46.0 ROCKWELL C MINIMUM AND 49.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 220000 POUNDS PER SQUARE INCH |

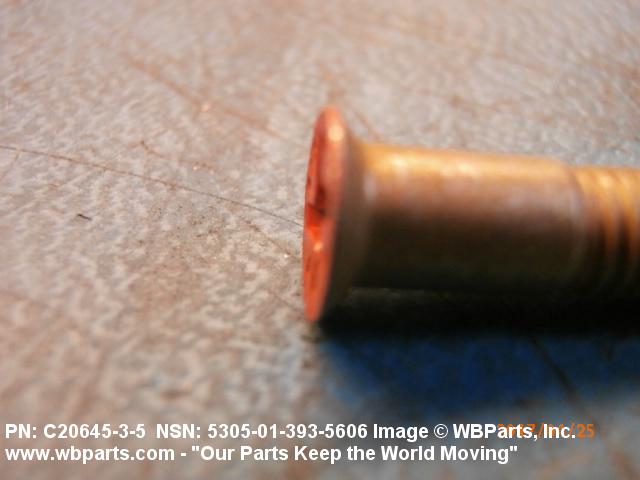

| HEAD STYLE | C50 FLAT COUNTERSUNK |

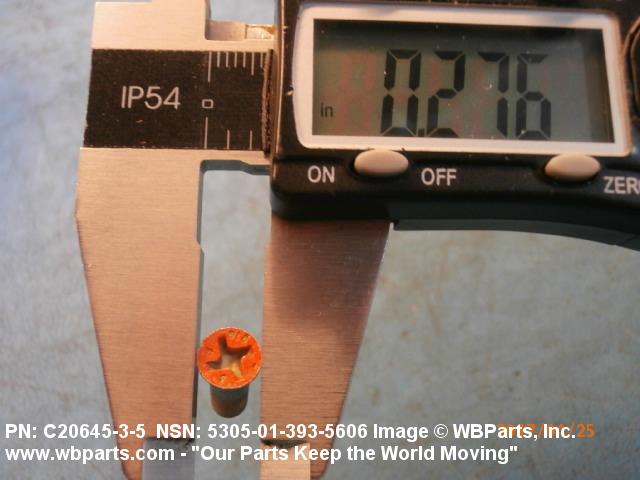

| HEAD DIAMETER | 0.258 INCHES MINIMUM AND 0.305 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |

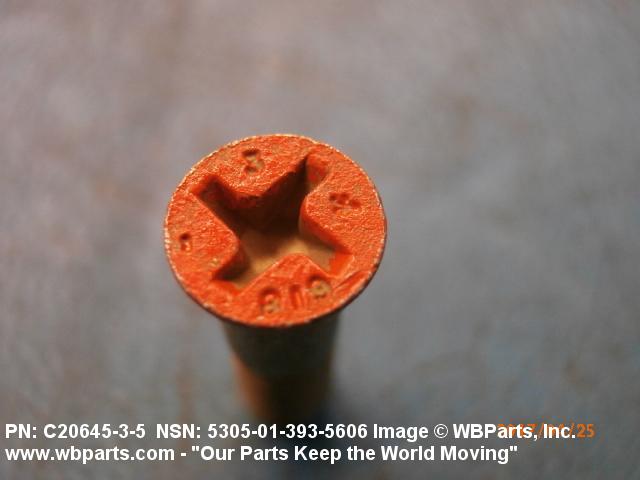

| INTERNAL DRIVE STYLE | D8 TORQUE SET |

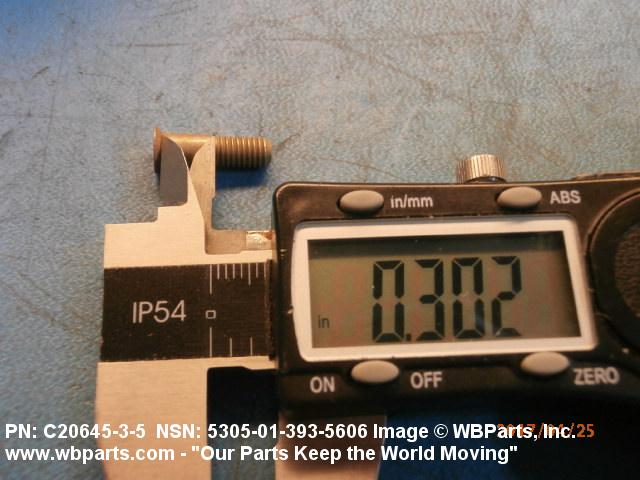

| GRIP LENGTH | 0.302 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |

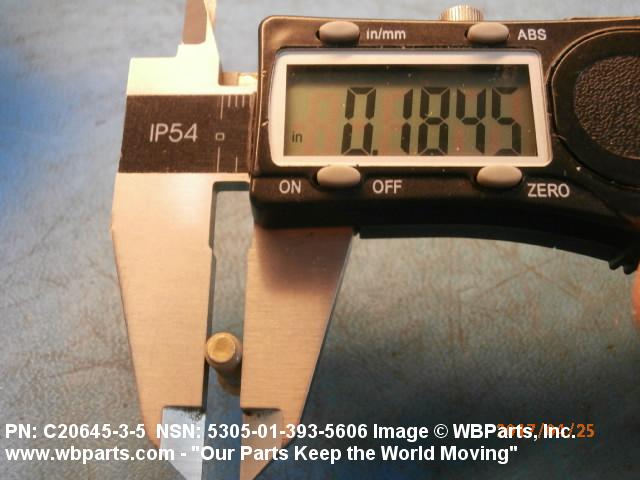

| GRIP DIAMETER | 0.1885 INCHES MINIMUM AND 0.1895 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | F-16 |
Restrictions/Controls & Freight Information | NSN 5305-01-393-5606
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
