NSN 5305-01-396-0990 DRBB7500P10B3, DRBB7500P-10-B-3, FT1600P1023B
Product Details | PANEL SCREW ASSEMBLY
5305-01-396-0990 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.
Part Alternates: DRBB7500P10B3, DRBB7500P-10-B-3, FT1600P1023B, FT1600P10-2-3B, 7010477123, 7010477-123, 5305-01-396-0990, 01-396-0990, 5305013960990, 013960990
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 SEP 1994 | 01-396-0990 | 33044 ( SCREW ASSEMBLY, PANEL ) |

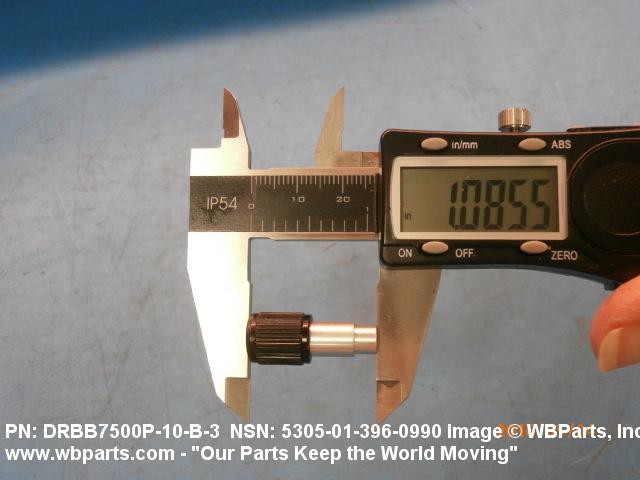

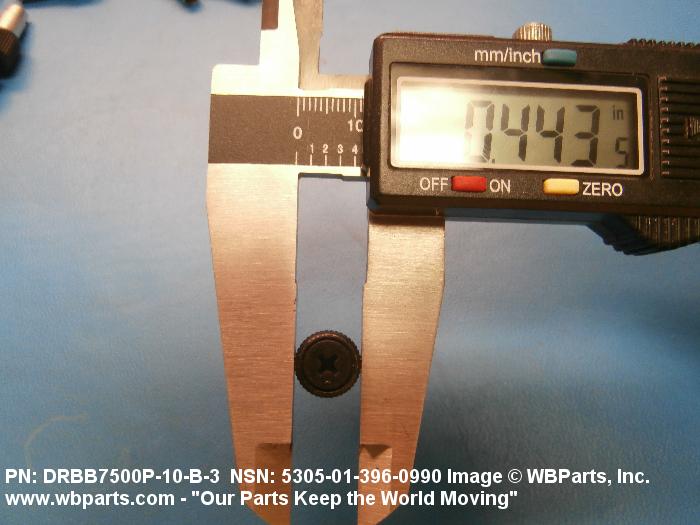

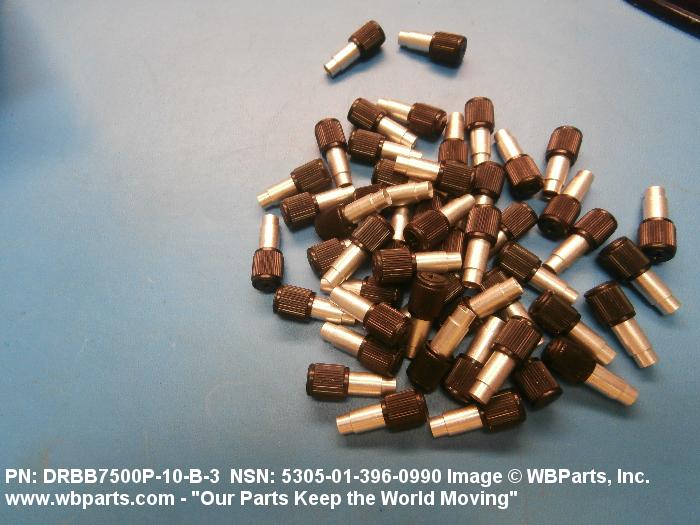

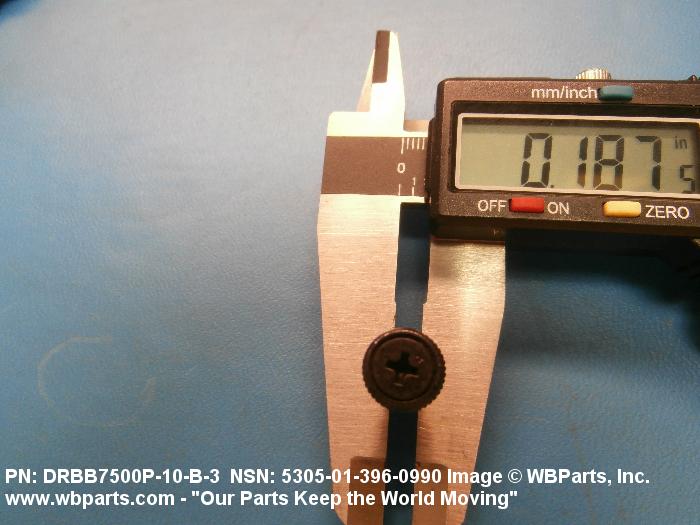

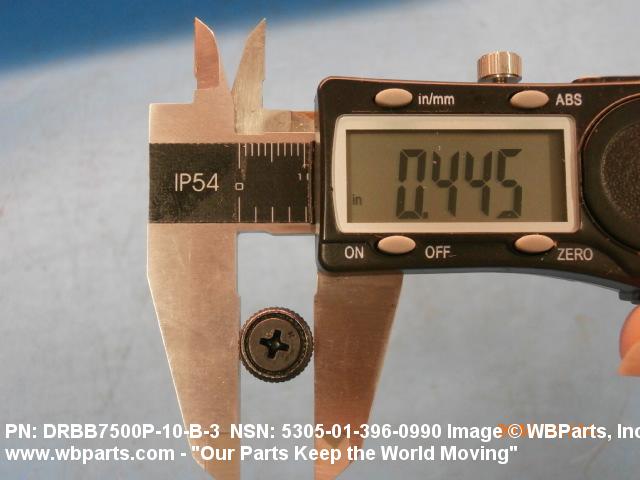

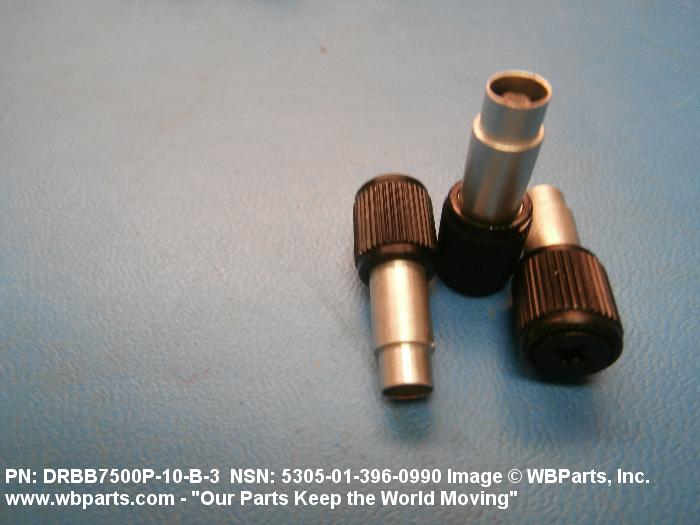

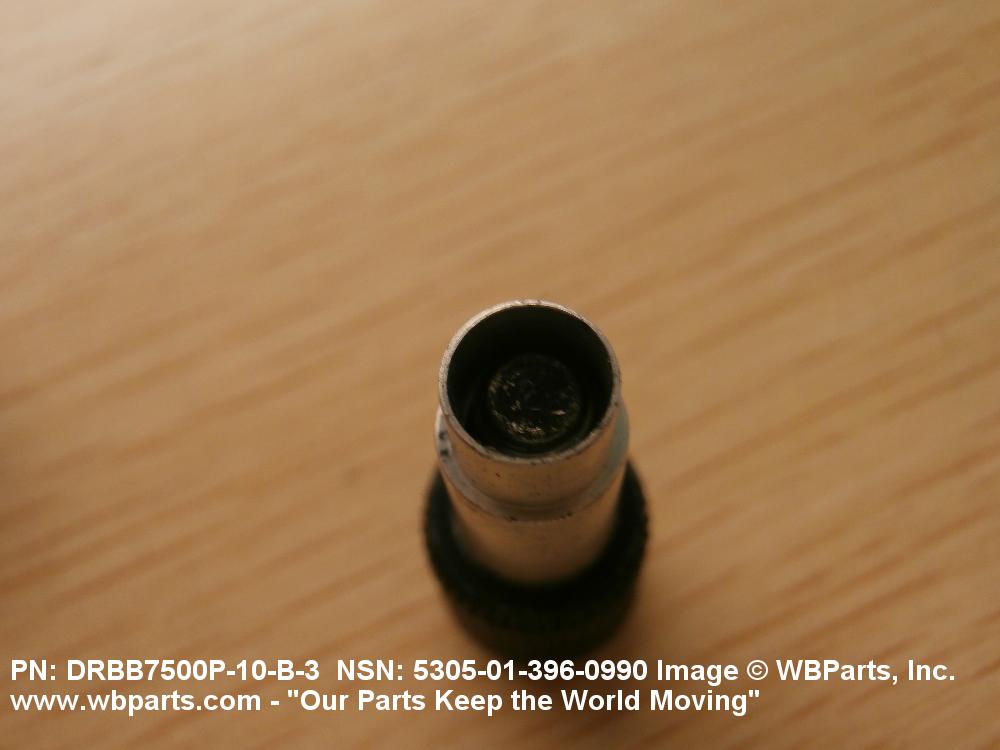

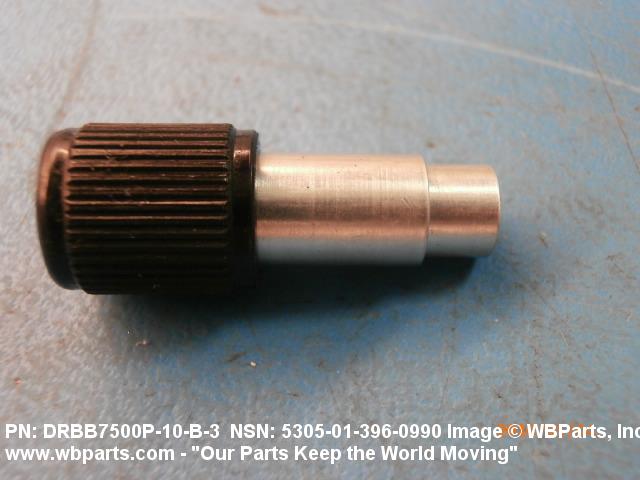

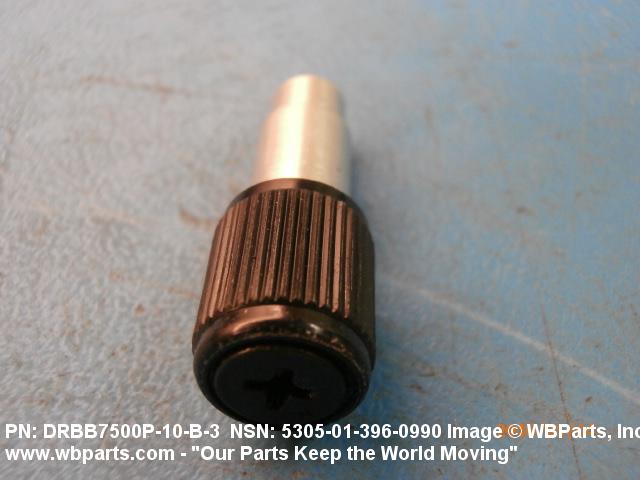

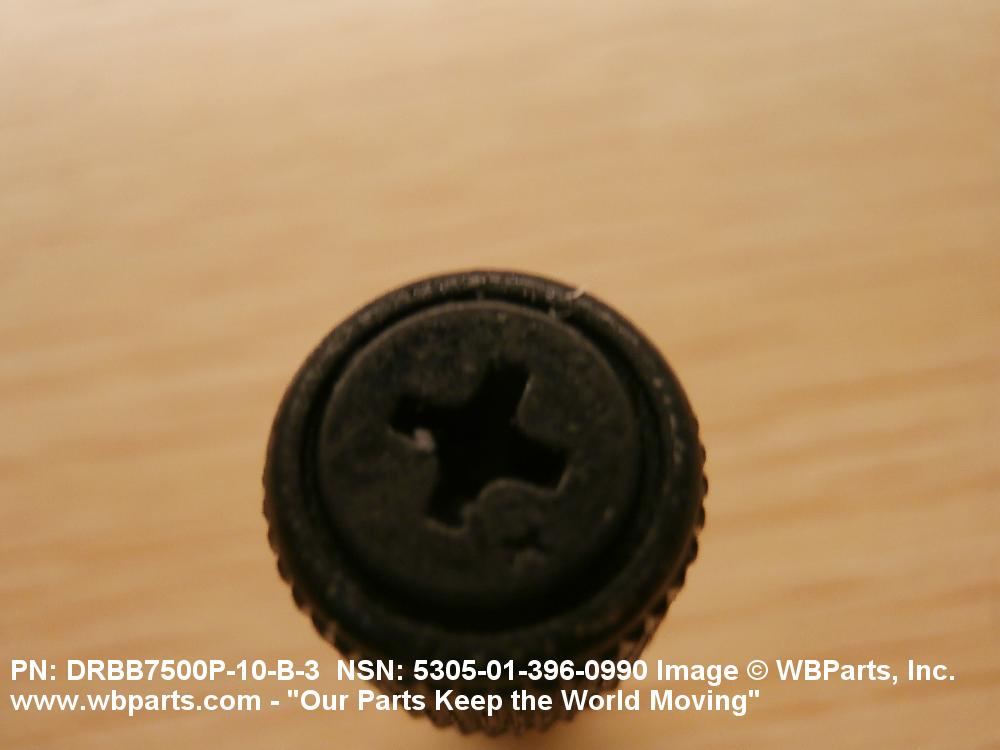

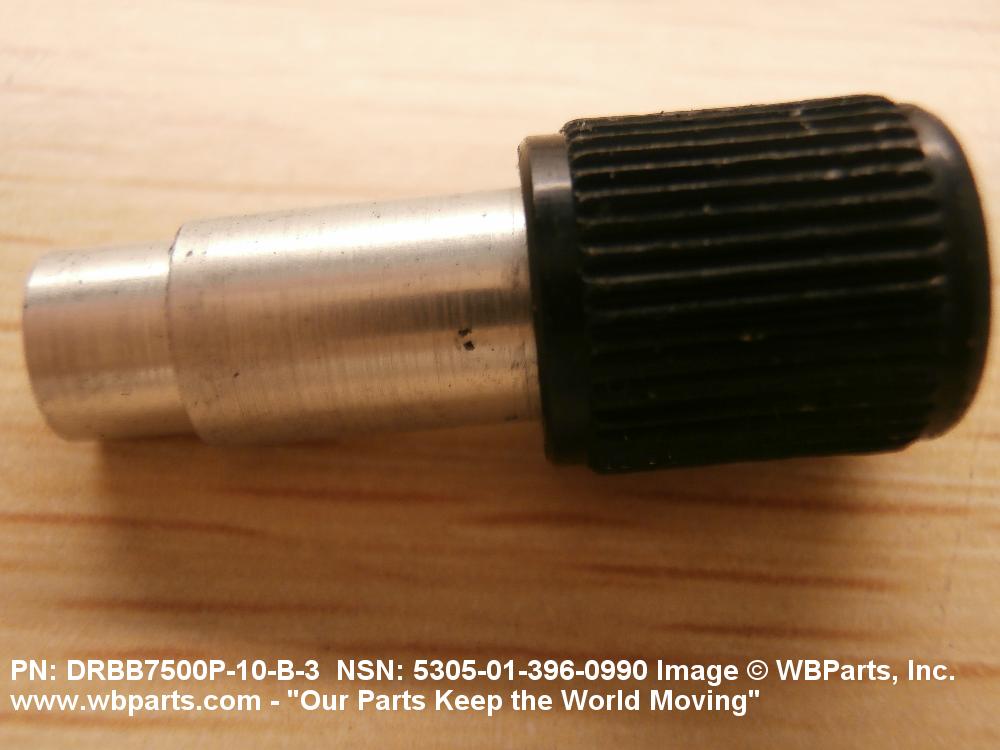

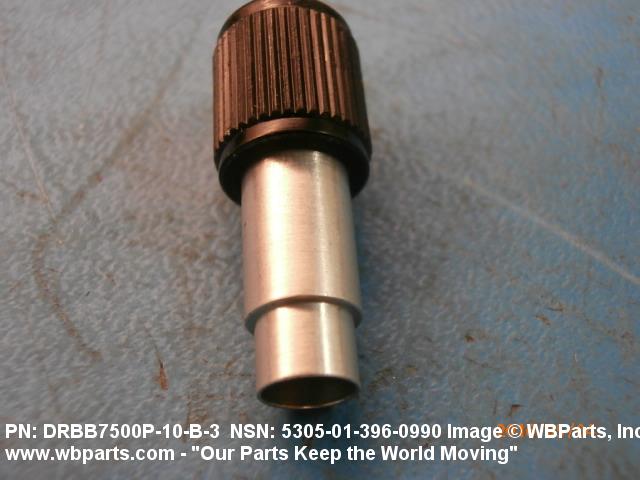

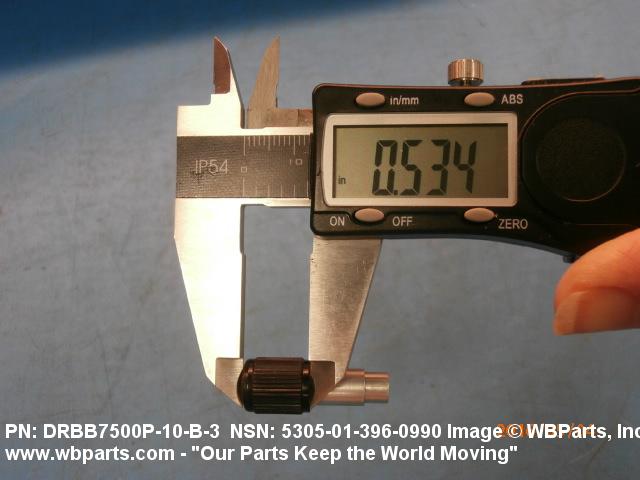

Drawings & Photos | NSN 5305-01-396-0990
Demand History | NSN 5305-01-396-0990
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-396-0990 | 2024-06-177 | 35 | US |
| 5305-01-396-0990 | 2019-04-105 | 100 | United States |
| 5305-01-396-0990 | 2017-07-197 | 800 | DIBBS |
| 5305-01-396-0990 | 2017-06-180 | 130 | DIBBS |
| 5305-01-396-0990 | 2017-05-151 | 10 | DIBBS |
| 5305-01-396-0990 | 2017-04-116 | 38 | DIBBS |
| 5305-01-396-0990 | 2017-04-116 | 87 | DIBBS |
| 5305-01-396-0990 | 2017-04-116 | 93 | DIBBS |
| 5305-01-396-0990 | 2017-04-108 | 38 | DIBBS |
| 5305-01-396-0990 | 2017-04-108 | 87 | DIBBS |
| 5305-01-396-0990 | 2017-04-108 | 93 | DIBBS |
| DRBB7500P10B3 | 2016-04-120 | 100 | United States |
| DRBB7500P10B3 | 2015-02-40 | 50 | United States |
| DRBB7500P10B3 | 2014-05-133 | 50 | United States |
| DRBB7500P10B3 | 2012-08-227 | 20 | United States |
| 5305-01-396-0990 | 2008-07-190 | 119 | DIBBS |
| 5305-01-396-0990 | 2008-07-185 | 34 | DIBBS |
| 5305-01-396-0990 | 2008-07-185 | 45 | DIBBS |
| DRBB7500P10B3 | 2008-06-154 | 40 | Israel |
| 5305-01-396-0990 | 2008-04-94 | 400 | IL |
Cross Reference | NSN 5305-01-396-0990
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7010477-123 | 12436 | BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC. |
| DRBB7500P-10-B-3 | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| DRBB7500P-10-B-3 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| DRBB7500P-10-B-3 | 97928 | HUCK INTL INC |
| FT1600P10-2-3B | 58794 | FASTENER TECHNOLOGY CORP. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-396-0990
Related Products | NSN 5305-01-396-0990
Technical Data | NSN 5305-01-396-0990
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | AAL |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |

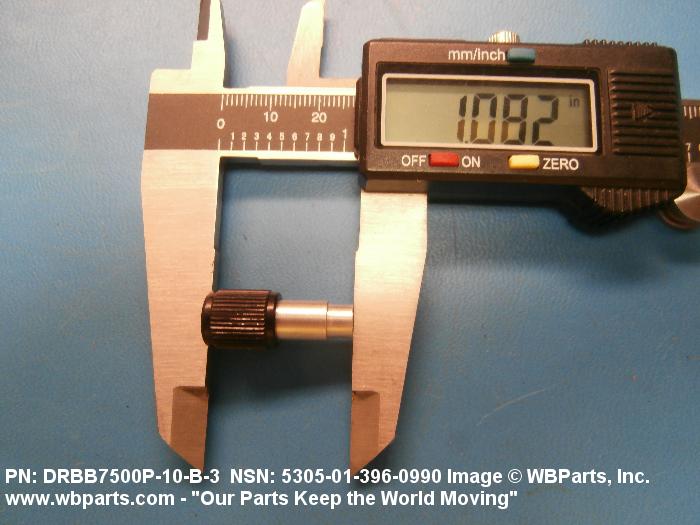

| FASTENER LENGTH | 1.082 INCHES NOMINAL |
