NSN 5305-01-445-7171 11438307005, 11438307-005, 01-445-7171
Product Details | PANEL SCREW ASSEMBLY
5305-01-445-7171 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.
Part Alternates: 11438307005, 11438307-005, 5305-01-445-7171, 01-445-7171, 5305014457171, 014457171
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 JUN 1997 | 01-445-7171 | 33044 ( SCREW ASSEMBLY, PANEL ) |

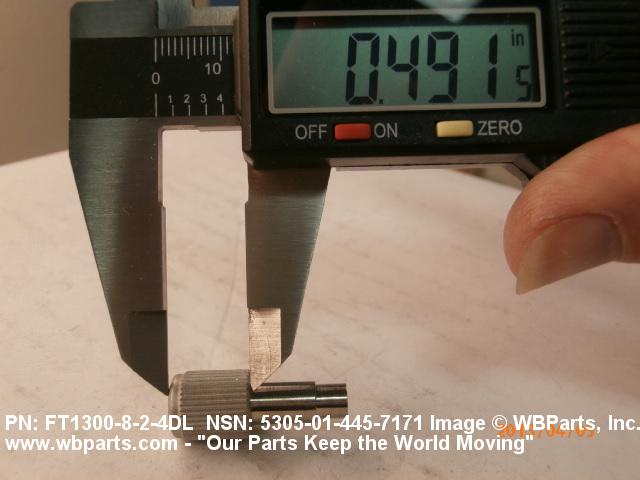

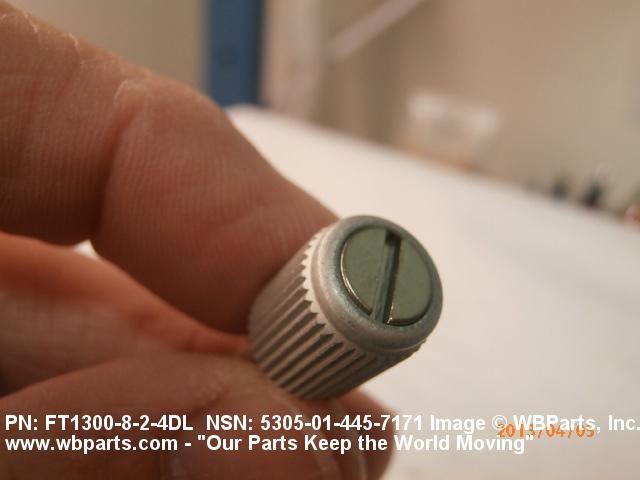

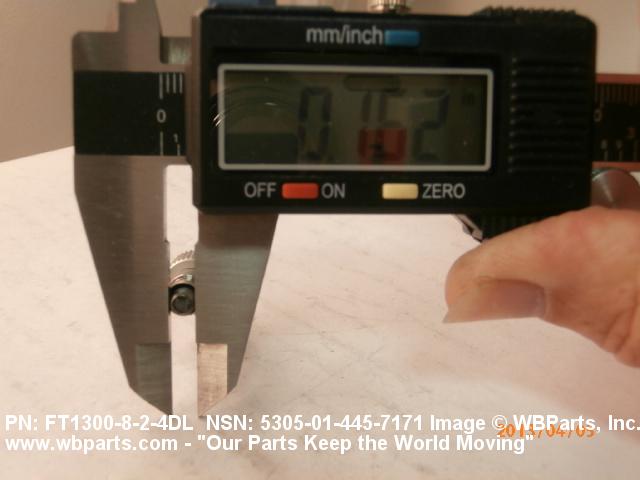

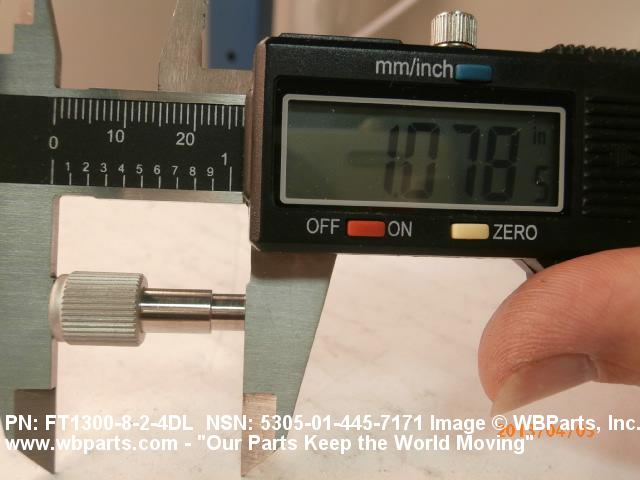

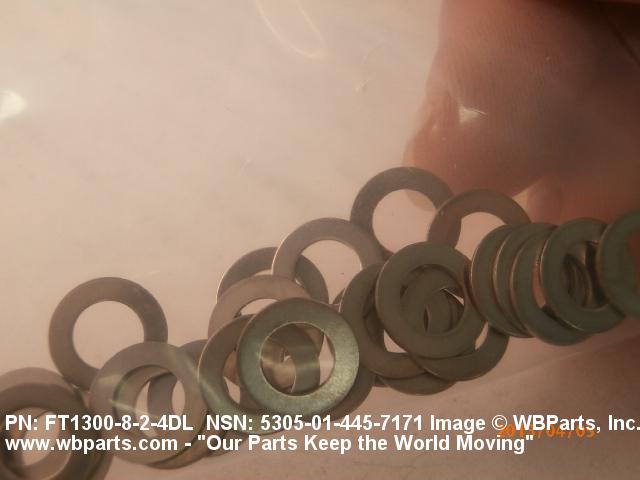

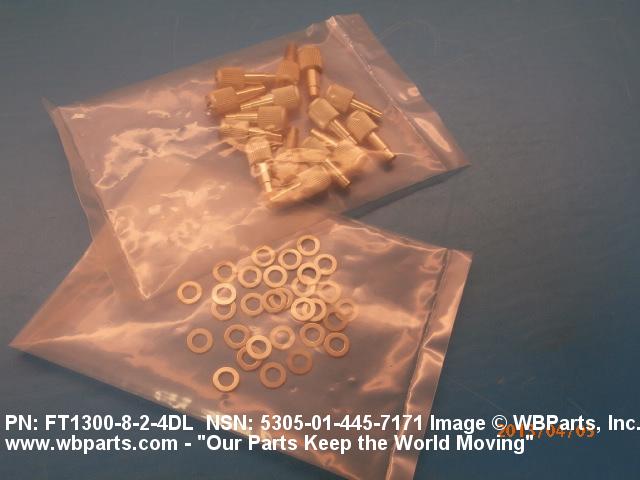

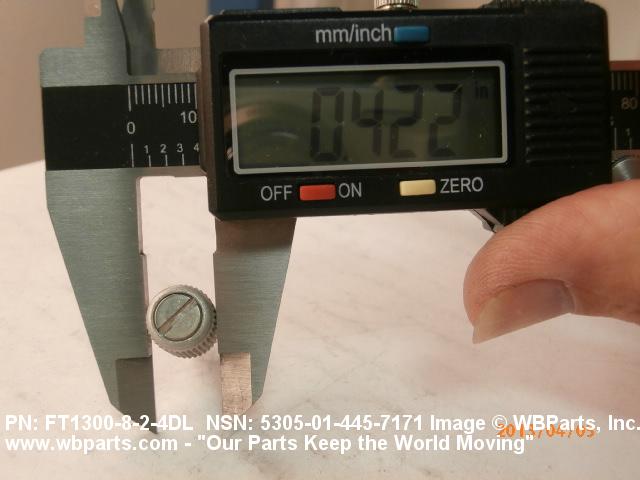

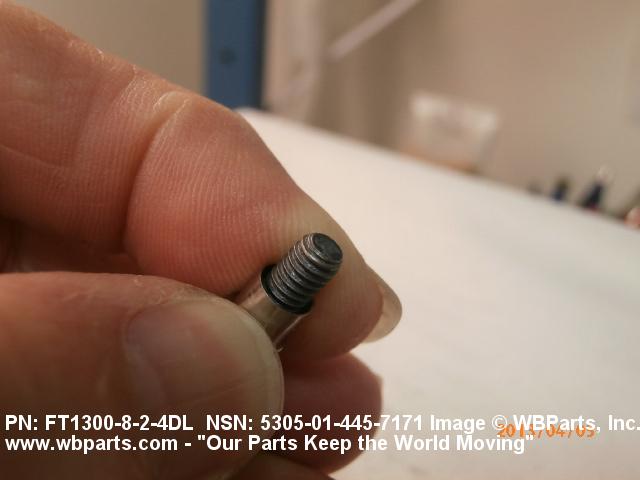

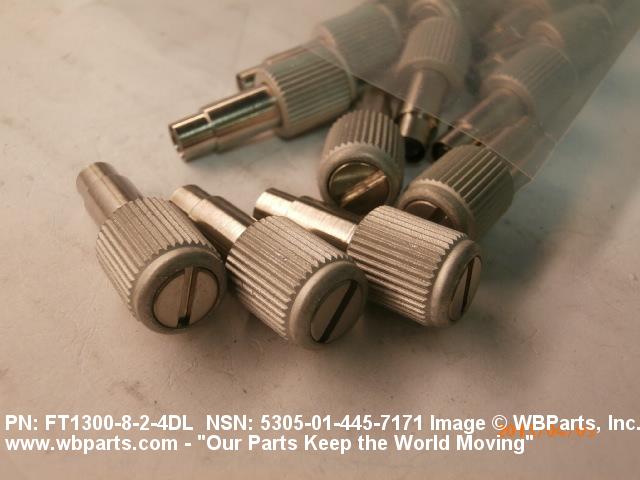

Drawings & Photos | NSN 5305-01-445-7171
Demand History | NSN 5305-01-445-7171
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 11438307005 | 2015-07-205 | 5 | United States |
| 5305-01-445-7171 | 2013-04-93 | 15 | US |
| 11438307005 | 2013-04-93 | 15 | US |
| 11438307005 | 2013-04-93 | 15 | United States |
| 11438307005 | 2011-09-244 | 25 | United States |
| 11438307005 | 2011-09-244 | 25 | United States |
Cross Reference | NSN 5305-01-445-7171
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11438307-005 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-445-7171
Technical Data | NSN 5305-01-445-7171
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| FASTENER LENGTH | 0.515 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY HEAD STEEL SPRING |
| HEAD STYLE | C66 KNURLED NO. 1 |
| HEAD DIAMETER | 0.420 INCHES NOMINAL |
| HEAD HEIGHT | 0.495 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D14 SLOT |
| MATERIAL ACCOMMODATED THICKNESS | 0.032 INCHES MINIMUM AND 0.093 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5305-01-445-7171
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
