NSN 5305-01-447-1216 FRW75008C5DL, FRW7500-8-C-5DL, FRWS75008C5DL

Product Details | PANEL SCREW ASSEMBLY

5305-01-447-1216 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.

Part Alternates: FRW75008C5DL, FRW7500-8-C-5DL, FRWS75008C5DL, FRWS7500-8-C-5DL , FT1500835DL, FT1500-8-3-5DL, 11438307121, 11438307-121, 5305-01-447-1216, 01-447-1216, 5305014471216, 014471216

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	26 JUL 1997	01-447-1216	33044 ( SCREW ASSEMBLY, PANEL )

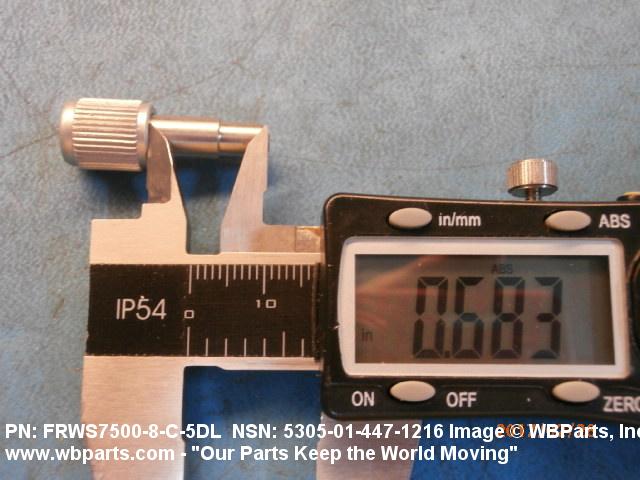

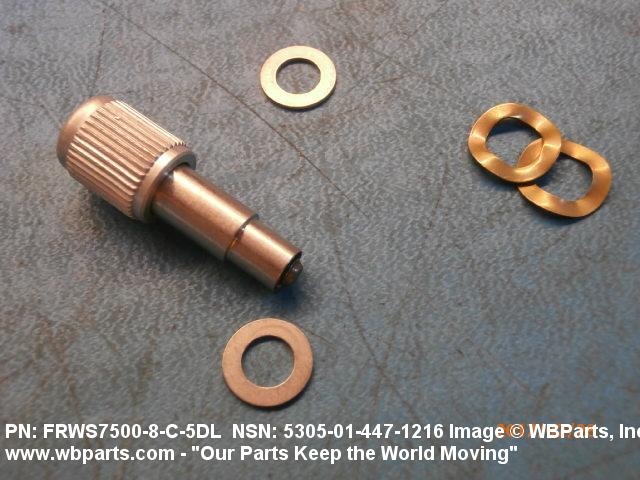

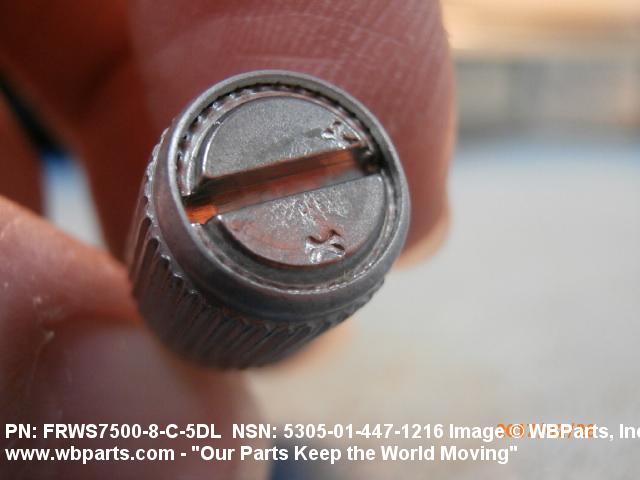

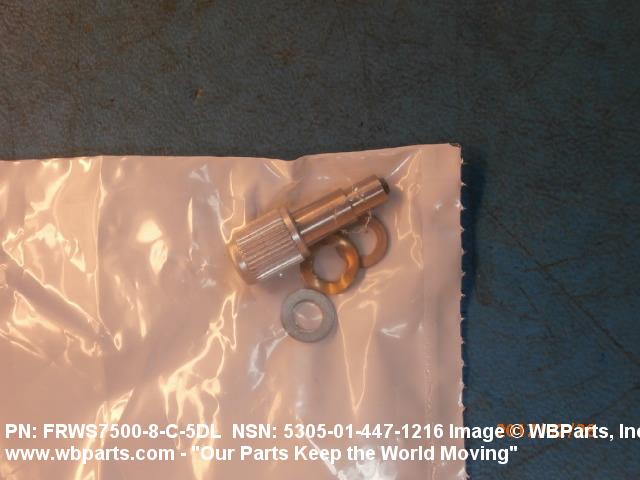

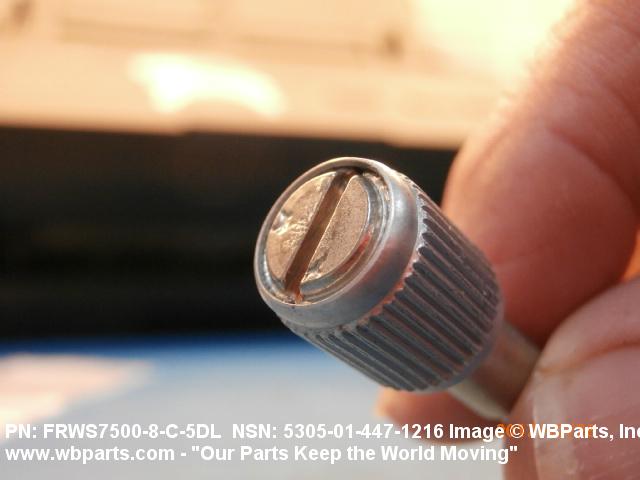

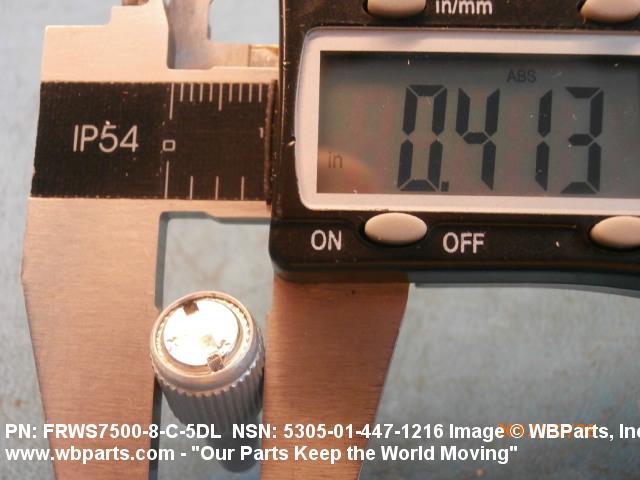

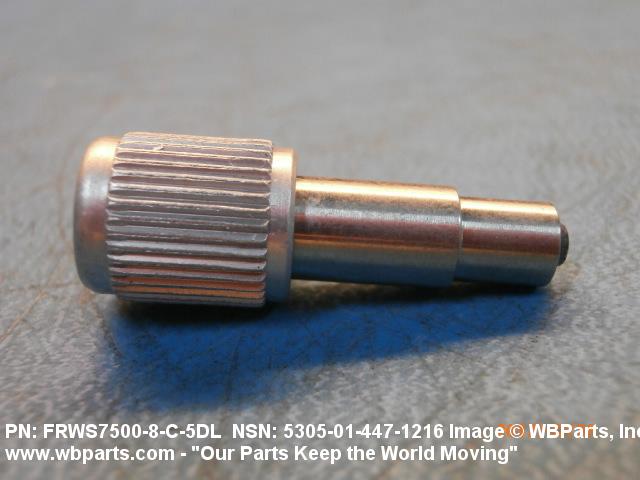

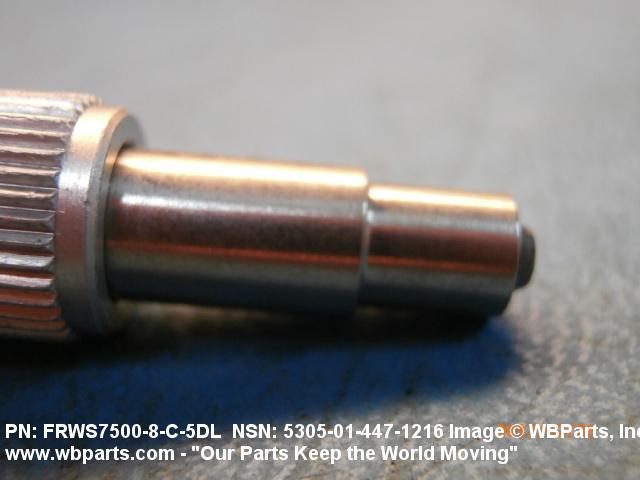

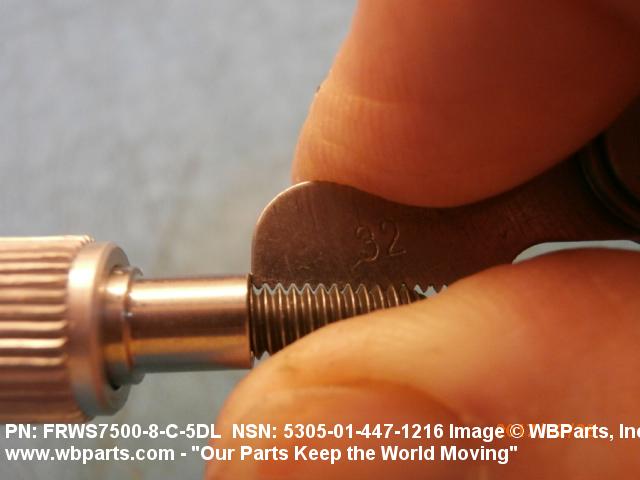

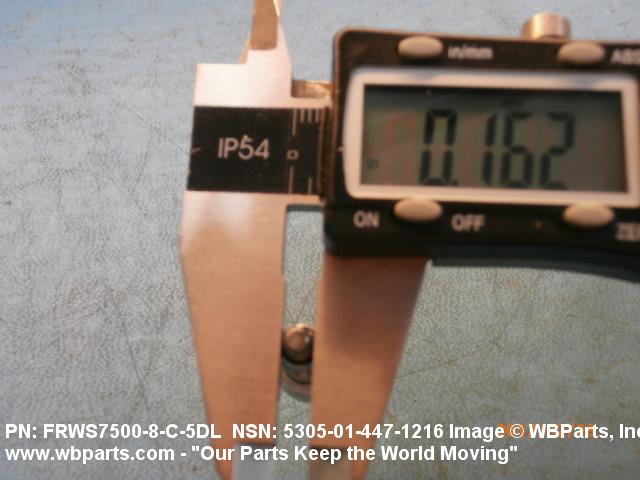

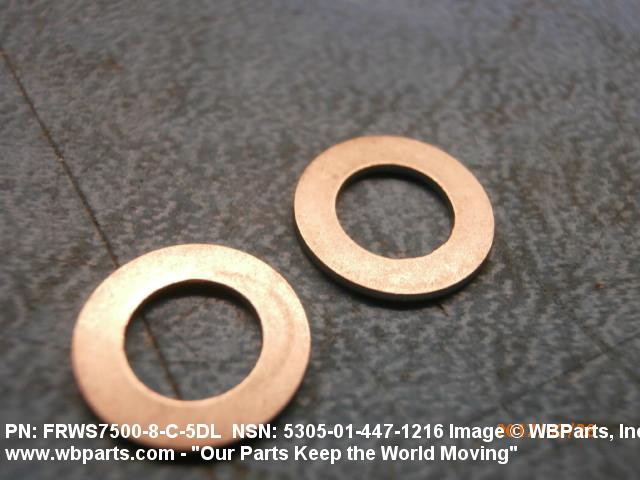

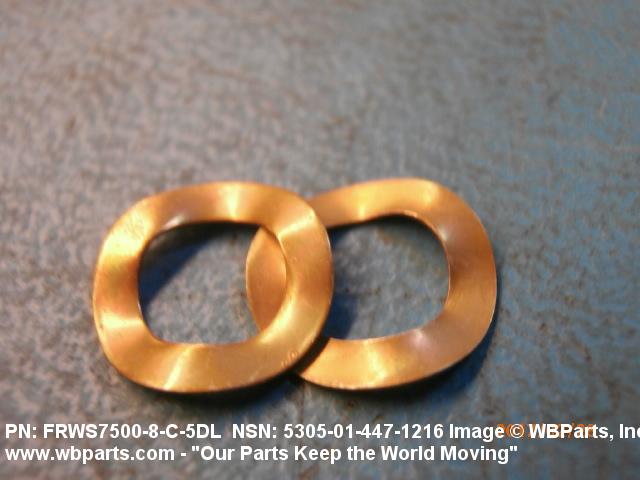

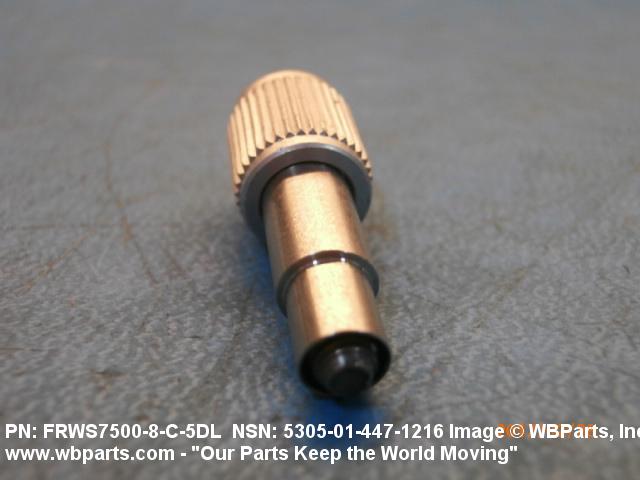

Drawings & Photos | NSN 5305-01-447-1216

Part Number	Request Date	QTY	Origin
5305-01-447-1216	2024-07-205	20	United States
FRWS7500-8-C-5DL	2021-12-341	263	DIBBS
FT1500-8-3-5DL	2021-12-341	263	DIBBS
FRWS7500-8-C-5DL	2021-05-125	119	DIBBS
FT1500-8-3-5DL	2021-05-125	119	DIBBS
FRWS7500-8-C-5DL	2021-01-05	36	DIBBS
FT1500-8-3-5DL	2021-01-05	36	DIBBS
5305-01-447-1216	2020-06-157	1	DIBBS-RFPs
FRWS7500-8-C-5DL	2020-05-148	40	DIBBS
FT1500-8-3-5DL	2020-05-148	40	DIBBS
FRWS7500-8-C-5DL	2020-04-99	42	DIBBS
FT1500-8-3-5DL	2020-04-99	42	DIBBS
FRWS7500-8-C-5DL	2019-02-41	29	DIBBS
FT1500-8-3-5DL	2019-02-41	29	DIBBS
5305-01-447-1216	2018-12-360	54	DIBBS
5305-01-447-1216	2018-12-352	54	DIBBS
11438307121	2017-02-40	30	United States
FRWS75008C5DL	2017-02-40	24	United States
5305-01-447-1216	2016-08-214	117	DIBBS
FRWS75008C5DL	2012-06-177	6	United States
FRWS75008C5DL	2012-06-177	10	United States
5305-01-447-1216	2011-12-342	118	DIBBS
5305-01-447-1216	2011-02-46	206	DIBBS
5305-01-447-1216	2011-02-39	30	DIBBS
5305-01-447-1216	2011-02-39	176	DIBBS
5305-01-447-1216	2010-12-358	4	DIBBS
5305-01-447-1216	2010-12-358	8	DIBBS
5305-01-447-1216	2010-12-358	36	DIBBS
5305-01-447-1216	2010-08-227	12	DIBBS
FRWS75008C5DL	2010-07-210	2	us

Cross Reference | NSN 5305-01-447-1216

Part Number	Cage Code	Manufacturer
11438307-121	18876	U S ARMY AVIATION AND MISSILE COMMAND
FRW7500-8-C-5DL	97928	HUCK INTL INC
FRWS7500-8-C-5DL	0HDW7	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
FT1500-8-3-5DL	58794	FASTENER TECHNOLOGY CORP.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-01-447-1216

Compare

Related Products | NSN 5305-01-447-1216

5305-01-447-1218, 5305-01-447-1221, 5305-01-447-1283, 5305-01-447-1321, 5305-01-447-1325

Technical Data | NSN 5305-01-447-1216

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.164 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
FASTENER LENGTH	0.690 INCHES NOMINAL
MATERIAL	STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM A-493, CL 300 SERIES ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
HEAD STYLE	C43 DOUBLE CHAMFER
HEAD DIAMETER	0.420 INCHES NOMINAL
HEAD HEIGHT	0.495 INCHES NOMINAL
INTERNAL DRIVE STYLE	D14 SLOT
MATERIAL ACCOMMODATED THICKNESS	0.640 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5305-01-447-1216

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	096640	SCREWS, IRON OR STEEL
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-01-447-1216

Army

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
